DIALOG_IMPORT_SYMBOL_SELECT Class Reference

Dialog to select symbols for import from an external library file. More...

#include <dialog_import_symbol_select.h>

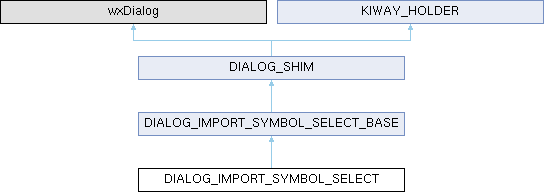

Inheritance diagram for DIALOG_IMPORT_SYMBOL_SELECT:

Public Types
enum	HOLDER_TYPE { DIALOG , FRAME , PANEL }

Public Member Functions
	DIALOG_IMPORT_SYMBOL_SELECT (SYMBOL_EDIT_FRAME *aParent, const wxString &aFilePath, const wxString &aDestLibrary, SCH_IO_MGR::SCH_FILE_T aPluginType)
	~DIALOG_IMPORT_SYMBOL_SELECT () override
std::vector< wxString >	GetSelectedSymbols () const
	Get the list of symbols selected for import.
const std::map< wxString, CONFLICT_RESOLUTION > &	GetConflictResolutions () const
	Get the conflict resolutions chosen by the user.
void	SetInitialFocus (wxWindow *aWindow)
	Sets the window (usually a wxTextCtrl) that should be focused when the dialog is shown.
int	ShowModal () override
int	ShowQuasiModal ()
void	EndQuasiModal (int retCode)
bool	IsQuasiModal () const
void	PrepareForModalSubDialog ()
void	CleanupAfterModalSubDialog ()
bool	Show (bool show) override
bool	Enable (bool enable) override
void	OnPaint (wxPaintEvent &event)
void	OnModify ()
void	ClearModify ()
void	SetPosition (const wxPoint &aNewPosition)
	Force the position of the dialog to a new position.
EDA_UNITS	GetUserUnits () const
void	SelectAllInTextCtrls (wxWindowList &children)
void	SetupStandardButtons (std::map< int, wxString > aLabels={})
void	LoadControlState ()
	Load persisted control values from the current project's local settings.
void	SaveControlState ()
	Save control values and geometry to the current project's local settings.
void	OptOut (wxWindow *aWindow)
	Opt out of control state saving.
void	ExcludeFromControlUndoRedo (wxWindow *aWindow)
	Opt a control out of the dialog's generic Ctrl+Z/Ctrl+Y undo/redo.
void	RegisterUnitBinder (UNIT_BINDER *aUnitBinder, wxWindow *aWindow)
	Register a UNIT_BINDER so that it can handle units in control-state save/restore.
void	UnregisterUnitBinder (UNIT_BINDER *aUnitBinder)
	Remove a UNIT_BINDER from the control-state save/restore map.
void	EndDialogShim (int aReturnCode)
	A mode agnostic way to close a dialog.
HOLDER_TYPE	GetType () const
KIWAY &	Kiway () const
	Return a reference to the KIWAY that this object has an opportunity to participate in.
bool	HasKiway () const
	Safety check before asking for the Kiway reference.
PROJECT &	Prj () const
	Return a reference to the PROJECT associated with this KIWAY.
void	SetKiway (wxWindow *aDest, KIWAY *aKiway)
	It is only used for debugging, since "this" is not a wxWindow*.

Static Public Member Functions
static bool	IsCtrl (int aChar, const wxKeyEvent &e)
static bool	IsShiftCtrl (int aChar, const wxKeyEvent &e)

Protected Member Functions
void	OnFilterTextChanged (wxCommandEvent &event) override
void	OnSymbolSelected (wxDataViewEvent &event) override
void	OnSelectAll (wxCommandEvent &event) override
void	OnSelectNone (wxCommandEvent &event) override
void	OnUnitChanged (wxCommandEvent &event) override
bool	TransferDataToWindow () override
bool	TransferDataFromWindow () override
void	finishDialogSettings ()
	In all dialogs, we must call the same functions to fix minimal dlg size, the default position and perhaps some others to fix a few issues depending on Windows Managers this helper function does these calls.
void	clampToWorkArea ()
	Constrain the dialog's minimum size, size and position to the work area of the display it occupies, so a dialog whose content or restored geometry is larger than the monitor still fits, its bottom controls stay reachable, and it never lands off-screen.
void	setSizeInDU (int x, int y)
	Set the dialog to the given dimensions in "dialog units".
int	horizPixelsFromDU (int x) const
	Convert an integer number of dialog units to pixels, horizontally.
int	vertPixelsFromDU (int y) const
	Convert an integer number of dialog units to pixels, vertically.
void	resetSize ()
	Clear the existing dialog size and position.
virtual void	OnCharHook (wxKeyEvent &aEvt)
virtual void	TearDownQuasiModal ()
	Override this method to perform dialog tear down actions not suitable for object dtor.
void	resetUndoRedoForNewContent (wxWindowList &aChildren)
	Reset undo/redo tracking after dynamically replacing child panels.
void	unregisterUnitBinders (wxWindow *aWindow)
	Remove UNIT_BINDER registrations for a window and all its descendants.

Protected Attributes
wxSearchCtrl *	m_searchCtrl
wxDataViewListCtrl *	m_symbolList
wxButton *	m_selectAllButton
wxButton *	m_selectNoneButton
wxStaticText *	m_unitLabel
wxChoice *	m_unitChoice
wxPanel *	m_previewPanel
wxBoxSizer *	m_previewSizer
wxStaticText *	m_statusLine
wxStdDialogButtonSizer *	m_sdbSizer
wxButton *	m_sdbSizerOK
wxButton *	m_sdbSizerCancel
EDA_UNITS	m_units
std::string	m_hash_key
bool	m_useCalculatedSize
bool	m_firstPaintEvent
wxWindow *	m_initialFocusTarget
bool	m_isClosing
wxGUIEventLoop *	m_qmodal_loop
bool	m_qmodal_showing
WINDOW_DISABLER *	m_qmodal_parent_disabler
EDA_BASE_FRAME *	m_parentFrame
std::vector< wxWindow * >	m_tabOrder
wxSize	m_initialSize
bool	m_userPositioned
bool	m_userResized
std::map< wxWindow *, wxString >	m_beforeEditValues
std::map< wxWindow *, UNIT_BINDER * >	m_unitBinders
std::vector< UNDO_STEP >	m_undoStack
std::vector< UNDO_STEP >	m_redoStack
std::map< wxWindow *, wxVariant >	m_currentValues
std::set< wxWindow * >	m_noControlUndoRedo
bool	m_handlingUndoRedo
bool	m_childReleased

Private Types
enum	{ COL_CHECKBOX = 0 , COL_SYMBOL }
	Column indices for the data view (checkbox plus a combined icon+text symbol column) More...

Private Member Functions
bool	loadSymbols ()
	Load symbols from the source file and populate the manager.
void	refreshList ()
	Refresh the list control based on current filter and selections.
void	updatePreview ()
	Update the preview for the currently selected symbol.
void	updateStatusLine ()
	Update the status line with selection counts.
void	updateImportButton ()
	Update import button enabled state based on selection.
void	onItemChecked (wxDataViewEvent &event)
	Handle checkbox toggle in the list.
bool	toggleSymbolSelection (const wxString &aSymbolName, bool aChecked)
	Toggle selection state for a symbol.
bool	matchesFilter (const wxString &aSymbolName) const
	Check if a symbol matches the current filter.
bool	resolveConflicts ()
	Show conflict resolution dialog.
void	OnCloseWindow (wxCloseEvent &aEvent)
	Properly handle the wxCloseEvent when in the quasimodal mode when not calling EndQuasiModal which is possible with any dialog derived from DIALOG_SHIM.
void	OnSize (wxSizeEvent &aEvent)
void	OnMove (wxMoveEvent &aEvent)
void	OnButton (wxCommandEvent &aEvent)
	Properly handle the default button events when in the quasimodal mode when not calling EndQuasiModal which is possible with any dialog derived from DIALOG_SHIM.
void	onChildSetFocus (wxFocusEvent &aEvent)
void	onInitDialog (wxInitDialogEvent &aEvent)
void	focusParentCanvas (bool aDeferUntilFrameActive=false)
	Set focus back to the parent frame's tool canvas if available, otherwise to the parent window.
std::string	generateKey (const wxWindow *aWin) const
void	registerUndoRedoHandlers (wxWindowList &aChildren)
void	recordControlChange (wxWindow *aCtrl)
void	onCommandEvent (wxCommandEvent &aEvent)
void	onSpinEvent (wxSpinEvent &aEvent)
void	onSpinDoubleEvent (wxSpinDoubleEvent &aEvent)
void	onStyledTextChanged (wxStyledTextEvent &aEvent)
void	onGridCellChanged (wxGridEvent &aEvent)
void	onPropertyGridChanged (wxPropertyGridEvent &aEvent)
void	onDataViewListChanged (wxDataViewEvent &aEvent)
void	doUndo ()
void	doRedo ()
wxVariant	getControlValue (wxWindow *aCtrl)
void	setControlValue (wxWindow *aCtrl, const wxVariant &aValue)
	DECLARE_EVENT_TABLE ()

Private Attributes
SYMBOL_EDIT_FRAME *	m_frame
wxString	m_filePath
wxString	m_destLibrary
IO_RELEASER< SCH_IO >	m_plugin
	Plugin kept alive for symbol access during dialog lifetime.
SYMBOL_PREVIEW_WIDGET *	m_preview
SYMBOL_IMPORT_MANAGER	m_manager
	Manager for symbol selection logic.
std::map< wxString, int >	m_listIndices
	Map from symbol name to list index (UI-only, -1 if filtered out)
wxString	m_filterString
	Current filter string.
wxString	m_selectedSymbol
	Currently selected symbol for preview.
std::map< wxString, CONFLICT_RESOLUTION >	m_conflictResolutions
	Conflict resolutions chosen by user.
KIWAY *	m_kiway
HOLDER_TYPE	m_type

Detailed Description

Dialog to select symbols for import from an external library file.

Definition at line 39 of file dialog_import_symbol_select.h.

Member Enumeration Documentation

anonymous enum

anonymous enum

private

Column indices for the data view (checkbox plus a combined icon+text symbol column)

Enumerator
COL_CHECKBOX
COL_SYMBOL

Definition at line 159 of file dialog_import_symbol_select.h.

HOLDER_TYPE

enum KIWAY_HOLDER::HOLDER_TYPE

inherited

Enumerator
DIALOG
FRAME
PANEL

Definition at line 37 of file kiway_holder.h.

Constructor & Destructor Documentation

DIALOG_IMPORT_SYMBOL_SELECT()

DIALOG_IMPORT_SYMBOL_SELECT::DIALOG_IMPORT_SYMBOL_SELECT	(	SYMBOL_EDIT_FRAME *	aParent,
		const wxString &	aFilePath,
		const wxString &	aDestLibrary,
		SCH_IO_MGR::SCH_FILE_T	aPluginType )

Parameters

aParent	Symbol editor frame
aFilePath	Path to the library file to import from
aDestLibrary	Name of the destination library
aPluginType	The file type/plugin to use for reading

Definition at line 72 of file dialog_import_symbol_select.cpp.

References _, DIALOG_IMPORT_SYMBOL_SELECT_BASE::DIALOG_IMPORT_SYMBOL_SELECT_BASE(), DIALOG_SHIM::finishDialogSettings(), EDA_DRAW_PANEL_GAL::GAL_TYPE_OPENGL, WXLOG_REPORTER::GetInstance(), KIWAY_HOLDER::Kiway(), m_destLibrary, m_filePath, m_frame, m_plugin, m_preview, DIALOG_IMPORT_SYMBOL_SELECT_BASE::m_previewPanel, DIALOG_IMPORT_SYMBOL_SELECT_BASE::m_previewSizer, DIALOG_IMPORT_SYMBOL_SELECT_BASE::m_sdbSizerOK, DIALOG_IMPORT_SYMBOL_SELECT_BASE::m_searchCtrl, DIALOG_IMPORT_SYMBOL_SELECT_BASE::m_symbolList, DIALOG_IMPORT_SYMBOL_SELECT_BASE::m_unitChoice, onItemChecked(), DIALOG_SHIM::SetInitialFocus(), and DIALOG_SHIM::SetupStandardButtons().

~DIALOG_IMPORT_SYMBOL_SELECT()

DIALOG_IMPORT_SYMBOL_SELECT::~DIALOG_IMPORT_SYMBOL_SELECT ( )

override

Definition at line 117 of file dialog_import_symbol_select.cpp.

References DIALOG_IMPORT_SYMBOL_SELECT_BASE::m_symbolList, and onItemChecked().

Member Function Documentation

clampToWorkArea()

void DIALOG_SHIM::clampToWorkArea ( )

protectedinherited

Constrain the dialog's minimum size, size and position to the work area of the display it occupies, so a dialog whose content or restored geometry is larger than the monitor still fits, its bottom controls stay reachable, and it never lands off-screen.

Geometry restored from a different monitor, or inflated by the per-monitor DPI rescale that fires when the dialog moves to the saved monitor, can otherwise leave the dialog off-screen or larger than the display with no way to shrink it. Only shrinks; never grows.

Definition at line 367 of file dialog_shim.cpp.

References ClampRectToDisplay(), and minSize.

Referenced by Show(), EDA_VIEW_SWITCHER::Show(), and HOTKEY_CYCLE_POPUP::Show().

CleanupAfterModalSubDialog()

void DIALOG_SHIM::CleanupAfterModalSubDialog ( )

inherited

Definition at line 1588 of file dialog_shim.cpp.

References m_qmodal_parent_disabler.

ClearModify()

void DIALOG_SHIM::ClearModify ( )

inherited

Definition at line 1494 of file dialog_shim.cpp.

Referenced by DIALOG_SYMBOL_FIELDS_TABLE::OnSaveAndContinue(), and DIALOG_LIB_FIELDS_TABLE::TransferDataFromWindow().

DECLARE_EVENT_TABLE()

DIALOG_SHIM::DECLARE_EVENT_TABLE ( )

privateinherited

doRedo()

void DIALOG_SHIM::doRedo ( )

privateinherited

Definition at line 1451 of file dialog_shim.cpp.

References DIALOG_SHIM::UNDO_STEP::after, DIALOG_SHIM::UNDO_STEP::ctrl, m_currentValues, m_handlingUndoRedo, m_redoStack, m_undoStack, and setControlValue().

Referenced by OnCharHook().

doUndo()

void DIALOG_SHIM::doUndo ( )

privateinherited

Definition at line 1436 of file dialog_shim.cpp.

References DIALOG_SHIM::UNDO_STEP::before, DIALOG_SHIM::UNDO_STEP::ctrl, m_currentValues, m_handlingUndoRedo, m_redoStack, m_undoStack, and setControlValue().

Referenced by OnCharHook().

Enable()

bool DIALOG_SHIM::Enable ( bool enable )

overrideinherited

Definition at line 638 of file dialog_shim.cpp.

Referenced by DIALOG_CREATE_ARRAY::UpdatePickedItem(), and DIALOG_CREATE_ARRAY::UpdatePickedPoint().

EndDialogShim()

void DIALOG_SHIM::EndDialogShim ( int aReturnCode )

inherited

A mode agnostic way to close a dialog.

This replaces the protected method wxDialog::EndDialog() which unfortunately was not made virtual and knows nothing of our custom QuasiModal behavior.

Warning

Do not call EndModal or EndQuasimodal directly. This is a bug because it's not known in advance how the dialog was opened and cannot be guaranteed not to change in the future.

Parameters

aReturnCode

is the return code from ending Modal and QuasiModal dialogs.

Definition at line 1946 of file dialog_shim.cpp.

References EndQuasiModal(), and IsQuasiModal().

Referenced by EDA_3D_CONTROLLER::Main(), DIALOG_EXPORT_NETLIST::OnAddGenerator(), DIALOG_EDIT_SYMBOLS_LIBID::onCancel(), DIALOG_LIB_SYMBOL_PROPERTIES::OnCancelButtonClick(), DIALOG_SYMBOL_PROPERTIES::OnCancelButtonClick(), PCB_ONE_LAYER_SELECTOR::onCharHook(), DIALOG_SYMBOL_PROPERTIES::OnClearVariantSymbol(), DIALOG_LIB_EDIT_PIN_TABLE::OnClose(), DIALOG_EXPORT_NETLIST::OnDelGenerator(), DIALOG_SYMBOL_PROPERTIES::OnEditLibrarySymbol(), DIALOG_SYMBOL_PROPERTIES::OnEditSymbol(), DIALOG_SYMBOL_PROPERTIES::OnExchangeSymbol(), PCB_ONE_LAYER_SELECTOR::OnLeftGridCellClick(), PCB_ONE_LAYER_SELECTOR::OnRightGridCellClick(), DIALOG_SYMBOL_PROPERTIES::OnUpdateSymbol(), and DIALOG_PUSH_PAD_PROPERTIES::PadPropertiesAccept().

EndQuasiModal()

void DIALOG_SHIM::EndQuasiModal ( int retCode )

inherited

Definition at line 1595 of file dialog_shim.cpp.

References IsQuasiModal(), m_qmodal_loop, m_qmodal_parent_disabler, Show(), and TearDownQuasiModal().

Referenced by EndDialogShim(), OnButton(), OnCloseWindow(), and ~DIALOG_SHIM().

ExcludeFromControlUndoRedo()

void DIALOG_SHIM::ExcludeFromControlUndoRedo ( wxWindow * aWindow )

inherited

Opt a control out of the dialog's generic Ctrl+Z/Ctrl+Y undo/redo.

The generic handler snapshots a control's value and restores it by position. That is wrong for grids whose rows can be regrouped, sorted, or reordered while the dialog is open (and which manage their own undo), so such controls must opt out.

Definition at line 978 of file dialog_shim.cpp.

References m_noControlUndoRedo.

Referenced by DIALOG_SYMBOL_FIELDS_TABLE::DIALOG_SYMBOL_FIELDS_TABLE().

finishDialogSettings()

void DIALOG_SHIM::finishDialogSettings ( )

protectedinherited

In all dialogs, we must call the same functions to fix minimal dlg size, the default position and perhaps some others to fix a few issues depending on Windows Managers this helper function does these calls.

finishDialogSettings must be called from derived classes after all widgets have been initialized, and therefore their size fixed. If TransferDataToWindow() is used to initialize widgets, at the end of TransferDataToWindow, or better yet, at end of a wxInitDialogEvent handler.

Definition at line 341 of file dialog_shim.cpp.

Referenced by CONVERT_SETTINGS_DIALOG::CONVERT_SETTINGS_DIALOG(), DIALOG_ANNOTATE::DIALOG_ANNOTATE(), DIALOG_ASSIGN_NETCLASS::DIALOG_ASSIGN_NETCLASS(), DIALOG_BOARD_REANNOTATE::DIALOG_BOARD_REANNOTATE(), DIALOG_BOARD_SETUP::DIALOG_BOARD_SETUP(), DIALOG_BOARD_STATS_JOB::DIALOG_BOARD_STATS_JOB(), DIALOG_BOM::DIALOG_BOM(), DIALOG_BOOK_REPORTER::DIALOG_BOOK_REPORTER(), DIALOG_CHANGE_SYMBOLS::DIALOG_CHANGE_SYMBOLS(), DIALOG_CLEANUP_TRACKS_AND_VIAS::DIALOG_CLEANUP_TRACKS_AND_VIAS(), DIALOG_CONSTRAINT_LIST::DIALOG_CONSTRAINT_LIST(), DIALOG_CONSTRAINT_VALUE::DIALOG_CONSTRAINT_VALUE(), DIALOG_COPPER_ZONE::DIALOG_COPPER_ZONE(), DIALOG_CREATE_NET_CHAIN::DIALOG_CREATE_NET_CHAIN(), DIALOG_DATABASE_LIB_SETTINGS::DIALOG_DATABASE_LIB_SETTINGS(), DIALOG_DIMENSION_PROPERTIES::DIALOG_DIMENSION_PROPERTIES(), DIALOG_DRAW_LAYERS_SETTINGS::DIALOG_DRAW_LAYERS_SETTINGS(), DIALOG_DRC::DIALOG_DRC(), DIALOG_EDIT_SYMBOLS_LIBID::DIALOG_EDIT_SYMBOLS_LIBID(), DIALOG_ENUM_PADS::DIALOG_ENUM_PADS(), DIALOG_ERC::DIALOG_ERC(), DIALOG_EXCHANGE_FOOTPRINTS::DIALOG_EXCHANGE_FOOTPRINTS(), DIALOG_EXECUTECOMMAND_JOB_SETTINGS::DIALOG_EXECUTECOMMAND_JOB_SETTINGS(), DIALOG_EXPORT_2581::DIALOG_EXPORT_2581(), DIALOG_EXPORT_2581::DIALOG_EXPORT_2581(), DIALOG_EXPORT_IDF3::DIALOG_EXPORT_IDF3(), DIALOG_EXPORT_NETLIST::DIALOG_EXPORT_NETLIST(), DIALOG_EXPORT_ODBPP::DIALOG_EXPORT_ODBPP(), DIALOG_EXPORT_ODBPP::DIALOG_EXPORT_ODBPP(), DIALOG_EXPORT_STEP::DIALOG_EXPORT_STEP(), DIALOG_EXPORT_VRML::DIALOG_EXPORT_VRML(), DIALOG_FOOTPRINT_CHECKER::DIALOG_FOOTPRINT_CHECKER(), DIALOG_FOOTPRINT_PROPERTIES::DIALOG_FOOTPRINT_PROPERTIES(), DIALOG_FOOTPRINT_PROPERTIES_FP_EDITOR::DIALOG_FOOTPRINT_PROPERTIES_FP_EDITOR(), DIALOG_FOOTPRINT_WIZARD_LIST::DIALOG_FOOTPRINT_WIZARD_LIST(), DIALOG_FP_EDIT_PAD_TABLE::DIALOG_FP_EDIT_PAD_TABLE(), DIALOG_GENCAD_EXPORT_OPTIONS::DIALOG_GENCAD_EXPORT_OPTIONS(), DIALOG_GENDRILL::DIALOG_GENDRILL(), DIALOG_GENDRILL::DIALOG_GENDRILL(), DIALOG_GIT_REPOSITORY::DIALOG_GIT_REPOSITORY(), DIALOG_GIT_SWITCH::DIALOG_GIT_SWITCH(), DIALOG_GLOBAL_EDIT_TEARDROPS::DIALOG_GLOBAL_EDIT_TEARDROPS(), DIALOG_GLOBAL_EDIT_TEXT_AND_GRAPHICS::DIALOG_GLOBAL_EDIT_TEXT_AND_GRAPHICS(), DIALOG_GLOBAL_EDIT_TEXT_AND_GRAPHICS::DIALOG_GLOBAL_EDIT_TEXT_AND_GRAPHICS(), DIALOG_GLOBAL_EDIT_TRACKS_AND_VIAS::DIALOG_GLOBAL_EDIT_TRACKS_AND_VIAS(), DIALOG_GRID_SETTINGS::DIALOG_GRID_SETTINGS(), DIALOG_GROUP_PROPERTIES::DIALOG_GROUP_PROPERTIES(), DIALOG_IBIS_PARSER_REPORTER::DIALOG_IBIS_PARSER_REPORTER(), DIALOG_IMAGE_PROPERTIES::DIALOG_IMAGE_PROPERTIES(), DIALOG_IMPORT_CHOOSE_PROJECT::DIALOG_IMPORT_CHOOSE_PROJECT(), DIALOG_IMPORT_NETLIST::DIALOG_IMPORT_NETLIST(), DIALOG_IMPORT_SYMBOL_SELECT::DIALOG_IMPORT_SYMBOL_SELECT(), DIALOG_INSPECTOR::DIALOG_INSPECTOR(), DIALOG_JOBSET_RUN_LOG::DIALOG_JOBSET_RUN_LOG(), DIALOG_JUNCTION_PROPS::DIALOG_JUNCTION_PROPS(), DIALOG_LABEL_PROPERTIES::DIALOG_LABEL_PROPERTIES(), DIALOG_LIB_FIELDS_TABLE::DIALOG_LIB_FIELDS_TABLE(), DIALOG_LIB_NEW_SYMBOL::DIALOG_LIB_NEW_SYMBOL(), DIALOG_LINE_PROPERTIES::DIALOG_LINE_PROPERTIES(), DIALOG_LIST_HOTKEYS::DIALOG_LIST_HOTKEYS(), DIALOG_MANAGE_REPOSITORIES::DIALOG_MANAGE_REPOSITORIES(), DIALOG_MAP_LAYERS::DIALOG_MAP_LAYERS(), DIALOG_MIGRATE_3D_MODELS::DIALOG_MIGRATE_3D_MODELS(), DIALOG_MOVE_EXACT::DIALOG_MOVE_EXACT(), DIALOG_MULTICHANNEL_GENERATE_RULE_AREAS::DIALOG_MULTICHANNEL_GENERATE_RULE_AREAS(), DIALOG_MULTICHANNEL_REPEAT_LAYOUT::DIALOG_MULTICHANNEL_REPEAT_LAYOUT(), DIALOG_NON_COPPER_ZONES_EDITOR::DIALOG_NON_COPPER_ZONES_EDITOR(), DIALOG_OFFSET_ITEM::DIALOG_OFFSET_ITEM(), DIALOG_OUTSET_ITEMS::DIALOG_OUTSET_ITEMS(), DIALOG_PAD_PROPERTIES::DIALOG_PAD_PROPERTIES(), DIALOG_PASTE_SPECIAL::DIALOG_PASTE_SPECIAL(), DIALOG_PCM::DIALOG_PCM(), DIALOG_PLOT_SCHEMATIC::DIALOG_PLOT_SCHEMATIC(), DIALOG_PNS_SETTINGS::DIALOG_PNS_SETTINGS(), DIALOG_POSITION_RELATIVE::DIALOG_POSITION_RELATIVE(), DIALOG_PRINT::DIALOG_PRINT(), DIALOG_PRINT_GENERIC::DIALOG_PRINT_GENERIC(), DIALOG_PRINT_PCBNEW::DIALOG_PRINT_PCBNEW(), DIALOG_PUSH_PAD_PROPERTIES::DIALOG_PUSH_PAD_PROPERTIES(), DIALOG_REFERENCE_IMAGE_PROPERTIES::DIALOG_REFERENCE_IMAGE_PROPERTIES(), DIALOG_REGULATOR_FORM::DIALOG_REGULATOR_FORM(), DIALOG_REMOTE_SYMBOL_CONFIG::DIALOG_REMOTE_SYMBOL_CONFIG(), DIALOG_RESOLVE_FIELD_CASE_CONFLICTS::DIALOG_RESOLVE_FIELD_CASE_CONFLICTS(), DIALOG_RULE_AREA_PROPERTIES::DIALOG_RULE_AREA_PROPERTIES(), DIALOG_SCH_IMPORT_SETTINGS::DIALOG_SCH_IMPORT_SETTINGS(), DIALOG_SCHEMATIC_SETUP::DIALOG_SCHEMATIC_SETUP(), DIALOG_SELECT_3DMODEL::DIALOG_SELECT_3DMODEL(), DIALOG_SHAPE_PROPERTIES::DIALOG_SHAPE_PROPERTIES(), DIALOG_SHAPE_PROPERTIES::DIALOG_SHAPE_PROPERTIES(), DIALOG_SHEET_PIN_PROPERTIES::DIALOG_SHEET_PIN_PROPERTIES(), DIALOG_SHEET_PROPERTIES::DIALOG_SHEET_PROPERTIES(), DIALOG_SWAP_LAYERS::DIALOG_SWAP_LAYERS(), DIALOG_SYMBOL_FIELDS_TABLE::DIALOG_SYMBOL_FIELDS_TABLE(), DIALOG_SYMBOL_PROPERTIES::DIALOG_SYMBOL_PROPERTIES(), DIALOG_SYNC_SHEET_PINS::DIALOG_SYNC_SHEET_PINS(), DIALOG_TABLE_PROPERTIES::DIALOG_TABLE_PROPERTIES(), DIALOG_TABLE_PROPERTIES::DIALOG_TABLE_PROPERTIES(), DIALOG_TABLECELL_PROPERTIES::DIALOG_TABLECELL_PROPERTIES(), DIALOG_TABLECELL_PROPERTIES::DIALOG_TABLECELL_PROPERTIES(), DIALOG_TARGET_PROPERTIES::DIALOG_TARGET_PROPERTIES(), DIALOG_TEMPLATE_SELECTOR::DIALOG_TEMPLATE_SELECTOR(), DIALOG_TEXT_PROPERTIES::DIALOG_TEXT_PROPERTIES(), DIALOG_TEXT_PROPERTIES::DIALOG_TEXT_PROPERTIES(), DIALOG_TEXTBOX_PROPERTIES::DIALOG_TEXTBOX_PROPERTIES(), DIALOG_TRACK_VIA_SIZE::DIALOG_TRACK_VIA_SIZE(), DIALOG_UNUSED_PAD_LAYERS::DIALOG_UNUSED_PAD_LAYERS(), DIALOG_UPDATE_FROM_PCB::DIALOG_UPDATE_FROM_PCB(), DIALOG_UPDATE_PCB::DIALOG_UPDATE_PCB(), DIALOG_UPDATE_SYMBOL_FIELDS::DIALOG_UPDATE_SYMBOL_FIELDS(), DIALOG_USER_DEFINED_SIGNALS::DIALOG_USER_DEFINED_SIGNALS(), DIALOG_WIRE_BUS_PROPERTIES::DIALOG_WIRE_BUS_PROPERTIES(), RULE_EDITOR_DIALOG_BASE::finishInitialization(), DIALOG_PASTE_SPECIAL::HideClearNets(), DIALOG_FIELD_PROPERTIES::init(), DIALOG_EDIT_LIBRARY_TABLES::InstallPanel(), NETLIST_DIALOG_ADD_GENERATOR::NETLIST_DIALOG_ADD_GENERATOR(), NETLIST_VIEW_DIALOG::NETLIST_VIEW_DIALOG(), DIALOG_SIM_COMMAND::onInitDlg(), DIALOG_BARCODE_PROPERTIES::TransferDataToWindow(), DIALOG_BOARD_STATISTICS::TransferDataToWindow(), DIALOG_COLOR_PICKER::TransferDataToWindow(), DIALOG_FOOTPRINT_ASSOCIATIONS::TransferDataToWindow(), DIALOG_PIN_PROPERTIES::TransferDataToWindow(), DIALOG_TRACK_VIA_PROPERTIES::TransferDataToWindow(), WX_MULTI_ENTRY_DIALOG::WX_MULTI_ENTRY_DIALOG(), and WX_PT_ENTRY_DIALOG::WX_PT_ENTRY_DIALOG().

focusParentCanvas()

void DIALOG_SHIM::focusParentCanvas ( bool aDeferUntilFrameActive = false )

privateinherited

Set focus back to the parent frame's tool canvas if available, otherwise to the parent window.

Prevents focus from landing on auxiliary panels like the properties panel when the mouse happens to hover over them at dialog close time.

Parameters

aDeferUntilFrameActive

also re-asserts the focus from an idle callback, needed only for the GTK quasi-modal teardown race where the dialog is still the active top-level window when this is called.

Definition at line 436 of file dialog_shim.cpp.

References TOOLS_HOLDER::GetToolCanvas(), KIPLATFORM::UI::IsWindowActive(), and m_parentFrame.

Referenced by Show(), and ShowQuasiModal().

generateKey()

std::string DIALOG_SHIM::generateKey ( const wxWindow * aWin ) const

privateinherited

Definition at line 645 of file dialog_shim.cpp.

References index, and makeKey().

Referenced by LoadControlState(), and SaveControlState().

GetConflictResolutions()

const std::map< wxString, CONFLICT_RESOLUTION > & DIALOG_IMPORT_SYMBOL_SELECT::GetConflictResolutions ( ) const

inline

Get the conflict resolutions chosen by the user.

Returns

Map of symbol name to resolution choice

Definition at line 66 of file dialog_import_symbol_select.h.

References m_conflictResolutions.

Referenced by SYMBOL_EDIT_FRAME::ImportSymbol().

getControlValue()

wxVariant DIALOG_SHIM::getControlValue ( wxWindow * aCtrl )

privateinherited

Definition at line 1239 of file dialog_shim.cpp.

References grid, and table.

Referenced by recordControlChange(), and registerUndoRedoHandlers().

GetSelectedSymbols()

std::vector< wxString > DIALOG_IMPORT_SYMBOL_SELECT::GetSelectedSymbols

(

)

const

Get the list of symbols selected for import.

Includes both manually selected symbols and auto-selected dependencies.

Returns

Vector of symbol names to import

Definition at line 535 of file dialog_import_symbol_select.cpp.

References m_manager.

Referenced by SYMBOL_EDIT_FRAME::ImportSymbol().

GetType()

HOLDER_TYPE KIWAY_HOLDER::GetType ( ) const

inlineinherited

Definition at line 44 of file kiway_holder.h.

References m_type.

Referenced by DIALOG_SHIM::DIALOG_SHIM(), EDA_3D_CONTROLLER::Main(), and PANEL_PREVIEW_3D_MODEL::onModify().

GetUserUnits()

EDA_UNITS DIALOG_SHIM::GetUserUnits ( ) const

inlineinherited

Definition at line 130 of file dialog_shim.h.

References m_units.

Referenced by DIALOG_FP_EDIT_PAD_TABLE::DIALOG_FP_EDIT_PAD_TABLE(), DIALOG_PIN_PROPERTIES::DIALOG_PIN_PROPERTIES(), DIALOG_DRC::OnSaveReport(), DIALOG_POSITION_RELATIVE::updateAnchorInfo(), DIALOG_MOVE_EXACT::updateDialogControls(), DIALOG_OFFSET_ITEM::updateDialogControls(), and DIALOG_POSITION_RELATIVE::updateDialogControls().

HasKiway()

bool KIWAY_HOLDER::HasKiway ( ) const

inlineinherited

Safety check before asking for the Kiway reference.

Returns

true if kiway is non-null

Definition at line 61 of file kiway_holder.h.

References m_kiway.

Referenced by DIALOG_SHIM::DIALOG_SHIM(), and DIALOG_SHIM::~DIALOG_SHIM().

horizPixelsFromDU()

int DIALOG_SHIM::horizPixelsFromDU ( int x ) const

protectedinherited

Convert an integer number of dialog units to pixels, horizontally.

See SetSizeInDU or wxDialog documentation for more information.

Definition at line 410 of file dialog_shim.cpp.

Referenced by DIALOG_LIB_FIELDS_TABLE::DIALOG_LIB_FIELDS_TABLE(), and DIALOG_SYMBOL_FIELDS_TABLE::DIALOG_SYMBOL_FIELDS_TABLE().

IsCtrl()

static bool DIALOG_SHIM::IsCtrl ( int aChar, const wxKeyEvent & e )

inlinestaticinherited

Definition at line 139 of file dialog_shim.h.

IsQuasiModal()

bool DIALOG_SHIM::IsQuasiModal ( ) const

inlineinherited

Definition at line 105 of file dialog_shim.h.

References m_qmodal_showing.

Referenced by EndDialogShim(), EndQuasiModal(), OnButton(), DIALOG_EDIT_SYMBOLS_LIBID::onCancel(), DIALOG_BOOK_REPORTER::OnClose(), DIALOG_ERC::OnCloseErcDialog(), OnCloseWindow(), and ~DIALOG_SHIM().

IsShiftCtrl()

static bool DIALOG_SHIM::IsShiftCtrl ( int aChar, const wxKeyEvent & e )

inlinestaticinherited

Definition at line 145 of file dialog_shim.h.

Kiway()

KIWAY & KIWAY_HOLDER::Kiway ( ) const

inlineinherited

Return a reference to the KIWAY that this object has an opportunity to participate in.

A KIWAY_HOLDER is not necessarily a KIWAY_PLAYER.

Definition at line 51 of file kiway_holder.h.

References m_kiway.

Referenced by PROJECT_TREE_ITEM::Activate(), FOOTPRINT_VIEWER_FRAME::AddFootprintToPCB(), IMPORT_PROJ_HELPER::addLocalLibraries(), SYMBOL_EDITOR_CONTROL::AddSymbolToSchematic(), CVPCB_MAINFRAME::BuildLibrariesList(), EDA_BASE_FRAME::CheckForAutosaveFiles(), KICAD_MANAGER_FRAME::CloseProject(), EDA_BASE_FRAME::CommonSettingsChanged(), SCH_INSPECTION_TOOL::CompareSchematicWithHistory(), KIWAY_PLAYER::Destroy(), DIALOG_IMPORT_SYMBOL_SELECT::DIALOG_IMPORT_SYMBOL_SELECT(), DIALOG_LIST_HOTKEYS::DIALOG_LIST_HOTKEYS(), DIALOG_RESCUE_EACH::DIALOG_RESCUE_EACH(), DIALOG_SHIM::DIALOG_SHIM(), EDA_BASE_FRAME::doAutoSave(), KICAD_MANAGER_FRAME::doReCreateMenuBar(), BOARD_EDITOR_CONTROL::EditFpInFpEditor(), SCH_EDITOR_CONTROL::EditWithSymbolEditor(), DIALOG_CHANGE_SYMBOLS::launchMatchIdSymbolBrowser(), DIALOG_CHANGE_SYMBOLS::launchNewIdSymbolBrowser(), KICAD_MANAGER_FRAME::LoadProject(), PGM_SINGLE_TOP::MacOpenFile(), SIMULATOR_FRAME::onExit(), KICAD_MANAGER_FRAME::OnIdle(), EDA_BASE_FRAME::OnLanguageSelectionEvent(), KIGFX::WX_VIEW_CONTROLS::onMotion(), DIALOG_SYMBOL_REMAP::OnRemapSymbols(), DIALOG_FIELD_PROPERTIES::OnTextValueSelectButtonClick(), DIALOG_GIT_MR_REVIEW::openFileDiff(), PCB_DESIGN_BLOCK_PREVIEW_WIDGET::PCB_DESIGN_BLOCK_PREVIEW_WIDGET(), KICAD_MANAGER_FRAME::PreloadAllLibraries(), Prj(), KICAD_MANAGER_FRAME::ProjectChanged(), KICAD_MANAGER_FRAME::RestoreCommitFromHistory(), KICAD_MANAGER_FRAME::RestoreLocalHistory(), MERGETOOL_FRAME::RunMerge(), SCH_INSPECTION_TOOL::RunSimulation(), CVPCB_MAINFRAME::SaveFootprintAssociation(), CVPCB_MAINFRAME::SendComponentSelectionToSch(), BOARD_EDITOR_CONTROL::ShowEeschema(), CVPCB_CONTROL::ShowFootprintViewer(), showFrame(), EDA_BASE_FRAME::ShowPreferences(), SCH_EDITOR_CONTROL::SimProbe(), SCH_EDITOR_CONTROL::SimTune(), KICAD_MANAGER_FRAME::UnarchiveFiles(), DIALOG_EXCHANGE_FOOTPRINTS::ViewAndSelectFootprint(), and DIALOG_SHIM::~DIALOG_SHIM().

LoadControlState()

void DIALOG_SHIM::LoadControlState ( )

inherited

Load persisted control values from the current project's local settings.

Controls may opt out by setting the boolean window property "persist" to false. Dialog geometry is stored under the special key "__geometry".

Definition at line 801 of file dialog_shim.cpp.

References COMMON_SETTINGS::CsInternals(), generateKey(), PGM_BASE::GetCommonSettings(), getDialogKeyFromTitle(), grid, index, isCompoundDateTimePicker(), COMMON_SETTINGS_INTERNALS::m_dialogControlValues, m_hash_key, m_unitBinders, Pgm(), and PROPERTY_HOLDER::SafeCast().

Referenced by onInitDialog().

loadSymbols()

bool DIALOG_IMPORT_SYMBOL_SELECT::loadSymbols ( )

private

Load symbols from the source file and populate the manager.

Returns

true on success

Definition at line 144 of file dialog_import_symbol_select.cpp.

References _, DisplayError(), DisplayErrorMessage(), LIB_SYMBOL::GetParentName(), LIB_SYMBOL::IsPower(), m_destLibrary, m_filePath, m_frame, m_manager, m_plugin, name, SYMBOL_LIBRARY_MANAGER::SymbolExists(), and IO_ERROR::What().

Referenced by TransferDataToWindow().

matchesFilter()

bool DIALOG_IMPORT_SYMBOL_SELECT::matchesFilter ( const wxString & aSymbolName ) const

private

Check if a symbol matches the current filter.

Definition at line 463 of file dialog_import_symbol_select.cpp.

References m_filterString, and SYMBOL_IMPORT_MANAGER::MatchesFilter().

Referenced by OnSelectAll(), OnSelectNone(), and refreshList().

OnButton()

void DIALOG_SHIM::OnButton ( wxCommandEvent & aEvent )

privateinherited

Properly handle the default button events when in the quasimodal mode when not calling EndQuasiModal which is possible with any dialog derived from DIALOG_SHIM.

Definition at line 1663 of file dialog_shim.cpp.

References EndQuasiModal(), ignore_unused(), and IsQuasiModal().

Referenced by DIALOG_SHIM(), and ~DIALOG_SHIM().

OnCharHook()

void DIALOG_SHIM::OnCharHook ( wxKeyEvent & aEvt )

protectedvirtualinherited

Reimplemented in DIALOG_DRC, DIALOG_ERC, DIALOG_FIND, DIALOG_FP_EDIT_PAD_TABLE, DIALOG_SCH_FIND, HK_PROMPT_DIALOG, HTML_MESSAGE_BOX, and RULE_EDITOR_DIALOG_BASE.

Definition at line 1715 of file dialog_shim.cpp.

References delta, doRedo(), doUndo(), m_beforeEditValues, m_parentFrame, m_tabOrder, MD_ALT, MD_CTRL, and MD_SHIFT.

Referenced by DIALOG_TABLECELL_PROPERTIES::DIALOG_TABLECELL_PROPERTIES(), DIALOG_TEXT_PROPERTIES::DIALOG_TEXT_PROPERTIES(), DIALOG_TEXTBOX_PROPERTIES::DIALOG_TEXTBOX_PROPERTIES(), DIALOG_DRC::OnCharHook(), DIALOG_ERC::OnCharHook(), DIALOG_FIND::OnCharHook(), DIALOG_FP_EDIT_PAD_TABLE::OnCharHook(), DIALOG_SCH_FIND::OnCharHook(), RULE_EDITOR_DIALOG_BASE::OnCharHook(), and DIALOG_TEXTBOX_PROPERTIES::~DIALOG_TEXTBOX_PROPERTIES().

onChildSetFocus()

void DIALOG_SHIM::onChildSetFocus ( wxFocusEvent & aEvent )

privateinherited

Definition at line 1699 of file dialog_shim.cpp.

References m_beforeEditValues, and m_isClosing.

Referenced by SelectAllInTextCtrls(), and ~DIALOG_SHIM().

OnCloseWindow()

void DIALOG_SHIM::OnCloseWindow ( wxCloseEvent & aEvent )

privateinherited

Properly handle the wxCloseEvent when in the quasimodal mode when not calling EndQuasiModal which is possible with any dialog derived from DIALOG_SHIM.

Definition at line 1645 of file dialog_shim.cpp.

References APP_MONITOR::AddNavigationBreadcrumb(), EndQuasiModal(), IsQuasiModal(), and SaveControlState().

Referenced by DIALOG_SHIM(), and ~DIALOG_SHIM().

onCommandEvent()

void DIALOG_SHIM::onCommandEvent ( wxCommandEvent & aEvent )

privateinherited

Definition at line 1179 of file dialog_shim.cpp.

References m_handlingUndoRedo, and recordControlChange().

Referenced by registerUndoRedoHandlers(), and ~DIALOG_SHIM().

onDataViewListChanged()

void DIALOG_SHIM::onDataViewListChanged ( wxDataViewEvent & aEvent )

privateinherited

Definition at line 1231 of file dialog_shim.cpp.

References m_handlingUndoRedo, and recordControlChange().

Referenced by registerUndoRedoHandlers(), and ~DIALOG_SHIM().

OnFilterTextChanged()

void DIALOG_IMPORT_SYMBOL_SELECT::OnFilterTextChanged ( wxCommandEvent & event )

overrideprotectedvirtual

Reimplemented from DIALOG_IMPORT_SYMBOL_SELECT_BASE.

Definition at line 365 of file dialog_import_symbol_select.cpp.

References m_filterString, DIALOG_IMPORT_SYMBOL_SELECT_BASE::m_searchCtrl, and refreshList().

onGridCellChanged()

void DIALOG_SHIM::onGridCellChanged ( wxGridEvent & aEvent )

privateinherited

Definition at line 1215 of file dialog_shim.cpp.

References m_handlingUndoRedo, and recordControlChange().

Referenced by registerUndoRedoHandlers(), and ~DIALOG_SHIM().

onInitDialog()

void DIALOG_SHIM::onInitDialog ( wxInitDialogEvent & aEvent )

privateinherited

Definition at line 325 of file dialog_shim.cpp.

References LoadControlState().

Referenced by DIALOG_SHIM(), and ~DIALOG_SHIM().

onItemChecked()

void DIALOG_IMPORT_SYMBOL_SELECT::onItemChecked ( wxDataViewEvent & event )

private

Handle checkbox toggle in the list.

Definition at line 395 of file dialog_import_symbol_select.cpp.

References COL_CHECKBOX, m_listIndices, DIALOG_IMPORT_SYMBOL_SELECT_BASE::m_symbolList, name, and toggleSymbolSelection().

Referenced by DIALOG_IMPORT_SYMBOL_SELECT(), and ~DIALOG_IMPORT_SYMBOL_SELECT().

OnModify()

void DIALOG_SHIM::OnModify ( )

inherited

Definition at line 1487 of file dialog_shim.cpp.

Referenced by DIALOG_LIB_SYMBOL_PROPERTIES::OnAddBodyStyle(), DIALOG_FOOTPRINT_PROPERTIES::OnAddField(), DIALOG_FOOTPRINT_PROPERTIES_FP_EDITOR::OnAddField(), DIALOG_LIB_FIELDS_TABLE::OnAddField(), DIALOG_LIB_SYMBOL_PROPERTIES::OnAddField(), DIALOG_SYMBOL_FIELDS_TABLE::OnAddField(), DIALOG_SYMBOL_PROPERTIES::OnAddField(), DIALOG_LIB_SYMBOL_PROPERTIES::OnAddFootprintFilter(), DIALOG_FOOTPRINT_PROPERTIES_FP_EDITOR::onAddGroup(), DIALOG_LIB_SYMBOL_PROPERTIES::OnAddJumperGroup(), DIALOG_LIB_SYMBOL_PROPERTIES::OnBodyStyleMoveDown(), DIALOG_LIB_SYMBOL_PROPERTIES::OnBodyStyleMoveUp(), DIALOG_FOOTPRINT_PROPERTIES::OnCheckBox(), DIALOG_FOOTPRINT_PROPERTIES_FP_EDITOR::OnCheckBox(), DIALOG_LIB_SYMBOL_PROPERTIES::OnCheckBox(), DIALOG_SYMBOL_PROPERTIES::OnCheckBox(), DIALOG_FOOTPRINT_PROPERTIES::OnChoice(), DIALOG_FOOTPRINT_PROPERTIES_FP_EDITOR::OnChoice(), DIALOG_FOOTPRINT_PROPERTIES::OnCombobox(), DIALOG_LIB_SYMBOL_PROPERTIES::OnCombobox(), DIALOG_PAD_PROPERTIES::onCornerRadiusChange(), DIALOG_PAD_PROPERTIES::onCornerSizePercentChange(), DIALOG_LIB_SYMBOL_PROPERTIES::OnDeleteBodyStyle(), DIALOG_FOOTPRINT_PROPERTIES::OnDeleteField(), DIALOG_FOOTPRINT_PROPERTIES_FP_EDITOR::OnDeleteField(), DIALOG_LIB_SYMBOL_PROPERTIES::OnDeleteField(), DIALOG_SYMBOL_PROPERTIES::OnDeleteField(), DIALOG_PAD_PROPERTIES::OnDrillShapeSelected(), DIALOG_LIB_SYMBOL_PROPERTIES::OnEditFootprintFilter(), DIALOG_LIB_SYMBOL_PROPERTIES::OnEditSpiceModel(), DIALOG_SYMBOL_PROPERTIES::OnEditSpiceModel(), DIALOG_LIB_SYMBOL_PROPERTIES::OnGridCellChanged(), DIALOG_FOOTPRINT_PROPERTIES_FP_EDITOR::onLayerGridRowAddUserLayer(), DIALOG_FOOTPRINT_PROPERTIES_FP_EDITOR::onLayerGridRowDelete(), DIALOG_PAD_PROPERTIES::onModify(), DIALOG_PAD_PROPERTIES::onModify(), DIALOG_LIB_SYMBOL_PROPERTIES::OnMoveDown(), DIALOG_SYMBOL_PROPERTIES::OnMoveDown(), DIALOG_LIB_SYMBOL_PROPERTIES::OnMoveUp(), DIALOG_SYMBOL_PROPERTIES::OnMoveUp(), DIALOG_PAD_PROPERTIES::onPadShapeSelection(), DIALOG_SYMBOL_PROPERTIES::OnPinTableCellEdited(), DIALOG_LIB_SYMBOL_PROPERTIES::onPowerCheckBox(), DIALOG_LIB_FIELDS_TABLE::OnRemoveField(), DIALOG_SYMBOL_FIELDS_TABLE::OnRemoveField(), DIALOG_FOOTPRINT_PROPERTIES_FP_EDITOR::onRemoveGroup(), DIALOG_LIB_SYMBOL_PROPERTIES::OnRemoveJumperGroup(), DIALOG_LIB_FIELDS_TABLE::OnRenameField(), DIALOG_SYMBOL_FIELDS_TABLE::OnRenameField(), DIALOG_PAD_PROPERTIES::OnSetCopperLayers(), DIALOG_PAD_PROPERTIES::OnSetLayers(), DIALOG_LIB_SYMBOL_PROPERTIES::OnSymbolNameText(), DIALOG_LIB_FIELDS_TABLE::OnTableValueChanged(), DIALOG_FOOTPRINT_PROPERTIES::OnText(), DIALOG_FOOTPRINT_PROPERTIES_FP_EDITOR::OnText(), DIALOG_LIB_SYMBOL_PROPERTIES::OnText(), DIALOG_BARCODE_PROPERTIES::OnTextValueChanged(), DIALOG_SYMBOL_PROPERTIES::OnUnitChoice(), DIALOG_LIB_SYMBOL_PROPERTIES::OnUnitSpinCtrl(), DIALOG_LIB_SYMBOL_PROPERTIES::OnUnitSpinCtrlEnter(), DIALOG_LIB_SYMBOL_PROPERTIES::OnUnitSpinCtrlKillFocus(), DIALOG_BARCODE_PROPERTIES::OnValuesChanged(), DIALOG_PAD_PROPERTIES::OnValuesChanged(), DIALOG_LIB_FIELDS_TABLE::OnViewControlsCellChanged(), DIALOG_SYMBOL_FIELDS_TABLE::OnViewControlsCellChanged(), DIALOG_PAD_PROPERTIES::PadOrientEvent(), DIALOG_PAD_PROPERTIES::PadTypeSelected(), DIALOG_LIB_FIELDS_TABLE::ShowHideColumn(), and DIALOG_SYMBOL_FIELDS_TABLE::ShowHideColumn().

OnMove()

void DIALOG_SHIM::OnMove ( wxMoveEvent & aEvent )

privateinherited

Definition at line 606 of file dialog_shim.cpp.

References m_childReleased, m_userPositioned, KIPLATFORM::UI::ReleaseChildWindow(), and KIPLATFORM::UI::ReparentModal().

Referenced by DIALOG_SHIM(), and ~DIALOG_SHIM().

OnPaint()

void DIALOG_SHIM::OnPaint ( wxPaintEvent & event )

inherited

Definition at line 1466 of file dialog_shim.cpp.

References KIPLATFORM::UI::FixupCancelButtonCmdKeyCollision(), KIPLATFORM::UI::ForceFocus(), m_firstPaintEvent, m_initialFocusTarget, registerUndoRedoHandlers(), and SelectAllInTextCtrls().

Referenced by DIALOG_SHIM(), and ~DIALOG_SHIM().

onPropertyGridChanged()

void DIALOG_SHIM::onPropertyGridChanged ( wxPropertyGridEvent & aEvent )

privateinherited

Definition at line 1223 of file dialog_shim.cpp.

References m_handlingUndoRedo, and recordControlChange().

Referenced by registerUndoRedoHandlers(), and ~DIALOG_SHIM().

OnSelectAll()

void DIALOG_IMPORT_SYMBOL_SELECT::OnSelectAll ( wxCommandEvent & event )

overrideprotectedvirtual

Reimplemented from DIALOG_IMPORT_SYMBOL_SELECT_BASE.

Definition at line 469 of file dialog_import_symbol_select.cpp.

References m_manager, matchesFilter(), name, refreshList(), updateImportButton(), and updateStatusLine().

OnSelectNone()

void DIALOG_IMPORT_SYMBOL_SELECT::OnSelectNone ( wxCommandEvent & event )

overrideprotectedvirtual

Reimplemented from DIALOG_IMPORT_SYMBOL_SELECT_BASE.

Definition at line 479 of file dialog_import_symbol_select.cpp.

References m_manager, matchesFilter(), name, refreshList(), updateImportButton(), and updateStatusLine().

OnSize()

void DIALOG_SHIM::OnSize ( wxSizeEvent & aEvent )

privateinherited

Definition at line 599 of file dialog_shim.cpp.

References m_userResized.

Referenced by DIALOG_SHIM(), and ~DIALOG_SHIM().

onSpinDoubleEvent()

void DIALOG_SHIM::onSpinDoubleEvent ( wxSpinDoubleEvent & aEvent )

privateinherited

Definition at line 1197 of file dialog_shim.cpp.

References m_handlingUndoRedo, and recordControlChange().

Referenced by registerUndoRedoHandlers(), and ~DIALOG_SHIM().

onSpinEvent()

void DIALOG_SHIM::onSpinEvent ( wxSpinEvent & aEvent )

privateinherited

Definition at line 1188 of file dialog_shim.cpp.

References m_handlingUndoRedo, and recordControlChange().

Referenced by registerUndoRedoHandlers(), and ~DIALOG_SHIM().

onStyledTextChanged()

void DIALOG_SHIM::onStyledTextChanged ( wxStyledTextEvent & aEvent )

privateinherited

Definition at line 1206 of file dialog_shim.cpp.

References m_handlingUndoRedo, and recordControlChange().

Referenced by registerUndoRedoHandlers(), and ~DIALOG_SHIM().

OnSymbolSelected()

void DIALOG_IMPORT_SYMBOL_SELECT::OnSymbolSelected ( wxDataViewEvent & event )

overrideprotectedvirtual

Reimplemented from DIALOG_IMPORT_SYMBOL_SELECT_BASE.

Definition at line 372 of file dialog_import_symbol_select.cpp.

References m_listIndices, m_selectedSymbol, DIALOG_IMPORT_SYMBOL_SELECT_BASE::m_symbolList, name, and updatePreview().

OnUnitChanged()

void DIALOG_IMPORT_SYMBOL_SELECT::OnUnitChanged ( wxCommandEvent & event )

overrideprotectedvirtual

Reimplemented from DIALOG_IMPORT_SYMBOL_SELECT_BASE.

Definition at line 489 of file dialog_import_symbol_select.cpp.

References LIB_SYMBOL::Flatten(), LIB_SYMBOL::GetParentName(), LIB_SYMBOL::IsDerived(), m_filePath, m_plugin, m_preview, m_selectedSymbol, and DIALOG_IMPORT_SYMBOL_SELECT_BASE::m_unitChoice.

OptOut()

void DIALOG_SHIM::OptOut ( wxWindow * aWindow )

inherited

Opt out of control state saving.

Parameters

aWindow

can be either a specific control, or the whole dialog

Definition at line 970 of file dialog_shim.cpp.

References PROPERTY_HOLDER::SetProperty().

Referenced by DIALOG_EXPORT_3D_IMAGE::DIALOG_EXPORT_3D_IMAGE(), DIALOG_EXPORT_STEP::DIALOG_EXPORT_STEP(), DIALOG_FIND::DIALOG_FIND(), DIALOG_FOOTPRINT_WIZARD_LIST::DIALOG_FOOTPRINT_WIZARD_LIST(), DIALOG_GIT_COMMIT::DIALOG_GIT_COMMIT(), DIALOG_GLOBAL_DELETION::DIALOG_GLOBAL_DELETION(), DIALOG_GRID_SETTINGS::DIALOG_GRID_SETTINGS(), DIALOG_GROUP_PROPERTIES::DIALOG_GROUP_PROPERTIES(), DIALOG_MIGRATE_BUSES::DIALOG_MIGRATE_BUSES(), DIALOG_SCH_FIND::DIALOG_SCH_FIND(), DIALOG_SIM_FORMAT_VALUE::DIALOG_SIM_FORMAT_VALUE(), DIALOG_SYMBOL_FIELDS_TABLE::DIALOG_SYMBOL_FIELDS_TABLE(), EDA_LIST_DIALOG::initDialog(), SAVE_AS_DIALOG::SAVE_AS_DIALOG(), WX_PT_ENTRY_DIALOG::WX_PT_ENTRY_DIALOG(), and WX_TEXT_ENTRY_DIALOG::WX_TEXT_ENTRY_DIALOG().

PrepareForModalSubDialog()

void DIALOG_SHIM::PrepareForModalSubDialog ( )

inherited

Definition at line 1581 of file dialog_shim.cpp.

References m_qmodal_parent_disabler.

Prj()

PROJECT & KIWAY_HOLDER::Prj ( ) const

inherited

Return a reference to the PROJECT associated with this KIWAY.

Definition at line 32 of file kiway_holder.cpp.

References Kiway(), and KIWAY::Prj().

Referenced by DESIGN_BLOCK_TREE_MODEL_ADAPTER::AddLibraries(), FP_TREE_MODEL_ADAPTER::AddLibraries(), SYMBOL_TREE_MODEL_ADAPTER::AddLibraries(), AskSaveBoardFileName(), DIALOG_MIGRATE_3D_MODELS::AutoMigrateByFilename(), DIALOG_SYMBOL_REMAP::backupProject(), DIALOG_MIGRATE_3D_MODELS::BoardHasUnresolvedWrlReferences(), CVPCB_MAINFRAME::buildEquivalenceList(), CVPCB_MAINFRAME::BuildLibrariesList(), PCB_BASE_FRAME::canCloseWindow(), SIMULATOR_FRAME::canCloseWindow(), KICAD_MANAGER_FRAME::CloseProject(), EDA_BASE_FRAME::CommonSettingsChanged(), SCH_INSPECTION_TOOL::CompareSchematicWithFile(), SCH_INSPECTION_TOOL::CompareSchematicWithHistory(), DIALOG_MIGRATE_3D_MODELS::CountUnresolvedWrlReferences(), DIALOG_GEN_FOOTPRINT_POSITION::CreateAsciiFiles(), DIALOG_GEN_FOOTPRINT_POSITION::CreateGerberFiles(), PCB_BASE_FRAME::CreateNewFootprint(), DIALOG_SYMBOL_REMAP::createProjectSymbolLibTable(), DIALOG_ANNOTATE::DIALOG_ANNOTATE(), DIALOG_BOARD_REANNOTATE::DIALOG_BOARD_REANNOTATE(), DIALOG_BOARD_SETUP::DIALOG_BOARD_SETUP(), DIALOG_BOARD_STATISTICS::DIALOG_BOARD_STATISTICS(), DIALOG_CHANGE_SYMBOLS::DIALOG_CHANGE_SYMBOLS(), DIALOG_CONFIG_EQUFILES::DIALOG_CONFIG_EQUFILES(), DIALOG_DRC_RULE_EDITOR::DIALOG_DRC_RULE_EDITOR(), DIALOG_EXCHANGE_FOOTPRINTS::DIALOG_EXCHANGE_FOOTPRINTS(), DIALOG_GEN_FOOTPRINT_POSITION::DIALOG_GEN_FOOTPRINT_POSITION(), DIALOG_IBIS_PARSER_REPORTER::DIALOG_IBIS_PARSER_REPORTER(), DIALOG_IMPORT_NETLIST::DIALOG_IMPORT_NETLIST(), DIALOG_PAGES_SETTINGS::DIALOG_PAGES_SETTINGS(), DIALOG_PLOT::DIALOG_PLOT(), DIALOG_PLOT_SCHEMATIC::DIALOG_PLOT_SCHEMATIC(), DIALOG_SCHEMATIC_SETUP::DIALOG_SCHEMATIC_SETUP(), DIALOG_SIM_MODEL< T >::DIALOG_SIM_MODEL(), DIALOG_SYMBOL_FIELDS_TABLE::DIALOG_SYMBOL_FIELDS_TABLE(), DIALOG_SYMBOL_REMAP::DIALOG_SYMBOL_REMAP(), DIALOG_UPDATE_FROM_PCB::DIALOG_UPDATE_FROM_PCB(), DIALOG_UPDATE_PCB::DIALOG_UPDATE_PCB(), FOOTPRINT_PREVIEW_PANEL::DisplayFootprint(), CVPCB_MAINFRAME::DisplayStatus(), EDA_BASE_FRAME::doAutoSave(), KICAD_MANAGER_FRAME::doReCreateMenuBar(), DIALOG_GENDRILL::genDrillAndMapFiles(), DIALOG_TABLE_PROPERTIES::getContextualTextVars(), DIALOG_TABLECELL_PROPERTIES::getContextualTextVars(), DIALOG_TEXT_PROPERTIES::getContextualTextVars(), EDA_3D_VIEWER_FRAME::getExportFileName(), PCB_BASE_FRAME::GetLibraryItemsForListDialog(), SCH_BASE_FRAME::GetLibraryItemsForListDialog(), DIALOG_SYMBOL_REMAP::getLibsNotInGlobalSymbolLibTable(), SCH_BASE_FRAME::GetLibSymbol(), DIALOG_PLOT_SCHEMATIC::getOutputPath(), KICAD_MANAGER_FRAME::GetProjectFileName(), FIELDS_GRID_TABLE::initGrid(), CVPCB_MAINFRAME::LoadFootprintFiles(), KICAD_MANAGER_FRAME::LoadProject(), SIMULATOR_FRAME::LoadSettings(), SIMULATOR_FRAME::LoadSimulator(), EDA_BASE_FRAME::LoadWindowState(), EDA_3D_VIEWER_FRAME::NewDisplay(), DIALOG_SIM_MODEL< T >::onBrowseButtonClick(), DIALOG_EXPORT_2581::onBrowseClicked(), DIALOG_EXPORT_ODBPP::onBrowseClicked(), DIALOG_EXPORT_STEP::onBrowseClicked(), DIALOG_GENCAD_EXPORT_OPTIONS::onBrowseClicked(), DIALOG_REMOTE_SYMBOL_CONFIG::onBrowseDestination(), DIALOG_IMPORT_NETLIST::onBrowseNetlistFiles(), DIALOG_EDIT_SYMBOLS_LIBID::onClickOrphansButton(), DIALOG_SYMBOL_FIELDS_TABLE::OnExport(), DIALOG_EXPORT_STEP::onExportButton(), PCB_BASE_FRAME::OnFpChangeDebounceTimer(), DIALOG_GENDRILL::onGenReportFile(), KICAD_MANAGER_FRAME::OnIdle(), DIALOG_CONFIG_EQUFILES::OnOkClick(), KICAD_MANAGER_FRAME::OnOpenFileInTextEditor(), DIALOG_PLOT::onOpenOutputDirectory(), DIALOG_GEN_FOOTPRINT_POSITION::onOutputDirectoryBrowseClicked(), DIALOG_GENDRILL::onOutputDirectoryBrowseClicked(), DIALOG_PLOT::onOutputDirectoryBrowseClicked(), DIALOG_PLOT_SCHEMATIC::onOutputDirectoryBrowseClicked(), DIALOG_SYMBOL_FIELDS_TABLE::OnOutputFileBrowseClicked(), DIALOG_BOARD_SETUP::onPageChanged(), DIALOG_SCHEMATIC_SETUP::onPageChanged(), DIALOG_SYMBOL_REMAP::OnRemapSymbols(), DIALOG_DRC::OnSaveReport(), DIALOG_ERC::OnSaveReport(), PANEL_FOOTPRINT_CHOOSER::PANEL_FOOTPRINT_CHOOSER(), PANEL_PREVIEW_3D_MODEL::PANEL_PREVIEW_3D_MODEL(), EDA_DRAW_FRAME::PrintDrawingSheet(), KICAD_MANAGER_FRAME::PrintPrjInfo(), KICAD_MANAGER_FRAME::ProjectChanged(), CVPCB_MAINFRAME::readNetListAndFpFiles(), EDA_3D_VIEWER_FRAME::ReloadRequest(), SIMULATOR_FRAME::ReloadSimulator(), DIALOG_SYMBOL_REMAP::remapSymbolToLibTable(), KICAD_MANAGER_FRAME::RestoreCommitFromHistory(), KICAD_MANAGER_FRAME::RestoreLocalHistory(), SAVE_AS_DIALOG::SAVE_AS_DIALOG(), KICAD_MANAGER_FRAME::SaveOpenJobSetsToLocalSettings(), DIALOG_BOARD_STATISTICS::saveReportClicked(), EDA_BASE_FRAME::SaveSettings(), SIMULATOR_FRAME::SaveSettings(), SCH_BASE_FRAME::SelectLibrary(), PCB_BASE_FRAME::setFPWatcher(), GERBVIEW_FRAME::SetPageSettings(), SCH_BASE_FRAME::setSymWatcher(), DIALOG_LIB_FIELDS_TABLE::SetupColumnProperties(), DIALOG_SYMBOL_FIELDS_TABLE::SetupColumnProperties(), BOARD_EDITOR_CONTROL::ShowEeschema(), KICAD_MANAGER_FRAME::ToggleLocalHistory(), DIALOG_EDIT_SYMBOLS_LIBID::TransferDataFromWindow(), DIALOG_EXPORT_2581::TransferDataFromWindow(), DIALOG_EXPORT_NETLIST::TransferDataFromWindow(), DIALOG_SIM_MODEL< T >::TransferDataFromWindow(), DIALOG_EXPORT_2581::TransferDataToWindow(), KICAD_MANAGER_FRAME::UnarchiveFiles(), DIALOG_PAGES_SETTINGS::UpdateDrawingSheetExample(), DIALOG_FIELD_PROPERTIES::UpdateField(), SIMULATOR_FRAME::UpdateTitle(), DIALOG_FOOTPRINT_PROPERTIES::~DIALOG_FOOTPRINT_PROPERTIES(), and EDA_3D_VIEWER_FRAME::~EDA_3D_VIEWER_FRAME().

recordControlChange()

void DIALOG_SHIM::recordControlChange ( wxWindow * aCtrl )

privateinherited

Definition at line 1165 of file dialog_shim.cpp.

References getControlValue(), m_currentValues, m_redoStack, and m_undoStack.

Referenced by onCommandEvent(), onDataViewListChanged(), onGridCellChanged(), onPropertyGridChanged(), onSpinDoubleEvent(), onSpinEvent(), and onStyledTextChanged().

refreshList()

void DIALOG_IMPORT_SYMBOL_SELECT::refreshList ( )

private

Refresh the list control based on current filter and selections.

Definition at line 211 of file dialog_import_symbol_select.cpp.

References add_power, index, info, KiBitmap(), m_listIndices, m_manager, DIALOG_IMPORT_SYMBOL_SELECT_BASE::m_symbolList, matchesFilter(), name, small_warning, and updateImportButton().

Referenced by OnFilterTextChanged(), OnSelectAll(), OnSelectNone(), and TransferDataToWindow().

registerUndoRedoHandlers()

void DIALOG_SHIM::registerUndoRedoHandlers ( wxWindowList & aChildren )

privateinherited

Definition at line 1079 of file dialog_shim.cpp.

References getControlValue(), grid, isCompoundDateTimePicker(), m_currentValues, m_noControlUndoRedo, onCommandEvent(), onDataViewListChanged(), onGridCellChanged(), onPropertyGridChanged(), onSpinDoubleEvent(), onSpinEvent(), onStyledTextChanged(), and registerUndoRedoHandlers().

Referenced by OnPaint(), registerUndoRedoHandlers(), and resetUndoRedoForNewContent().

RegisterUnitBinder()

void DIALOG_SHIM::RegisterUnitBinder ( UNIT_BINDER * aUnitBinder, wxWindow * aWindow )

inherited

Register a UNIT_BINDER so that it can handle units in control-state save/restore.

Parameters

aUnitBinder
aWindow	the control window

Definition at line 984 of file dialog_shim.cpp.

References m_unitBinders.

resetSize()

void DIALOG_SHIM::resetSize ( )

protectedinherited

Clear the existing dialog size and position.

This will cause the dialog size to be clear so the next time the dialog is shown the sizers will layout the dialog accordingly. This useful when there are dialog windows that size changes due to layout dependency hidden controls.

Definition at line 583 of file dialog_shim.cpp.

References getDialogKeyFromTitle(), m_hash_key, and Pgm().

Referenced by DIALOG_PAD_PROPERTIES::updatePadSizeControls().

resetUndoRedoForNewContent()

void DIALOG_SHIM::resetUndoRedoForNewContent ( wxWindowList & aChildren )

protectedinherited

Reset undo/redo tracking after dynamically replacing child panels.

Clears the undo/redo stacks and current value baselines, then registers undo/redo event handlers on the new children.

Parameters

aChildren

The child window list of the newly created panel.

Definition at line 1627 of file dialog_shim.cpp.

References m_currentValues, m_redoStack, m_undoStack, and registerUndoRedoHandlers().

Referenced by RULE_EDITOR_DIALOG_BASE::SetContentPanel().

resolveConflicts()

bool DIALOG_IMPORT_SYMBOL_SELECT::resolveConflicts ( )

private

Show conflict resolution dialog.

Returns

true if user wants to proceed, false to cancel

Definition at line 541 of file dialog_import_symbol_select.cpp.

References _, m_conflictResolutions, m_manager, name, OVERWRITE, and SKIP.

Referenced by TransferDataFromWindow().

SaveControlState()

void DIALOG_SHIM::SaveControlState ( )

inherited

Save control values and geometry to the current project's local settings.

Definition at line 687 of file dialog_shim.cpp.

References COMMON_SETTINGS::CsInternals(), generateKey(), PGM_BASE::GetCommonSettings(), getDialogKeyFromTitle(), grid, index, isCompoundDateTimePicker(), COMMON_SETTINGS_INTERNALS::m_dialogControlValues, m_hash_key, m_unitBinders, Pgm(), and PROPERTY_HOLDER::SafeCast().

Referenced by OnCloseWindow(), and Show().

SelectAllInTextCtrls()

void DIALOG_SHIM::SelectAllInTextCtrls ( wxWindowList & children )

inherited

Definition at line 1005 of file dialog_shim.cpp.

References ignore_unused(), isCompoundDateTimePicker(), m_beforeEditValues, minSize, onChildSetFocus(), and SelectAllInTextCtrls().

Referenced by OnPaint(), and SelectAllInTextCtrls().

setControlValue()

void DIALOG_SHIM::setControlValue ( wxWindow * aCtrl, const wxVariant & aValue )

privateinherited

Definition at line 1336 of file dialog_shim.cpp.

References grid, and table.

Referenced by doRedo(), and doUndo().

SetInitialFocus()

void DIALOG_SHIM::SetInitialFocus ( wxWindow * aWindow )

inlineinherited

Sets the window (usually a wxTextCtrl) that should be focused when the dialog is shown.

Definition at line 94 of file dialog_shim.h.

References m_initialFocusTarget.

Referenced by DIALOG_BOM::DIALOG_BOM(), DIALOG_CONFIGURE_PATHS::DIALOG_CONFIGURE_PATHS(), DIALOG_ENUM_PADS::DIALOG_ENUM_PADS(), DIALOG_FIND::DIALOG_FIND(), DIALOG_FOOTPRINT_PROPERTIES::DIALOG_FOOTPRINT_PROPERTIES(), DIALOG_FOOTPRINT_PROPERTIES_FP_EDITOR::DIALOG_FOOTPRINT_PROPERTIES_FP_EDITOR(), DIALOG_GET_FOOTPRINT_BY_NAME::DIALOG_GET_FOOTPRINT_BY_NAME(), DIALOG_GRID_SETTINGS::DIALOG_GRID_SETTINGS(), DIALOG_GROUP_PROPERTIES::DIALOG_GROUP_PROPERTIES(), DIALOG_IMPORT_GFX_SCH::DIALOG_IMPORT_GFX_SCH(), DIALOG_IMPORT_GRAPHICS::DIALOG_IMPORT_GRAPHICS(), DIALOG_IMPORT_SYMBOL_SELECT::DIALOG_IMPORT_SYMBOL_SELECT(), DIALOG_JUNCTION_PROPS::DIALOG_JUNCTION_PROPS(), DIALOG_LABEL_PROPERTIES::DIALOG_LABEL_PROPERTIES(), DIALOG_LIB_FIELDS_TABLE::DIALOG_LIB_FIELDS_TABLE(), DIALOG_LINE_PROPERTIES::DIALOG_LINE_PROPERTIES(), DIALOG_OFFSET_ITEM::DIALOG_OFFSET_ITEM(), DIALOG_PAD_PROPERTIES::DIALOG_PAD_PROPERTIES(), DIALOG_PIN_PROPERTIES::DIALOG_PIN_PROPERTIES(), DIALOG_PLUGIN_OPTIONS::DIALOG_PLUGIN_OPTIONS(), DIALOG_POSITION_RELATIVE::DIALOG_POSITION_RELATIVE(), DIALOG_REMOTE_SYMBOL_CONFIG::DIALOG_REMOTE_SYMBOL_CONFIG(), DIALOG_SCH_FIND::DIALOG_SCH_FIND(), DIALOG_SHAPE_PROPERTIES::DIALOG_SHAPE_PROPERTIES(), DIALOG_SHEET_PIN_PROPERTIES::DIALOG_SHEET_PIN_PROPERTIES(), DIALOG_SYMBOL_CHOOSER::DIALOG_SYMBOL_CHOOSER(), DIALOG_SYMBOL_FIELDS_TABLE::DIALOG_SYMBOL_FIELDS_TABLE(), DIALOG_TABLECELL_PROPERTIES::DIALOG_TABLECELL_PROPERTIES(), DIALOG_TABLECELL_PROPERTIES::DIALOG_TABLECELL_PROPERTIES(), DIALOG_TARGET_PROPERTIES::DIALOG_TARGET_PROPERTIES(), DIALOG_TEXT_PROPERTIES::DIALOG_TEXT_PROPERTIES(), DIALOG_TEXT_PROPERTIES::DIALOG_TEXT_PROPERTIES(), DIALOG_TEXTBOX_PROPERTIES::DIALOG_TEXTBOX_PROPERTIES(), DIALOG_TUNING_PATTERN_PROPERTIES::DIALOG_TUNING_PATTERN_PROPERTIES(), DIALOG_WIRE_BUS_PROPERTIES::DIALOG_WIRE_BUS_PROPERTIES(), EDA_VIEW_SWITCHER::EDA_VIEW_SWITCHER(), HK_PROMPT_DIALOG::HK_PROMPT_DIALOG(), SCH_EDITOR_CONTROL::IncrementAnnotations(), DIALOG_FIELD_PROPERTIES::init(), DIALOG_EXCHANGE_FOOTPRINTS::OnMatchAllClicked(), DIALOG_EXCHANGE_FOOTPRINTS::OnMatchIDClicked(), DIALOG_EXCHANGE_FOOTPRINTS::OnMatchRefClicked(), DIALOG_EXCHANGE_FOOTPRINTS::OnMatchSelectedClicked(), DIALOG_EXCHANGE_FOOTPRINTS::OnMatchValueClicked(), DIALOG_LABEL_PROPERTIES::onMultiLabelCheck(), SAVE_AS_DIALOG::SAVE_AS_DIALOG(), SAVE_SYMBOL_AS_DIALOG::SAVE_SYMBOL_AS_DIALOG(), DIALOG_NON_COPPER_ZONES_EDITOR::TransferDataToWindow(), DIALOG_RULE_AREA_PROPERTIES::TransferDataToWindow(), DIALOG_TRACK_VIA_PROPERTIES::TransferDataToWindow(), WX_PT_ENTRY_DIALOG::WX_PT_ENTRY_DIALOG(), WX_TEXT_ENTRY_DIALOG::WX_TEXT_ENTRY_DIALOG(), and WX_UNIT_ENTRY_DIALOG::WX_UNIT_ENTRY_DIALOG().

SetKiway()

void KIWAY_HOLDER::SetKiway ( wxWindow * aDest, KIWAY * aKiway )

inherited

It is only used for debugging, since "this" is not a wxWindow*.

"this" is a KIWAY_HOLDER mix-in.

Parameters

aDest	is the recipient of aKiway pointer.
aKiway	is often from a parent window or from KIFACE::CreateKiWindow().

Definition at line 39 of file kiway_holder.cpp.

References ignore_unused(), m_kiway, and name.

Referenced by DIALOG_SHIM::DIALOG_SHIM(), InvokePcbLibTableEditor(), and InvokeSchEditSymbolLibTable().

SetPosition()

void DIALOG_SHIM::SetPosition ( const wxPoint & aNewPosition )

inherited

Force the position of the dialog to a new position.

Parameters

aNewPosition

is the new forced position

Definition at line 430 of file dialog_shim.cpp.

Referenced by PCB_BASE_FRAME::SelectOneLayer().

setSizeInDU()

void DIALOG_SHIM::setSizeInDU ( int x, int y )

protectedinherited

Set the dialog to the given dimensions in "dialog units".

These are units equivalent to 4* the average character width and 8* the average character height, allowing a dialog to be sized in a way that scales it with the system font.

Definition at line 403 of file dialog_shim.cpp.

Referenced by HTML_MESSAGE_BOX::HTML_MESSAGE_BOX(), and HTML_MESSAGE_BOX::SetDialogSizeInDU().

SetupStandardButtons()

void DIALOG_SHIM::SetupStandardButtons ( std::map< int, wxString > aLabels = {} )

inherited

Definition at line 1940 of file dialog_shim.cpp.

References recursiveDescent().

Referenced by CONVERT_SETTINGS_DIALOG::CONVERT_SETTINGS_DIALOG(), DIALOG_ANNOTATE::DIALOG_ANNOTATE(), DIALOG_ARCHIVE_JOB_SETTINGS::DIALOG_ARCHIVE_JOB_SETTINGS(), DIALOG_ASSIGN_NETCLASS::DIALOG_ASSIGN_NETCLASS(), DIALOG_BOARD_REANNOTATE::DIALOG_BOARD_REANNOTATE(), DIALOG_BOARD_STATS_JOB::DIALOG_BOARD_STATS_JOB(), DIALOG_BOM::DIALOG_BOM(), DIALOG_BOOK_REPORTER::DIALOG_BOOK_REPORTER(), DIALOG_CHANGE_SYMBOLS::DIALOG_CHANGE_SYMBOLS(), DIALOG_CLEANUP_GRAPHICS::DIALOG_CLEANUP_GRAPHICS(), DIALOG_COLOR_PICKER::DIALOG_COLOR_PICKER(), DIALOG_CONFIG_EQUFILES::DIALOG_CONFIG_EQUFILES(), DIALOG_CONFIGURE_PATHS::DIALOG_CONFIGURE_PATHS(), DIALOG_COPPER_ZONE::DIALOG_COPPER_ZONE(), DIALOG_COPYFILES_JOB_SETTINGS::DIALOG_COPYFILES_JOB_SETTINGS(), DIALOG_CREATE_ARRAY::DIALOG_CREATE_ARRAY(), DIALOG_CREATE_NET_CHAIN::DIALOG_CREATE_NET_CHAIN(), DIALOG_DATABASE_LIB_SETTINGS::DIALOG_DATABASE_LIB_SETTINGS(), DIALOG_DESIGN_BLOCK_PROPERTIES::DIALOG_DESIGN_BLOCK_PROPERTIES(), DIALOG_DESTINATION::DIALOG_DESTINATION(), DIALOG_DIELECTRIC_MATERIAL::DIALOG_DIELECTRIC_MATERIAL(), DIALOG_DIFF_PHASE_SKEW_PROPERTIES::DIALOG_DIFF_PHASE_SKEW_PROPERTIES(), DIALOG_DIMENSION_PROPERTIES::DIALOG_DIMENSION_PROPERTIES(), DIALOG_DRAW_LAYERS_SETTINGS::DIALOG_DRAW_LAYERS_SETTINGS(), DIALOG_DRC::DIALOG_DRC(), DIALOG_ERC::DIALOG_ERC(), DIALOG_EXCHANGE_FOOTPRINTS::DIALOG_EXCHANGE_FOOTPRINTS(), DIALOG_EXECUTECOMMAND_JOB_SETTINGS::DIALOG_EXECUTECOMMAND_JOB_SETTINGS(), DIALOG_EXPORT_2581::DIALOG_EXPORT_2581(), DIALOG_EXPORT_2581::DIALOG_EXPORT_2581(), DIALOG_EXPORT_IDF3::DIALOG_EXPORT_IDF3(), DIALOG_EXPORT_NETLIST::DIALOG_EXPORT_NETLIST(), DIALOG_EXPORT_ODBPP::DIALOG_EXPORT_ODBPP(), DIALOG_EXPORT_ODBPP::DIALOG_EXPORT_ODBPP(), DIALOG_EXPORT_STEP::DIALOG_EXPORT_STEP(), DIALOG_EXPORT_VRML::DIALOG_EXPORT_VRML(), DIALOG_FILTER_SELECTION::DIALOG_FILTER_SELECTION(), DIALOG_FOOTPRINT_CHECKER::DIALOG_FOOTPRINT_CHECKER(), DIALOG_FOOTPRINT_PROPERTIES::DIALOG_FOOTPRINT_PROPERTIES(), DIALOG_FOOTPRINT_PROPERTIES_FP_EDITOR::DIALOG_FOOTPRINT_PROPERTIES_FP_EDITOR(), DIALOG_FOOTPRINT_WIZARD_LIST::DIALOG_FOOTPRINT_WIZARD_LIST(), DIALOG_FP_EDIT_PAD_TABLE::DIALOG_FP_EDIT_PAD_TABLE(), DIALOG_GEN_FOOTPRINT_POSITION::DIALOG_GEN_FOOTPRINT_POSITION(), DIALOG_GEN_FOOTPRINT_POSITION::DIALOG_GEN_FOOTPRINT_POSITION(), DIALOG_GENDRILL::DIALOG_GENDRILL(), DIALOG_GENDRILL::DIALOG_GENDRILL(), DIALOG_GENERATE_DATABASE_CONNECTION::DIALOG_GENERATE_DATABASE_CONNECTION(), DIALOG_GET_FOOTPRINT_BY_NAME::DIALOG_GET_FOOTPRINT_BY_NAME(), DIALOG_GIT_COMMIT::DIALOG_GIT_COMMIT(), DIALOG_GIT_CREDENTIALS::DIALOG_GIT_CREDENTIALS(), DIALOG_GIT_REPOSITORY::DIALOG_GIT_REPOSITORY(), DIALOG_GLOBAL_DELETION::DIALOG_GLOBAL_DELETION(), DIALOG_GLOBAL_EDIT_TEARDROPS::DIALOG_GLOBAL_EDIT_TEARDROPS(), DIALOG_GLOBAL_EDIT_TEXT_AND_GRAPHICS::DIALOG_GLOBAL_EDIT_TEXT_AND_GRAPHICS(), DIALOG_GLOBAL_EDIT_TEXT_AND_GRAPHICS::DIALOG_GLOBAL_EDIT_TEXT_AND_GRAPHICS(), DIALOG_GLOBAL_EDIT_TRACKS_AND_VIAS::DIALOG_GLOBAL_EDIT_TRACKS_AND_VIAS(), DIALOG_GRID_SETTINGS::DIALOG_GRID_SETTINGS(), DIALOG_GROUP_PROPERTIES::DIALOG_GROUP_PROPERTIES(), DIALOG_IBIS_PARSER_REPORTER::DIALOG_IBIS_PARSER_REPORTER(), DIALOG_IMAGE_PROPERTIES::DIALOG_IMAGE_PROPERTIES(), DIALOG_IMPORT_CHOOSE_PROJECT::DIALOG_IMPORT_CHOOSE_PROJECT(), DIALOG_IMPORT_GFX_SCH::DIALOG_IMPORT_GFX_SCH(), DIALOG_IMPORT_GRAPHICS::DIALOG_IMPORT_GRAPHICS(), DIALOG_IMPORT_NETLIST::DIALOG_IMPORT_NETLIST(), DIALOG_IMPORT_SETTINGS::DIALOG_IMPORT_SETTINGS(), DIALOG_IMPORT_SYMBOL_SELECT::DIALOG_IMPORT_SYMBOL_SELECT(), DIALOG_JOBSET_RUN_LOG::DIALOG_JOBSET_RUN_LOG(), DIALOG_JUNCTION_PROPS::DIALOG_JUNCTION_PROPS(), DIALOG_LABEL_PROPERTIES::DIALOG_LABEL_PROPERTIES(), DIALOG_LIB_EDIT_PIN_TABLE::DIALOG_LIB_EDIT_PIN_TABLE(), DIALOG_LIB_FIELDS_TABLE::DIALOG_LIB_FIELDS_TABLE(), DIALOG_LIB_NEW_SYMBOL::DIALOG_LIB_NEW_SYMBOL(), DIALOG_LINE_PROPERTIES::DIALOG_LINE_PROPERTIES(), DIALOG_MAP_LAYERS::DIALOG_MAP_LAYERS(), DIALOG_MOVE_EXACT::DIALOG_MOVE_EXACT(), DIALOG_MULTICHANNEL_GENERATE_RULE_AREAS::DIALOG_MULTICHANNEL_GENERATE_RULE_AREAS(), DIALOG_MULTICHANNEL_REPEAT_LAYOUT::DIALOG_MULTICHANNEL_REPEAT_LAYOUT(), DIALOG_NON_COPPER_ZONES_EDITOR::DIALOG_NON_COPPER_ZONES_EDITOR(), DIALOG_OFFSET_ITEM::DIALOG_OFFSET_ITEM(), DIALOG_OUTSET_ITEMS::DIALOG_OUTSET_ITEMS(), DIALOG_PAD_PROPERTIES::DIALOG_PAD_PROPERTIES(), DIALOG_PAGES_SETTINGS::DIALOG_PAGES_SETTINGS(), DIALOG_PCM::DIALOG_PCM(), DIALOG_PIN_PROPERTIES::DIALOG_PIN_PROPERTIES(), DIALOG_PLOT::DIALOG_PLOT(), DIALOG_PLOT_SCHEMATIC::DIALOG_PLOT_SCHEMATIC(), DIALOG_PLUGIN_OPTIONS::DIALOG_PLUGIN_OPTIONS(), DIALOG_PNS_DIFF_PAIR_DIMENSIONS::DIALOG_PNS_DIFF_PAIR_DIMENSIONS(), DIALOG_PNS_SETTINGS::DIALOG_PNS_SETTINGS(), DIALOG_POSITION_RELATIVE::DIALOG_POSITION_RELATIVE(), DIALOG_PRINT::DIALOG_PRINT(), DIALOG_PRINT_GENERIC::DIALOG_PRINT_GENERIC(), DIALOG_PUSH_PAD_PROPERTIES::DIALOG_PUSH_PAD_PROPERTIES(), DIALOG_RC_JOB::DIALOG_RC_JOB(), DIALOG_REFERENCE_IMAGE_PROPERTIES::DIALOG_REFERENCE_IMAGE_PROPERTIES(), DIALOG_REGULATOR_FORM::DIALOG_REGULATOR_FORM(), DIALOG_REMOTE_SYMBOL_CONFIG::DIALOG_REMOTE_SYMBOL_CONFIG(), DIALOG_RENDER_JOB::DIALOG_RENDER_JOB(), DIALOG_RESCUE_EACH::DIALOG_RESCUE_EACH(), DIALOG_RESOLVE_FIELD_CASE_CONFLICTS::DIALOG_RESOLVE_FIELD_CASE_CONFLICTS(), DIALOG_RULE_AREA_PROPERTIES::DIALOG_RULE_AREA_PROPERTIES(), DIALOG_SCH_IMPORT_SETTINGS::DIALOG_SCH_IMPORT_SETTINGS(), DIALOG_SHAPE_PROPERTIES::DIALOG_SHAPE_PROPERTIES(), DIALOG_SHAPE_PROPERTIES::DIALOG_SHAPE_PROPERTIES(), DIALOG_SHEET_PIN_PROPERTIES::DIALOG_SHEET_PIN_PROPERTIES(), DIALOG_SHEET_PROPERTIES::DIALOG_SHEET_PROPERTIES(), DIALOG_SIM_COMMAND::DIALOG_SIM_COMMAND(), DIALOG_SWAP_LAYERS::DIALOG_SWAP_LAYERS(), DIALOG_SYMBOL_CHOOSER::DIALOG_SYMBOL_CHOOSER(), DIALOG_SYMBOL_FIELDS_TABLE::DIALOG_SYMBOL_FIELDS_TABLE(), DIALOG_SYMBOL_PROPERTIES::DIALOG_SYMBOL_PROPERTIES(), DIALOG_TABLE_PROPERTIES::DIALOG_TABLE_PROPERTIES(), DIALOG_TABLE_PROPERTIES::DIALOG_TABLE_PROPERTIES(), DIALOG_TABLECELL_PROPERTIES::DIALOG_TABLECELL_PROPERTIES(), DIALOG_TABLECELL_PROPERTIES::DIALOG_TABLECELL_PROPERTIES(), DIALOG_TARGET_PROPERTIES::DIALOG_TARGET_PROPERTIES(), DIALOG_TEXT_PROPERTIES::DIALOG_TEXT_PROPERTIES(), DIALOG_TEXT_PROPERTIES::DIALOG_TEXT_PROPERTIES(), DIALOG_TEXTBOX_PROPERTIES::DIALOG_TEXTBOX_PROPERTIES(), DIALOG_TRACK_VIA_PROPERTIES::DIALOG_TRACK_VIA_PROPERTIES(), DIALOG_TRACK_VIA_SIZE::DIALOG_TRACK_VIA_SIZE(), DIALOG_TUNING_PATTERN_PROPERTIES::DIALOG_TUNING_PATTERN_PROPERTIES(), DIALOG_UNUSED_PAD_LAYERS::DIALOG_UNUSED_PAD_LAYERS(), DIALOG_UPDATE_FROM_PCB::DIALOG_UPDATE_FROM_PCB(), DIALOG_UPDATE_PCB::DIALOG_UPDATE_PCB(), DIALOG_UPDATE_SYMBOL_FIELDS::DIALOG_UPDATE_SYMBOL_FIELDS(), DIALOG_USER_DEFINED_SIGNALS::DIALOG_USER_DEFINED_SIGNALS(), DIALOG_WIRE_BUS_PROPERTIES::DIALOG_WIRE_BUS_PROPERTIES(), EDA_LIST_DIALOG::EDA_LIST_DIALOG(), EDA_REORDERABLE_LIST_DIALOG::EDA_REORDERABLE_LIST_DIALOG(), HTML_MESSAGE_BOX::HTML_MESSAGE_BOX(), DIALOG_FIELD_PROPERTIES::init(), DIALOG_EDIT_LIBRARY_TABLES::InstallPanel(), NETLIST_DIALOG_ADD_GENERATOR::NETLIST_DIALOG_ADD_GENERATOR(), PAGED_DIALOG::PAGED_DIALOG(), SAVE_AS_DIALOG::SAVE_AS_DIALOG(), SAVE_SYMBOL_AS_DIALOG::SAVE_SYMBOL_AS_DIALOG(), DIALOG_CLEANUP_TRACKS_AND_VIAS::setupOKButtonLabel(), WX_MULTI_ENTRY_DIALOG::WX_MULTI_ENTRY_DIALOG(), WX_PT_ENTRY_DIALOG::WX_PT_ENTRY_DIALOG(), WX_TEXT_ENTRY_DIALOG::WX_TEXT_ENTRY_DIALOG(), and WX_UNIT_ENTRY_DIALOG::WX_UNIT_ENTRY_DIALOG().

Show()

bool DIALOG_SHIM::Show ( bool show )

overrideinherited

Definition at line 471 of file dialog_shim.cpp.

References clampToWorkArea(), KIPLATFORM::UI::EnsureVisible(), focusParentCanvas(), getDialogKeyFromTitle(), m_hash_key, m_initialSize, m_useCalculatedSize, m_userPositioned, m_userResized, Pgm(), SaveControlState(), and KIPLATFORM::UI::StabilizeWindowPosition().

Referenced by SCH_INSPECTION_TOOL::CrossProbe(), BOARD_INSPECTION_TOOL::DiffFootprint(), SCH_INSPECTION_TOOL::DiffSymbol(), SCH_EDITOR_CONTROL::EditSymbolFields(), EndQuasiModal(), SCH_EDITOR_CONTROL::GenerateBOM(), BOARD_INSPECTION_TOOL::InspectConstraints(), BOARD_INSPECTION_TOOL::InspectDRCError(), SCH_INSPECTION_TOOL::NextMarker(), SCH_EDIT_FRAME::OnAnnotate(), DIALOG_DRC::OnDRCItemDClick(), DIALOG_ERC::OnERCItemDClick(), DIALOG_CLEANUP_GRAPHICS::OnLeftDClickItem(), DIALOG_CLEANUP_TRACKS_AND_VIAS::OnLeftDClickItem(), DIALOG_FOOTPRINT_CHECKER::OnLeftDClickItem(), DIALOG_SCH_FIND::onShowSearchPanel(), SCH_INSPECTION_TOOL::PrevMarker(), CVPCB_MAINFRAME::readNetListAndFpFiles(), BOARD_INSPECTION_TOOL::reportClearance(), DIALOG_FIND::Show(), DIALOG_FIND_BY_PROPERTIES::Show(), DIALOG_PAD_PROPERTIES::Show(), EDA_LIST_DIALOG::Show(), EDA_VIEW_SWITCHER::Show(), HOTKEY_CYCLE_POPUP::Show(), RULE_EDITOR_DIALOG_BASE::Show(), SCH_INSPECTION_TOOL::ShowERCDialog(), HTML_MESSAGE_BOX::ShowModeless(), ShowQuasiModal(), DIALOG_POSITION_RELATIVE::UpdatePickedItem(), and DIALOG_POSITION_RELATIVE::UpdatePickedPoint().

ShowModal()

int DIALOG_SHIM::ShowModal ( )

overrideinherited

Definition at line 1500 of file dialog_shim.cpp.

References KIPLATFORM::UI::ReparentModal(), and KIPLATFORM::UI::StabilizeWindowPosition().

Referenced by PANEL_SETUP_LAYERS::addUserDefinedLayer(), PCB_CONTROL::ApplyDesignBlockLayout(), MULTICHANNEL_TOOL::AutogenerateRuleAreas(), GRID_CELL_COLOR_SELECTOR::BeginEdit(), SCH_INSPECTION_TOOL::CheckSymbol(), FOOTPRINT_EDITOR_CONTROL::CleanupGraphics(), GLOBAL_EDIT_TOOL::CleanupGraphics(), GLOBAL_EDIT_TOOL::CleanupTracksAndVias(), CONSTRAINT_EDIT_TOOL::commitConstraint(), FOOTPRINT_EDITOR_CONTROL::CompareLibraryWithFile(), SYMBOL_EDITOR_CONTROL::CompareLibraryWithFile(), COMMON_CONTROL::ConfigurePaths(), DIALOG_PLOT::CreateDrillFile(), CONVERT_TOOL::CreateLines(), SYMBOL_EDIT_FRAME::CreateNewSymbol(), MICROWAVE_TOOL::createPolygonShape(), CONVERT_TOOL::CreatePolys(), ROUTER_TOOL::CustomTrackWidthDialog(), PANEL_DESIGN_BLOCK_CHOOSER::displayErrors(), DisplayHotkeyList(), CURSORS_GRID_TRICKS::doPopupSelection(), LIB_FIELDS_EDITOR_GRID_TRICKS::doPopupSelection(), MEASUREMENTS_GRID_TRICKS::doPopupSelection(), SIGNALS_GRID_TRICKS::doPopupSelection(), ROUTER_TOOL::DpDimensionsDialog(), DRAWING_TOOL::DrawBarcode(), SIMULATOR_FRAME::EditAnalysis(), EditConstraintValue(), DESIGN_BLOCK_PANE::EditDesignBlockProperties(), SYMBOL_EDITOR_PIN_TOOL::EditPinProperties(), SCH_EDIT_TOOL::EditProperties(), SYMBOL_EDITOR_EDIT_TOOL::editShapeProperties(), SCH_EDIT_FRAME::EditSheetProperties(), FOOTPRINT_EDITOR_CONTROL::EditTextAndGraphics(), GLOBAL_EDIT_TOOL::EditTextAndGraphics(), SYMBOL_EDITOR_EDIT_TOOL::editTextBoxProperties(), SYMBOL_EDITOR_EDIT_TOOL::editTextProperties(), EESCHEMA_JOBS_HANDLER::EESCHEMA_JOBS_HANDLER(), VIA_SIZE_MENU::eventHandler(), BOARD_EDITOR_CONTROL::ExportGenCAD(), BOARD_EDITOR_CONTROL::ExportIDF(), EDA_3D_CONTROLLER::ExportImage(), BOARD_EDITOR_CONTROL::ExportSTEP(), GERBVIEW_CONTROL::ExportToPcbnew(), BOARD_EDITOR_CONTROL::ExportVRML(), EDIT_TOOL::FilletTracks(), PCB_SELECTION_TOOL::filterSelection(), BOARD_EDITOR_CONTROL::GenerateDrillFiles(), BOARD_EDITOR_CONTROL::GenerateODBPPFiles(), BOARD_EDITOR_CONTROL::GeneratePosFile(), BOARD_EDITOR_CONTROL::GenIPC2581File(), GetChamferParams(), GetDogboneParams(), GetFootprintFromBoardByReference(), COLOR_SWATCH::GetNewSwatchColor(), GetRadiusParams(), GetSequentialPadNumberingParams(), GLOBAL_EDIT_TOOL::GlobalDeletions(), SCH_EDIT_TOOL::GlobalEdit(), COMMON_TOOLS::GridOrigin(), EDIT_TOOL::HealShapes(), SCH_EDIT_FRAME::importFile(), EE_GRAPHIC_TOOL::ImportGraphics(), SYMBOL_EDIT_FRAME::ImportSymbol(), SCH_EDITOR_CONTROL::IncrementAnnotations(), PCB_EDIT_FRAME::InstallNetlistFrame(), POSITION_RELATIVE_TOOL::InteractiveOffset(), InvokeCopperZonesEditor(), InvokeDialogNetList(), InvokeEditDesignBlockLibTable(), InvokePcbLibTableEditor(), InvokeRuleAreaEditor(), InvokeSchEditSymbolLibTable(), PROJECT_SCH::LegacySchLibs(), GERBVIEW_FRAME::LoadGerberJobFile(), GERBVIEW_FRAME::LoadListOfGerberAndDrillFiles(), GERBVIEW_FRAME::LoadZipArchiveFile(), CONSTRAINT_EDIT_TOOL::ManageConstraints(), GLOBAL_EDIT_TOOL::Migrate3DModels(), SCH_EDIT_FRAME::ModalAnnotate(), EDIT_TOOL::MoveExact(), PCB_POINT_EDITOR::movePoint(), SIMULATOR_CONTROL::NewAnalysisTab(), KICAD_MANAGER_CONTROL::NewFromRepository(), KICAD_MANAGER_CONTROL::NewProject(), PANEL_JOBSET::OnAddDestinationClick(), PANEL_SETUP_BOARD_STACKUP::onAddDielectricLayer(), DIALOG_LIB_SYMBOL_PROPERTIES::OnAddFootprintFilter(), DIALOG_EXPORT_NETLIST::OnAddGenerator(), PANEL_GRID_SETTINGS::OnAddGrid(), PCB_NET_INSPECTOR_PANEL::onAddGroup(), PANEL_JOBSET::OnAddJobClick(), PCB_NET_INSPECTOR_PANEL::onAddNet(), PANEL_REGULATOR::OnAddRegulator(), DIALOG_BOARD_SETUP::onAuxiliaryAction(), DIALOG_SCHEMATIC_SETUP::onAuxiliaryAction(), PCB_EDIT_FRAME::OnBoardLoaded(), DIALOG_SYMBOL_FIELDS_TABLE::onBomFmtPresetChanged(), DIALOG_SYMBOL_FIELDS_TABLE::onBomPresetChanged(), PANEL_SETUP_BOARD_STACKUP::onColorSelected(), KICAD_MANAGER_FRAME::OnCompareProjectBranches(), PANEL_REMOTE_SYMBOL::onConfigure(), DIALOG_DRC::OnDRCItemRClick(), DIALOG_LIB_SYMBOL_PROPERTIES::OnEditFootprintFilter(), PANEL_GRID_SETTINGS::onEditGrid(), FOOTPRINT_EDIT_FRAME::OnEditItemRequest(), PCB_EDIT_FRAME::OnEditItemRequest(), PANEL_REGULATOR::OnEditRegulator(), DIALOG_LIB_SYMBOL_PROPERTIES::OnEditSpiceModel(), DIALOG_SYMBOL_PROPERTIES::OnEditSpiceModel(), DIALOG_ERC::OnERCItemRClick(), DIALOG_EXPORT_STEP::onExportButton(), PROJECT_TREE_PANE::onGitAmendCommit(), PROJECT_TREE_PANE::onGitCommit(), PROJECT_TREE_PANE::onGitInitializeProject(), PROJECT_TREE_PANE::onGitRemoteSettings(), PROJECT_TREE_PANE::onGitSwitchBranch(), LIB_TREE::onHeaderContextMenu(), PROPERTIES_FRAME::onHelp(), PANEL_DESTINATION::OnLastStatusClick(), APPEARANCE_CONTROLS::onLayerPresetChanged(), APPEARANCE_CONTROLS_3D::onLayerPresetChanged(), KISTATUSBAR::onLoadWarningsIconClick(), PANEL_SCH_DATA_SOURCES::OnManageDataSources(), DIALOG_PCM::OnManageRepositoriesClicked(), PANEL_SETUP_BOARD_STACKUP::onMaterialChange(), PANEL_FP_LIB_TABLE::onMigrateLibraries(), PANEL_DESTINATION::OnProperties(), PANEL_SETUP_BOARD_STACKUP::onRemoveDielectricLayer(), PCB_NET_INSPECTOR_PANEL::onRenameSelectedNet(), PANEL_PCBNEW_ACTION_PLUGINS::OnShowErrorsButtonClick(), APPEARANCE_CONTROLS::onViewportChanged(), APPEARANCE_CONTROLS_3D::onViewportChanged(), PCBNEW_JOBS_HANDLER::OpenDiffDialog(), PANEL_JOBSET::OpenJobOptionsForListItem(), DESIGN_BLOCK_GRID_TRICKS::optionsEditor(), FP_GRID_TRICKS::optionsEditor(), SYMBOL_GRID_TRICKS::optionsEditor(), CONVERT_TOOL::OutsetItems(), DIALOG_PAD_PROPERTIES::padValuesOK(), BOARD_EDITOR_CONTROL::PageSettings(), PL_EDITOR_CONTROL::PageSetup(), SCH_EDITOR_CONTROL::PageSetup(), PCB_CONTROL::Paste(), SCH_EDITOR_CONTROL::Paste(), PCBNEW_JOBS_HANDLER::PCBNEW_JOBS_HANDLER(), SCH_BASE_FRAME::PickSymbolFromLibrary(), SYMBOL_EDITOR_EDIT_TOOL::PinTable(), DRAWING_TOOL::PlaceImportedGraphics(), DRAWING_TOOL::PlaceTuningPattern(), SCH_EDITOR_CONTROL::Plot(), GERBVIEW_CONTROL::Print(), PCB_CONTROL::Print(), SCH_EDITOR_CONTROL::Print(), promptForGitCredentials(), HK_PROMPT_DIALOG::PromptForKey(), SCH_EDIT_TOOL::Properties(), PAD_TOOL::pushPadSettings(), GERBVIEW_FRAME::Read_EXCELLON_File(), GERBVIEW_FRAME::Read_GERBER_File(), CVPCB_MAINFRAME::readNetListAndFpFiles(), GLOBAL_EDIT_TOOL::RemoveUnusedPads(), MULTICHANNEL_TOOL::repeatLayout(), DIALOG_IMPORT_CHOOSE_PROJECT::RunModal(), DIALOG_MAP_LAYERS::RunModal(), PCBNEW_JOBS_HANDLER::runPcbMerge(), EESCHEMA_JOBS_HANDLER::runSchMerge(), PCB_EDIT_FRAME::SaveBoardAsDesignBlock(), FOOTPRINT_EDIT_FRAME::SaveFootprintAs(), ROUTER_TOOL::saveRouterDebugLog(), PCB_EDIT_FRAME::SaveSelectionAsDesignBlock(), SCH_EDIT_FRAME::SaveSelectionAsDesignBlock(), SCH_EDIT_FRAME::SaveSheetAsDesignBlock(), SYMBOL_EDIT_FRAME::saveSymbolCopyAs(), ROUTER_TOOL::SelectCopperLayerPair(), FOOTPRINT_EDIT_FRAME::SelectFootprintFromBoard(), FOOTPRINT_WIZARD_FRAME::SelectFootprintWizard(), PCB_BASE_EDIT_FRAME::SelectLibrary(), SCH_BASE_FRAME::SelectLibrary(), PCB_BASE_FRAME::SelectOneLayer(), GERBVIEW_FRAME::SelectPCBLayer(), GERBVIEW_FRAME::SetLayerDrawPrms(), ROUTER_TOOL::SettingsDialog(), PCB_BASE_EDIT_FRAME::ShowBarcodePropertiesDialog(), BOARD_INSPECTION_TOOL::ShowBoardStatistics(), SYMBOL_LIBRARY_ADAPTER::ShowConfigurationDialog(), SCH_EDITOR_CONTROL::ShowCreateNetChain(), PL_EDITOR_FRAME::ShowDesignInspector(), DIFF_PHASE_SKEW_TOOL::ShowDiffPhaseSkew(), CVPCB_CONTROL::ShowEquFileTable(), BOARD_INSPECTION_TOOL::ShowFootprintLinks(), SYMBOL_EDITOR_CONTROL::ShowLibraryTable(), SIMULATOR_CONTROL::ShowNetlist(), KICAD_MANAGER_CONTROL::ShowPluginManager(), EDA_BASE_FRAME::ShowPreferences(), PCB_TUNING_PATTERN::ShowPropertiesDialog(), BOARD_REANNOTATE_TOOL::ShowReannotateDialog(), PCB_BASE_EDIT_FRAME::ShowReferenceImagePropertiesDialog(), LOCAL_HISTORY::ShowRestoreDialog(), SCH_INSPECTION_TOOL::showSchematicComparison(), SCH_EDIT_FRAME::ShowSchematicSetupDialog(), PCB_EDIT_FRAME::ShowTargetOptionsDialog(), EDIT_TOOL::SimplifyPolygons(), SCH_DRAWING_TOOLS::SingleClickPlace(), GLOBAL_EDIT_TOOL::SwapLayers(), DIALOG_IMPORT_GFX_SCH::TransferDataFromWindow(), DIALOG_IMPORT_GRAPHICS::TransferDataFromWindow(), PANEL_SETUP_LAYERS::TransferDataFromWindow(), EDA_3D_VIEWER_FRAME::TryBefore(), PCB_BASE_EDIT_FRAME::TryBefore(), SYMBOL_EDITOR_DRAWING_TOOLS::TwoClickPlace(), SCH_EDIT_FRAME::UpdateDesignBlockFromSheet(), SCH_EDITOR_CONTROL::UpdateFromPCB(), BOARD_EDITOR_CONTROL::UpdatePCBFromSchematic(), SYMBOL_EDITOR_EDIT_TOOL::UpdateSymbolFields(), DIALOG_SHAPE_PROPERTIES::Validate(), and PANEL_PREVIEW_3D_MODEL::View3DSettings().

ShowQuasiModal()

int DIALOG_SHIM::ShowQuasiModal ( )

inherited

Definition at line 1540 of file dialog_shim.cpp.

References focusParentCanvas(), m_qmodal_loop, m_qmodal_parent_disabler, m_qmodal_showing, KIPLATFORM::UI::ReparentModal(), and Show().

Referenced by PANEL_FP_PROPERTIES_3D_MODEL::Cfg3DPath(), DIALOG_SELECT_3DMODEL::Cfg3DPaths(), SCH_EDIT_TOOL::ChangeSymbols(), MICROWAVE_TOOL::createFootprint(), MICROWAVE_TOOL::createMicrowaveInductor(), SCH_DRAWING_TOOLS::createNewLabel(), SCH_DRAWING_TOOLS::createNewText(), EE_GRAPHIC_TOOL::DrawShape(), DRAWING_TOOL::DrawTable(), SCH_DRAWING_TOOLS::DrawTable(), SYMBOL_EDITOR_EDIT_TOOL::editFieldProperties(), SCH_EDIT_TOOL::editFieldText(), FOOTPRINT_EDIT_FRAME::editFootprintProperties(), FOOTPRINT_EDITOR_CONTROL::editFootprintPropertiesFromLibrary(), SCH_EDIT_TOOL::EditProperties(), SYMBOL_EDITOR_EDIT_TOOL::EditSymbolPinMaps(), SYMBOL_EDITOR_EDIT_TOOL::editSymbolProperties(), SYMBOL_EDITOR_EDIT_TOOL::editSymbolPropertiesFromLibrary(), PCB_EDIT_TABLE_TOOL::EditTable(), SCH_EDIT_TABLE_TOOL::EditTable(), GLOBAL_EDIT_TOOL::EditTeardrops(), GLOBAL_EDIT_TOOL::EditTracksAndVias(), SIMULATOR_CONTROL::EditUserDefinedSignals(), GLOBAL_EDIT_TOOL::ExchangeFootprints(), DRC_TOOL::FixDRCError(), SCH_EDIT_TOOL::FixERCError(), BOARD_EDITOR_CONTROL::GenerateGerbers(), InvokeDialogCreateBOM(), InvokeDialogEditSymbolsLibId(), InvokeDialogRescueEach(), InvokeNonCopperZonesEditor(), PANEL_FP_PROPERTIES_3D_MODEL::OnAdd3DModel(), FOOTPRINT_EDIT_FRAME::OnEditItemRequest(), PCB_EDIT_FRAME::OnEditItemRequest(), SCH_PROPERTIES_PANEL::onEditPinMap(), PANEL_JOBSET::OpenJobOptionsForListItem(), SCH_EDIT_FRAME::OpenProjectFiles(), PAD_TOOL::PadTable(), DRAWING_TOOL::PlaceText(), BOARD_EDITOR_CONTROL::Plot(), EDIT_TOOL::Properties(), SCH_EDIT_TOOL::Properties(), SCH_EDITOR_CONTROL::RemapSymbols(), PCB_EDIT_FRAME::ShowBoardSetupDialog(), PCB_EDIT_FRAME::ShowExchangeFootprintsDialog(), PCB_EDIT_FRAME::ShowFootprintPropertiesDialog(), PCB_BASE_EDIT_FRAME::ShowGraphicItemPropertiesDialog(), PCB_BASE_FRAME::ShowPadPropertiesDialog(), PCB_BASE_EDIT_FRAME::ShowTextBoxPropertiesDialog(), PCB_BASE_EDIT_FRAME::ShowTextPropertiesDialog(), and GLOBAL_EDIT_TOOL::ZonesManager().

TearDownQuasiModal()

virtual void DIALOG_SHIM::TearDownQuasiModal ( )

inlineprotectedvirtualinherited

Override this method to perform dialog tear down actions not suitable for object dtor.

Warning

This only gets called for dialogs that are shown in the quasimodal mode. If you need to perform tear down actions in modal or modeless dialogs, create a close window event handler.

Definition at line 272 of file dialog_shim.h.

Referenced by EndQuasiModal().

toggleSymbolSelection()

bool DIALOG_IMPORT_SYMBOL_SELECT::toggleSymbolSelection ( const wxString & aSymbolName, bool aChecked )

private

Toggle selection state for a symbol.

Handles dependency auto-selection via the manager.

Parameters

aSymbolName	Name of the symbol to toggle
aChecked	New checked state

Returns

true if change was made (may be blocked by confirmation dialog)

Definition at line 420 of file dialog_import_symbol_select.cpp.

References COL_CHECKBOX, info, m_listIndices, m_manager, DIALOG_IMPORT_SYMBOL_SELECT_BASE::m_symbolList, name, updateImportButton(), and updateStatusLine().

Referenced by onItemChecked().

TransferDataFromWindow()

bool DIALOG_IMPORT_SYMBOL_SELECT::TransferDataFromWindow ( )

overrideprotected

Definition at line 138 of file dialog_import_symbol_select.cpp.

References resolveConflicts().

TransferDataToWindow()

bool DIALOG_IMPORT_SYMBOL_SELECT::TransferDataToWindow ( )

overrideprotected

Definition at line 125 of file dialog_import_symbol_select.cpp.

References loadSymbols(), m_manager, refreshList(), and updateStatusLine().

UnregisterUnitBinder()

void DIALOG_SHIM::UnregisterUnitBinder ( UNIT_BINDER * aUnitBinder )

inherited

Remove a UNIT_BINDER from the control-state save/restore map.

Called from ~UNIT_BINDER so that a destroyed binder never leaves a dangling pointer behind for SaveControlState()/LoadControlState() to dereference when a later control reuses the freed window's address.

Parameters

aUnitBinder

the binder being destroyed

Definition at line 990 of file dialog_shim.cpp.

References m_unitBinders.

unregisterUnitBinders()

void DIALOG_SHIM::unregisterUnitBinders ( wxWindow * aWindow )

protectedinherited

Remove UNIT_BINDER registrations for a window and all its descendants.

Call before destroying a panel whose children have registered unit binders.

Parameters

aWindow

The root window whose subtree should be unregistered.

Definition at line 1636 of file dialog_shim.cpp.

References m_unitBinders, and unregisterUnitBinders().

Referenced by RULE_EDITOR_DIALOG_BASE::SetContentPanel(), and unregisterUnitBinders().

updateImportButton()

void DIALOG_IMPORT_SYMBOL_SELECT::updateImportButton ( )

private

Update import button enabled state based on selection.

Definition at line 358 of file dialog_import_symbol_select.cpp.

References m_manager, and DIALOG_IMPORT_SYMBOL_SELECT_BASE::m_sdbSizerOK.

Referenced by OnSelectAll(), OnSelectNone(), refreshList(), and toggleSymbolSelection().

updatePreview()

void DIALOG_IMPORT_SYMBOL_SELECT::updatePreview ( )

private

Update the preview for the currently selected symbol.

Definition at line 267 of file dialog_import_symbol_select.cpp.

References LIB_SYMBOL::Flatten(), LIB_SYMBOL::GetParentName(), LIB_SYMBOL::GetUnitCount(), LIB_SYMBOL::GetUnitDisplayName(), LIB_SYMBOL::IsDerived(), m_filePath, m_plugin, m_preview, m_selectedSymbol, and DIALOG_IMPORT_SYMBOL_SELECT_BASE::m_unitChoice.

Referenced by OnSymbolSelected().

updateStatusLine()

void DIALOG_IMPORT_SYMBOL_SELECT::updateStatusLine ( )

private

Update the status line with selection counts.

Definition at line 337 of file dialog_import_symbol_select.cpp.

References _, m_manager, and DIALOG_IMPORT_SYMBOL_SELECT_BASE::m_statusLine.

Referenced by OnSelectAll(), OnSelectNone(), toggleSymbolSelection(), and TransferDataToWindow().

vertPixelsFromDU()

int DIALOG_SHIM::vertPixelsFromDU ( int y ) const

protectedinherited

Convert an integer number of dialog units to pixels, vertically.

See SetSizeInDU or wxDialog documentation for more information.

Definition at line 417 of file dialog_shim.cpp.

Referenced by DIALOG_LIB_FIELDS_TABLE::DIALOG_LIB_FIELDS_TABLE(), and DIALOG_SYMBOL_FIELDS_TABLE::DIALOG_SYMBOL_FIELDS_TABLE().

Member Data Documentation

m_beforeEditValues

std::map<wxWindow*, wxString> DIALOG_SHIM::m_beforeEditValues

protectedinherited

Definition at line 372 of file dialog_shim.h.

Referenced by OnCharHook(), onChildSetFocus(), and SelectAllInTextCtrls().

m_childReleased

bool DIALOG_SHIM::m_childReleased

protectedinherited

Definition at line 387 of file dialog_shim.h.

Referenced by DIALOG_SHIM(), and OnMove().

m_conflictResolutions

std::map<wxString, CONFLICT_RESOLUTION> DIALOG_IMPORT_SYMBOL_SELECT::m_conflictResolutions

private

Conflict resolutions chosen by user.

Definition at line 156 of file dialog_import_symbol_select.h.

Referenced by GetConflictResolutions(), and resolveConflicts().

m_currentValues

std::map<wxWindow*, wxVariant> DIALOG_SHIM::m_currentValues

protectedinherited

Definition at line 384 of file dialog_shim.h.

Referenced by doRedo(), doUndo(), recordControlChange(), registerUndoRedoHandlers(), and resetUndoRedoForNewContent().

m_destLibrary

wxString DIALOG_IMPORT_SYMBOL_SELECT::m_destLibrary

private

Definition at line 136 of file dialog_import_symbol_select.h.

Referenced by DIALOG_IMPORT_SYMBOL_SELECT(), and loadSymbols().

m_filePath

wxString DIALOG_IMPORT_SYMBOL_SELECT::m_filePath

private

Definition at line 135 of file dialog_import_symbol_select.h.

Referenced by DIALOG_IMPORT_SYMBOL_SELECT(), loadSymbols(), OnUnitChanged(), and updatePreview().

m_filterString

wxString DIALOG_IMPORT_SYMBOL_SELECT::m_filterString

private

Current filter string.

Definition at line 150 of file dialog_import_symbol_select.h.

Referenced by matchesFilter(), and OnFilterTextChanged().

m_firstPaintEvent

bool DIALOG_SHIM::m_firstPaintEvent

protectedinherited

Definition at line 353 of file dialog_shim.h.

Referenced by DIALOG_SHIM(), and OnPaint().

m_frame

SYMBOL_EDIT_FRAME* DIALOG_IMPORT_SYMBOL_SELECT::m_frame

private

Definition at line 134 of file dialog_import_symbol_select.h.

Referenced by DIALOG_IMPORT_SYMBOL_SELECT(), and loadSymbols().

m_handlingUndoRedo

bool DIALOG_SHIM::m_handlingUndoRedo

protectedinherited

Definition at line 386 of file dialog_shim.h.

Referenced by DIALOG_SHIM(), doRedo(), doUndo(), onCommandEvent(), onDataViewListChanged(), onGridCellChanged(), onPropertyGridChanged(), onSpinDoubleEvent(), onSpinEvent(), and onStyledTextChanged().

m_hash_key

std::string DIALOG_SHIM::m_hash_key

protectedinherited

Definition at line 344 of file dialog_shim.h.

Referenced by CONVERT_SETTINGS_DIALOG::CONVERT_SETTINGS_DIALOG(), DIALOG_CHANGE_SYMBOLS::DIALOG_CHANGE_SYMBOLS(), DIALOG_EXCHANGE_FOOTPRINTS::DIALOG_EXCHANGE_FOOTPRINTS(), DIALOG_EXPORT_2581::DIALOG_EXPORT_2581(), DIALOG_EXPORT_2581::DIALOG_EXPORT_2581(), DIALOG_EXPORT_NETLIST::DIALOG_EXPORT_NETLIST(), DIALOG_EXPORT_ODBPP::DIALOG_EXPORT_ODBPP(), DIALOG_EXPORT_ODBPP::DIALOG_EXPORT_ODBPP(), DIALOG_EXPORT_STEP::DIALOG_EXPORT_STEP(), DIALOG_GEN_FOOTPRINT_POSITION::DIALOG_GEN_FOOTPRINT_POSITION(), DIALOG_GEN_FOOTPRINT_POSITION::DIALOG_GEN_FOOTPRINT_POSITION(), DIALOG_GENCAD_EXPORT_OPTIONS::DIALOG_GENCAD_EXPORT_OPTIONS(), DIALOG_GENDRILL::DIALOG_GENDRILL(), DIALOG_GENDRILL::DIALOG_GENDRILL(), DIALOG_LABEL_PROPERTIES::DIALOG_LABEL_PROPERTIES(), DIALOG_MOVE_EXACT::DIALOG_MOVE_EXACT(), DIALOG_PLOT::DIALOG_PLOT(), DIALOG_PLOT_SCHEMATIC::DIALOG_PLOT_SCHEMATIC(), DIALOG_SHAPE_PROPERTIES::DIALOG_SHAPE_PROPERTIES(), DIALOG_SHAPE_PROPERTIES::DIALOG_SHAPE_PROPERTIES(), DIALOG_SYMBOL_FIELDS_TABLE::DIALOG_SYMBOL_FIELDS_TABLE(), DIALOG_TEXT_PROPERTIES::DIALOG_TEXT_PROPERTIES(), DIALOG_TEXT_PROPERTIES::DIALOG_TEXT_PROPERTIES(), EDA_LIST_DIALOG::EDA_LIST_DIALOG(), EDA_REORDERABLE_LIST_DIALOG::EDA_REORDERABLE_LIST_DIALOG(), LoadControlState(), PAGED_DIALOG::PAGED_DIALOG(), resetSize(), SaveControlState(), Show(), WX_MULTI_ENTRY_DIALOG::WX_MULTI_ENTRY_DIALOG(), WX_PT_ENTRY_DIALOG::WX_PT_ENTRY_DIALOG(), WX_TEXT_ENTRY_DIALOG::WX_TEXT_ENTRY_DIALOG(), and WX_UNIT_ENTRY_DIALOG::WX_UNIT_ENTRY_DIALOG().

m_initialFocusTarget

wxWindow* DIALOG_SHIM::m_initialFocusTarget

protectedinherited

Definition at line 354 of file dialog_shim.h.

Referenced by DIALOG_SHIM(), NETLIST_DIALOG_ADD_GENERATOR::NETLIST_DIALOG_ADD_GENERATOR(), OnPaint(), and SetInitialFocus().

m_initialSize

wxSize DIALOG_SHIM::m_initialSize

protectedinherited

Definition at line 367 of file dialog_shim.h.

Referenced by DIALOG_SHIM(), RULE_EDITOR_DIALOG_BASE::finishInitialization(), Show(), and DIALOG_DRC_RULE_EDITOR::TransferDataToWindow().

m_isClosing

bool DIALOG_SHIM::m_isClosing

protectedinherited

Definition at line 355 of file dialog_shim.h.

Referenced by DIALOG_SHIM(), onChildSetFocus(), and ~DIALOG_SHIM().

m_kiway

KIWAY* KIWAY_HOLDER::m_kiway

privateinherited

Definition at line 82 of file kiway_holder.h.

Referenced by HasKiway(), Kiway(), KIWAY_HOLDER(), and SetKiway().

m_listIndices

std::map<wxString, int> DIALOG_IMPORT_SYMBOL_SELECT::m_listIndices

private

Map from symbol name to list index (UI-only, -1 if filtered out)

Definition at line 147 of file dialog_import_symbol_select.h.

Referenced by onItemChecked(), OnSymbolSelected(), refreshList(), and toggleSymbolSelection().

m_manager

SYMBOL_IMPORT_MANAGER DIALOG_IMPORT_SYMBOL_SELECT::m_manager

private

Manager for symbol selection logic.

Definition at line 144 of file dialog_import_symbol_select.h.

Referenced by GetSelectedSymbols(), loadSymbols(), OnSelectAll(), OnSelectNone(), refreshList(), resolveConflicts(), toggleSymbolSelection(), TransferDataToWindow(), updateImportButton(), and updateStatusLine().

m_noControlUndoRedo

std::set<wxWindow*> DIALOG_SHIM::m_noControlUndoRedo

protectedinherited

Definition at line 385 of file dialog_shim.h.

Referenced by ExcludeFromControlUndoRedo(), and registerUndoRedoHandlers().

m_parentFrame

EDA_BASE_FRAME* DIALOG_SHIM::m_parentFrame

protectedinherited

Definition at line 362 of file dialog_shim.h.

Referenced by DIALOG_MAP_LAYERS::DIALOG_MAP_LAYERS(), DIALOG_SHIM(), focusParentCanvas(), OnCharHook(), DIALOG_LIB_SYMBOL_PROPERTIES::OnEditSpiceModel(), DIALOG_SYMBOL_PROPERTIES::OnEditSpiceModel(), DIALOG_PAGES_SETTINGS::OnWksFileSelection(), DIALOG_PAD_PROPERTIES::padValuesOK(), DIALOG_MAP_LAYERS::RunModal(), DIALOG_LABEL_PROPERTIES::TransferDataFromWindow(), DIALOG_ANNOTATE::TransferDataToWindow(), DIALOG_POSITION_RELATIVE::updateAnchorInfo(), and DIALOG_ANNOTATE::~DIALOG_ANNOTATE().

m_plugin

IO_RELEASER<SCH_IO> DIALOG_IMPORT_SYMBOL_SELECT::m_plugin

private

Plugin kept alive for symbol access during dialog lifetime.

Definition at line 139 of file dialog_import_symbol_select.h.

Referenced by DIALOG_IMPORT_SYMBOL_SELECT(), loadSymbols(), OnUnitChanged(), and updatePreview().

m_preview

SYMBOL_PREVIEW_WIDGET* DIALOG_IMPORT_SYMBOL_SELECT::m_preview

private

Definition at line 141 of file dialog_import_symbol_select.h.

Referenced by DIALOG_IMPORT_SYMBOL_SELECT(), OnUnitChanged(), and updatePreview().

m_previewPanel

wxPanel* DIALOG_IMPORT_SYMBOL_SELECT_BASE::m_previewPanel

protectedinherited

Definition at line 47 of file dialog_import_symbol_select_base.h.

Referenced by DIALOG_IMPORT_SYMBOL_SELECT::DIALOG_IMPORT_SYMBOL_SELECT(), and DIALOG_IMPORT_SYMBOL_SELECT_BASE().

m_previewSizer

wxBoxSizer* DIALOG_IMPORT_SYMBOL_SELECT_BASE::m_previewSizer

protectedinherited

Definition at line 48 of file dialog_import_symbol_select_base.h.

Referenced by DIALOG_IMPORT_SYMBOL_SELECT::DIALOG_IMPORT_SYMBOL_SELECT(), and DIALOG_IMPORT_SYMBOL_SELECT_BASE().

m_qmodal_loop

wxGUIEventLoop* DIALOG_SHIM::m_qmodal_loop

protectedinherited

Definition at line 357 of file dialog_shim.h.

Referenced by DIALOG_SHIM(), EndQuasiModal(), and ShowQuasiModal().

m_qmodal_parent_disabler

WINDOW_DISABLER* DIALOG_SHIM::m_qmodal_parent_disabler

protectedinherited

Definition at line 360 of file dialog_shim.h.

Referenced by CleanupAfterModalSubDialog(), DIALOG_SHIM(), EndQuasiModal(), PrepareForModalSubDialog(), ShowQuasiModal(), and ~DIALOG_SHIM().

m_qmodal_showing

bool DIALOG_SHIM::m_qmodal_showing

protectedinherited

Definition at line 359 of file dialog_shim.h.

Referenced by DIALOG_SHIM(), IsQuasiModal(), and ShowQuasiModal().

m_redoStack

std::vector<UNDO_STEP> DIALOG_SHIM::m_redoStack

protectedinherited

Definition at line 383 of file dialog_shim.h.

Referenced by doRedo(), doUndo(), recordControlChange(), and resetUndoRedoForNewContent().

m_sdbSizer

wxStdDialogButtonSizer* DIALOG_IMPORT_SYMBOL_SELECT_BASE::m_sdbSizer

protectedinherited

Definition at line 50 of file dialog_import_symbol_select_base.h.

Referenced by DIALOG_IMPORT_SYMBOL_SELECT_BASE().

m_sdbSizerCancel

wxButton* DIALOG_IMPORT_SYMBOL_SELECT_BASE::m_sdbSizerCancel

protectedinherited

Definition at line 52 of file dialog_import_symbol_select_base.h.

Referenced by DIALOG_IMPORT_SYMBOL_SELECT_BASE().

m_sdbSizerOK

wxButton* DIALOG_IMPORT_SYMBOL_SELECT_BASE::m_sdbSizerOK

protectedinherited

Definition at line 51 of file dialog_import_symbol_select_base.h.

Referenced by DIALOG_IMPORT_SYMBOL_SELECT::DIALOG_IMPORT_SYMBOL_SELECT(), DIALOG_IMPORT_SYMBOL_SELECT_BASE(), and DIALOG_IMPORT_SYMBOL_SELECT::updateImportButton().

m_searchCtrl

wxSearchCtrl* DIALOG_IMPORT_SYMBOL_SELECT_BASE::m_searchCtrl

protectedinherited

Definition at line 41 of file dialog_import_symbol_select_base.h.

Referenced by DIALOG_IMPORT_SYMBOL_SELECT::DIALOG_IMPORT_SYMBOL_SELECT(), DIALOG_IMPORT_SYMBOL_SELECT_BASE(), DIALOG_IMPORT_SYMBOL_SELECT::OnFilterTextChanged(), and ~DIALOG_IMPORT_SYMBOL_SELECT_BASE().

m_selectAllButton

wxButton* DIALOG_IMPORT_SYMBOL_SELECT_BASE::m_selectAllButton

protectedinherited

Definition at line 43 of file dialog_import_symbol_select_base.h.

Referenced by DIALOG_IMPORT_SYMBOL_SELECT_BASE(), and ~DIALOG_IMPORT_SYMBOL_SELECT_BASE().

m_selectedSymbol

wxString DIALOG_IMPORT_SYMBOL_SELECT::m_selectedSymbol

private

Currently selected symbol for preview.

Definition at line 153 of file dialog_import_symbol_select.h.

Referenced by OnSymbolSelected(), OnUnitChanged(), and updatePreview().

m_selectNoneButton

wxButton* DIALOG_IMPORT_SYMBOL_SELECT_BASE::m_selectNoneButton

protectedinherited

Definition at line 44 of file dialog_import_symbol_select_base.h.

Referenced by DIALOG_IMPORT_SYMBOL_SELECT_BASE(), and ~DIALOG_IMPORT_SYMBOL_SELECT_BASE().

m_statusLine

wxStaticText* DIALOG_IMPORT_SYMBOL_SELECT_BASE::m_statusLine

protectedinherited

Definition at line 49 of file dialog_import_symbol_select_base.h.

Referenced by DIALOG_IMPORT_SYMBOL_SELECT_BASE(), and DIALOG_IMPORT_SYMBOL_SELECT::updateStatusLine().

m_symbolList

wxDataViewListCtrl* DIALOG_IMPORT_SYMBOL_SELECT_BASE::m_symbolList

protectedinherited

Definition at line 42 of file dialog_import_symbol_select_base.h.

Referenced by DIALOG_IMPORT_SYMBOL_SELECT::DIALOG_IMPORT_SYMBOL_SELECT(), DIALOG_IMPORT_SYMBOL_SELECT_BASE(), DIALOG_IMPORT_SYMBOL_SELECT::onItemChecked(), DIALOG_IMPORT_SYMBOL_SELECT::OnSymbolSelected(), DIALOG_IMPORT_SYMBOL_SELECT::refreshList(), DIALOG_IMPORT_SYMBOL_SELECT::toggleSymbolSelection(), DIALOG_IMPORT_SYMBOL_SELECT::~DIALOG_IMPORT_SYMBOL_SELECT(), and ~DIALOG_IMPORT_SYMBOL_SELECT_BASE().

m_tabOrder

std::vector<wxWindow*> DIALOG_SHIM::m_tabOrder

protectedinherited

Definition at line 364 of file dialog_shim.h.

Referenced by DIALOG_FOOTPRINT_PROPERTIES::DIALOG_FOOTPRINT_PROPERTIES(), DIALOG_MOVE_EXACT::DIALOG_MOVE_EXACT(), DIALOG_PIN_PROPERTIES::DIALOG_PIN_PROPERTIES(), DIALOG_POSITION_RELATIVE::DIALOG_POSITION_RELATIVE(), DIALOG_SCH_FIND::DIALOG_SCH_FIND(), DIALOG_TEXT_PROPERTIES::DIALOG_TEXT_PROPERTIES(), and OnCharHook().

m_type

HOLDER_TYPE KIWAY_HOLDER::m_type

privateinherited

Definition at line 83 of file kiway_holder.h.

Referenced by GetType(), and KIWAY_HOLDER().

m_undoStack

std::vector<UNDO_STEP> DIALOG_SHIM::m_undoStack

protectedinherited

Definition at line 382 of file dialog_shim.h.

Referenced by doRedo(), doUndo(), recordControlChange(), and resetUndoRedoForNewContent().

m_unitBinders

std::map<wxWindow*, UNIT_BINDER*> DIALOG_SHIM::m_unitBinders

protectedinherited

Definition at line 373 of file dialog_shim.h.

Referenced by LoadControlState(), RegisterUnitBinder(), SaveControlState(), UnregisterUnitBinder(), unregisterUnitBinders(), and ~DIALOG_SHIM().

m_unitChoice

wxChoice* DIALOG_IMPORT_SYMBOL_SELECT_BASE::m_unitChoice

protectedinherited

Definition at line 46 of file dialog_import_symbol_select_base.h.

Referenced by DIALOG_IMPORT_SYMBOL_SELECT::DIALOG_IMPORT_SYMBOL_SELECT(), DIALOG_IMPORT_SYMBOL_SELECT_BASE(), DIALOG_IMPORT_SYMBOL_SELECT::OnUnitChanged(), DIALOG_IMPORT_SYMBOL_SELECT::updatePreview(), and ~DIALOG_IMPORT_SYMBOL_SELECT_BASE().

m_unitLabel

wxStaticText* DIALOG_IMPORT_SYMBOL_SELECT_BASE::m_unitLabel

protectedinherited

Definition at line 45 of file dialog_import_symbol_select_base.h.

Referenced by DIALOG_IMPORT_SYMBOL_SELECT_BASE().

m_units

EDA_UNITS DIALOG_SHIM::m_units

protectedinherited

Definition at line 343 of file dialog_shim.h.

Referenced by DIALOG_GEN_FOOTPRINT_POSITION::DIALOG_GEN_FOOTPRINT_POSITION(), DIALOG_SHIM(), GetUserUnits(), DIALOG_GEN_FOOTPRINT_POSITION::onGenerate(), and DIALOG_GENERATORS::onUnitsChanged().

m_useCalculatedSize

bool DIALOG_SHIM::m_useCalculatedSize

protectedinherited

Definition at line 348 of file dialog_shim.h.

Referenced by DIALOG_SHIM(), DIALOG_TRACK_VIA_PROPERTIES::DIALOG_TRACK_VIA_PROPERTIES(), PCB_ONE_LAYER_SELECTOR::PCB_ONE_LAYER_SELECTOR(), and Show().

m_userPositioned

bool DIALOG_SHIM::m_userPositioned

protectedinherited

Definition at line 368 of file dialog_shim.h.

Referenced by DIALOG_SHIM(), OnMove(), and Show().

m_userResized

bool DIALOG_SHIM::m_userResized

protectedinherited

Definition at line 369 of file dialog_shim.h.

Referenced by DIALOG_SHIM(), OnSize(), and Show().

---

The documentation for this class was generated from the following files:

• dialog_import_symbol_select.h
• dialog_import_symbol_select.cpp
