Справочное руководство

This document is Copyright © 2010-2024 by its contributors as listed below. You may distribute it and/or modify it under the terms of either the GNU General Public License (http://www.gnu.org/licenses/gpl.html), version 3 or later, or the Creative Commons Attribution License (http://creativecommons.org/licenses/by/3.0/), version 3.0 or later.

Все торговые знаки этого руководства принадлежат его владельцам.

Соавторы

Jean-Pierre Charras, Fabrizio Tappero, Jon Evans.

Перевод

Юрий Козлов <[email protected]>, 2016
Барановский Константин <[email protected]>, 2018-2021

Отзывы

The KiCad project welcomes feedback, bug reports, and suggestions related to the software or its documentation. For more information on how to submit feedback or report an issue, please see the instructions at https://www.kicad.org/help/report-an-issue/

Введение

KiCad - это комплекс программного обеспечения с открытым исходным кодом для проектирования электрических схем и печатных плат. KiCad поддерживает как интегрированный процесс проектирования, при котором схема и печатная плата разрабатываются одновременно, так и их редактирование по отдельности для особых случаев. KiCad также содержит несколько инструментов для упрощения разработки схем и печатных плат, таких как PCB калькулятор для определения электрических свойств элементов схемы, просмотрщик Gerber для исследования файлов для производства печатных плат, а также интегрированный SPICE-симулятор для исследования работы схемы.

KiCad работает на всех основных операционных системах и на компьютерах самой разной конфигурации. Он поддерживает печатные платы с количеством слоёв меди до 32 и может использоваться в проектах любой сложности. KiCad разрабатывается командой энтузиастов из программистов и инженеров со всего света, цель которых - создание свободного программного обеспечения с отрытым исходным кодом применимого для профессиональной разработки.

Последняя версия документации KiCad доступна по адресу http://docs.kicad.org

Системные требования

KiCad может использоваться на разнообразном оборудовании и разных операционных системах, но некоторые задачи могут выполняться медленнее или проблематичнее на слабом оборудовании. Для наилучшего удобства, рекомендуется использовать выделенный графический адаптер и монитор с разрешением 1920х1080 или выше.

Системные требования последней версии KiCad можно узнать на вэб-сайте: https://kicad.org/help/system-requirements/

Файлы и каталоги KiCad

При работе над схемой и платой KiCad создаёт и использует файлы со следующими расширениями файлов (и каталогов):

Project files

*.kicad_pro

Project file, containing settings that are shared between the schematic and PCB

*.pro

Legacy (KiCad 5.x and earlier) project file. Can be read and will be converted to a .kicad_pro file by the project manager.

Schematic editor files

*.kicad_sch

Schematic files containing all info and the components themselves.

*.kicad_sym

Schematic symbol library file, containing the component descriptions: graphic shape, pins, fields.

*.sch

Legacy (KiCad 5.x and earlier) schematic file. Can be read and will be converted to a .kicad_sch file on write.

*.lib

Legacy (KiCad 5.x and earlier) schematic library file. Can be read but not written.

*.dcm

Legacy (KiCad 5.x and earlier) schematic library documentation. Can be read but not written.

*-cache.lib

Legacy (KiCad 5.x and earlier) schematic component library cache file. Required for proper loading of a legacy schematic (.sch) file.

sym-lib-table

Symbol library table: list of symbol libraries available in the schematic editor.

Board editor files and folders

*.kicad_pcb

Board file containing all info but the page layout.

*.pretty

Footprint library folders. The folder itself is the library.

*.kicad_mod

Footprint files, containing one footprint description each.

*.kicad_dru

Design rules file, containing custom design rules for a certain .kicad_pcb file.

*.brd

Legacy (KiCad 4.x and earlier) board file. Can be read, but not written, by the current board editor.

*.mod

Legacy (KiCad 4.x and earlier) footprint library file. Can be read by the footprint or the board editor, but not written.

fp-lib-table

Footprint library table: list of footprint libraries available in the board editor.

fp-info-cache

Cache to speed up loading of footprint libraries. Does not need to be distributed with the project or put under version control.

Common files

*.kicad_prl

Local settings for the current project; helps KiCad remember the last used settings such as layer visibility or selection filter. May not need to be distributed with the project or put under version control.

*.kicad_wks

Page layout (drawing border and title block) description file

*.net

Netlist file created from the schematic, and read by the board editor. Note that the recommended workflow for transferring information from the schematic to the board does not require the use of netlist files.

*.cmp

Association between components used in the schematic and their footprints. It can be created by the Board Editor and imported by the Schematic Editor. Its purpose is to import changes from the board to the schematic, for users who change footprints in the Board Editor (for instance using Exchange Footprints command) and want to import these changes back to the schematic. Note that the recommended workflow for transferring information from the board to the schematic does not require the use of .cmp files.

Fabrication and documentation files

*.gbr

Gerber files, for fabrication.

*.drl

Drill files (Excellon format), for fabrication.

*.pos

Position files (ASCII format), for automatic insertion machines.

*.rpt

Report files (ASCII format), for documentation.

*.ps

Plot files (Postscript), for documentation.

*.pdf

Plot files (PDF format), for documentation.

*.svg

Plot files (SVG format), for documentation.

*.dxf

Plot files (DXF format), for documentation.

*.plt

Plot files (HPGL format), for documentation.

Storing and sending KiCad files

KiCad schematic and board files contain all the schematic symbols and footprints used in the design, so you can back up or send these files by themselves with no issue. Some important design information is stored in the project file (.kicad_pro), so if you are sending a complete design, make sure to include it.

Some files, such as the project-local settings file (.kicad_prl) and the fp-info-cache file, are not necessary to send with your project. If you use a version control system such as Git to keep track of your KiCad projects, you may want to add these files to the list of ignored files so that they are not tracked.

Установка и обновление KiCad

Импорт настроек

Каждая мажорная версия KiCad обладает собственными настройками, благодаря чему можно работать с несколькими версиями KiCad на одном компьютере без проблем. При первом запуске новой версии KiCad появится запрос первичной настройки параметров:

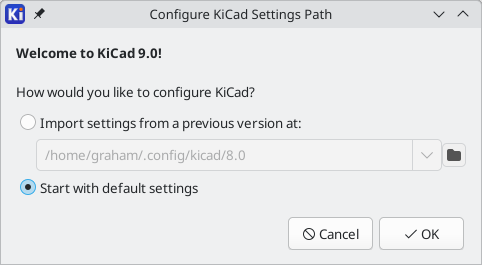

configure settings

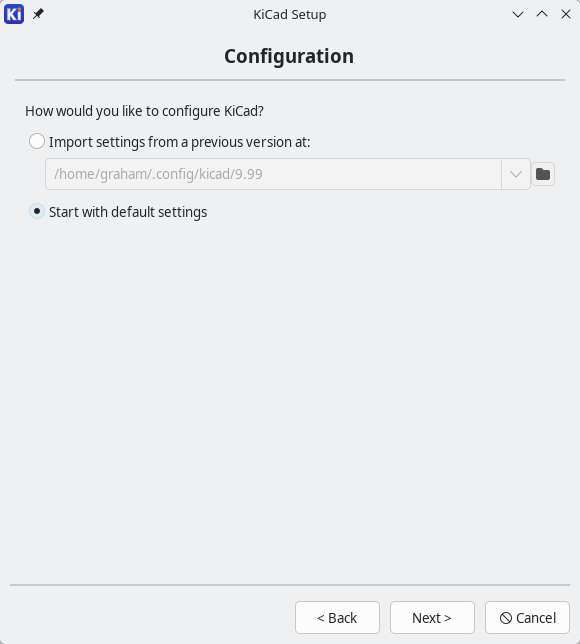

При обнаружении предыдущей версии KiCad, станет доступной возможность импорта настроек из этой версии. Расположение конфигурационных файлов предыдущей версии определяется автоматически, но его можно переопределить выбрав другой путь.

Please note that, the schematic symbol and footprint library tables from the previous version of KiCad will not be imported.

Можно начать работу с параметрами по умолчанию, если нет желания импортировать настройки из предыдущей версии.

KiCad stores the settings files in a folder inside your user directory. Each KiCad version will use a different versioned subfolder. For KiCad 8, those folders are:

Windows

%APPDATA%\kicad\8.0

Linux

~/.config/kicad/8.0

macOS

/Users/<username>/Library/Preferences/kicad/8.0

Перенос файлов из предыдущих версий

Последние версии KiCad могут открывать файлы созданные в предыдущих версиях, но сохраняют только в новейшем формате. В целом, это означает, что не нужно выполнять никаких особых действий при переходе от старой версии файлов, достаточно просто их открыть. В некоторых случаях, при переходе от одной версии KiCad к другой могут изменяться расширения файлов. После загрузке таких файлов они будут сохранены в новом формате с новым расширением. Старые файлы автоматически не удаляются.

The schematic editor documentation describes several particular considerations for opening legacy schematics.

В общем, файлы созданные или изменённые одной версией KiCad не могут открываться более ранними версиями. По этой причине важно сохранять резервные копии своих проектов при тестировании новых версий KiCad, пока не убедитесь, что больше не нуждаетесь в старой версии KiCad.

Конфигурация горячих клавиш не импортируется из предыдущих версий на данный момент. Её можно импортировать путём копирования различных *.hotkeys файлов из каталога с конфигурационными файлами старой версии. Примите во внимание, что при копировании файлов KiCad автоматически не обнаружит конфликты, такие как назначение одной и той же клавиши разным действиям.

Using the KiCad project manager

The KiCad project manager is a tool which creates and opens KiCad projects and launches the other KiCad tools (schematic and board editors, Gerber viewer, and utility tools).

main window

Окно менеджера проектов KiCad состоит из дерева проекта слева, отображающего файлы связанные с открытым проектом, и панели запуска приложений справа, содержащей кнопки различных редакторов и инструментов.

Панель инструментов с левой стороны окна предоставляет доступ к основным командам управления проектом:

new project 24

Create a new project.

open project 24

Open an existing project.

zip 24

Create a zip archive of the whole project. This includes schematic files, libraries, PCB, etc.

unzip 24

Extract a project zip archive into a directory. Files in the destination directory will be overwritten.

refresh 24

Refresh the tree view, to detect changes made on the filesystem.

directory browser 24

Open the project working directory in a file explorer.

В дереве проекта отображается перечень файлов из каталога проекта. При двойном щелчке по файлу откроется соответствующий редактор. При нажатии правой кнопки мыши над файлом откроется контекстное меню с командами управления файлом.

project tree
В дереве проекта видны только те файлы, которые KiCad знает как отрыть и показать.

KiCad projects contain at least a project file, a schematic, and a board design. Schematics may contain multiple sheets, each in its own file, but a project can only contain a single board. KiCad expects the project file, schematic root sheet file, and board file to all have the same name.

Standalone mode

You can also run the KiCad editor tools in standalone mode, by launching them directly from your operating system’s application launcher rather than from the project manager. It is usually not recommended to run the tools in standalone mode, except for some specific situations where it is necessary, such as when importing projects from other EDA tools. When running in standalone mode, some project features are not available, including:

  • cross probing between the schematic editor and the board editor

  • design synchronization between the schematic and the board

Создание нового проекта

В большинстве случаев работа с KiCad начинается с создания проекта. Существует два пути создания проекта из менеджера проекта: создание пустого проекта или создание проекта на основе существующего шаблона. В этом разделе будет показано как создать новый пустой проект. Создание проекта из шаблона описано в разделе Шаблоны проектов.

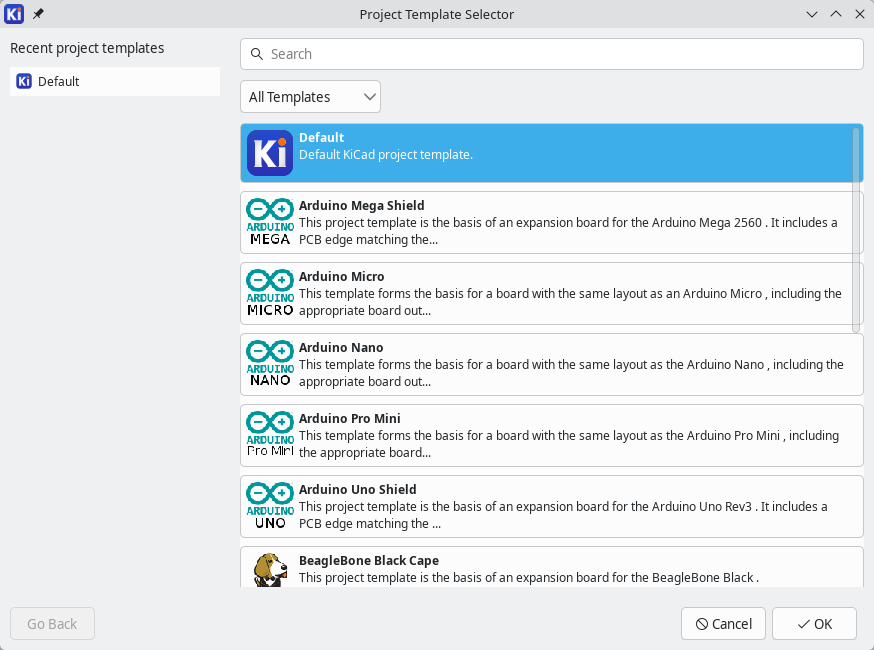

Для создания нового проекта воспользуйтесь командой Создать проект…​ из меню Файл, кнопкой панели инструментов Создать новый пустой проект или комбинацией клавиш Ctrl+N.

Будет запрошено имя проекта. По умолчанию, создаётся каталог для проекта с таким же именем. Например, если указать имя проекта MyPorject, KiCad создаст каталог MyProject и файл проекта MyProject/MyProject.kicad_pro внутри.

Если уже имеется каталог для хранения файлов проекта, можно снять отметку с параметра Создать новый каталог для проекта в диалоговом окне Создание нового проекта.

Настоятельно рекомендуется хранить каждый проект в собственном каталоге.

Как только имя проекта будет задано, KiCad создаст следующие файлы внутри каталога проекта:

example.kicad_pro

KiCad project file.

example.kicad_sch

Main schematic file.

example.kicad_pcb

Printed circuit board file.

Импорт проекта из другой САПР

KiCad is able to import files created by some other software packages. Some software formats can be imported as complete projects. Others can only be imported as standalone schematics or boards at the moment, and must be manually linked together into a KiCad project. Currently the following types of project are supported:

*.sch, *.brd

Eagle 6.x or newer (XML format)

*.csa, *.cpa

CADSTAR archive format

Чтобы импортировать проект одной из этих САПР, выберите соответствующую команду из подменю Импорт проекта из другой САПР…​, меню Файл.

Будет показано диалоговое окно для выбора файла схемы или печатной платы, которую нужно импортировать. Импортируемые файлы схемы и платы должны иметь одинаковые имена (например project.sch и project.brd). Как только необходимые файлы выбраны, будет запрошен каталог для хранения конечных файлов, в виде проекта KiCad.

Currently the following types of documents can be imported standalone. To import these documents, start the KiCad Schematic Editor or PCB Editor standalone (do not open the KiCad project manager first) and choose File > Import > Non-KiCad Schematic or File > Import > Non-KiCad Board File. When importing Altium projects, we recommend importing the PCB first, saving the resulting project, and then copying each schematic sheet into the project after importing it in a standalone Schematic Editor window.

*.SchDoc

Altium Designer, Circuit Studio, Circuit Maker schematic documents

*.PcbDoc

Altium Designer PCB

*.CMPcbDoc

Altium Circuit Maker PCB

*.CSPcbDoc

Altium Circuit Studio PCB

*.pcb

P-Cad 200x ASCII PCB

*.txt, *.fab

Fabmaster PCB

KiCad does not support schematics with multiple top-level sheets. When importing designs from other tools that do support this feature, each schematic sheet must be imported, and then the imported sheets must be placed as hierarchical sheets in a new KiCad project.

Saving and loading project archives

You can archive your project’s files into a zip archive with the Archive tool (FileArchive Project…​).

You can also unarchive a project using the Unarchive tool (FileUnarchive Project…​). When you unarchive a project into the currently loaded project directory, the project will be reloaded automatically to reflect any changes that were in the archived version of the project.

The archive tool saves the following files from your project folder into the archive:

*.kicad_prl, *.kicad_pro, *.kicad_sch, *.kicad_sym, *.kicad_pcb, *.kicad_mod, *.kicad_dru, *.kicad_wks, *.wbk, *.fp-lib-table, *.sym-lib-table

KiCad design files

*.pro, *.sch, *.lib, *.dcm, *.cmp, *.brd, *.mod

Legacy KiCad design files

*.stp, *.step

3D models

*.g?, *.g??, *.gm??, *.gbrjob

Gerber files

*.pos, *.drl, *.nc, *.xnc, *.d356, *.rpt

Manufacturing files

*.net

Netlists

*.py

Python scripts

*.pdf, *.txt

Documentation files

*.cir, *.sub, *.model

SPICE models

*.ibs, *.pkg

IBIS models

Настройка KiCad

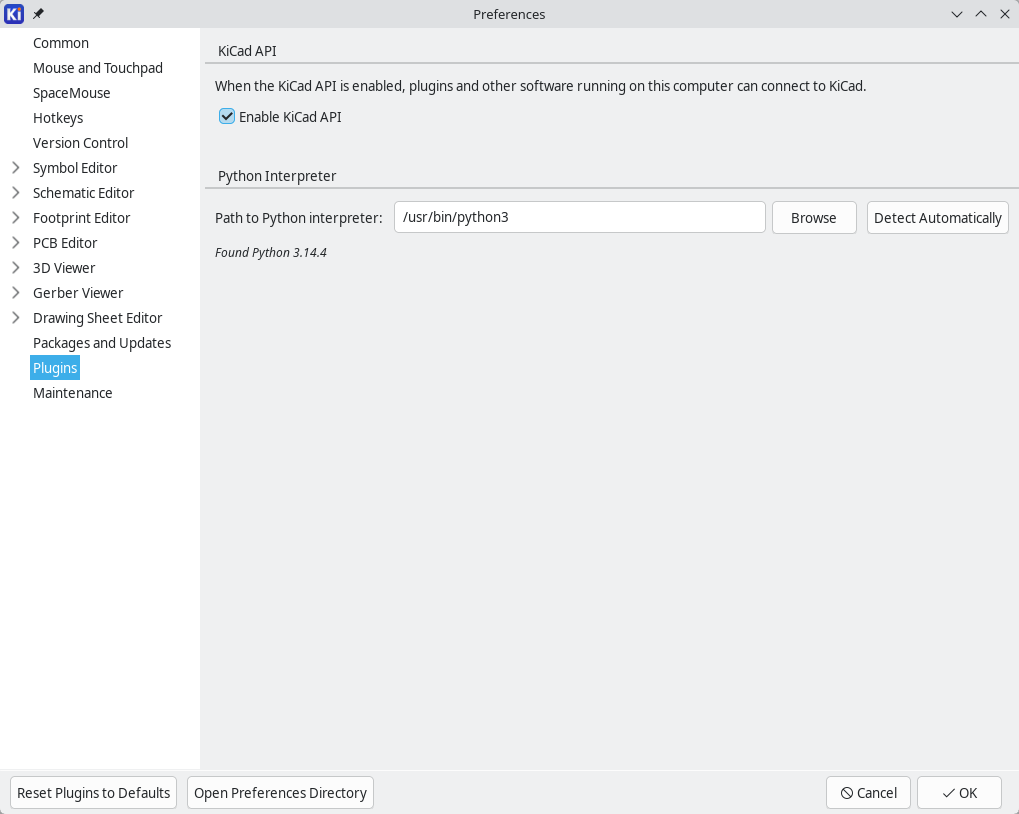

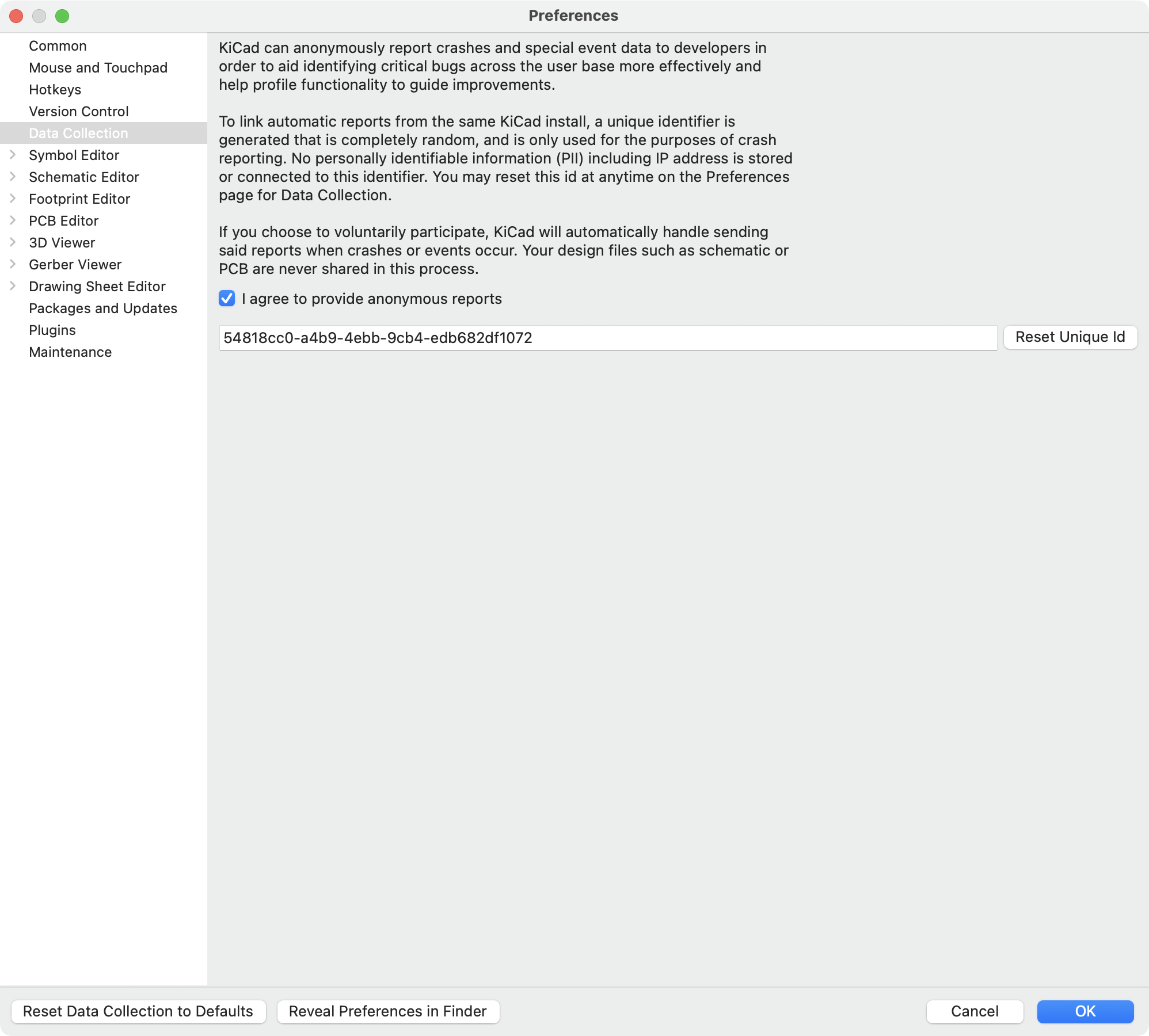

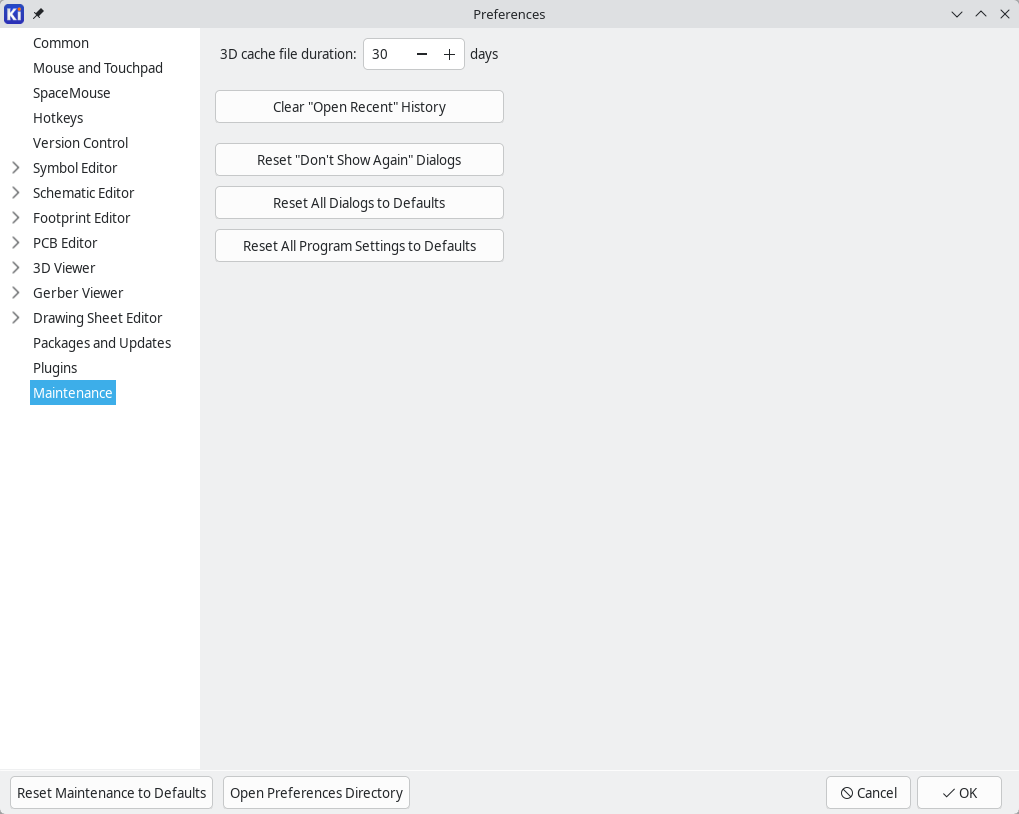

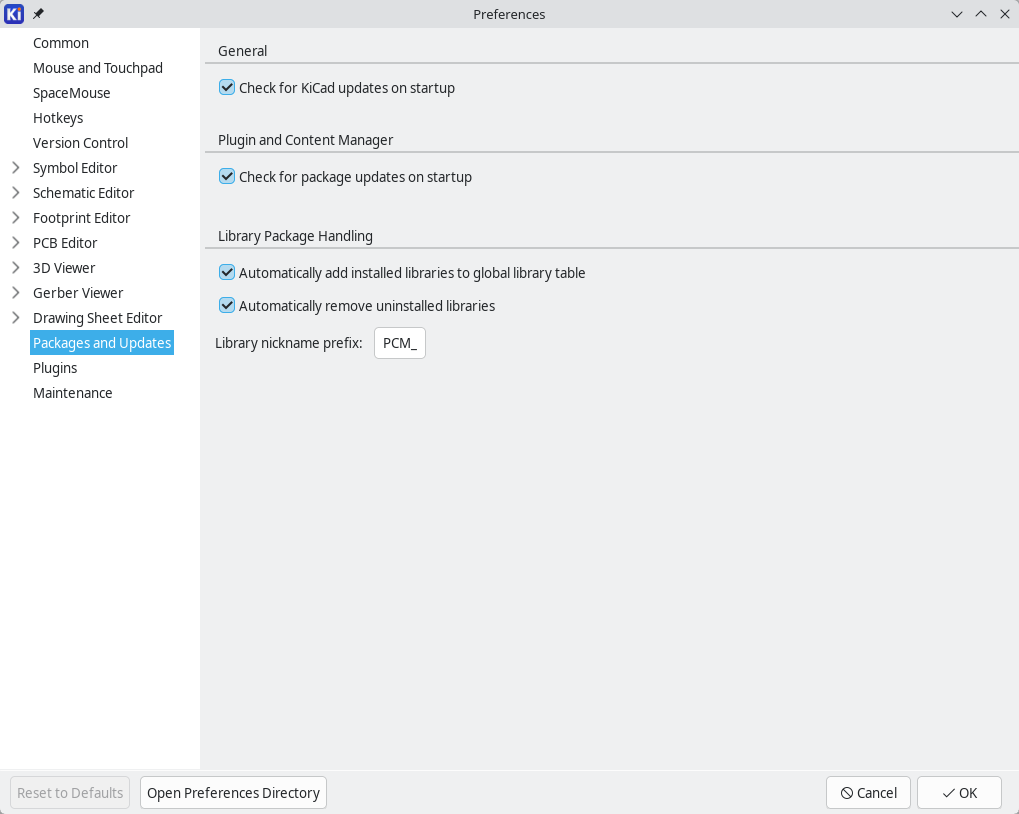

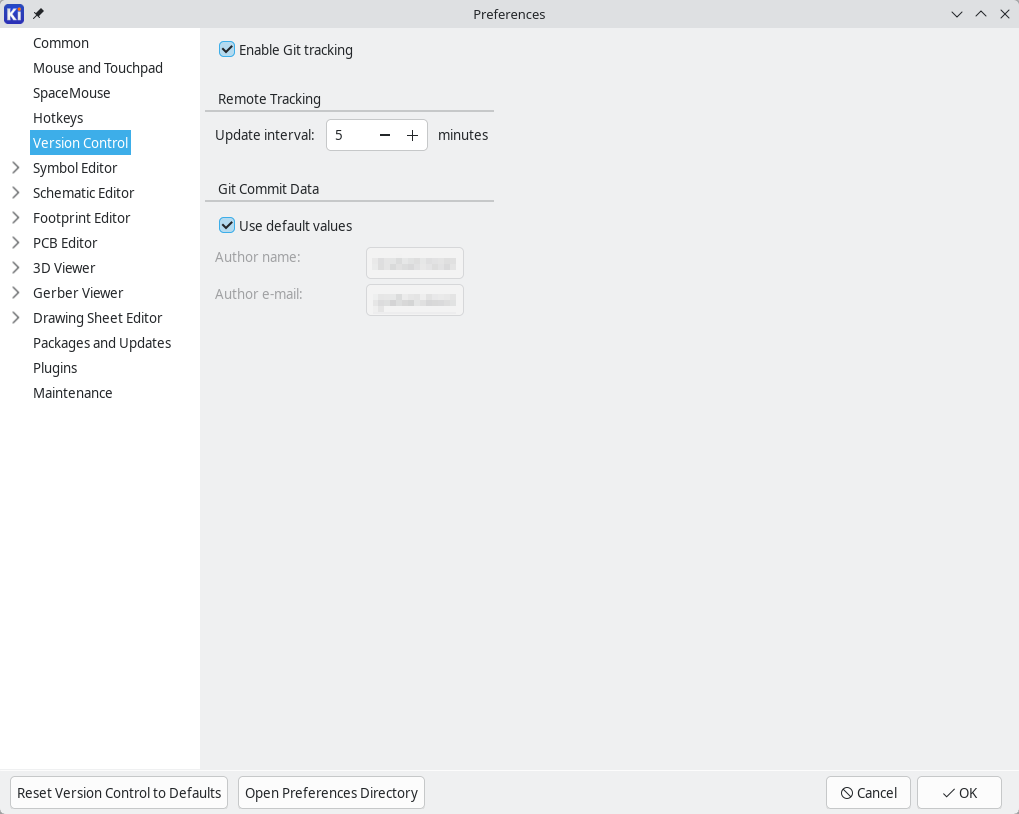

The KiCad preferences can always be accessed from the Preferences menu, or by using the hotkey (default Ctrl+,). The Preferences dialog is shared between the running KiCad tools. Some preferences apply to all tools, and some are specific to a certain tool (such as the schematic or board editor).

Общие настройки

preferences common

Ускоренная графика: KiCad может использовать различные методы сглаживания при отрисовке средствами графического адаптера. Эти методы могут выгладить по-разному на разном оборудовании, поэтому следует поэкспериментировать для поиска наилучшего отображения.

Обычная графика: KiCad может также выполнять сглаживание в режиме совместимости, используя программные средства. Активация этой функции может привести к замедлении работы на некотором оборудовании.

Текстовый редактор: определяет текстовый редактор для открытия текстовых файлов из дерева менеджера проектов.

PDF-просмотрщик: определяет приложение для открытия PDF-файлов.

Показать иконки в меню: включает отображение иконок в контекстном меню KiCad.

На некоторых операционных системах иконки не отображаются в меню.

Show scrollbars in editors: When enabled, scrollbars are displayed next to the editing canvases in each tool. When disabled, scrollbars are not shown.

Focus follows mouse between schematic and PCB editors: When enabled, the window under the mouse cursor will automatically become focused.

Масштаб иконок: устанавливает размер иконок, которые используются в меню и на кнопках в KiCad. Отметьте Автоматически для автоматического подбора оптимального масштаба иконок на основе параметров операционной системы.

Тема иконок: определяет какой набор иконок использовать, для светлого или тёмного фона. Значение по умолчанию - автоматически. Тема будет определена на основе цвета фона окна используемого системой.

High-contrast mode dimming factor: Sets how much non-focused items are dimmed in high-contrast display mode.

Сместить курсор к опорной точке объекта при перемещении: если отмечено, курсор мыши будет перемещён на опорную точку объекта в начале операции его перемещения.

Горячая клавиша сначала выбирает инструмент: без этой опции, нажатие горячей клавиши для, к примеру, команды Добавить проводник сразу же начнёт выполнение этой команды, начиная с текущей позиции курсора. Если отмечено, нажатие горячей клавиши в первый раз только активирует инструмент Добавить проводник и не создаст проводник под курсором.

Запоминать открытые файлы для следующего запуска проекта: если отмечено, KiCad автоматически откроет все файлы, которые были открыты при последнем закрытии менеджера проектов.

Авто-сохранение: при редактировании файлов схемы либо платы, KiCad может автоматически выполнять периодическое сохранение проделанной работы. Чтобы отключить эту функцию установите 0

Кол. недавних файлов: определяет количество элементов в списке недавно открытых файлов

Хранить файлы кэша 3D: KiCad создаёт кэш для 3D моделей, чтобы ускорить работу 3D-просмотрщика. Можно настроить как долго стоит хранить кэш перед удалением устаревших файлов.

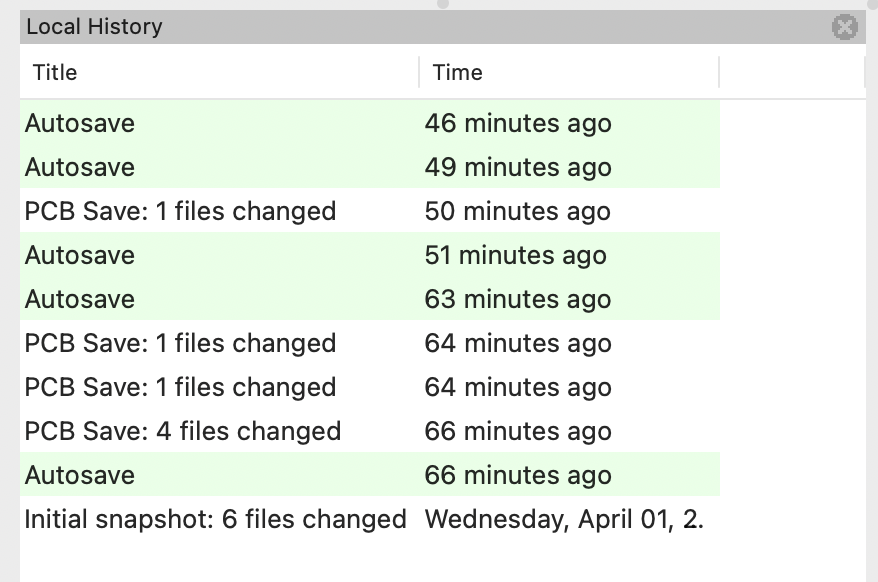

Автоматическое резервное копирование: если отмечено, проекты KiCad будут архивироваться в ZIP-файлы автоматически согласно следующим настройкам. Архивы хранятся в подкаталоге каталога проекта. Резервные копии создаются при сохранении файлов проекта.

Резервное копирование при автоматическом сохранении: если отмечено, резервные копии будут создаваться при каждом автоматическом сохранении (если резервная копия разрешена следующими настройками). Этот параметр имеет значение только если интервал автоматического сохранения не равен 0 (не отключён).

Максимум резервных копий: при создании новой резервной копии, старые копии будут удаляться, чтобы общее число файлов резервных копий не превышало указанного лимита.

Максимум резервных копий в день: при создании новой резервной копии, старые копии, созданные в этот же день, будут удаляться, чтобы не превысить указанный лимит.

Мин. промежуток между резервным копир.: если настало время создания резервной копии (например, при сохранении файла платы) и существует резервная копия, созданная раньше чем указанный интервал, резервная копия не будет создана.

Макс. размер всех резервных копий: при создании новой резервной копии файлы старых резервных копий будут удаляться, чтобы общий размер каталога с резервными копиями не превышал указанный предел.

Мышь и сенсорная панель

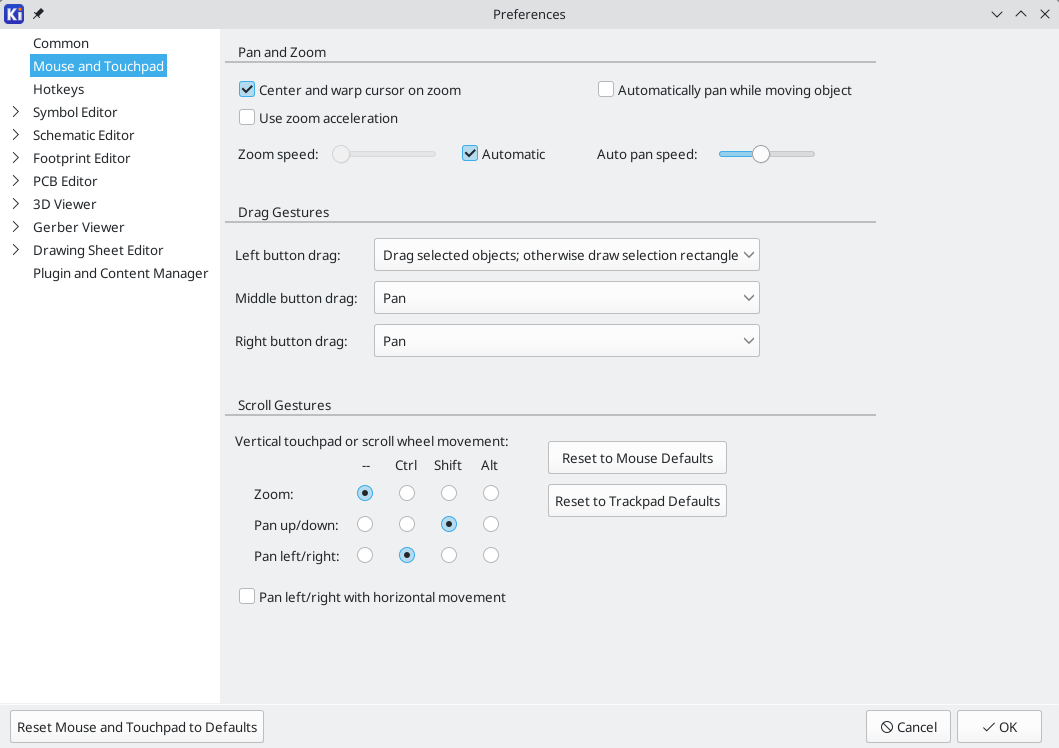

preferences mouse and touchpad

Центрировать по курсору при масштабировании: если отмечено, перед масштабировании с помощью горячих клавиш или колеса мыши изображение будет отцентрировано по положению курсора.

Ускоренное масштабирование: если отмечено, прокрутка с помощью колеса мыши или сенсорной панели будет происходить быстрее.

Скорость смены масштаба: определяет на какую величину должен смениться масштаб при прокрутке мышью или сенсорной панелью. Установите отметку Автоматически чтобы использовать значение по умолчанию, которое зависит от настроек операционной системы.

Панорамировать при перемещении объекта: если отмечено, изображение можно панорамировать при перемещении объекта, поднося его к краю области редактирования.

Скорость панорамирования: определяет как быстро должно выполняться панорамирование при перемещении объекта.

Кнопки мыши: можно настроит поведение при перетаскивании средней кнопкой мыши и нажатии правой кнопки мыши: смена масштаба, панорамирование или ничего не делать. Также можно настроить поведение при перетаскивании с нажатой левой кнопки мыши в редакторе при наличии выделенных элементов или без них.

Левая кнопка мыши всегда используется для выделения и управления объектами.

Прокрутка колесом мыши и сенсорной панелью: можно настроить поведение при прокрутке колесом мыши или сенсорной панелью с нажатой определённой клавишей-модификатором.

Панорамировать влево/вправо при горизонтальной прокрутке: если отмечено, можно выполнять горизонтальное панорамирование с помощью сенсорной панели или второго колеса мыши (если оно имеется).

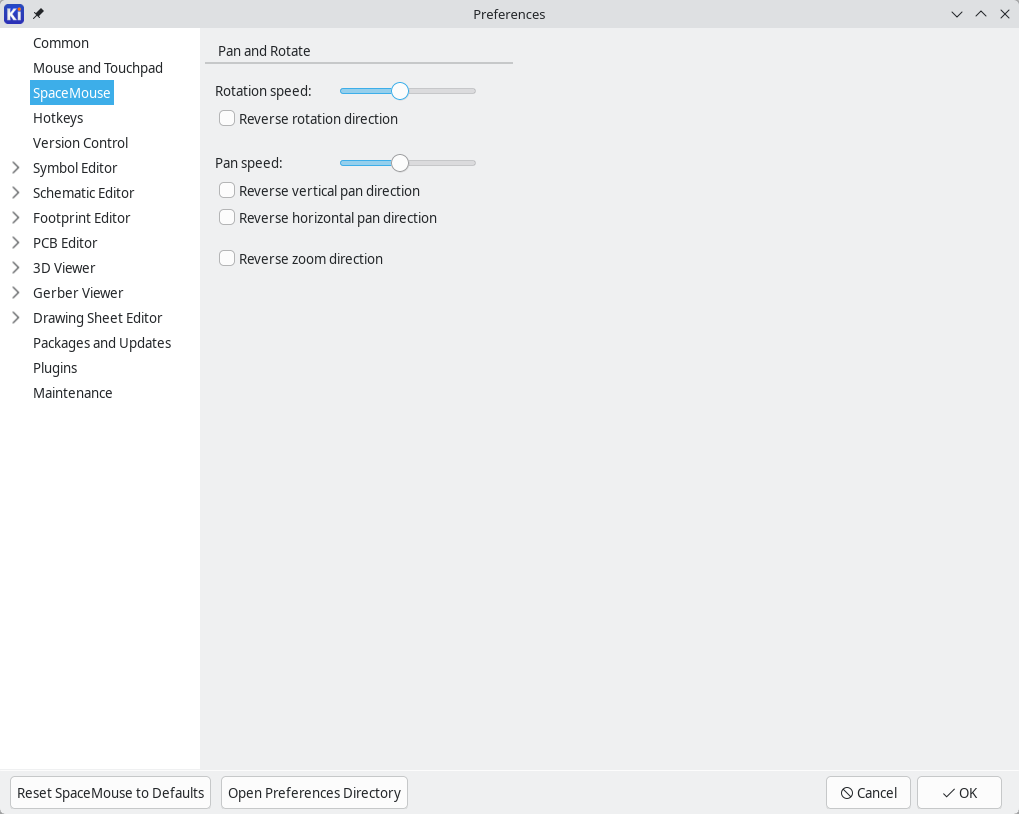

Горячие клавиши

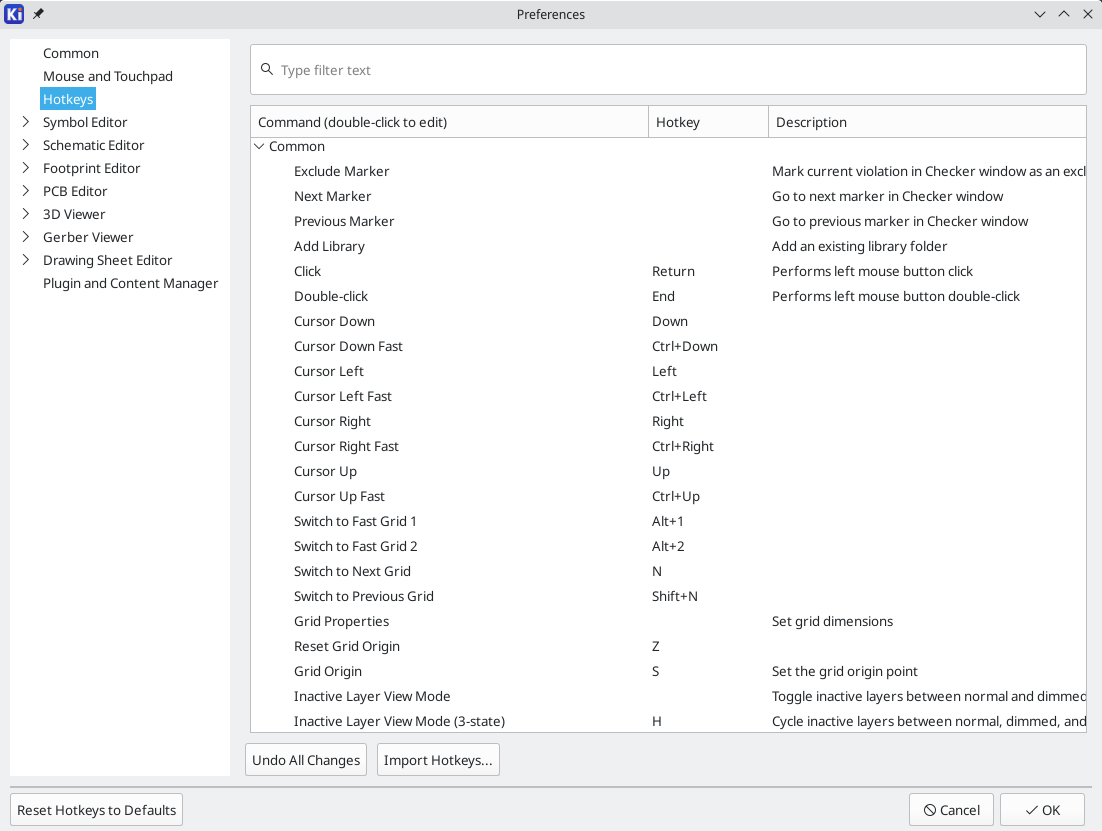

preferences hotkeys

С помощью этого диалогового окна можно настроить горячие клавиши, используемые для управления KiCad. Горячие клавиши в разделе Общие относятся ко всем приложениям KiCad. Горячие клавиши определённых приложений KiCad отображаются когда эти приложения запущены. Можно задавать одинаковые горячие клавиши для различных операций в разных приложениях KiCad (например, в редакторе схем и в редакторе плат), но нельзя задавать одну и ту же горячую клавишу для разных операции одного приложения.

Имеется огромное количество команд, поэтому не всем присвоены горячие клавиши по умолчанию. Можно добавить горячую клавишу для любой команды с помощью двойного щелчка мыши по команде в списке. Если желаемая горячая клавиша уже занята, можно указать использовать эту горячую клавишу для выбранной команды, при этом горячая клавиша конфликтной команды будет удалена.

Changes that you have made to hotkey assignments are shown with a * character at the end of the command name. You can undo changes to a specific command by right-clicking that command and selecting Undo Changes, or you can undo all changes with the button below the command list.

Импорт горячих клавиш

Настройки горячих клавиш хранятся в файлах .hotkeys в каталоге настроек KiCad (см. раздел Настройки для получения информации о том где располагается каталог с настройками в операционной системе). Если имеются настройки горячих клавиш, которые хотелось бы задействовать на другом компьютере, можно скопировать файлы .hotkeys и импортировать их на другой машине.

Настройка путей

In KiCad, one can define paths using an environment variable. A few environment variables are internally defined by KiCad, and can be used to define paths for libraries, 3D shapes, etc.

Это полезно, когда абсолютные пути неизвестны или меняются (например, при переносе проекта на другой ПК), а также, когда один общий каталог содержит множество подобных элементов. Рассмотрим следующие объекты, которые могут быть установлены в разных местах:

  • Библиотеки символов схемы

  • Библиотеки посадочных мест

  • 3D model files used in footprint definitions

For instance, the path to the connect.pretty footprint library, when using the KICAD8_FOOTPRINT_DIR environment variable, would be defined as ${KICAD8_FOOTPRINT_DIR}/connect.pretty.

Меню НастройкиНастроить пути…​ позволяет определять пути на основе нескольких встроенных в KiCad переменных окружения, и добавлять собственные переменные окружения для личного использования, при необходимости.

KiCad will automatically resolve versioned environment variables from older versions of KiCad to the value of the corresponding variable from the current KiCad version, as long as the old variable is not explicitly defined itself. For example, ${KICAD7_FOOTPRINT_DIR} will automatically resolve to the value of ${KICAD8_FOOTPRINT_DIR} if there is no KICAD7_FOOTPRINT_DIR variable defined.

KiCad environment variables

KICAD8_3DMODEL_DIR

Base path of KiCad’s standard 3D footprint model library files.

KICAD8_3RD_PARTY

Location for plugins, libraries, and color themes installed by the Plugin and Content Manager.

KICAD8_FOOTPRINT_DIR

Base path of KiCad’s standard footprint library files.

KICAD8_SYMBOL_DIR

Base path of KiCad’s standard symbol library files.

KICAD8_TEMPLATE_DIR

Location of KiCad’s standard project template library files.

KICAD_USER_TEMPLATE_DIR

Location of personal project templates.

SPICE_LIB_DIR

Location of personal simulation model libraries. This variable is not defined by default.

KIPRJMOD

Absolute path to the current project directory. This variable is set automatically and cannot be redefined.

configure path dlg

Paths set in the Configure Paths dialog are internal to KiCad and are not visible as environment variables outside of KiCad. They are stored in KiCad’s user configuration files.

Paths can also be set as environment variables outside of KiCad, which will override any settings in the user’s configuration.

You cannot override an environment variable that has been set outside of KiCad by using the Configure Paths dialog. Any variable that has been set externally will be shown as read-only in the dialog.

Note also that the environment variable KIPRJMOD is always internally defined by KiCad, and expands to the current project absolute path. For instance, ${KIPRJMOD}/connect.pretty is always the connect.pretty folder (the footprint library) inside the current project folder. The KIPRJMOD variable cannot be changed in the Configure Paths dialog or overridden by an external environment variable.

Advanced environment variables

Some advanced environment variables can be set to customize KiCad’s behavior. These variables are not shown in the environment variable configuration and cannot be used in path substitutions. They cannot be modified in the Configure Paths dialog, but they can be overridden by system environment variables.

Changing these variables will not result in KiCad moving any files from the default location to the new location, so if you change these variables you will need to copy any desired settings or files manually.

Дополнительные переменные окружения:

KICAD_CONFIG_HOME

Base path of KiCad configuration files. Subdirectories will be created within this directory for each KiCad minor version.

KICAD_DOCUMENTS_HOME

Base path of KiCad user-modifiable documents, such as projects, templates, Python scripts, libraries, etc. Subdirectories will be created within this directory for each KiCad minor version. This directory is provided as a suggested user data location, but does not need to be used.

If you modify the configuration of paths, please quit and restart KiCad to avoid any issues in path handling.

Настройка библиотек

The PreferencesManage Symbol Libraries…​ menu lets you manage the list of symbol libraries (symbol library table).

Likewise, use the PreferencesManage Footprint Libraries…​ menu to manage the list of footprint libraries (footprint library table).

For each type of library (symbol and footprint), there are 2 library tables: global and project specific. The global library table is located in the user configuration directory and contains a list of libraries available to all projects. The project-specific library table is optional and contains a list of libraries specific to the project. It is located in the project directory.

Шаблоны проектов

Шаблоны облегчают создание новых проектов, благодаря использую предварительно настроенных параметров из шаблона. Они могут содержать предопределённые контуры печатной платы, расположения разъемов, компоненты схемы, правила проектирования и т.п. Для наследования в новых проектах могут использоваться завершенные файлы схемы и/или печатной платы.

Использование шаблонов

The FileNew Project from Template menu will open the Project Template Selector dialog:

После щелчка левой кнопки мыши на значке шаблона будет показана информация о нём, а следующий щелчок на кнопке 'OK' приведёт к созданию нового проекта. Файлы шаблона будут скопированы в каталог нового проекта и переименованы в соответствии с новым именем.

template selected

Template locations

KiCad looks for system templates in the path defined in the KICAD8_TEMPLATE_DIR path variable, and user templates in the path defined in KICAD_USER_TEMPLATE_DIR. However, you can browse for templates in an arbitrary directory using the Folder control at the top of the dialog.

Создание шаблонов

A KiCad template is simply a directory containing the template project files, as well as some required metadata for the template in a subdirectory named meta. The name of the directory containing the template files determines the name of the template. When you create a project from a template, KiCad copies the template files to the new project directory, renaming them to match the new project name as described below.

All files in the template are copied, with two exceptions:

  • Files with names beginning with the . character (dotfiles) are not copied. There is a special case for files named .gitignore or .gitattributes, which are copied if they exist.

  • The meta directory is not copied

The meta directory must contain an HTML file named info.html, which is displayed in the KiCad template browser and should contain basic information describing the template. Basic HTML features are supported, including images. Any images referenced by info.html should also be stored in the meta directory.

The <title> tag determines the name of the template that is displayed during template selection. Note that the project template name will be cut off if it’s too long. This display name does not need to be the same as the template directory name.

Here is a sample info.html file:

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0 Transitional//EN">
<HTML>
<HEAD>
<META HTTP-EQUIV="CONTENT-TYPE" CONTENT="text/html;
charset=windows-1252">
<TITLE>Raspberry Pi - Expansion Board</TITLE>
</HEAD>
<BODY LANG="fr-FR" DIR="LTR">
<P>This project template is the basis of an expansion board for the
<A HREF="http://www.raspberrypi.org/" TARGET="blank">Raspberry Pi $25
ARM board.</A> <BR><BR>This base project includes a PCB edge defined
as the same size as the Raspberry-Pi PCB with the connectors placed
correctly to align the two boards. All IO present on the Raspberry-Pi
board is connected to the project through the 0.1&quot; expansion
headers. <BR><BR>The board outline looks like the following:
</P>
<P><IMG SRC="brd.png" NAME="brd" ALIGN=BOTTOM WIDTH=680 HEIGHT=378
BORDER=0><BR><BR><BR><BR>
</P>
<P>(c)2012 Brian Sidebotham<BR>(c)2012 KiCad Developers</P>
</BODY>
</HTML>

Finally, meta can optionally contain an image named icon.png, which will be used as the template’s icon in the template selection dialog. The icon should be a 64 x 64 pixel PNG image.

Template file renaming

All files and directories in a template are copied to the new project path when a project is created using a template, except meta and any dotfiles. Files and directories containing the template directory name will be renamed with the new project file name.

For example, using a template named example (left) to create a project named newproject (right), with renamed files shown in bold:

Files in template example directory Files created in project newproject directory

example.kicad_pro
example.kicad_sch
example.kicad_pcb
example-first.kicad_sch
second-example.kicad_sch
third.kicad_sch
third.kicad_pcb

newproject.kicad_pro
newproject.kicad_sch
newproject.kicad_pcb
newproject-first.kicad_sch
second-newproject.kicad_sch
third.kicad_sch
third.kicad_pcb

A template does not need to contain a complete project. If a required project file is missing, KiCad will create the file using the default create project behavior:

Files in template example directory Files created in newproject directory

example.kicad_sch
first-example.kicad_sch
first-example.kicad_pcb
second-example.kicad_sch
second-example.kicad_pcb

newproject.kicad_sch
first-newproject.kicad_sch
first-newproject.kicad_pcb
second-newproject.kicad_sch
second-newproject.kicad_pcb
newproject.kicad_pro (default)
newproject.kicad_pcb (default)

As an exception to the template name renaming rule, if the template contains one project file (.kicad_pro) and its name doesn’t match the template name, KiCad will do the renaming based on that project file name instead:

Files in template example directory Files created in newproject directory

example.kicad_sch
example.kicad_pcb
first-example.kicad_pro
first-example.kicad_sch
first-example.kicad_pcb
second-example.kicad_sch
second-example.kicad_pcb

example.kicad_sch
example.kicad_pcb
newproject.kicad_pro
newproject.kicad_sch
newproject.kicad_pcb
second-example.kicad_sch
second-example.kicad_pcb

Не рекомендуется создавать шаблоны с несколькими файлами проекта.

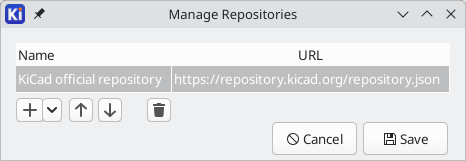

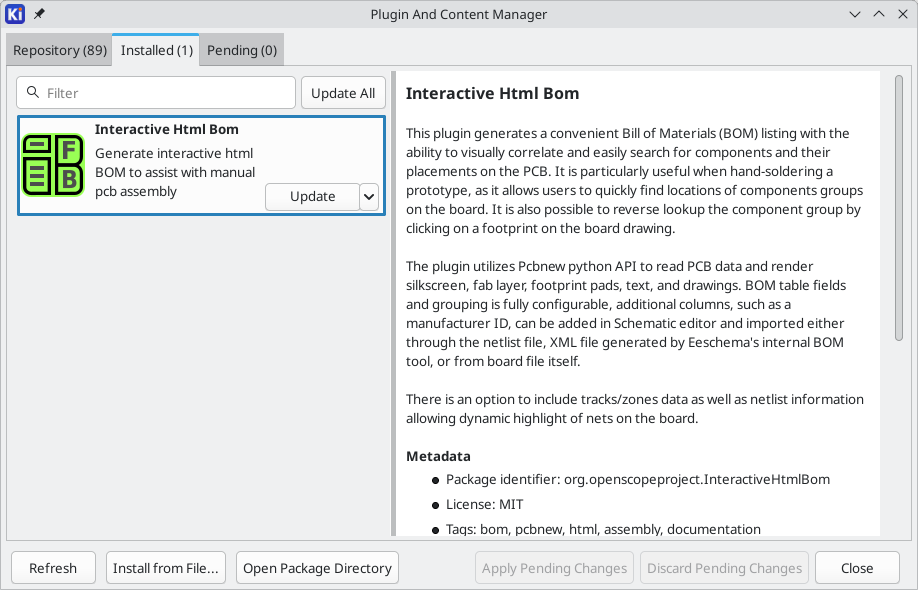

Менеджер плагинов и содержимого

This section of the KiCad documentation has not yet been written. We appreciate your patience as our small team of volunteer documentation writers work to update and expand the documentation.

Actions reference

Below is a list of every available action in the KiCad Project Manager: a command that can be assigned to a hotkey.

KiCad Project Manager

The actions below are available in the KiCad Project Manager. Hotkeys can be assigned to any of these actions in the Hotkeys section of the preferences.

Action Default Hotkey Description

Close Project

Close the current project

Image Converter

Ctrl+B

Convert bitmap images to schematic or PCB components

Drawing Sheet Editor

Ctrl+Y

Edit drawing sheet borders and title block

Footprint Editor

Ctrl+F

Edit PCB footprints

PCB Editor

Ctrl+P

Edit PCB

Schematic Editor

Ctrl+E

Edit schematic

Symbol Editor

Ctrl+L

Edit schematic symbols

Clone Project from Repository…​

Clone a project from an existing repository

New Project from Template…​

Ctrl+T

Create new project from template

New Project…​

Ctrl+N

Create new blank project

Open Demo Project…​

Open a demo project

Open Project…​

Ctrl+O

Open an existing project

Open Text Editor

Launch preferred text editor

Plugin and Content Manager

Ctrl+M

Run Plugin and Content Manager

Calculator Tools

Run component calculations, track width calculations, etc.

Gerber Viewer

Ctrl+G

Preview Gerber output files
