Panduan pengguna

This document is Copyright © 2010-2018 by its contributors as listed below. You may distribute it and/or modify it under the terms of either the GNU General Public License (, version 3 or later, or the Creative Commons Attribution License (, version 3.0 or later.

All trademarks within this guide belong to their legitimate owners.


Jean-Pierre Charras, Fabrizio Tappero.


Triyan W. Nugroho.

Saran dan Komentar

Kirimkan laporan kutu, saran atau versi baru ke alamat berikut:

Software version

KiCad 6.0


KiCad adalah perangkat lunak sumber-terbuka (open-source) untuk membuat diagram skematik elektronika dan desain papan PCB (Printed Circuit Board). Di dalam tampilannya yang singular, KiCad sebenarnya terdiri dari serangkaian aplikasi berikut ini:

  • KiCad : Manajer proyek

  • Eeschema : Editor skematik dan komponen

  • Pcbnew : Editor tata letak papan sirkuit dan footprint

  • GerbView : Penampil Gerber

Bersama dengan perangkat lunak di atas, disertakan pula 3 buah peralatan berikut:

  • Bitmap2Component: Pembuat komponen untuk logo. Aplikasi ini digunakan untuk membuat komponen skematik atau footprint dari sebuah gambar bitmap.

  • PcbCalculator: Kalkulator untuk menghitung komponen untuk regulator, ukuran jalur terhadap arus, garis transmisi, dsb.

  • Page Layout Editor: A tool to create drawing templates (worksheets) to be used on schematics and PCBs.

Peralatan tersebut biasanya dijalankan dari manajer proyek, namun bisa juga dijalankan sebagai aplikasi yang berdiri sendiri.

KiCad does not present any board-size limitation and it can handle up to 32 copper layers, 14 technical layers and 13 auxiliary layers.

Kicad mampu menghasilkan semua berkas yang dibutuhkan untuk membangun papan PCB, antara lain:

  • Berkas Gerber untuk photo-plotter

  • Berkas drilling

  • Berkas lokasi komponen

Sebagai perangkat lunak sumber-terbuka yang berlisensi GPL, KiCad sangat ideal bagi pengguna yang berorientasi proyek dalam pembuatan perangkat keras elektronik dengan citarasa sumber-terbuka.

KiCad tersedia untuk sistem operasi Linux, Windows, dan Apple macOS.

System Requirements

KiCad is capable of running on a wide variety of hardware and operating systems, but some tasks may be slower or more difficult on lower-end hardware. For the best experience, a dedicated graphics card and display with 1920x1080 or higher resolution is recommended.

Please check the KiCad website for the latest system requirements:

Berkas dan Folder KiCad

KiCad menggunakan ekstensi berkas berikut dalam pembuatan skematik dan papan sirkut elektronik.

Berkas manajer proyek:


Project file, containing settings that are shared between the schematic and PCB


Legacy (KiCad 5.x and earlier) project file. Can be read and will be converted to a .kicad_pro file by the project manager.

Berkas editor skematik:


Schematic files containing all info and the components themselves.


Schematic symbol library file, containing the component descriptions: graphic shape, pins, fields.


Legacy (KiCad 5.x and earlier ) schematic file. Can be read and will be converted to a .kicad_sch file on write.


Legacy (KiCad 5.x and earlier ) schematic library file. Can be read but not written.


Legacy (KiCad 5.x and earlier ) schematic library documentation. Can be read but not written.


Legacy (KiCad 5.x and earlier ) schematic component library cache file. Required for proper loading of a legacy schematic (.sch) file.


Symbol library list (symbol library table): list of symbol libraries available in the schematic editor.

Berkas dan folder editor papan sirkuit:


Board file containing all info but the page layout.


Footprint library folders. The folder itself is the library.


Footprint files, containing one footprint description each.


Design rules file, containing custom design rules for a certain .kicad_pcb file.


Legacy (KiCad 4.x and earlier ) board file. Can be read, but not written, by the current board editor.


Legacy (KiCad 4.x and earlier ) footprint library file. Can be read by the footprint or the board editor, but not written.


Footprint library list (footprint library table): list of footprint libraries available in the board editor.


Cache to speed up loading of footprint libraries.

Berkas-berkas umum:


Page layout (drawing border and title block) description file


Netlist file created by the schematic, and read by the board editor. This file is associated to the .cmp file, for users who prefer a separate file for the component/footprint association.


Local settings for the current project, helps Kicad remember the last used settings such as layer visibility or selection filter. May not need to be distributed with the project or put under version control.

Berkas-berkas lain:


Hubungan antara komponen-komponen yang digunakan pada skematik dan footprint. Berkas ini dapat dibuat oleh Pcbnew dan diimpor oleh Eeschema. Berkas ini digunakan untuk mengimpor perubahan dari Pcbnew ke Eeschema, bagi pengguna yang mengubah footprint suatu komponen di dalam Pcbnew (misalnya dengan menggunakan perintah Exchange Footprints) dan ingin mengimpor perubahan tersebut ke skematik.

Berkas-berkas lain:

Berkas-berkas berikut dibuat oleh KiCad untuk keperluan fabrikasi dan dokumentasi.


Berkas Gerber, untuk fabrikasi.


Berkas drill (format Excellon), untuk fabrikasi.


Berkas posisi (format ASCII), untuk mesin pemasang komponen otomatis.


Berkas laporan (format ASCII), untuk dokumentasi.


Berkas plot (postscript), untuk dokumentasi.


Berkas plot (format pdf), untuk dokumentasi.


Berkas plot (format SVG), untuk dokumentasi.


Berkas plot (format DXF), untuk dokumentasi.


Berkas plot (format HPGL), untuk dokumentasi.

Storing and and sending KiCad files

KiCad schematic and board files contain all the schematic symbols and footprints used in the design, so you can back up or send these files by themselves with no issue. Some important design information is stored in the project file (.kicad_pro), so if you are sending a complete design, make sure to include it.

Some files, such as the project local settings file (.kicad_prl) and the fp-info-cache file, are not necessary to send with your project. If you use a version control system such as Git to keep track of your KiCad projects, you may want to add these files to the list of ignored files so that they are not tracked.

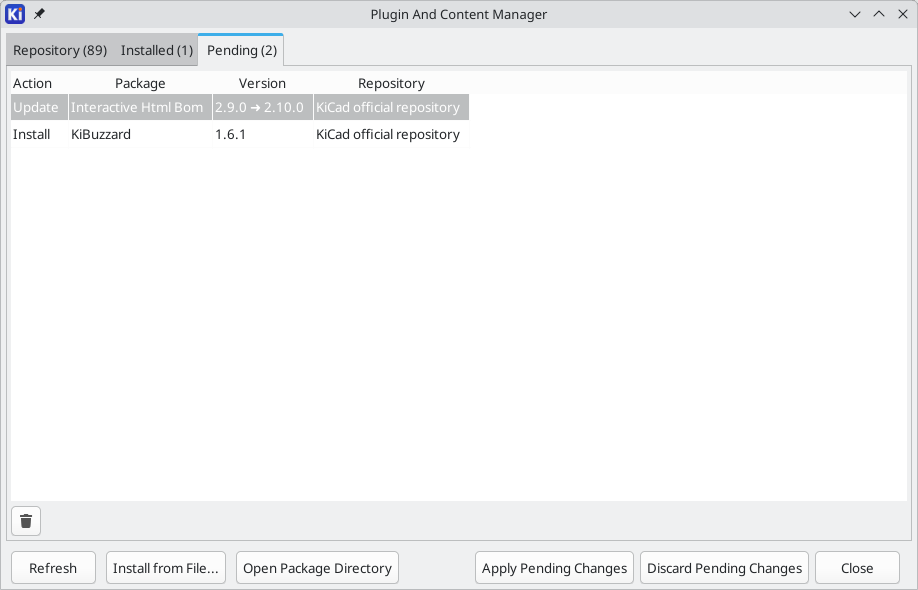

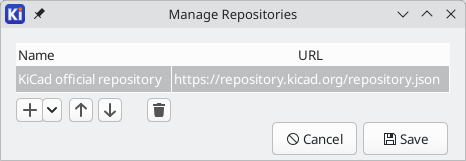

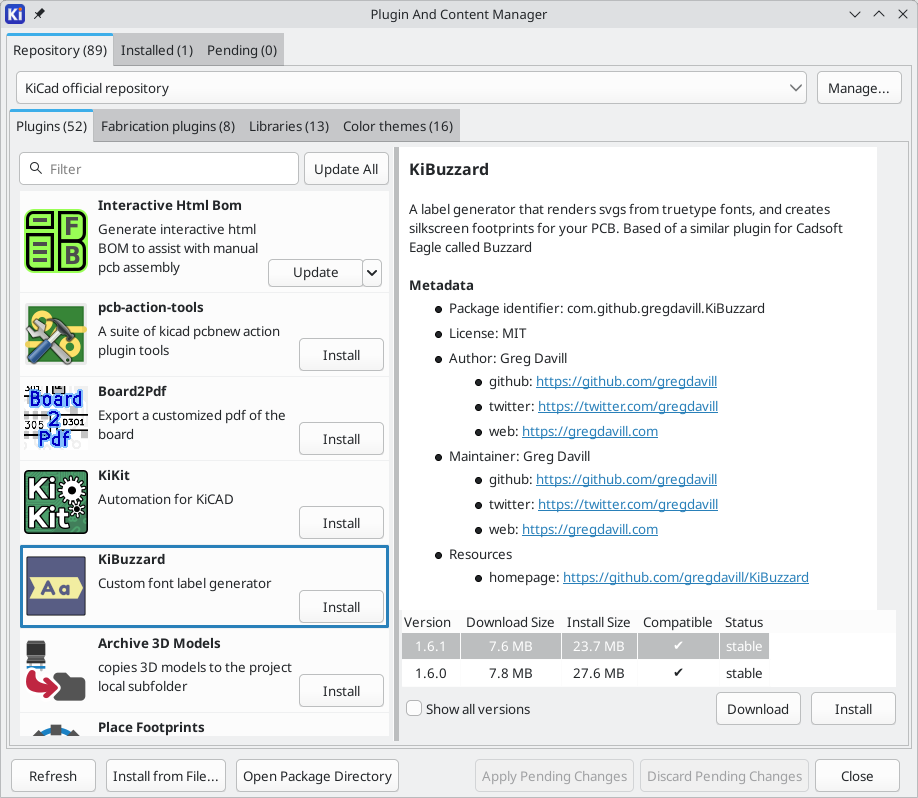

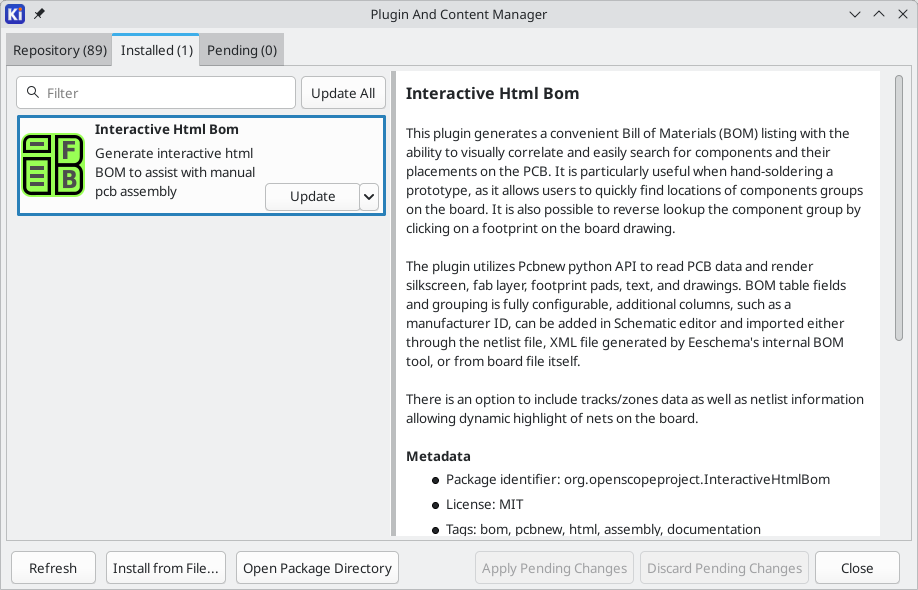

Installing and Upgrading KiCad

Importing settings

Each major release of KiCad has its own configuration, so that you may run multiple KiCad versions on the same computer without the configurations interfering. The first time you run a new version of KiCad, you will be asked how to initialize the settings:

configure settings

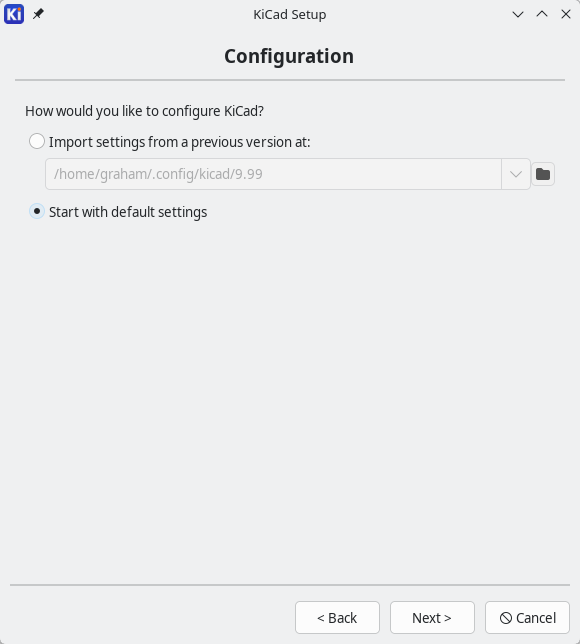

If a previous version of KiCad is detected, you will have the option to import the settings from that version. The location of the previous configuration files is detected automatically, but you may override it to choose another location if desired.

By default, the schematic symbol and footprint library tables from the previous version of KiCad will also be imported. If you would like to start with no library configuration, uncheck the Import library configuration from previous version checkbox.

You may also choose to start with default settings if you do not want to import settings from a previous version.

KiCad stores the settings files in a folder inside your user directory. Each KiCad version will store its settings in a subfolder of that folder (except for KiCad 5.1 and earlier, which did not use subfolders). Those folders are:





Mac OS


Migrating files from previous versions

Modern versions of KiCad can open files created in earlier versions, but can only write files in the latest formats. This means that in general, there are no special steps to migrate files from a previous version besides opening the files. In some cases, the file extension for a file has changed from one KiCad version to the next. After opening these files, they will be saved in the new format with the new file extension. The old files will not be deleted automatically.

In general, files created or modified by one version of KiCad cannot be opened by older versions of KiCad. For this reason, it is important to keep backup copies of your projects when testing a new KiCad release, until you are confident that you will not need to use the older KiCad version anymore.

Menggunakan Manajer Proyek KiCad

KiCad project manager (kicad or kicad.exe) is a tool which can easily run the other tools (schematic and board editors, Gerber viewer and utility tools) when creating a design.

Menjalankan aplikasi dari Manajer KiCad memiliki beberapa keuntungan, antara lain:

  • menjaga saling keterkaitan antara editor skematik dan editor papan sirkuit.

  • synchronization of the design between the schematic editor and board editor (without creating netlist files)

KiCad currently only supports having one project open at a time. When running the schematic and board editors from the KiCad project manager, you can only edit the schematics and board associated with the open project. When these tools are run in stand alone mode, you can open any file in any project, but cross probing between tools can give strange results.

Jendela Manajer Proyek

main window

The KiCad project manager window is composed of a project tree view, a launch pane containing buttons used to run the various software tools, and a message window. The menu and the toolbar can be used to create, read and save project files.

Tool launcher

The tool launcher opens the different KiCad tools from the project manager. When opening the schematic or board editor, the project files will automatically be loaded.

The 8 buttons in the launcher correspond to the following commands (1 to 8, from left to right):

launch pane



Schematic editor.



Schematic symbol editor and symbol library manager.



Board layout editor.



Footprint editor and footprint library manager.



Gerber file viewer. It can also display drill files.



Tool to build a footprint or a component from a B&W bitmap image to create logos.


Pcb Calculator

Tool to calculate track widths, and many other things.


Page Layout Editor

Page layout (drawing border and title block) editor

Tampilan Pohon Proyek

The tree view shows a list of files inside the project folder.

project tree

Double-clicking on the schematic file runs the schematic editor, in this case opening the file pic_programmer.kicad_sch.

Klik-ganda pada berkas PCB untuk menjalankan editor tata letak PCB, yang dalam contoh di atas akan membuka berkas pic_programmer.kicad_pcb.

Melakukan klik-kanan pada berkas yang ada di pohon proyek akan mengijinkan kita melakukan manipulasi berkas secara umum.

Only files that KiCad understands how to open are displayed in the project tree view.

Bilah Alat Bagian Atas

main toolbar

Kita dapat melakukan beberapa perintah berkas dasar dengan mengakses bilah alat bagian atas pada KiCad:

new project

Create a new project. If the default template file (kicad.kicad_pro) is found in kicad/template, it is copied into the working directory.

new project with template

Create a new project from an existing template.

open project

Open an existing project.


Create a zip archive of the whole project. This includes schematic files, libraries, PCB, etc.


Extract a project zip archive into a directory. Files in the destination directory will be overwritten.


Refresh the tree view, sometimes needed after a tree change.

directory browser

Open the project working directory in a file explorer.

Membuat Proyek Baru

Most KiCad designs start with the creation of a project. There are two ways to create a project from the KiCad project manager: you may create an empty project, or create a project based on an existing template. This section will cover the creation of a new, empty project. Creating projects from templates is covered in the Project Templates section.

To create a new project, use the New Project…​ command in the File menu, click the New Project button in the top toolbar, or use the keyboard shortcut (Ctrl+N by default).

You will be prompted for a name to give your project. By default, a directory will be created for your project with the same name. For example, if you enter the name MyProject, KiCad will create the directory MyProject and the project file MyProject/MyProject.kicad_pro inside it.

If you already have a directory to store your project files in, you can uncheck the Create a new directory for the project checkbox in the New Project dialog.

It is strongly recommended that you store each KiCad project inside its own directory.

Once you select the name of your project, KiCad will create the following files inside the project directory:


KiCad project file.


Main schematic file.


Printed circuit board file.

Importing a project from another EDA tool

KiCad is able to import files created by some other software packages. Currently the following types of project are supported:

*.sch, *.brd

Eagle 6.x or newer (XML format)

*.csa, *.cpa

CADSTAR archive format

To import a project from one of these tools, choose the appropriate option from the Import Non-KiCad Project submenu of the File menu.

You will be prompted to select either a schematic or a board file in the import file browser dialog. The imported schematic and board files should have the same base file name (e.g. project.sch and project.brd). Once the requested files are selected, you will be asked to select a directory to store the resulting KiCad project.

KiCad configuration

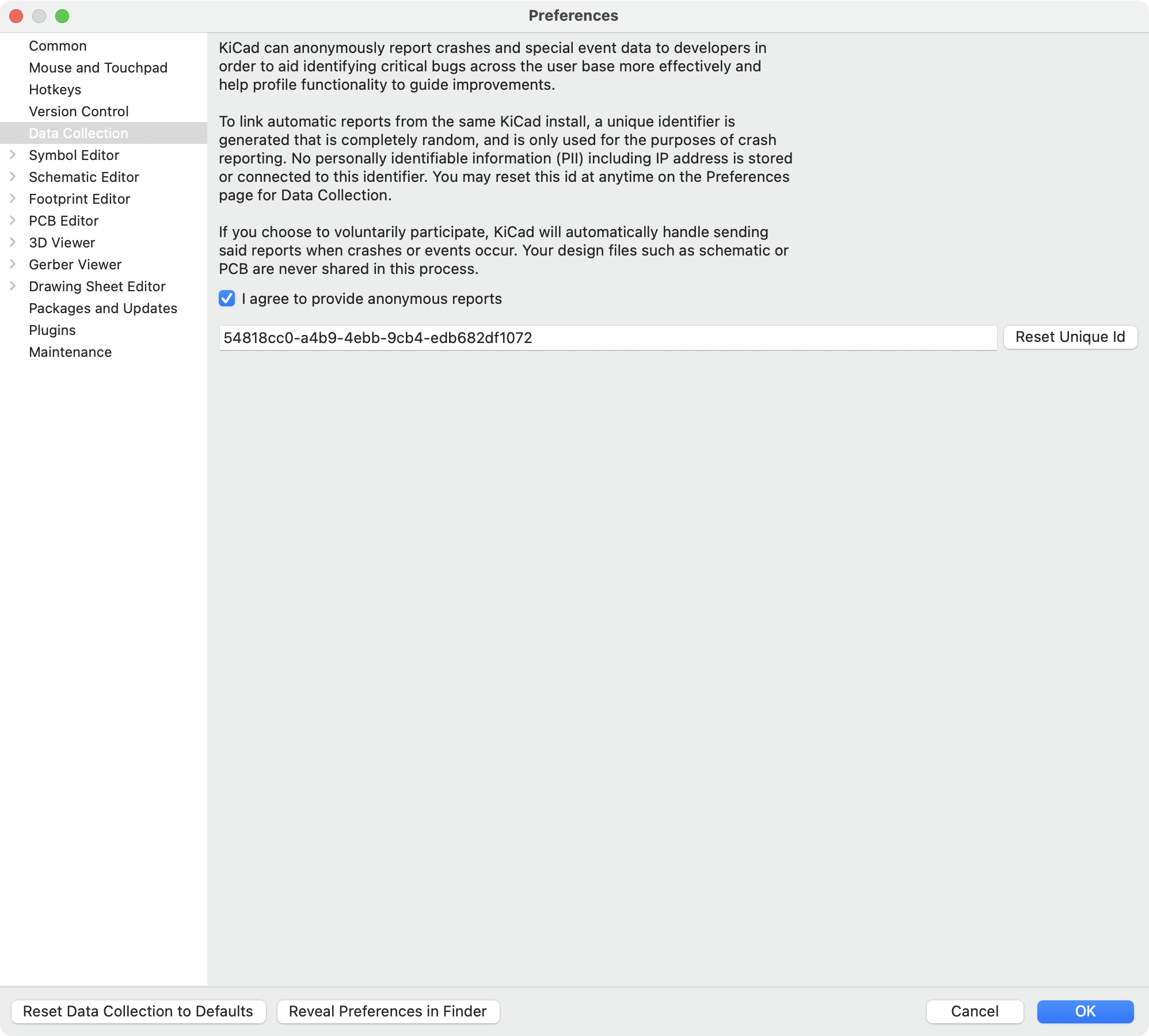

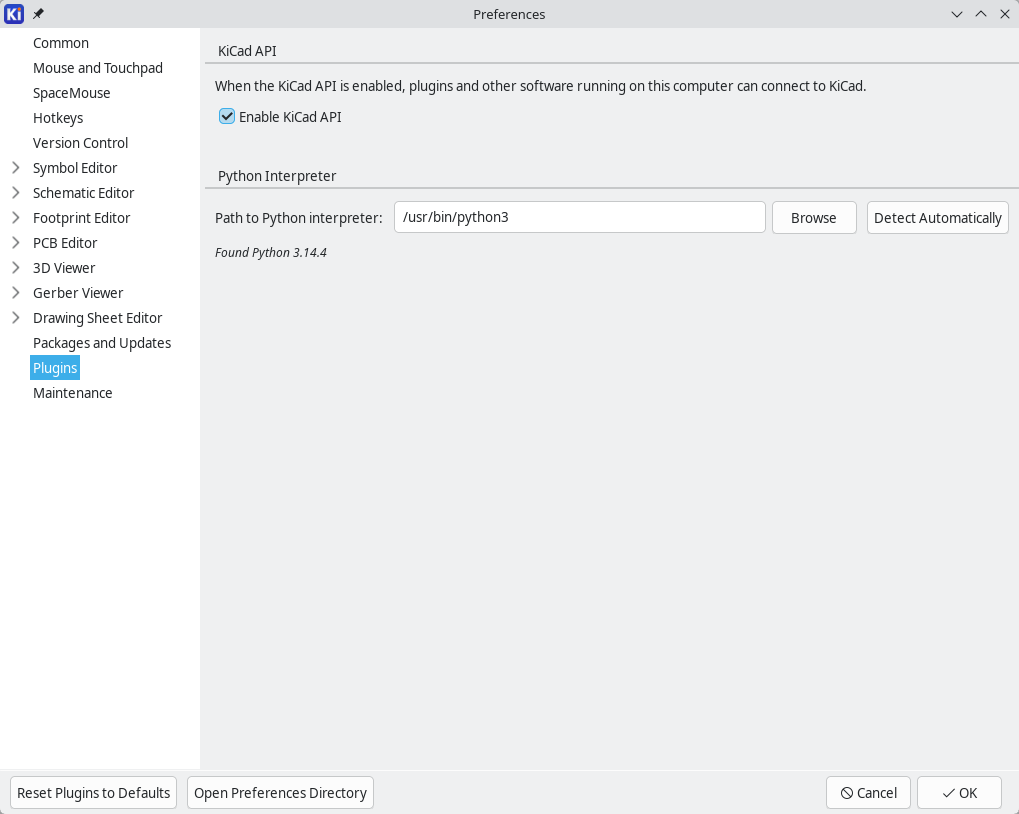

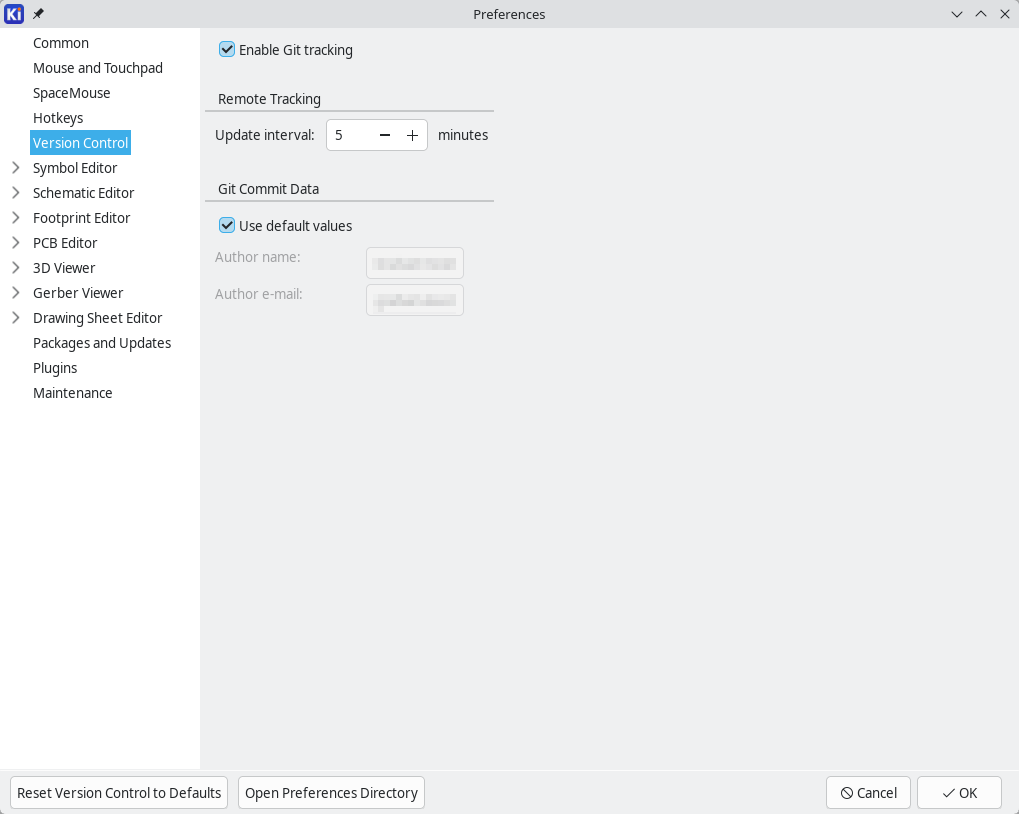

The KiCad preferences can always be accessed from the Preferences menu, or by using the hotkey (default Ctrl+,). The Preferences dialog is shared between the running KiCad tools. Some preferences apply to all tools, and some are specific to a certain tool (such as the schematic or board editor).

Common preferences

preferences common

Auto save: When editing schematics and board files, KiCad can automatically save your work periodically. Set to 0 to disable this feature.

File history size: Configure the number of entries in the list of recently-opened files

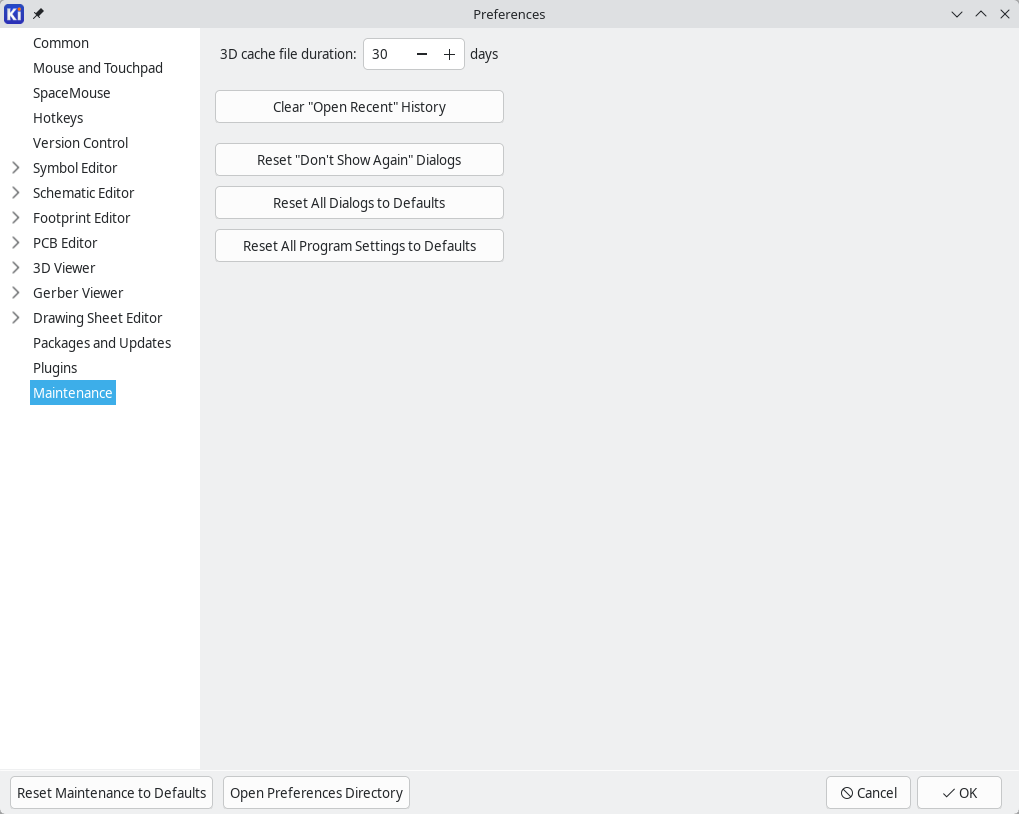

3D cache file duration: KiCad creates a cache of 3D models in order to speed up the 3D viewer. You can configure how long to keep this cache before deleting old files.

Accelerated graphics antialising: KiCad can use different methods to prevent aliasing (jagged lines) when rendering using a graphics card. Different methods may look better on different hardware, so you may want to experiment to find the one that looks best to you.

Fallback graphics antialiasing: KiCad can also apply antialiasing when using the fallback graphics mode. Enabling this feature may result in poor performance on some hardware.

Text editor: Choose a text editor to use when opening text files from the project tree view.

PDF viewer: Choose a program to use when opening PDF files

Icon scale: Sets the size of the icons used in menus and buttons throughout KiCad. Choose Automatic to pick an appropriate icon scale automatically based on your operating system settings.

Canvas scale: Sets the scale of the drawing canvas used in the KiCad editors. Choose Automatic to pick an appropriate canvas scale automatically based on your operating system settings.

Show icons in menus: Enables icons in drop-down menus throughout the KiCad user interface.

Icons in menus are not displayed on some operating systems.

Prefer selection to dragging: When enabled, clicking and dragging the mouse will always perform a selection operation, even when you start dragging on top of an object. When disabled, clicking and dragging on top of an object that can be moved will perform a move operation.

Warp mouse to origin of moved object: When enabled, the mouse cursor will be repositioned (warped) to the origin of an object when you start a move command on that object.

First hotkey selects tool: When disabled, pressing the hotkey for a command such as Add Wire will immediately start the command at the current cursor location. When enabled, pressing the hotkey the first time will just select the Add Wire tool but will not immediately begin a wire.

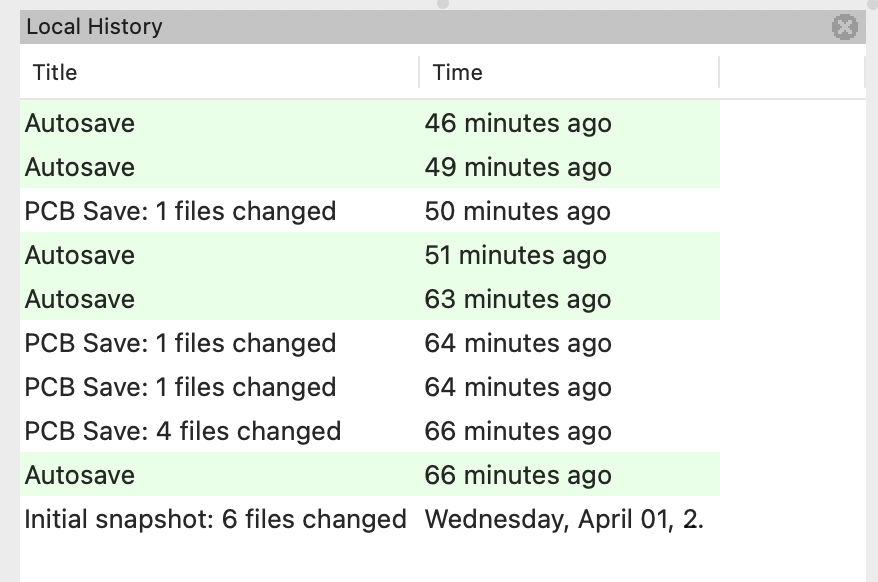

Automatically backup projects: When enabled, KiCad projects will be archived to ZIP files automatically according to the settings below. The archives will be stored in a subfolder of the project folder. Backups are created when saving files in the project.

Create backups when auto save occurs: When enabled, a backup will be created every time an automatic file save occurs (if the backup is permitted by the settings below). This setting has no effect if the auto save interval is set to 0 (disabled).

Maximum backups to keep: When creating a new backup, the oldest backup file will be deleted to keep the total number of backup files below this limit.

Maximum backups per day: When creating a new backup, the oldest backup file created on the current day will be deleted to stay below this limit.

Minimum time between backups: If backup is triggered (for example, by saving a board file), the backup will not be created if an existing backup file is newer than this limit.

Maximum total backup size: When creating a new backup file, the oldest backup files will be deleted to keep the total size of the backup files directory below this limit.

Remember open files for next project launch: When checked, KiCad will re-open the schematic and board editor if they were open the last time you closed the project manager.

Mouse and touchpad preferences

preferences mouse and touchpad

Center and warp cursor on zoom: When enabled, zooming using the hotkeys or mouse wheel will cause the view to be centered on the cursor location.

Use zoom acceleration: When enabled, scrolling the mouse wheel or touchpad faster will cause the zoom to change faster.

Zoom speed: Controls how much the zoom changes for a given amount of scrolling the mouse wheel or touchpad. Use Automatic to set a default value depending on your operating system.

Automatically pan while moving object: When enabled, the view can be panned while moving an object by moving close to the edge of the canvas.

Auto pan speed: Controls how fast the canvas pans while moving an object.

Mouse buttons: You can set the behavior of dragging the middle and right mouse buttons to zoom the view, pan the view, or have no effect.

The left mouse button is always used for selecting and manipulating objects.

Mouse wheel and touchpad scrolling: You can set the behavior of scrolling the mouse wheel or vertical motion of the touchpad while pressing certain modifier keys.

Pan lef/tright with horizontal touchpad or scroll wheel movement: When enabled, you can pan the view using the touchpad or horizontal scroll wheel (if present on your mouse).

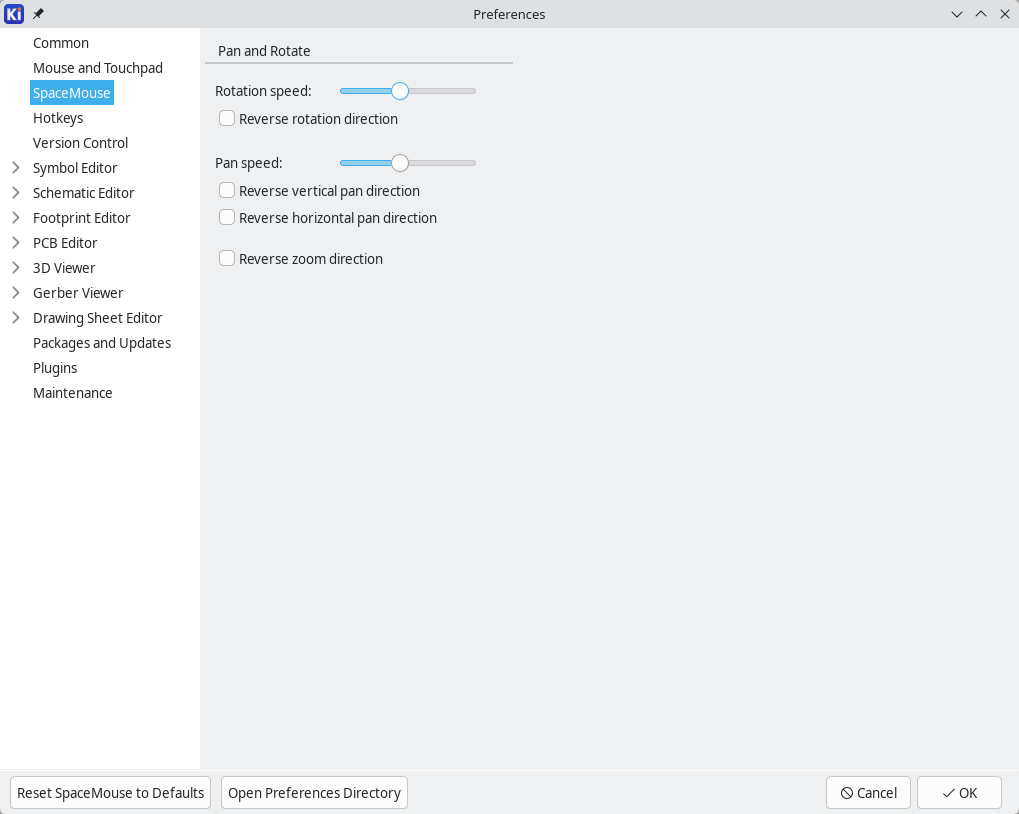

Hotkey preferences

preferences hotkeys

You can use this dialog to customize the hotkeys used to control KiCad. The hotkeys in the Common section are shared between every KiCad program. Hotkeys for each specific KiCad program are shown when that program is running. You can assign the same hotkey to a different action in different KiCad programs (for example, the schematic editor and the board editor), but you cannot assign a hotkey to more than one action in the same program.

There are many available commands, and so not all of them have a hotkey assigned by default. You can add a hotkey to any command by double-clicking on the command in the list. If you choose a hotkey that is already assigned to a different command, you can choose to use that hotkey on your chosen command, which will remove the hotkey assignment from the conflicting command.

Changes that you have made to hotkey assignments are shown with a * character at the end of the command name. You can undo changes to a specific command by right-clicking that command and selecting Undo Changes, or you can undo all changes with the button below the command list.

Importing hotkeys

Hotkey preferences are stored in .hotkeys files in the KiCad settings directory (see the Settings section for information about where the settings directory is on your operating system). If you have configured KiCad hotkeys the way you like on one computer, you can transfer that configuration to another computer by importing the appropriate .hotkeys file(s).

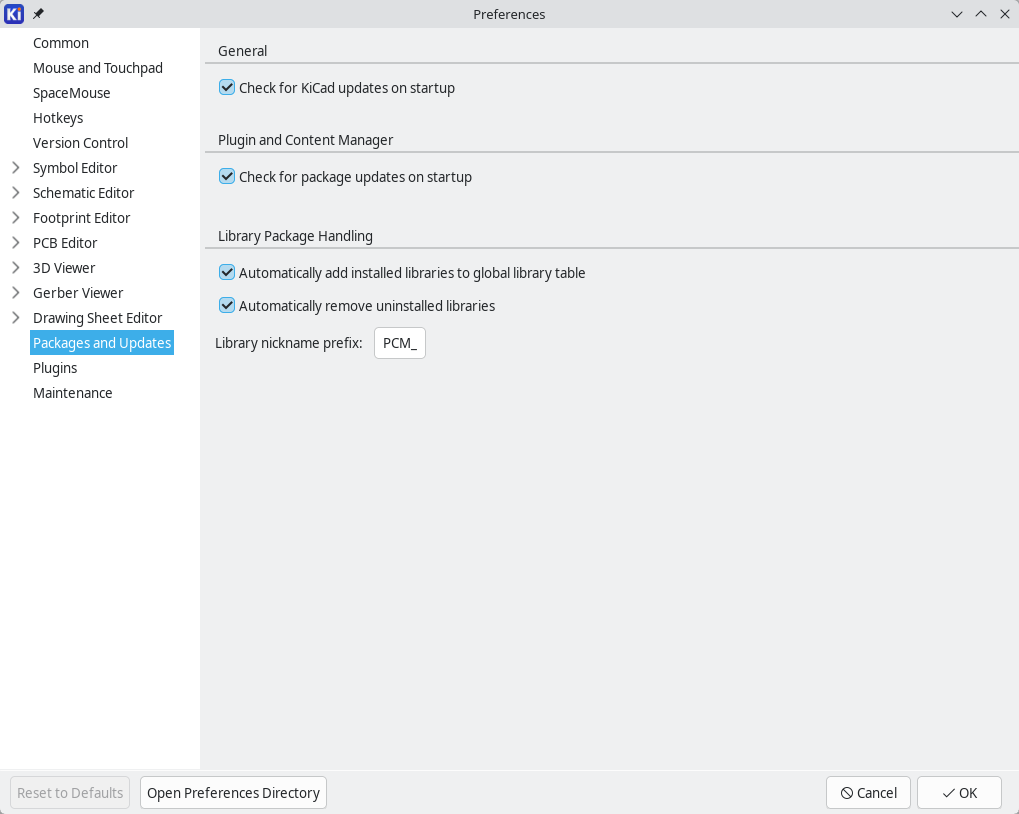

Konfigurasi Path

Di KiCad, kita bisa mendefinisikan beberapa path dengan menggunakan environment variable. KiCad mendefinisikan beberapa environment variable secara internal, dan bisa digunakan untuk mendefinisikan path untuk pustaka, bentuk 3D, dan sebagainya.

Hal ini berguna ketika path absolut tidak diketahui atau akan ada perubahan (misalnya saat Anda mentransfer sebuah proyek ke komputer lain), dan juga ketika satu path dasar dibagi oleh item-item yang mirip. Pertimbangkan hal berikut yang bisa diinstal pada berbagai lokasi yang berbeda:

  • Schematic symbol libraries

  • Footprint libraries

  • berkas-berkas bentuk 3D yang digunakan pada definisi footprint

Sebagai contoh, path dari pustaka footprint connect.pretty, saat menggunakan environment variable KISYSMOD, akan didefinisikan sebagai: ${KISYSMOD}/connect.pretty

The PreferencesConfigure Paths…​ menu allows you to define paths for some built-in KiCad environment variables, and add your own environment variables to define personal paths, if needed.

Beberapa environment variable KiCad:


Base path of symbol library files.


Base path of footprint library files.


Base path of 3D models used in footprints.


Location of project templates installed with KiCad.


Location of personal project templates.


Location of Python scripts installed with KiCad.


Location of personal Python scripts.

configure path dlg

Some advanced environment variables can be set to customize KiCad’s behavior. These variables are not shown in the environment variable configuration dialog by default. Changing these variables will not result in KiCad moving any files from the default location to the new location, so if you change these variables you will need to copy any desired settings or files manually.

Additional environment variables:


Base path of KiCad configuration files. Subdirectories will be created within this directory for each KiCad minor version.


Base path of KiCad user-modifiable documents, such as templates, Python scripts, libraries, etc. Subdirectories will be created within this directory for each KiCad minor version.

Ingat juga bahwa environment variable KIPRJMOD selalu didefinisikan secara internal oleh KiCad, dan merupakan path absolut untuk proyek yang sedang dibuka.

Sebagai contoh, ${KIPRJMOD}/connect.pretty selalu mengarah ke folder connect.pretty (pustaka footprint pretty) yang berada di dalam folder proyek yang sedang dibuka.

Jika Anda memodifikasi konfigurasi path , Anda harus menutup dan menjalankan kembali KiCad, untuk menghindari masalah dalam menangani path.

Libraries configuration

The PreferencesManage Symbol Libraries…​ menu let you manage the library list files called symbol library table (sym-lib-table).

Likewise, use the PreferencesManage Footprint Libraries…​ menu to manage the library list files called footprint library table (fp-lib-table).

There are 2 library list files: the first (located in the user home directory) is global for all projects and the second (located in the project directory) is optional and specific to the project.

Templat Proyek

Penggunaan templat proyek akan memudahkan kita dalam melakukan pengaturan sebuah proyek baru dengan pengaturan yang telah ditentukan sebelumnya. Templat mungkin berisi bentuk papan PCB yang sudah ditentukan, berbagai posisi konektor, elemen-elemen skematik, aturan desain, dan sebagainya. Dimungkinkan juga untuk memasukkan berkas skematik dan/atau PCB yang lengkap sebagai berkas-berkas awal proyek baru.

Menggunakan Templat

Menu File → New Project → New Project from Template akan membuka dialog 'Project Template Selector':

template selector

Klik pada sebuah ikon templat akan menampilkan informasi templat, dan klik OK untuk membuat proyek baru. Berkas-berkas templat akan disalin ke dalam lokasi proyek yang baru, dengan nama berkas yang sesuai dengan nama proyek yang baru.

Setelah memilih sebuah templat:

template selected

Lokasi Templat:

KiCad akan mencari berkas-berkas templat pada path berikut:

  • path defined in the environment variable KICAD_USER_TEMPLATE_DIR

  • path defined in the environment variable KICAD_TEMPLATE_DIR

  • Templat sistem: <kicad bin dir>/../share/kicad/template/

  • Templat pengguna:

    • Unix: ~/kicad/template/

    • Windows: C:\Documents and Settings\username\My Documents\kicad\template or C:\Users\username\Documents\kicad\template

    • Mac: ~/Documents/kicad/template/

Membuat Templat

Nama templat adalah nama direktori penyimpanan berkas-berkas templat. Direktori metadata adalah sebuah subdirektori dengan nama meta yang berisi berkas-berkas yang menjelaskan templat tersebut.

Metadata berisi satu buah berkas yang dibutuhkan, dan mungkin berisi beberapa berkas opsional. Seluruh berkas harus dibuat oleh pengguna dengan menggunakan editor teks atau berkas proyek KiCad sebelumnya, dan diletakkan di dalam struktur direktori yang diperlukan.

All files and directories in a template are copied to the new project path when a project is created using a template, except meta. Files and directories containing the template name will be renamed with the new project file name.

For example, creating a project called newproject from a template named example:

Files in template example directory

Files created in project newproject directory



A template does not need to contain a complete project, if a required project file is missing, KiCad will create it using its default create project behavior:

Files in template example directory

Files created in newproject directory


newproject.kicad_pro (default)
newproject.kicad_pcb (default)

As an exception to the template name renaming rule, if one project file (.kicad_pro) exists and its name doesn’t match the template name, KiCad will do the renaming based on that project file name instead:

Files in template example directory

Files created in newproject directory



It is not recommended to create a template with multiple project files.

Template example

Berikut adalah contoh berkas-berkas proyek untuk templat raspberrypi-gpio:

template tree

Dan berkas-berkas metadata:

template tree meta

Berkas yang Dibutuhkan:


Informasi dalam format HTML berisi penjelasan templat.

The <title> tag determines the actual name of the template that is exposed to the user for template selection. Note that the project template name will be cut off if it’s too long.

Penggunaan HTML berarti gambar bisa dengan mudah dimasukkan tanpa perlu membuat skema yang baru. Hanya tag-tag HTML dasar yang dapat digunakan pada dokumen ini.

Berikut adalah contoh berkas info.html:

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0 Transitional//EN">
<TITLE>Raspberry Pi - Expansion Board</TITLE>
<P>This project template is the basis of an expansion board for the
<A HREF="" TARGET="blank">Raspberry Pi $25
ARM board.</A> <BR><BR>This base project includes a PCB edge defined
as the same size as the Raspberry-Pi PCB with the connectors placed
correctly to align the two boards. All IO present on the Raspberry-Pi
board is connected to the project through the 0.1&quot; expansion
headers. <BR><BR>The board outline looks like the following:
<P><IMG SRC="brd.png" NAME="brd" ALIGN=BOTTOM WIDTH=680 HEIGHT=378
<P>(c)2012 Brian Sidebotham<BR>(c)2012 KiCad Developers</P>

Berkas-berkas Tambahan:


Ikon berformat PNG dengan ukuran 64 x 64 piksel yang digunakan sebagai ikon yang bisa di-klik pada kotak dialog pemilihan templat.

Berkas-berkas gambar lain yang digunakan oleh meta/info.html, seperti gambar berkas papan PCB pada dialog di atas, juga diletakkan pada folder ini.
