#include <panel_drc_rule_editor.h>

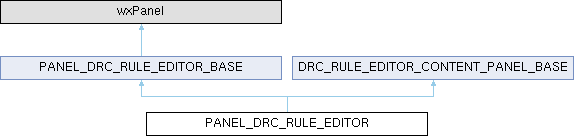

Inheritance diagram for PANEL_DRC_RULE_EDITOR:

Public Member Functions
	PANEL_DRC_RULE_EDITOR (wxWindow aParent, BOARD aBoard, DRC_RULE_EDITOR_CONSTRAINT_NAME aConstraintType, wxString *aConstraintTitle, std::shared_ptr< DRC_RE_BASE_CONSTRAINT_DATA > aConstraintData)

	~PANEL_DRC_RULE_EDITOR () override

bool	TransferDataToWindow () override

bool	TransferDataFromWindow () override

auto	GetConstraintData ()

void	SetSaveCallback (std::function< void(int aNodeId)> aCallBackSave)

void	SetRemoveCallback (std::function< void(int aNodeId)> aCallBackRemove)

void	SetCloseCallback (std::function< void(int aNodeId)> aCallBackClose)

void	SetRuleNameValidationCallback (std::function< bool(int aNodeId, wxString aRuleName)> aCallbackRuleNameValidation)

void	SetShowMatchesCallBack (std::function< int(int aNodeId)> aCallBackShowMatches)

void	ResetShowMatchesButton ()

bool	GetIsValidationSucceeded ()

wxString	GetValidationMessage ()

bool	ValidateInputs (int aErrorCount, wxString aValidationMessage) override

wxString	GenerateRule (const RULE_GENERATION_CONTEXT &aContext) override

void	OnEnterKey (wxCommandEvent &aEvent) override

void	Save (wxCommandEvent &aEvent)

void	Cancel (wxCommandEvent &aEvent)

Protected Member Functions
wxString	buildRule (const RULE_GENERATION_CONTEXT &aContext, const std::vector< wxString > &aConstraintClauses) const

Static Protected Member Functions
static wxString	sanitizeRuleName (const wxString &aRuleName)

static wxString	escapeCondition (const wxString &aCondition)

static wxString	trimTrailingZeros (const wxString &aValue)

static wxString	formatDouble (double aValue, int aPrecision=6)

Protected Attributes
wxBoxSizer *	bContentSizer

wxBoxSizer *	bBasicDetailSizer

wxStaticText *	m_nameLabel

wxTextCtrl *	m_nameCtrl

wxStaticText *	m_commentLabel

wxTextCtrl *	m_commentCtrl

wxBoxSizer *	m_constraintSizer

wxStaticText *	m_constraintHeaderTitle

wxStaticLine *	m_staticline3

wxBoxSizer *	m_constraintContentSizer

wxStaticText *	m_conditionHeaderTitle

wxHyperlinkCtrl *	m_syntaxHelp

wxStaticLine *	m_staticline8

wxBoxSizer *	m_conditionControlsSizer

wxStyledTextCtrl *	m_textConditionCtrl

wxBitmapButton *	m_checkSyntaxBtnCtrl

WX_HTML_REPORT_BOX *	m_syntaxErrorReport

wxStaticText *	m_staticText711

wxStaticLine *	m_staticline111

wxBoxSizer *	m_LayersComboBoxSizer

Private Member Functions
DRC_RULE_EDITOR_CONTENT_PANEL_BASE *	getConstraintPanel (wxWindow *aParent, const DRC_RULE_EDITOR_CONSTRAINT_NAME &aConstraintType)

wxString	buildLayerClause () const

void	onSaveButtonClicked (wxCommandEvent &aEvent)
	Handles the save button click event, validating inputs and invoking the save callback if valid.

void	onRemoveButtonClicked (wxCommandEvent &aEvent)
	Handles the remove button click event, invoking the remove callback.

void	onCloseButtonClicked (wxCommandEvent &aEvent)
	Handles the close button click event, invoking the close callback.

void	onScintillaCharAdded (wxStyledTextEvent &aEvent)
	Handles character addition in the Scintilla text control, performing auto-complete and context-sensitive operations.

void	onSyntaxHelp (wxHyperlinkEvent &aEvent) override
	Displays a modeless help window with syntax and rule documentation.

void	onCheckSyntax (wxCommandEvent &aEvent) override
	Checks the syntax of the DRC rule condition and reports any errors.

void	onErrorLinkClicked (wxHtmlLinkEvent &aEvent) override
	Handles clicks on error links in the syntax error report and navigates to the error location.

void	onContextMenu (wxMouseEvent &aEvent) override
	Handles right-click context menu actions for text editing (undo, redo, cut, copy, paste, delete, select all, zoom).

void	onShowMatchesButtonClicked (wxCommandEvent &aEvent)

void	populateLayerSelector (DRC_LAYER_CATEGORY aCategory)

std::vector< PCB_LAYER_ID >	getSelectedLayers ()

wxString	getSelectedLayerSource () const

void	setSelectedLayers (const std::vector< PCB_LAYER_ID > &aLayers, const wxString &aLayerSource=wxEmptyString)

Private Attributes
wxButton *	m_btnShowMatches

std::vector< int >	m_validLayers

LSEQ	m_layerList

BOARD *	m_board

wxString *	m_constraintTitle

bool	m_validationSucceeded

wxString	m_validationMessage

std::unique_ptr< SCINTILLA_TRICKS >	m_scintillaTricks

wxChoice *	m_layerListChoiceCtrl

std::vector< int >	m_layerIDs

DRC_LAYER_CATEGORY	m_layerCategory

DRC_RULE_EDITOR_CONSTRAINT_NAME	m_constraintType

DRC_RULE_EDITOR_CONTENT_PANEL_BASE *	m_constraintPanel

std::shared_ptr< DRC_RE_BASE_CONSTRAINT_DATA >	m_constraintData

DRC_RE_CONDITION_GROUP_PANEL *	m_conditionGroupPanel

std::function< void(int aNodeId)>	m_callBackSave

std::function< void(int aNodeId)>	m_callBackRemove

std::function< void(int aNodeId)>	m_callBackClose

std::function< bool(int aNodeId, wxString aRuleName)>	m_callBackRuleNameValidation

std::function< int(int aNodeId)>	m_callBackShowMatches

wxRegEx	m_netClassRegex

wxRegEx	m_netNameRegex

wxRegEx	m_typeRegex

wxRegEx	m_viaTypeRegex

wxRegEx	m_padTypeRegex

wxRegEx	m_pinTypeRegex

wxRegEx	m_fabPropRegex

wxRegEx	m_shapeRegex

wxRegEx	m_padShapeRegex

wxRegEx	m_padConnectionsRegex

wxRegEx	m_zoneConnStyleRegex

wxRegEx	m_lineStyleRegex

wxRegEx	m_hJustRegex

wxRegEx	m_vJustRegex

HTML_MESSAGE_BOX *	m_helpWindow

Detailed Description

Definition at line 41 of file panel_drc_rule_editor.h.

Constructor & Destructor Documentation

◆ PANEL_DRC_RULE_EDITOR()

PANEL_DRC_RULE_EDITOR::PANEL_DRC_RULE_EDITOR	(	wxWindow *	aParent,
		BOARD *	aBoard,
		DRC_RULE_EDITOR_CONSTRAINT_NAME	aConstraintType,
		wxString *	aConstraintTitle,
		std::shared_ptr< DRC_RE_BASE_CONSTRAINT_DATA >	aConstraintData )

Definition at line 96 of file panel_drc_rule_editor.cpp.

◆ ~PANEL_DRC_RULE_EDITOR()

PANEL_DRC_RULE_EDITOR::~PANEL_DRC_RULE_EDITOR ( )

override

Definition at line 219 of file panel_drc_rule_editor.cpp.

References m_board, m_btnShowMatches, m_constraintTitle, and onShowMatchesButtonClicked().

Member Function Documentation

◆ buildLayerClause()

wxString PANEL_DRC_RULE_EDITOR::buildLayerClause ( ) const

private

Definition at line 1084 of file panel_drc_rule_editor.cpp.

References index, KI_TRACE_DRC_RULE_EDITOR, LAYER_SEL_BOTTOM, LAYER_SEL_INNER, LAYER_SEL_OUTER, LAYER_SEL_TOP, m_board, m_constraintType, m_layerIDs, m_layerListChoiceCtrl, and DRC_RULE_EDITOR_UTILS::TranslateTopBottomLayer().

Referenced by TransferDataFromWindow().

◆ buildRule()

wxString DRC_RULE_EDITOR_CONTENT_PANEL_BASE::buildRule	(	const RULE_GENERATION_CONTEXT &	aContext,
		const std::vector< wxString > &	aConstraintClauses ) const

inlineprotectedinherited

Definition at line 121 of file drc_re_content_panel_base.h.

References RULE_GENERATION_CONTEXT::comment, RULE_GENERATION_CONTEXT::conditionExpression, escapeCondition(), RULE_GENERATION_CONTEXT::layerClause, RULE_GENERATION_CONTEXT::ruleName, and sanitizeRuleName().

◆ Cancel()

void PANEL_DRC_RULE_EDITOR::Cancel ( wxCommandEvent & aEvent )

Definition at line 458 of file panel_drc_rule_editor.cpp.

References m_constraintData, onCloseButtonClicked(), and onRemoveButtonClicked().

◆ escapeCondition()

static wxString DRC_RULE_EDITOR_CONTENT_PANEL_BASE::escapeCondition ( const wxString & aCondition )

inlinestaticprotectedinherited

Definition at line 94 of file drc_re_content_panel_base.h.

References CTX_QUOTED_STR, and EscapeString().

Referenced by buildRule().

◆ formatDouble()

static wxString DRC_RULE_EDITOR_CONTENT_PANEL_BASE::formatDouble	(	double	aValue,
		int	aPrecision = 6 )

inlinestaticprotectedinherited

Definition at line 115 of file drc_re_content_panel_base.h.

References trimTrailingZeros().

◆ GenerateRule()

wxString PANEL_DRC_RULE_EDITOR::GenerateRule ( const RULE_GENERATION_CONTEXT & aContext )

overridevirtual

Implements DRC_RULE_EDITOR_CONTENT_PANEL_BASE.

Definition at line 410 of file panel_drc_rule_editor.cpp.

References m_constraintPanel.

◆ GetConstraintData()

auto PANEL_DRC_RULE_EDITOR::GetConstraintData ( )

inline

Definition at line 56 of file panel_drc_rule_editor.h.

References m_constraintData.

◆ getConstraintPanel()

DRC_RULE_EDITOR_CONTENT_PANEL_BASE * PANEL_DRC_RULE_EDITOR::getConstraintPanel	(	wxWindow *	aParent,
		const DRC_RULE_EDITOR_CONSTRAINT_NAME &	aConstraintType )

private

Definition at line 306 of file panel_drc_rule_editor.cpp.

References ABSOLUTE_LENGTH, ALLOWED_ORIENTATION, CUSTOM_RULE, DRC_RULE_EDITOR_UTILS::IsBoolInputType(), DRC_RULE_EDITOR_UTILS::IsNumericInputType(), m_constraintData, MATCHED_LENGTH_DIFF_PAIR, MINIMUM_TEXT_HEIGHT_AND_THICKNESS, MM, PERMITTED_LAYERS, ROUTING_DIFF_PAIR, ROUTING_WIDTH, and VIA_STYLE.

Referenced by PANEL_DRC_RULE_EDITOR().

◆ GetIsValidationSucceeded()

bool PANEL_DRC_RULE_EDITOR::GetIsValidationSucceeded ( )

inline

Definition at line 86 of file panel_drc_rule_editor.h.

References m_validationSucceeded.

◆ getSelectedLayers()

std::vector< PCB_LAYER_ID > PANEL_DRC_RULE_EDITOR::getSelectedLayers ( )

private

Definition at line 1130 of file panel_drc_rule_editor.cpp.

References B_Cu, F_Cu, In1_Cu, LAYER_SEL_BOTTOM, LAYER_SEL_INNER, LAYER_SEL_OUTER, LAYER_SEL_TOP, m_layerIDs, and m_layerListChoiceCtrl.

Referenced by TransferDataFromWindow().

◆ getSelectedLayerSource()

wxString PANEL_DRC_RULE_EDITOR::getSelectedLayerSource ( ) const

private

Definition at line 249 of file panel_drc_rule_editor.cpp.

References B_Cu, F_Cu, LAYER_SEL_BOTTOM, LAYER_SEL_INNER, LAYER_SEL_OUTER, LAYER_SEL_TOP, m_board, m_layerIDs, and m_layerListChoiceCtrl.

Referenced by TransferDataFromWindow().

◆ GetValidationMessage()

wxString PANEL_DRC_RULE_EDITOR::GetValidationMessage ( )

inline

Definition at line 88 of file panel_drc_rule_editor.h.

References m_validationMessage.

◆ onCheckSyntax()

void PANEL_DRC_RULE_EDITOR::onCheckSyntax ( wxCommandEvent & aEvent )

overrideprivatevirtual

Checks the syntax of the DRC rule condition and reports any errors.

Parameters

event The event triggered by the syntax check action.

Reimplemented from PANEL_DRC_RULE_EDITOR_BASE.

Definition at line 866 of file panel_drc_rule_editor.cpp.

References _, PARSE_ERROR::byteIndex, L, PARSE_ERROR::lineNumber, m_conditionGroupPanel, PANEL_DRC_RULE_EDITOR_BASE::m_syntaxErrorReport, DRC_RULES_PARSER::Parse(), PARSE_ERROR::ParseProblem(), and RPT_SEVERITY_ERROR.

◆ onCloseButtonClicked()

void PANEL_DRC_RULE_EDITOR::onCloseButtonClicked ( wxCommandEvent & aEvent )

private

Handles the close button click event, invoking the close callback.

Parameters

aEvent The event triggered by the close button click.

Definition at line 467 of file panel_drc_rule_editor.cpp.

References m_callBackClose, and m_constraintData.

Referenced by Cancel().

◆ onContextMenu()

void PANEL_DRC_RULE_EDITOR::onContextMenu ( wxMouseEvent & aEvent )

overrideprivatevirtual

Handles right-click context menu actions for text editing (undo, redo, cut, copy, paste, delete, select all, zoom).

Parameters

event The event triggered by the right-click menu.

Reimplemented from PANEL_DRC_RULE_EDITOR_BASE.

Definition at line 924 of file panel_drc_rule_editor.cpp.

References _, and PANEL_DRC_RULE_EDITOR_BASE::m_textConditionCtrl.

◆ OnEnterKey()

void PANEL_DRC_RULE_EDITOR::OnEnterKey ( wxCommandEvent & aEvent )

overridevirtual

Reimplemented from PANEL_DRC_RULE_EDITOR_BASE.

Definition at line 439 of file panel_drc_rule_editor.cpp.

References onSaveButtonClicked().

◆ onErrorLinkClicked()

void PANEL_DRC_RULE_EDITOR::onErrorLinkClicked ( wxHtmlLinkEvent & aEvent )

overrideprivatevirtual

Handles clicks on error links in the syntax error report and navigates to the error location.

Parameters

event The event triggered when an error link is clicked.

Reimplemented from PANEL_DRC_RULE_EDITOR_BASE.

Definition at line 902 of file panel_drc_rule_editor.cpp.

References PANEL_DRC_RULE_EDITOR_BASE::m_textConditionCtrl, and wxStringSplit().

◆ onRemoveButtonClicked()

void PANEL_DRC_RULE_EDITOR::onRemoveButtonClicked ( wxCommandEvent & aEvent )

private

Handles the remove button click event, invoking the remove callback.

Parameters

aEvent The event triggered by the remove button click.

Definition at line 451 of file panel_drc_rule_editor.cpp.

References m_callBackRemove, and m_constraintData.

Referenced by Cancel().

◆ onSaveButtonClicked()

void PANEL_DRC_RULE_EDITOR::onSaveButtonClicked ( wxCommandEvent & aEvent )

private

Handles the save button click event, validating inputs and invoking the save callback if valid.

Parameters

aEvent The event triggered by the save button click.

Definition at line 416 of file panel_drc_rule_editor.cpp.

References m_btnShowMatches, m_callBackSave, m_constraintData, m_constraintPanel, m_validationMessage, m_validationSucceeded, and ValidateInputs().

Referenced by OnEnterKey(), and Save().

◆ onScintillaCharAdded()

void PANEL_DRC_RULE_EDITOR::onScintillaCharAdded ( wxStyledTextEvent & aEvent )

private

Handles character addition in the Scintilla text control, performing auto-complete and context-sensitive operations.

Parameters

aEvent The event triggered when a character is added.

Definition at line 474 of file panel_drc_rule_editor.cpp.

References PROPERTY_MANAGER::GetAllClasses(), PROPERTY_MANAGER::GetProperties(), PCBEXPR_BUILTIN_FUNCTIONS::GetSignatures(), PCBEXPR_BUILTIN_FUNCTIONS::Instance(), PROPERTY_MANAGER::Instance(), m_board, m_fabPropRegex, m_hJustRegex, m_lineStyleRegex, m_netClassRegex, m_netNameRegex, BOARD_DESIGN_SETTINGS::m_NetSettings, m_padConnectionsRegex, m_padShapeRegex, m_padTypeRegex, m_pinTypeRegex, m_scintillaTricks, m_shapeRegex, PANEL_DRC_RULE_EDITOR_BASE::m_textConditionCtrl, m_typeRegex, m_viaTypeRegex, m_vJustRegex, m_zoneConnStyleRegex, name, NONE, and STRING.

Referenced by PANEL_DRC_RULE_EDITOR().

◆ onShowMatchesButtonClicked()

void PANEL_DRC_RULE_EDITOR::onShowMatchesButtonClicked ( wxCommandEvent & aEvent )

private

Definition at line 975 of file panel_drc_rule_editor.cpp.

References _, KI_TRACE_DRC_RULE_EDITOR, m_btnShowMatches, m_callBackShowMatches, and m_constraintData.

Referenced by PANEL_DRC_RULE_EDITOR(), and ~PANEL_DRC_RULE_EDITOR().

◆ onSyntaxHelp()

void PANEL_DRC_RULE_EDITOR::onSyntaxHelp ( wxHyperlinkEvent & aEvent )

overrideprivatevirtual

Displays a modeless help window with syntax and rule documentation.

Parameters

aEvent The event triggered by the hyperlink click.

Reimplemented from PANEL_DRC_RULE_EDITOR_BASE.

Definition at line 791 of file panel_drc_rule_editor.cpp.

References _, ConvertMarkdown2Html(), and m_helpWindow.

◆ populateLayerSelector()

void PANEL_DRC_RULE_EDITOR::populateLayerSelector ( DRC_LAYER_CATEGORY aCategory )

private

Definition at line 1010 of file panel_drc_rule_editor.cpp.

References _, B_Mask, B_Paste, B_SilkS, COPPER_ONLY, F_Mask, F_Paste, F_SilkS, GENERAL_ANY_LAYER, LAYER_SEL_BOTTOM, LAYER_SEL_INNER, LAYER_SEL_OUTER, LAYER_SEL_TOP, m_board, m_layerIDs, m_layerListChoiceCtrl, NO_LAYER_SELECTOR, SILKSCREEN_ONLY, SOLDERMASK_ONLY, SOLDERPASTE_ONLY, and TOP_BOTTOM_ANY.

Referenced by PANEL_DRC_RULE_EDITOR().

◆ ResetShowMatchesButton()

void PANEL_DRC_RULE_EDITOR::ResetShowMatchesButton ( )

Definition at line 1004 of file panel_drc_rule_editor.cpp.

References _, and m_btnShowMatches.

Referenced by PANEL_DRC_RULE_EDITOR().

◆ sanitizeRuleName()

static wxString DRC_RULE_EDITOR_CONTENT_PANEL_BASE::sanitizeRuleName ( const wxString & aRuleName )

inlinestaticprotectedinherited

Definition at line 63 of file drc_re_content_panel_base.h.

References result.

Referenced by buildRule().

◆ Save()

void PANEL_DRC_RULE_EDITOR::Save ( wxCommandEvent & aEvent )

Definition at line 445 of file panel_drc_rule_editor.cpp.

References onSaveButtonClicked().

◆ SetCloseCallback()

void PANEL_DRC_RULE_EDITOR::SetCloseCallback ( std::function< void(int aNodeId)> aCallBackClose )

inline

Definition at line 68 of file panel_drc_rule_editor.h.

References m_callBackClose.

◆ SetRemoveCallback()

void PANEL_DRC_RULE_EDITOR::SetRemoveCallback ( std::function< void(int aNodeId)> aCallBackRemove )

inline

Definition at line 63 of file panel_drc_rule_editor.h.

References m_callBackRemove.

◆ SetRuleNameValidationCallback()

void PANEL_DRC_RULE_EDITOR::SetRuleNameValidationCallback ( std::function< bool(int aNodeId, wxString aRuleName)> aCallbackRuleNameValidation )

inline

Definition at line 73 of file panel_drc_rule_editor.h.

References m_callBackRuleNameValidation.

◆ SetSaveCallback()

void PANEL_DRC_RULE_EDITOR::SetSaveCallback ( std::function< void(int aNodeId)> aCallBackSave )

inline

Definition at line 58 of file panel_drc_rule_editor.h.

References m_callBackSave.

◆ setSelectedLayers()

void PANEL_DRC_RULE_EDITOR::setSelectedLayers	(	const std::vector< PCB_LAYER_ID > &	aLayers,
		const wxString &	aLayerSource = wxEmptyString )

private

Definition at line 1156 of file panel_drc_rule_editor.cpp.

References IsBackLayer(), IsFrontLayer(), LAYER_SEL_BOTTOM, LAYER_SEL_INNER, LAYER_SEL_OUTER, LAYER_SEL_TOP, m_layerIDs, and m_layerListChoiceCtrl.

Referenced by TransferDataToWindow().

◆ SetShowMatchesCallBack()

void PANEL_DRC_RULE_EDITOR::SetShowMatchesCallBack ( std::function< int(int aNodeId)> aCallBackShowMatches )

inline

Definition at line 79 of file panel_drc_rule_editor.h.

References m_callBackShowMatches.

◆ TransferDataFromWindow()

bool PANEL_DRC_RULE_EDITOR::TransferDataFromWindow ( )

overridevirtual

Implements DRC_RULE_EDITOR_CONTENT_PANEL_BASE.

Definition at line 274 of file panel_drc_rule_editor.cpp.

References buildLayerClause(), RULE_GENERATION_CONTEXT::comment, RULE_GENERATION_CONTEXT::conditionExpression, RULE_GENERATION_CONTEXT::constraintCode, getSelectedLayers(), getSelectedLayerSource(), KI_TRACE_DRC_RULE_EDITOR, RULE_GENERATION_CONTEXT::layerClause, PANEL_DRC_RULE_EDITOR_BASE::m_commentCtrl, m_conditionGroupPanel, m_constraintData, m_constraintPanel, PANEL_DRC_RULE_EDITOR_BASE::m_nameCtrl, and RULE_GENERATION_CONTEXT::ruleName.

◆ TransferDataToWindow()

bool PANEL_DRC_RULE_EDITOR::TransferDataToWindow ( )

overridevirtual

Implements DRC_RULE_EDITOR_CONTENT_PANEL_BASE.

Definition at line 228 of file panel_drc_rule_editor.cpp.

References PANEL_DRC_RULE_EDITOR_BASE::m_commentCtrl, m_conditionGroupPanel, m_constraintData, m_constraintPanel, PANEL_DRC_RULE_EDITOR_BASE::m_nameCtrl, and setSelectedLayers().

◆ trimTrailingZeros()

static wxString DRC_RULE_EDITOR_CONTENT_PANEL_BASE::trimTrailingZeros ( const wxString & aValue )

inlinestaticprotectedinherited

Definition at line 99 of file drc_re_content_panel_base.h.

References result.

Referenced by formatDouble().

◆ ValidateInputs()

bool PANEL_DRC_RULE_EDITOR::ValidateInputs	(	int *	aErrorCount,
		wxString *	aValidationMessage )

overridevirtual

Implements DRC_RULE_EDITOR_CONTENT_PANEL_BASE.

Definition at line 388 of file panel_drc_rule_editor.cpp.

References _, DRC_RULE_EDITOR_UTILS::FormatErrorMessage(), m_callBackRuleNameValidation, m_constraintData, m_layerListChoiceCtrl, PANEL_DRC_RULE_EDITOR_BASE::m_nameCtrl, m_validationMessage, and m_validationSucceeded.

Referenced by onSaveButtonClicked().

Member Data Documentation

◆ bBasicDetailSizer

wxBoxSizer* PANEL_DRC_RULE_EDITOR_BASE::bBasicDetailSizer

protectedinherited

Definition at line 45 of file panel_drc_rule_editor_base.h.

Referenced by PANEL_DRC_RULE_EDITOR_BASE().

◆ bContentSizer

wxBoxSizer* PANEL_DRC_RULE_EDITOR_BASE::bContentSizer

protectedinherited

Definition at line 44 of file panel_drc_rule_editor_base.h.

Referenced by PANEL_DRC_RULE_EDITOR::PANEL_DRC_RULE_EDITOR(), and PANEL_DRC_RULE_EDITOR_BASE().

◆ m_board

BOARD* PANEL_DRC_RULE_EDITOR::m_board

private

Definition at line 174 of file panel_drc_rule_editor.h.

Referenced by buildLayerClause(), getSelectedLayerSource(), onScintillaCharAdded(), PANEL_DRC_RULE_EDITOR(), populateLayerSelector(), and ~PANEL_DRC_RULE_EDITOR().

◆ m_btnShowMatches

wxButton* PANEL_DRC_RULE_EDITOR::m_btnShowMatches

private

Definition at line 171 of file panel_drc_rule_editor.h.

Referenced by onSaveButtonClicked(), onShowMatchesButtonClicked(), PANEL_DRC_RULE_EDITOR(), ResetShowMatchesButton(), and ~PANEL_DRC_RULE_EDITOR().

◆ m_callBackClose

std::function<void( int aNodeId )> PANEL_DRC_RULE_EDITOR::m_callBackClose

private

Definition at line 190 of file panel_drc_rule_editor.h.

Referenced by onCloseButtonClicked(), and SetCloseCallback().

◆ m_callBackRemove

std::function<void( int aNodeId )> PANEL_DRC_RULE_EDITOR::m_callBackRemove

private

Definition at line 189 of file panel_drc_rule_editor.h.

Referenced by onRemoveButtonClicked(), and SetRemoveCallback().

◆ m_callBackRuleNameValidation

std::function<bool( int aNodeId, wxString aRuleName )> PANEL_DRC_RULE_EDITOR::m_callBackRuleNameValidation

private

Definition at line 191 of file panel_drc_rule_editor.h.

Referenced by SetRuleNameValidationCallback(), and ValidateInputs().

◆ m_callBackSave

std::function<void( int aNodeId )> PANEL_DRC_RULE_EDITOR::m_callBackSave

private

Definition at line 188 of file panel_drc_rule_editor.h.

Referenced by onSaveButtonClicked(), and SetSaveCallback().

◆ m_callBackShowMatches

std::function<int( int aNodeId )> PANEL_DRC_RULE_EDITOR::m_callBackShowMatches

private

Definition at line 192 of file panel_drc_rule_editor.h.

Referenced by onShowMatchesButtonClicked(), and SetShowMatchesCallBack().

◆ m_checkSyntaxBtnCtrl

wxBitmapButton* PANEL_DRC_RULE_EDITOR_BASE::m_checkSyntaxBtnCtrl

protectedinherited

Definition at line 59 of file panel_drc_rule_editor_base.h.

Referenced by PANEL_DRC_RULE_EDITOR::PANEL_DRC_RULE_EDITOR(), PANEL_DRC_RULE_EDITOR_BASE(), and ~PANEL_DRC_RULE_EDITOR_BASE().

◆ m_commentCtrl

wxTextCtrl* PANEL_DRC_RULE_EDITOR_BASE::m_commentCtrl

protectedinherited

Definition at line 49 of file panel_drc_rule_editor_base.h.

Referenced by PANEL_DRC_RULE_EDITOR::PANEL_DRC_RULE_EDITOR(), PANEL_DRC_RULE_EDITOR_BASE(), PANEL_DRC_RULE_EDITOR::TransferDataFromWindow(), PANEL_DRC_RULE_EDITOR::TransferDataToWindow(), and ~PANEL_DRC_RULE_EDITOR_BASE().

◆ m_commentLabel

wxStaticText* PANEL_DRC_RULE_EDITOR_BASE::m_commentLabel

protectedinherited

Definition at line 48 of file panel_drc_rule_editor_base.h.

Referenced by PANEL_DRC_RULE_EDITOR_BASE().

◆ m_conditionControlsSizer

wxBoxSizer* PANEL_DRC_RULE_EDITOR_BASE::m_conditionControlsSizer

protectedinherited

Definition at line 57 of file panel_drc_rule_editor_base.h.

Referenced by PANEL_DRC_RULE_EDITOR::PANEL_DRC_RULE_EDITOR(), and PANEL_DRC_RULE_EDITOR_BASE().

◆ m_conditionGroupPanel

DRC_RE_CONDITION_GROUP_PANEL* PANEL_DRC_RULE_EDITOR::m_conditionGroupPanel

private

Definition at line 186 of file panel_drc_rule_editor.h.

Referenced by onCheckSyntax(), PANEL_DRC_RULE_EDITOR(), TransferDataFromWindow(), and TransferDataToWindow().

◆ m_conditionHeaderTitle

wxStaticText* PANEL_DRC_RULE_EDITOR_BASE::m_conditionHeaderTitle

protectedinherited

Definition at line 54 of file panel_drc_rule_editor_base.h.

Referenced by PANEL_DRC_RULE_EDITOR_BASE().

◆ m_constraintContentSizer

wxBoxSizer* PANEL_DRC_RULE_EDITOR_BASE::m_constraintContentSizer

protectedinherited

Definition at line 53 of file panel_drc_rule_editor_base.h.

Referenced by PANEL_DRC_RULE_EDITOR::PANEL_DRC_RULE_EDITOR(), and PANEL_DRC_RULE_EDITOR_BASE().

◆ m_constraintData

std::shared_ptr<DRC_RE_BASE_CONSTRAINT_DATA> PANEL_DRC_RULE_EDITOR::m_constraintData

private

Definition at line 185 of file panel_drc_rule_editor.h.

Referenced by Cancel(), GetConstraintData(), getConstraintPanel(), onCloseButtonClicked(), onRemoveButtonClicked(), onSaveButtonClicked(), onShowMatchesButtonClicked(), PANEL_DRC_RULE_EDITOR(), TransferDataFromWindow(), TransferDataToWindow(), and ValidateInputs().

◆ m_constraintHeaderTitle

wxStaticText* PANEL_DRC_RULE_EDITOR_BASE::m_constraintHeaderTitle

protectedinherited

Definition at line 51 of file panel_drc_rule_editor_base.h.

Referenced by PANEL_DRC_RULE_EDITOR::PANEL_DRC_RULE_EDITOR(), and PANEL_DRC_RULE_EDITOR_BASE().

◆ m_constraintPanel

DRC_RULE_EDITOR_CONTENT_PANEL_BASE* PANEL_DRC_RULE_EDITOR::m_constraintPanel

private

Definition at line 184 of file panel_drc_rule_editor.h.

Referenced by GenerateRule(), onSaveButtonClicked(), PANEL_DRC_RULE_EDITOR(), TransferDataFromWindow(), and TransferDataToWindow().

◆ m_constraintSizer

wxBoxSizer* PANEL_DRC_RULE_EDITOR_BASE::m_constraintSizer

protectedinherited

Definition at line 50 of file panel_drc_rule_editor_base.h.

Referenced by PANEL_DRC_RULE_EDITOR_BASE().

◆ m_constraintTitle

wxString* PANEL_DRC_RULE_EDITOR::m_constraintTitle

private

Definition at line 175 of file panel_drc_rule_editor.h.

Referenced by PANEL_DRC_RULE_EDITOR(), and ~PANEL_DRC_RULE_EDITOR().

◆ m_constraintType

DRC_RULE_EDITOR_CONSTRAINT_NAME PANEL_DRC_RULE_EDITOR::m_constraintType

private

Definition at line 183 of file panel_drc_rule_editor.h.

Referenced by buildLayerClause(), and PANEL_DRC_RULE_EDITOR().

◆ m_fabPropRegex

wxRegEx PANEL_DRC_RULE_EDITOR::m_fabPropRegex

private

Definition at line 200 of file panel_drc_rule_editor.h.

Referenced by onScintillaCharAdded(), and PANEL_DRC_RULE_EDITOR().

◆ m_helpWindow

HTML_MESSAGE_BOX* PANEL_DRC_RULE_EDITOR::m_helpWindow

private

Definition at line 209 of file panel_drc_rule_editor.h.

Referenced by onSyntaxHelp(), and PANEL_DRC_RULE_EDITOR().

◆ m_hJustRegex

wxRegEx PANEL_DRC_RULE_EDITOR::m_hJustRegex

private

Definition at line 206 of file panel_drc_rule_editor.h.

Referenced by onScintillaCharAdded(), and PANEL_DRC_RULE_EDITOR().

◆ m_layerCategory

DRC_LAYER_CATEGORY PANEL_DRC_RULE_EDITOR::m_layerCategory

private

Definition at line 182 of file panel_drc_rule_editor.h.

Referenced by PANEL_DRC_RULE_EDITOR().

◆ m_layerIDs

std::vector<int> PANEL_DRC_RULE_EDITOR::m_layerIDs

private

Definition at line 181 of file panel_drc_rule_editor.h.

Referenced by buildLayerClause(), getSelectedLayers(), getSelectedLayerSource(), populateLayerSelector(), and setSelectedLayers().

◆ m_layerList

LSEQ PANEL_DRC_RULE_EDITOR::m_layerList

private

Definition at line 173 of file panel_drc_rule_editor.h.

Referenced by PANEL_DRC_RULE_EDITOR().

◆ m_layerListChoiceCtrl

wxChoice* PANEL_DRC_RULE_EDITOR::m_layerListChoiceCtrl

private

Definition at line 180 of file panel_drc_rule_editor.h.

Referenced by buildLayerClause(), getSelectedLayers(), getSelectedLayerSource(), PANEL_DRC_RULE_EDITOR(), populateLayerSelector(), setSelectedLayers(), and ValidateInputs().

◆ m_LayersComboBoxSizer

wxBoxSizer* PANEL_DRC_RULE_EDITOR_BASE::m_LayersComboBoxSizer

protectedinherited

Definition at line 63 of file panel_drc_rule_editor_base.h.

Referenced by PANEL_DRC_RULE_EDITOR::PANEL_DRC_RULE_EDITOR(), and PANEL_DRC_RULE_EDITOR_BASE().

◆ m_lineStyleRegex

wxRegEx PANEL_DRC_RULE_EDITOR::m_lineStyleRegex

private

Definition at line 205 of file panel_drc_rule_editor.h.

Referenced by onScintillaCharAdded(), and PANEL_DRC_RULE_EDITOR().

◆ m_nameCtrl

wxTextCtrl* PANEL_DRC_RULE_EDITOR_BASE::m_nameCtrl

protectedinherited

Definition at line 47 of file panel_drc_rule_editor_base.h.

Referenced by PANEL_DRC_RULE_EDITOR::PANEL_DRC_RULE_EDITOR(), PANEL_DRC_RULE_EDITOR_BASE(), PANEL_DRC_RULE_EDITOR::TransferDataFromWindow(), PANEL_DRC_RULE_EDITOR::TransferDataToWindow(), PANEL_DRC_RULE_EDITOR::ValidateInputs(), and ~PANEL_DRC_RULE_EDITOR_BASE().

◆ m_nameLabel

wxStaticText* PANEL_DRC_RULE_EDITOR_BASE::m_nameLabel

protectedinherited

Definition at line 46 of file panel_drc_rule_editor_base.h.

Referenced by PANEL_DRC_RULE_EDITOR_BASE().

◆ m_netClassRegex

wxRegEx PANEL_DRC_RULE_EDITOR::m_netClassRegex

private

Definition at line 194 of file panel_drc_rule_editor.h.

Referenced by onScintillaCharAdded(), and PANEL_DRC_RULE_EDITOR().

◆ m_netNameRegex

wxRegEx PANEL_DRC_RULE_EDITOR::m_netNameRegex

private

Definition at line 195 of file panel_drc_rule_editor.h.

Referenced by onScintillaCharAdded(), and PANEL_DRC_RULE_EDITOR().

◆ m_padConnectionsRegex

wxRegEx PANEL_DRC_RULE_EDITOR::m_padConnectionsRegex

private

Definition at line 203 of file panel_drc_rule_editor.h.

Referenced by onScintillaCharAdded(), and PANEL_DRC_RULE_EDITOR().

◆ m_padShapeRegex

wxRegEx PANEL_DRC_RULE_EDITOR::m_padShapeRegex

private

Definition at line 202 of file panel_drc_rule_editor.h.

Referenced by onScintillaCharAdded(), and PANEL_DRC_RULE_EDITOR().

◆ m_padTypeRegex

wxRegEx PANEL_DRC_RULE_EDITOR::m_padTypeRegex

private

Definition at line 198 of file panel_drc_rule_editor.h.

Referenced by onScintillaCharAdded(), and PANEL_DRC_RULE_EDITOR().

◆ m_pinTypeRegex

wxRegEx PANEL_DRC_RULE_EDITOR::m_pinTypeRegex

private

Definition at line 199 of file panel_drc_rule_editor.h.

Referenced by onScintillaCharAdded(), and PANEL_DRC_RULE_EDITOR().

◆ m_scintillaTricks

std::unique_ptr<SCINTILLA_TRICKS> PANEL_DRC_RULE_EDITOR::m_scintillaTricks

private

Definition at line 179 of file panel_drc_rule_editor.h.

Referenced by onScintillaCharAdded(), and PANEL_DRC_RULE_EDITOR().

◆ m_shapeRegex

wxRegEx PANEL_DRC_RULE_EDITOR::m_shapeRegex

private

Definition at line 201 of file panel_drc_rule_editor.h.

Referenced by onScintillaCharAdded(), and PANEL_DRC_RULE_EDITOR().

◆ m_staticline111

wxStaticLine* PANEL_DRC_RULE_EDITOR_BASE::m_staticline111

protectedinherited

Definition at line 62 of file panel_drc_rule_editor_base.h.

Referenced by PANEL_DRC_RULE_EDITOR::PANEL_DRC_RULE_EDITOR(), and PANEL_DRC_RULE_EDITOR_BASE().

◆ m_staticline3

wxStaticLine* PANEL_DRC_RULE_EDITOR_BASE::m_staticline3

protectedinherited

Definition at line 52 of file panel_drc_rule_editor_base.h.

Referenced by PANEL_DRC_RULE_EDITOR_BASE().

◆ m_staticline8

wxStaticLine* PANEL_DRC_RULE_EDITOR_BASE::m_staticline8

protectedinherited

Definition at line 56 of file panel_drc_rule_editor_base.h.

Referenced by PANEL_DRC_RULE_EDITOR_BASE().

◆ m_staticText711

wxStaticText* PANEL_DRC_RULE_EDITOR_BASE::m_staticText711

protectedinherited

Definition at line 61 of file panel_drc_rule_editor_base.h.

Referenced by PANEL_DRC_RULE_EDITOR::PANEL_DRC_RULE_EDITOR(), and PANEL_DRC_RULE_EDITOR_BASE().

◆ m_syntaxErrorReport

WX_HTML_REPORT_BOX* PANEL_DRC_RULE_EDITOR_BASE::m_syntaxErrorReport

protectedinherited

Definition at line 60 of file panel_drc_rule_editor_base.h.

Referenced by PANEL_DRC_RULE_EDITOR::onCheckSyntax(), PANEL_DRC_RULE_EDITOR::PANEL_DRC_RULE_EDITOR(), PANEL_DRC_RULE_EDITOR_BASE(), and ~PANEL_DRC_RULE_EDITOR_BASE().

◆ m_syntaxHelp

wxHyperlinkCtrl* PANEL_DRC_RULE_EDITOR_BASE::m_syntaxHelp

protectedinherited

Definition at line 55 of file panel_drc_rule_editor_base.h.

Referenced by PANEL_DRC_RULE_EDITOR_BASE(), and ~PANEL_DRC_RULE_EDITOR_BASE().

◆ m_textConditionCtrl

wxStyledTextCtrl* PANEL_DRC_RULE_EDITOR_BASE::m_textConditionCtrl

protectedinherited

Definition at line 58 of file panel_drc_rule_editor_base.h.

Referenced by PANEL_DRC_RULE_EDITOR::onContextMenu(), PANEL_DRC_RULE_EDITOR::onErrorLinkClicked(), PANEL_DRC_RULE_EDITOR::onScintillaCharAdded(), PANEL_DRC_RULE_EDITOR::PANEL_DRC_RULE_EDITOR(), PANEL_DRC_RULE_EDITOR_BASE(), and ~PANEL_DRC_RULE_EDITOR_BASE().

◆ m_typeRegex

wxRegEx PANEL_DRC_RULE_EDITOR::m_typeRegex

private

Definition at line 196 of file panel_drc_rule_editor.h.

Referenced by onScintillaCharAdded(), and PANEL_DRC_RULE_EDITOR().

◆ m_validationMessage

wxString PANEL_DRC_RULE_EDITOR::m_validationMessage

private

Definition at line 177 of file panel_drc_rule_editor.h.

Referenced by GetValidationMessage(), onSaveButtonClicked(), and ValidateInputs().

◆ m_validationSucceeded

bool PANEL_DRC_RULE_EDITOR::m_validationSucceeded

private

Definition at line 176 of file panel_drc_rule_editor.h.

Referenced by GetIsValidationSucceeded(), onSaveButtonClicked(), PANEL_DRC_RULE_EDITOR(), and ValidateInputs().

◆ m_validLayers

std::vector<int> PANEL_DRC_RULE_EDITOR::m_validLayers

private

Definition at line 172 of file panel_drc_rule_editor.h.

◆ m_viaTypeRegex

wxRegEx PANEL_DRC_RULE_EDITOR::m_viaTypeRegex

private

Definition at line 197 of file panel_drc_rule_editor.h.

Referenced by onScintillaCharAdded(), and PANEL_DRC_RULE_EDITOR().

◆ m_vJustRegex

wxRegEx PANEL_DRC_RULE_EDITOR::m_vJustRegex

private

Definition at line 207 of file panel_drc_rule_editor.h.

Referenced by onScintillaCharAdded(), and PANEL_DRC_RULE_EDITOR().

◆ m_zoneConnStyleRegex

wxRegEx PANEL_DRC_RULE_EDITOR::m_zoneConnStyleRegex

private

Definition at line 204 of file panel_drc_rule_editor.h.

Referenced by onScintillaCharAdded(), and PANEL_DRC_RULE_EDITOR().

The documentation for this class was generated from the following files:

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ PANEL_DRC_RULE_EDITOR()

◆ ~PANEL_DRC_RULE_EDITOR()

Member Function Documentation

◆ buildLayerClause()

◆ buildRule()

◆ Cancel()

◆ escapeCondition()

◆ formatDouble()

◆ GenerateRule()

◆ GetConstraintData()

◆ getConstraintPanel()

◆ GetIsValidationSucceeded()

◆ getSelectedLayers()

◆ getSelectedLayerSource()

◆ GetValidationMessage()

◆ onCheckSyntax()

◆ onCloseButtonClicked()

◆ onContextMenu()

◆ OnEnterKey()

◆ onErrorLinkClicked()

◆ onRemoveButtonClicked()

◆ onSaveButtonClicked()

◆ onScintillaCharAdded()

◆ onShowMatchesButtonClicked()

◆ onSyntaxHelp()

◆ populateLayerSelector()

◆ ResetShowMatchesButton()

◆ sanitizeRuleName()

◆ Save()

◆ SetCloseCallback()

◆ SetRemoveCallback()

◆ SetRuleNameValidationCallback()

◆ SetSaveCallback()

◆ setSelectedLayers()

◆ SetShowMatchesCallBack()

◆ TransferDataFromWindow()

◆ TransferDataToWindow()

◆ trimTrailingZeros()

◆ ValidateInputs()

Member Data Documentation

◆ bBasicDetailSizer

◆ bContentSizer

◆ m_board

◆ m_btnShowMatches

◆ m_callBackClose

◆ m_callBackRemove

◆ m_callBackRuleNameValidation

◆ m_callBackSave

◆ m_callBackShowMatches

◆ m_checkSyntaxBtnCtrl

◆ m_commentCtrl

◆ m_commentLabel

◆ m_conditionControlsSizer

◆ m_conditionGroupPanel

◆ m_conditionHeaderTitle

◆ m_constraintContentSizer

◆ m_constraintData

◆ m_constraintHeaderTitle

◆ m_constraintPanel

◆ m_constraintSizer

◆ m_constraintTitle

◆ m_constraintType

◆ m_fabPropRegex

◆ m_helpWindow

◆ m_hJustRegex

◆ m_layerCategory

◆ m_layerIDs

◆ m_layerList

◆ m_layerListChoiceCtrl

◆ m_LayersComboBoxSizer

◆ m_lineStyleRegex

◆ m_nameCtrl
