#include <drc_re_base_constraint_data.h>

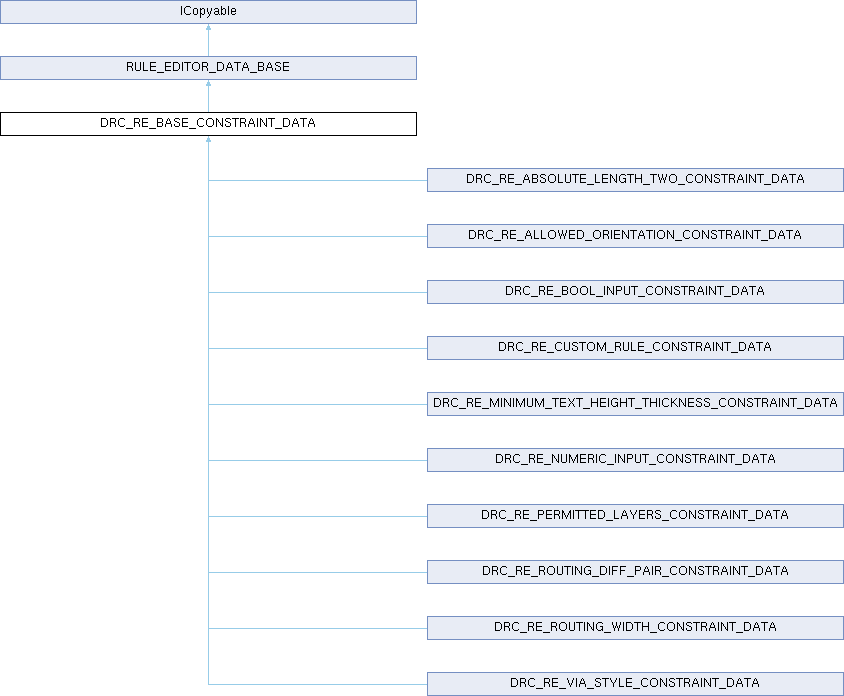

Inheritance diagram for DRC_RE_BASE_CONSTRAINT_DATA:

Public Member Functions
	DRC_RE_BASE_CONSTRAINT_DATA ()=default

	DRC_RE_BASE_CONSTRAINT_DATA (int aId, int aParentId, wxString aRuleName)

virtual	~DRC_RE_BASE_CONSTRAINT_DATA ()=default

virtual VALIDATION_RESULT	Validate () const
	Validates the constraint data.

virtual wxString	GenerateRule (const RULE_GENERATION_CONTEXT &aContext)

std::vector< PCB_LAYER_ID >	GetLayers ()

void	SetLayers (std::vector< PCB_LAYER_ID > aLayers)

wxString	GetRuleCondition ()

void	SetRuleCondition (wxString aRuleCondition)

wxString	GetConstraintCode ()

void	SetConstraintCode (wxString aCode)

wxString	GetGeneratedRule () const

void	SetGeneratedRule (const wxString &aRule)

wxString	GetOriginalRuleText () const

void	SetOriginalRuleText (const wxString &aText)

bool	WasEdited () const

void	SetWasEdited (bool aEdited)

void	CopyFrom (const ICopyable &aSource) override

int	GetId ()
	Get the unique ID of the rule.

void	SetId (int aId)
	Set the unique ID of the rule.

int	GetParentId ()
	Get the parent ID of the rule.

void	SetParentId (int aParentId)
	Set the parent ID of the rule.

wxString	GetRuleName ()
	Get the name of the rule.

void	SetRuleName (wxString aRuleName)
	Set the name of the rule.

wxString	GetComment ()
	Get the comment associated with the rule.

void	SetComment (wxString aComment)
	Set the comment for the rule.

bool	IsNew ()
	Check if the rule is marked as new.

void	SetIsNew (bool aIsNew)
	Mark the rule as new or not.

Protected Member Functions
wxString	buildRule (const RULE_GENERATION_CONTEXT &aContext, const std::vector< wxString > &aConstraintClauses) const

Static Protected Member Functions
static wxString	sanitizeRuleName (const wxString &aRuleName)

static wxString	quoteString (const wxString &aCondition)

static wxString	trimTrailingZeros (const wxString &aValue)

static wxString	formatDouble (double aValue, int aPrecision=6)

Private Attributes
std::vector< PCB_LAYER_ID >	m_layers

wxString	m_ruleCondition

wxString	m_constraintCode

wxString	m_generatedRule

wxString	m_originalRuleText

bool	m_wasEdited = false

int	m_id

std::optional< int >	m_parentId

wxString	m_ruleName

wxString	m_comment

bool	m_isNew
	Flag indicating if the user is creating a new rule (true) or editing an existing rule (false).

Detailed Description

Definition at line 33 of file drc_re_base_constraint_data.h.

Constructor & Destructor Documentation

◆ DRC_RE_BASE_CONSTRAINT_DATA() [1/2]

DRC_RE_BASE_CONSTRAINT_DATA::DRC_RE_BASE_CONSTRAINT_DATA ( )

default

◆ DRC_RE_BASE_CONSTRAINT_DATA() [2/2]

DRC_RE_BASE_CONSTRAINT_DATA::DRC_RE_BASE_CONSTRAINT_DATA	(	int	aId,
		int	aParentId,
		wxString	aRuleName )

inlineexplicit

Definition at line 38 of file drc_re_base_constraint_data.h.

References RULE_EDITOR_DATA_BASE::RULE_EDITOR_DATA_BASE().

◆ ~DRC_RE_BASE_CONSTRAINT_DATA()

virtual DRC_RE_BASE_CONSTRAINT_DATA::~DRC_RE_BASE_CONSTRAINT_DATA ( )

virtualdefault

Member Function Documentation

◆ buildRule()

wxString DRC_RE_BASE_CONSTRAINT_DATA::buildRule	(	const RULE_GENERATION_CONTEXT &	aContext,
		const std::vector< wxString > &	aConstraintClauses ) const

inlineprotected

Definition at line 151 of file drc_re_base_constraint_data.h.

References RULE_GENERATION_CONTEXT::comment, RULE_GENERATION_CONTEXT::conditionExpression, RULE_GENERATION_CONTEXT::layerClause, quoteString(), RULE_GENERATION_CONTEXT::ruleName, and sanitizeRuleName().

Referenced by DRC_RE_ABSOLUTE_LENGTH_TWO_CONSTRAINT_DATA::GenerateRule(), DRC_RE_BOOL_INPUT_CONSTRAINT_DATA::GenerateRule(), DRC_RE_NUMERIC_INPUT_CONSTRAINT_DATA::GenerateRule(), DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::GenerateRule(), DRC_RE_ROUTING_WIDTH_CONSTRAINT_DATA::GenerateRule(), and DRC_RE_VIA_STYLE_CONSTRAINT_DATA::GenerateRule().

◆ CopyFrom()

void DRC_RE_BASE_CONSTRAINT_DATA::CopyFrom ( const ICopyable & aSource )

inlineoverridevirtual

Implements ICopyable.

Reimplemented in DRC_RE_BOOL_INPUT_CONSTRAINT_DATA, DRC_RE_CUSTOM_RULE_CONSTRAINT_DATA, DRC_RE_MINIMUM_TEXT_HEIGHT_THICKNESS_CONSTRAINT_DATA, DRC_RE_NUMERIC_INPUT_CONSTRAINT_DATA, DRC_RE_PERMITTED_LAYERS_CONSTRAINT_DATA, DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA, DRC_RE_ROUTING_WIDTH_CONSTRAINT_DATA, and DRC_RE_VIA_STYLE_CONSTRAINT_DATA.

Definition at line 79 of file drc_re_base_constraint_data.h.

References RULE_EDITOR_DATA_BASE::CopyFrom(), DRC_RE_BASE_CONSTRAINT_DATA(), m_constraintCode, m_generatedRule, m_layers, m_originalRuleText, and m_wasEdited.

◆ formatDouble()

static wxString DRC_RE_BASE_CONSTRAINT_DATA::formatDouble	(	double	aValue,
		int	aPrecision = 6 )

inlinestaticprotected

Definition at line 145 of file drc_re_base_constraint_data.h.

References trimTrailingZeros().

Referenced by DRC_RE_ABSOLUTE_LENGTH_TWO_CONSTRAINT_DATA::GenerateRule(), DRC_RE_NUMERIC_INPUT_CONSTRAINT_DATA::GenerateRule(), DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::GenerateRule(), DRC_RE_ROUTING_WIDTH_CONSTRAINT_DATA::GenerateRule(), and DRC_RE_VIA_STYLE_CONSTRAINT_DATA::GenerateRule().

◆ GenerateRule()

virtual wxString DRC_RE_BASE_CONSTRAINT_DATA::GenerateRule ( const RULE_GENERATION_CONTEXT & aContext )

inlinevirtual

Reimplemented in DRC_RE_ABSOLUTE_LENGTH_TWO_CONSTRAINT_DATA, DRC_RE_BOOL_INPUT_CONSTRAINT_DATA, DRC_RE_NUMERIC_INPUT_CONSTRAINT_DATA, DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA, DRC_RE_ROUTING_WIDTH_CONSTRAINT_DATA, and DRC_RE_VIA_STYLE_CONSTRAINT_DATA.

Definition at line 53 of file drc_re_base_constraint_data.h.

Referenced by DRC_RULE_SAVER::generateRuleText().

◆ GetComment()

wxString RULE_EDITOR_DATA_BASE::GetComment ( )

inlineinherited

Get the comment associated with the rule.

Returns: The comment of the rule.

Definition at line 104 of file rule_editor_data_base.h.

References m_comment.

Referenced by DRC_RULE_SAVER::generateRuleText().

◆ GetConstraintCode()

wxString DRC_RE_BASE_CONSTRAINT_DATA::GetConstraintCode ( )

inline

Definition at line 63 of file drc_re_base_constraint_data.h.

References m_constraintCode.

Referenced by BOOST_AUTO_TEST_CASE(), BOOST_AUTO_TEST_CASE(), DRC_RE_ABSOLUTE_LENGTH_TWO_CONSTRAINT_DATA::GenerateRule(), DRC_RE_BOOL_INPUT_CONSTRAINT_DATA::GenerateRule(), DRC_RE_NUMERIC_INPUT_CONSTRAINT_DATA::GenerateRule(), DRC_RE_ROUTING_WIDTH_CONSTRAINT_DATA::GenerateRule(), and DRC_RULE_SAVER::generateRuleText().

◆ GetGeneratedRule()

wxString DRC_RE_BASE_CONSTRAINT_DATA::GetGeneratedRule ( ) const

inline

Definition at line 67 of file drc_re_base_constraint_data.h.

References m_generatedRule.

◆ GetId()

int RULE_EDITOR_DATA_BASE::GetId ( )

inlineinherited

Get the unique ID of the rule.

Returns: The unique ID of the rule.

Definition at line 62 of file rule_editor_data_base.h.

References m_id.

Referenced by DIALOG_DRC_RULE_EDITOR::buildRuleTreeNode(), and DIALOG_DRC_RULE_EDITOR::LoadExistingRules().

◆ GetLayers()

std::vector< PCB_LAYER_ID > DRC_RE_BASE_CONSTRAINT_DATA::GetLayers ( )

inline

Definition at line 55 of file drc_re_base_constraint_data.h.

References m_layers.

◆ GetOriginalRuleText()

wxString DRC_RE_BASE_CONSTRAINT_DATA::GetOriginalRuleText ( ) const

inline

Definition at line 71 of file drc_re_base_constraint_data.h.

References m_originalRuleText.

◆ GetParentId()

int RULE_EDITOR_DATA_BASE::GetParentId ( )

inlineinherited

Get the parent ID of the rule.

Returns: The parent ID of the rule, or -1 if no parent is set.

Definition at line 76 of file rule_editor_data_base.h.

References m_parentId.

Referenced by RULE_EDITOR_DIALOG_BASE::AppendNewRuleTreeItem().

◆ GetRuleCondition()

wxString DRC_RE_BASE_CONSTRAINT_DATA::GetRuleCondition ( )

inline

Definition at line 59 of file drc_re_base_constraint_data.h.

References m_ruleCondition.

Referenced by BOOST_AUTO_TEST_CASE(), and BOOST_AUTO_TEST_CASE().

◆ GetRuleName()

wxString RULE_EDITOR_DATA_BASE::GetRuleName ( )

inlineinherited

Get the name of the rule.

Returns: The name of the rule.

Definition at line 90 of file rule_editor_data_base.h.

References m_ruleName.

Referenced by BOOST_AUTO_TEST_CASE(), BOOST_AUTO_TEST_CASE(), and DIALOG_DRC_RULE_EDITOR::UpdateRuleTypeTreeItemData().

◆ IsNew()

bool RULE_EDITOR_DATA_BASE::IsNew ( )

inlineinherited

Check if the rule is marked as new.

Returns: True if the rule is new (being created), false if it is being edited.

Definition at line 118 of file rule_editor_data_base.h.

References m_isNew.

Referenced by DIALOG_DRC_RULE_EDITOR::RemoveRule().

◆ quoteString()

static wxString DRC_RE_BASE_CONSTRAINT_DATA::quoteString ( const wxString & aCondition )

inlinestaticprotected

Definition at line 124 of file drc_re_base_constraint_data.h.

References CTX_QUOTED_STR, and EscapeString().

Referenced by buildRule().

◆ sanitizeRuleName()

static wxString DRC_RE_BASE_CONSTRAINT_DATA::sanitizeRuleName ( const wxString & aRuleName )

inlinestaticprotected

Definition at line 93 of file drc_re_base_constraint_data.h.

References result.

Referenced by buildRule().

◆ SetComment()

void RULE_EDITOR_DATA_BASE::SetComment ( wxString aComment )

inlineinherited

Set the comment for the rule.

Parameters

aComment The comment to set.

Definition at line 111 of file rule_editor_data_base.h.

References m_comment.

◆ SetConstraintCode()

void DRC_RE_BASE_CONSTRAINT_DATA::SetConstraintCode ( wxString aCode )

inline

Definition at line 65 of file drc_re_base_constraint_data.h.

References m_constraintCode.

Referenced by BOOST_AUTO_TEST_CASE(), BOOST_AUTO_TEST_CASE(), and DRC_RULE_EDITOR_UTILS::ConstraintFromKicadDrc().

◆ SetGeneratedRule()

void DRC_RE_BASE_CONSTRAINT_DATA::SetGeneratedRule ( const wxString & aRule )

inline

Definition at line 69 of file drc_re_base_constraint_data.h.

References m_generatedRule.

◆ SetId()

void RULE_EDITOR_DATA_BASE::SetId ( int aId )

inlineinherited

Set the unique ID of the rule.

Parameters

aId	The unique ID to set.

Definition at line 69 of file rule_editor_data_base.h.

References m_id.

Referenced by DIALOG_DRC_RULE_EDITOR::buildRuleTreeNodeData().

◆ SetIsNew()

void RULE_EDITOR_DATA_BASE::SetIsNew ( bool aIsNew )

inlineinherited

Mark the rule as new or not.

Parameters

aIsNew True to mark the rule as new, false to mark it as existing.

Definition at line 125 of file rule_editor_data_base.h.

References m_isNew.

Referenced by DIALOG_DRC_RULE_EDITOR::buildRuleTreeNode(), and DIALOG_DRC_RULE_EDITOR::UpdateRuleTypeTreeItemData().

◆ SetLayers()

void DRC_RE_BASE_CONSTRAINT_DATA::SetLayers ( std::vector< PCB_LAYER_ID > aLayers )

inline

Definition at line 57 of file drc_re_base_constraint_data.h.

References m_layers.

◆ SetOriginalRuleText()

void DRC_RE_BASE_CONSTRAINT_DATA::SetOriginalRuleText ( const wxString & aText )

inline

Definition at line 73 of file drc_re_base_constraint_data.h.

References m_originalRuleText.

◆ SetParentId()

void RULE_EDITOR_DATA_BASE::SetParentId ( int aParentId )

inlineinherited

Set the parent ID of the rule.

Parameters

aParentId The parent ID to set.

Definition at line 83 of file rule_editor_data_base.h.

References m_parentId.

Referenced by DIALOG_DRC_RULE_EDITOR::buildRuleTreeNodeData().

◆ SetRuleCondition()

void DRC_RE_BASE_CONSTRAINT_DATA::SetRuleCondition ( wxString aRuleCondition )

inline

Definition at line 61 of file drc_re_base_constraint_data.h.

References m_ruleCondition.

Referenced by BOOST_AUTO_TEST_CASE(), and BOOST_AUTO_TEST_CASE().

◆ SetRuleName()

void RULE_EDITOR_DATA_BASE::SetRuleName ( wxString aRuleName )

inlineinherited

Set the name of the rule.

Parameters

aRuleName The name of the rule to set.

Definition at line 97 of file rule_editor_data_base.h.

References m_ruleName.

◆ SetWasEdited()

void DRC_RE_BASE_CONSTRAINT_DATA::SetWasEdited ( bool aEdited )

inline

Definition at line 77 of file drc_re_base_constraint_data.h.

References m_wasEdited.

◆ trimTrailingZeros()

static wxString DRC_RE_BASE_CONSTRAINT_DATA::trimTrailingZeros ( const wxString & aValue )

inlinestaticprotected

Definition at line 129 of file drc_re_base_constraint_data.h.

References result.

Referenced by formatDouble().

◆ Validate()

virtual VALIDATION_RESULT DRC_RE_BASE_CONSTRAINT_DATA::Validate ( ) const

inlinevirtual

Validates the constraint data.

Override in derived classes to add constraint-specific validation.

Returns: Validation result containing any errors.

Reimplemented in DRC_RE_ABSOLUTE_LENGTH_TWO_CONSTRAINT_DATA, DRC_RE_ALLOWED_ORIENTATION_CONSTRAINT_DATA, DRC_RE_BOOL_INPUT_CONSTRAINT_DATA, DRC_RE_CUSTOM_RULE_CONSTRAINT_DATA, DRC_RE_MINIMUM_TEXT_HEIGHT_THICKNESS_CONSTRAINT_DATA, DRC_RE_NUMERIC_INPUT_CONSTRAINT_DATA, DRC_RE_PERMITTED_LAYERS_CONSTRAINT_DATA, DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA, DRC_RE_ROUTING_WIDTH_CONSTRAINT_DATA, and DRC_RE_VIA_STYLE_CONSTRAINT_DATA.

Definition at line 51 of file drc_re_base_constraint_data.h.

◆ WasEdited()

bool DRC_RE_BASE_CONSTRAINT_DATA::WasEdited ( ) const

inline

Definition at line 75 of file drc_re_base_constraint_data.h.

References m_wasEdited.

Member Data Documentation

◆ m_comment

wxString RULE_EDITOR_DATA_BASE::m_comment

privateinherited

Definition at line 143 of file rule_editor_data_base.h.

Referenced by CopyFrom(), GetComment(), and SetComment().

◆ m_constraintCode

wxString DRC_RE_BASE_CONSTRAINT_DATA::m_constraintCode

private

Definition at line 192 of file drc_re_base_constraint_data.h.

Referenced by CopyFrom(), GetConstraintCode(), and SetConstraintCode().

◆ m_generatedRule

wxString DRC_RE_BASE_CONSTRAINT_DATA::m_generatedRule

private

Definition at line 193 of file drc_re_base_constraint_data.h.

Referenced by CopyFrom(), GetGeneratedRule(), and SetGeneratedRule().

◆ m_id

int RULE_EDITOR_DATA_BASE::m_id

privateinherited

Definition at line 140 of file rule_editor_data_base.h.

Referenced by GetId(), RULE_EDITOR_DATA_BASE(), and SetId().

◆ m_isNew

bool RULE_EDITOR_DATA_BASE::m_isNew

privateinherited

Flag indicating if the user is creating a new rule (true) or editing an existing rule (false).

Definition at line 144 of file rule_editor_data_base.h.

Referenced by IsNew(), RULE_EDITOR_DATA_BASE(), and SetIsNew().

◆ m_layers

std::vector<PCB_LAYER_ID> DRC_RE_BASE_CONSTRAINT_DATA::m_layers

private

Definition at line 190 of file drc_re_base_constraint_data.h.

Referenced by CopyFrom(), GetLayers(), and SetLayers().

◆ m_originalRuleText

wxString DRC_RE_BASE_CONSTRAINT_DATA::m_originalRuleText

private

Definition at line 194 of file drc_re_base_constraint_data.h.

Referenced by CopyFrom(), GetOriginalRuleText(), and SetOriginalRuleText().

◆ m_parentId

std::optional<int> RULE_EDITOR_DATA_BASE::m_parentId

privateinherited

Definition at line 141 of file rule_editor_data_base.h.

Referenced by GetParentId(), RULE_EDITOR_DATA_BASE(), and SetParentId().

◆ m_ruleCondition

wxString DRC_RE_BASE_CONSTRAINT_DATA::m_ruleCondition

private

Definition at line 191 of file drc_re_base_constraint_data.h.

Referenced by GetRuleCondition(), and SetRuleCondition().

◆ m_ruleName

wxString RULE_EDITOR_DATA_BASE::m_ruleName

privateinherited

Definition at line 142 of file rule_editor_data_base.h.

Referenced by GetRuleName(), RULE_EDITOR_DATA_BASE(), and SetRuleName().

◆ m_wasEdited

bool DRC_RE_BASE_CONSTRAINT_DATA::m_wasEdited = false

private

Definition at line 195 of file drc_re_base_constraint_data.h.

Referenced by CopyFrom(), SetWasEdited(), and WasEdited().

The documentation for this class was generated from the following file:

drc_re_base_constraint_data.h

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ DRC_RE_BASE_CONSTRAINT_DATA() [1/2]

◆ DRC_RE_BASE_CONSTRAINT_DATA() [2/2]

◆ ~DRC_RE_BASE_CONSTRAINT_DATA()

Member Function Documentation

◆ buildRule()

◆ CopyFrom()

◆ formatDouble()

◆ GenerateRule()

◆ GetComment()

◆ GetConstraintCode()

◆ GetGeneratedRule()

◆ GetId()

◆ GetLayers()

◆ GetOriginalRuleText()

◆ GetParentId()

◆ GetRuleCondition()

◆ GetRuleName()

◆ IsNew()

◆ quoteString()

◆ sanitizeRuleName()

◆ SetComment()

◆ SetConstraintCode()

◆ SetGeneratedRule()

◆ SetId()

◆ SetIsNew()

◆ SetLayers()

◆ SetOriginalRuleText()

◆ SetParentId()

◆ SetRuleCondition()

◆ SetRuleName()

◆ SetWasEdited()

◆ trimTrailingZeros()

◆ Validate()

◆ WasEdited()

Member Data Documentation

◆ m_comment

◆ m_constraintCode

◆ m_generatedRule

◆ m_id

◆ m_isNew

◆ m_layers

◆ m_originalRuleText

◆ m_parentId

◆ m_ruleCondition

◆ m_ruleName

◆ m_wasEdited
