DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA Class Reference

#include <drc_re_rtg_diff_pair_constraint_data.h>

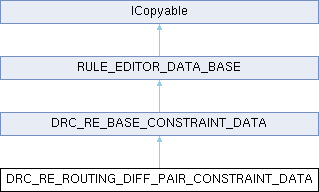

Inheritance diagram for DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA:
DRC_RE_BASE_CONSTRAINT_DATA RULE_EDITOR_DATA_BASE ICopyable

Public Member Functions

 DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA ()=default

 DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA (const DRC_RE_BASE_CONSTRAINT_DATA &aBaseData)

 DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA (int aId, int aParentId, wxString aRuleName, double aMaxUncoupledLength, double aMinWidth, double aPreferredWidth, double aMaxWidth, double aMinGap, double aPreferredGap, double aMaxGap)

virtual ~DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA ()=default

BITMAPS GetOverlayBitmap () const override
 Returns the bitmap to use for the overlay panel background.

std::vector< DRC_RE_FIELD_POSITION > GetFieldPositions () const override
 Returns the field positions for controls overlaid on the constraint bitmap.

VALIDATION_RESULT Validate () const override
 Validates the constraint data.

std::vector< wxString > GetConstraintClauses (const RULE_GENERATION_CONTEXT &aContext) const override
 Returns just the constraint clauses without the rule wrapper.

wxString GenerateRule (const RULE_GENERATION_CONTEXT &aContext) override

double GetMaxUncoupledLength ()

void SetMaxUncoupledLength (double aMaxUncoupledLength)

double GetMinWidth ()

void SetMinWidth (double aMinWidth)

double GetPreferredWidth ()

void SetPreferredWidth (double aPreferredWidth)

double GetMaxWidth ()

void SetMaxWidth (double aMaxWidth)

double GetMinGap ()

void SetMinGap (double aMinGap)

double GetPreferredGap ()

void SetPreferredGap (double aPreferredGap)

double GetMaxGap ()

void SetMaxGap (double aMaxGap)

double GetMaxSkew ()

void SetMaxSkew (double aMaxSkew)

void CopyFrom (const ICopyable &aSource) override

std::vector< PCB_LAYER_ID > GetLayers ()

void SetLayers (std::vector< PCB_LAYER_ID > aLayers)

wxString GetLayerSource ()

void SetLayerSource (wxString aSource)

wxString GetRuleCondition ()

void SetRuleCondition (wxString aRuleCondition)

wxString GetConstraintCode () const

void SetConstraintCode (wxString aCode)

wxString GetGeneratedRule () const

void SetGeneratedRule (const wxString &aRule)

wxString GetOriginalRuleText () const

void SetOriginalRuleText (const wxString &aText)

bool WasEdited () const

void SetWasEdited (bool aEdited)

SEVERITY GetSeverity () const

void SetSeverity (SEVERITY aSeverity)

int GetId ()
 Get the unique ID of the rule.

void SetId (int aId)
 Set the unique ID of the rule.

int GetParentId ()
 Get the parent ID of the rule.

void SetParentId (int aParentId)
 Set the parent ID of the rule.

wxString GetRuleName ()
 Get the name of the rule.

void SetRuleName (wxString aRuleName)
 Set the name of the rule.

wxString GetComment ()
 Get the comment associated with the rule.

void SetComment (wxString aComment)
 Set the comment for the rule.

bool IsNew ()
 Check if the rule is marked as new.

void SetIsNew (bool aIsNew)
 Mark the rule as new or not.


Static Public Member Functions

static wxString sanitizeRuleName (const wxString &aRuleName)
 Sanitize a rule name for use in S-expression output.


Protected Member Functions

wxString buildRule (const RULE_GENERATION_CONTEXT &aContext, const std::vector< wxString > &aConstraintClauses) const


Static Protected Member Functions

static wxString quoteString (const wxString &aCondition)

static wxString trimTrailingZeros (const wxString &aValue)

static wxString formatDouble (double aValue, int aPrecision=6)


Private Attributes

double m_maxUncoupledLength { 0 }

double m_minWidth { 0 }

double m_preferredWidth { 0 }

double m_maxWidth { 0 }

double m_minGap { 0 }

double m_preferredGap { 0 }

double m_maxGap { 0 }

double m_maxSkew { 0 }

std::vector< PCB_LAYER_ID > m_layers

wxString m_layerSource
 Original layer text: "inner", "outer", or layer name.

wxString m_ruleCondition

wxString m_constraintCode

wxString m_generatedRule

wxString m_originalRuleText

bool m_wasEdited = false

SEVERITY m_severity = RPT_SEVERITY_UNDEFINED

int m_id

std::optional< int > m_parentId

wxString m_ruleName

wxString m_comment

bool m_isNew
 Flag indicating if the user is creating a new rule (true) or editing an existing rule (false).


Detailed Description

Definition at line 30 of file drc_re_rtg_diff_pair_constraint_data.h.

Constructor & Destructor Documentation

◆ DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA() [1/3]

DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA ( )
default

Referenced by CopyFrom().

◆ DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA() [2/3]

DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA ( const DRC_RE_BASE_CONSTRAINT_DATA & aBaseData)
inlineexplicit

Definition at line 35 of file drc_re_rtg_diff_pair_constraint_data.h.

References DRC_RE_BASE_CONSTRAINT_DATA::DRC_RE_BASE_CONSTRAINT_DATA().

◆ DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA() [3/3]

DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA ( int aId,
int aParentId,
wxString aRuleName,
double aMaxUncoupledLength,
double aMinWidth,
double aPreferredWidth,
double aMaxWidth,
double aMinGap,
double aPreferredGap,
double aMaxGap )
inlineexplicit

Definition at line 41 of file drc_re_rtg_diff_pair_constraint_data.h.

References DRC_RE_BASE_CONSTRAINT_DATA::DRC_RE_BASE_CONSTRAINT_DATA(), m_maxGap, m_maxUncoupledLength, m_maxWidth, m_minGap, m_minWidth, m_preferredGap, and m_preferredWidth.

◆ ~DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA()

virtual DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::~DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA ( )
virtualdefault

Member Function Documentation

◆ buildRule()

wxString DRC_RE_BASE_CONSTRAINT_DATA::buildRule ( const RULE_GENERATION_CONTEXT & aContext,
const std::vector< wxString > & aConstraintClauses ) const
inlineprotectedinherited

Definition at line 197 of file drc_re_base_constraint_data.h.

References RULE_GENERATION_CONTEXT::comment, RULE_GENERATION_CONTEXT::conditionExpression, RULE_GENERATION_CONTEXT::layerClause, quoteString(), RULE_GENERATION_CONTEXT::ruleName, and sanitizeRuleName().

Referenced by DRC_RE_ABSOLUTE_LENGTH_TWO_CONSTRAINT_DATA::GenerateRule(), DRC_RE_ALLOWED_ORIENTATION_CONSTRAINT_DATA::GenerateRule(), DRC_RE_BOOL_INPUT_CONSTRAINT_DATA::GenerateRule(), DRC_RE_NUMERIC_INPUT_CONSTRAINT_DATA::GenerateRule(), DRC_RE_PERMITTED_LAYERS_CONSTRAINT_DATA::GenerateRule(), DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::GenerateRule(), DRC_RE_ROUTING_WIDTH_CONSTRAINT_DATA::GenerateRule(), and DRC_RE_VIA_STYLE_CONSTRAINT_DATA::GenerateRule().

◆ CopyFrom()

void DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::CopyFrom ( const ICopyable & aSource)
inlineoverridevirtual

Reimplemented from DRC_RE_BASE_CONSTRAINT_DATA.

Definition at line 199 of file drc_re_rtg_diff_pair_constraint_data.h.

References DRC_RE_BASE_CONSTRAINT_DATA::CopyFrom(), DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA(), m_maxGap, m_maxSkew, m_maxUncoupledLength, m_maxWidth, m_minGap, m_minWidth, m_preferredGap, and m_preferredWidth.

◆ formatDouble()

static wxString DRC_RE_BASE_CONSTRAINT_DATA::formatDouble ( double aValue,
int aPrecision = 6 )
inlinestaticprotectedinherited

Definition at line 191 of file drc_re_base_constraint_data.h.

References trimTrailingZeros().

Referenced by DRC_RE_ABSOLUTE_LENGTH_TWO_CONSTRAINT_DATA::GetConstraintClauses(), DRC_RE_MATCHED_LENGTH_DIFF_PAIR_CONSTRAINT_DATA::GetConstraintClauses(), DRC_RE_NUMERIC_INPUT_CONSTRAINT_DATA::GetConstraintClauses(), DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::GetConstraintClauses(), DRC_RE_ROUTING_WIDTH_CONSTRAINT_DATA::GetConstraintClauses(), and DRC_RE_VIA_STYLE_CONSTRAINT_DATA::GetConstraintClauses().

◆ GenerateRule()

wxString DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::GenerateRule ( const RULE_GENERATION_CONTEXT & aContext)
inlineoverridevirtual

Reimplemented from DRC_RE_BASE_CONSTRAINT_DATA.

Definition at line 159 of file drc_re_rtg_diff_pair_constraint_data.h.

References DRC_RE_BASE_CONSTRAINT_DATA::buildRule(), and GetConstraintClauses().

◆ GetComment()

wxString RULE_EDITOR_DATA_BASE::GetComment ( )
inlineinherited

Get the comment associated with the rule.

Returns
The comment of the rule.

Definition at line 104 of file rule_editor_data_base.h.

References m_comment.

Referenced by DRC_RULE_SAVER::generateRuleText().

◆ GetConstraintClauses()

std::vector< wxString > DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::GetConstraintClauses ( const RULE_GENERATION_CONTEXT & aContext) const
inlineoverridevirtual

Returns just the constraint clauses without the rule wrapper.

Used for merging multiple constraint panels into a single rule.

Reimplemented from DRC_RE_BASE_CONSTRAINT_DATA.

Definition at line 125 of file drc_re_rtg_diff_pair_constraint_data.h.

References DRC_RE_BASE_CONSTRAINT_DATA::formatDouble(), m_maxGap, m_maxSkew, m_maxUncoupledLength, m_maxWidth, m_minGap, m_minWidth, m_preferredGap, and m_preferredWidth.

Referenced by GenerateRule().

◆ GetConstraintCode()

wxString DRC_RE_BASE_CONSTRAINT_DATA::GetConstraintCode ( ) const
inlineinherited

Definition at line 98 of file drc_re_base_constraint_data.h.

References m_constraintCode.

Referenced by BOOST_AUTO_TEST_CASE(), BOOST_AUTO_TEST_CASE(), DRC_RULE_SAVER::generateRuleText(), DRC_RE_ABSOLUTE_LENGTH_TWO_CONSTRAINT_DATA::GetConstraintClauses(), DRC_RE_BOOL_INPUT_CONSTRAINT_DATA::GetConstraintClauses(), DRC_RE_NUMERIC_INPUT_CONSTRAINT_DATA::GetConstraintClauses(), and DRC_RE_ROUTING_WIDTH_CONSTRAINT_DATA::GetConstraintClauses().

◆ GetFieldPositions()

std::vector< DRC_RE_FIELD_POSITION > DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::GetFieldPositions ( ) const
inlineoverridevirtual

Returns the field positions for controls overlaid on the constraint bitmap.

Override in derived classes to specify where input fields should be placed. Each position includes X range, Y coordinate, and tab order for navigation.

Returns
Vector of field position specifications, empty if no overlay fields.

Reimplemented from DRC_RE_BASE_CONSTRAINT_DATA.

Definition at line 57 of file drc_re_rtg_diff_pair_constraint_data.h.

References RIGHT.

◆ GetGeneratedRule()

wxString DRC_RE_BASE_CONSTRAINT_DATA::GetGeneratedRule ( ) const
inlineinherited

Definition at line 102 of file drc_re_base_constraint_data.h.

References m_generatedRule.

Referenced by DRC_RULE_SAVER::generateRuleText().

◆ GetId()

int RULE_EDITOR_DATA_BASE::GetId ( )
inlineinherited

Get the unique ID of the rule.

Returns
The unique ID of the rule.

Definition at line 62 of file rule_editor_data_base.h.

References m_id.

Referenced by DIALOG_DRC_RULE_EDITOR::buildRuleTreeNode(), and DIALOG_DRC_RULE_EDITOR::LoadExistingRules().

◆ GetLayers()

std::vector< PCB_LAYER_ID > DRC_RE_BASE_CONSTRAINT_DATA::GetLayers ( )
inlineinherited

Definition at line 86 of file drc_re_base_constraint_data.h.

References m_layers.

◆ GetLayerSource()

wxString DRC_RE_BASE_CONSTRAINT_DATA::GetLayerSource ( )
inlineinherited

Definition at line 90 of file drc_re_base_constraint_data.h.

References m_layerSource.

◆ GetMaxGap()

double DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::GetMaxGap ( )
inline

Definition at line 191 of file drc_re_rtg_diff_pair_constraint_data.h.

References m_maxGap.

◆ GetMaxSkew()

double DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::GetMaxSkew ( )
inline

Definition at line 195 of file drc_re_rtg_diff_pair_constraint_data.h.

References m_maxSkew.

◆ GetMaxUncoupledLength()

double DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::GetMaxUncoupledLength ( )
inline

Definition at line 164 of file drc_re_rtg_diff_pair_constraint_data.h.

References m_maxUncoupledLength.

◆ GetMaxWidth()

double DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::GetMaxWidth ( )
inline

Definition at line 179 of file drc_re_rtg_diff_pair_constraint_data.h.

References m_maxWidth.

◆ GetMinGap()

double DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::GetMinGap ( )
inline

Definition at line 183 of file drc_re_rtg_diff_pair_constraint_data.h.

References m_minGap.

◆ GetMinWidth()

double DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::GetMinWidth ( )
inline

Definition at line 171 of file drc_re_rtg_diff_pair_constraint_data.h.

References m_minWidth.

◆ GetOriginalRuleText()

wxString DRC_RE_BASE_CONSTRAINT_DATA::GetOriginalRuleText ( ) const
inlineinherited

Definition at line 106 of file drc_re_base_constraint_data.h.

References m_originalRuleText.

◆ GetOverlayBitmap()

BITMAPS DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::GetOverlayBitmap ( ) const
inlineoverridevirtual

Returns the bitmap to use for the overlay panel background.

Override in derived classes to provide constraint-specific artwork.

Returns
BITMAPS enum value for the overlay bitmap, or BITMAPS::INVALID_BITMAP if none.

Reimplemented from DRC_RE_BASE_CONSTRAINT_DATA.

Definition at line 55 of file drc_re_rtg_diff_pair_constraint_data.h.

References constraint_routing_diff_pair.

◆ GetParentId()

int RULE_EDITOR_DATA_BASE::GetParentId ( )
inlineinherited

Get the parent ID of the rule.

Returns
The parent ID of the rule, or -1 if no parent is set.

Definition at line 76 of file rule_editor_data_base.h.

References m_parentId.

Referenced by RULE_EDITOR_DIALOG_BASE::AppendNewRuleTreeItem().

◆ GetPreferredGap()

double DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::GetPreferredGap ( )
inline

Definition at line 187 of file drc_re_rtg_diff_pair_constraint_data.h.

References m_preferredGap.

◆ GetPreferredWidth()

double DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::GetPreferredWidth ( )
inline

Definition at line 175 of file drc_re_rtg_diff_pair_constraint_data.h.

References m_preferredWidth.

◆ GetRuleCondition()

wxString DRC_RE_BASE_CONSTRAINT_DATA::GetRuleCondition ( )
inlineinherited

Definition at line 94 of file drc_re_base_constraint_data.h.

References m_ruleCondition.

Referenced by BOOST_AUTO_TEST_CASE(), and BOOST_AUTO_TEST_CASE().

◆ GetRuleName()

wxString RULE_EDITOR_DATA_BASE::GetRuleName ( )
inlineinherited

Get the name of the rule.

Returns
The name of the rule.

Definition at line 90 of file rule_editor_data_base.h.

References m_ruleName.

Referenced by BOOST_AUTO_TEST_CASE(), BOOST_AUTO_TEST_CASE(), and DIALOG_DRC_RULE_EDITOR::UpdateRuleTypeTreeItemData().

◆ GetSeverity()

SEVERITY DRC_RE_BASE_CONSTRAINT_DATA::GetSeverity ( ) const
inlineinherited

Definition at line 114 of file drc_re_base_constraint_data.h.

References m_severity.

◆ IsNew()

bool RULE_EDITOR_DATA_BASE::IsNew ( )
inlineinherited

Check if the rule is marked as new.

Returns
True if the rule is new (being created), false if it is being edited.

Definition at line 118 of file rule_editor_data_base.h.

References m_isNew.

Referenced by DIALOG_DRC_RULE_EDITOR::RemoveRule().

◆ quoteString()

static wxString DRC_RE_BASE_CONSTRAINT_DATA::quoteString ( const wxString & aCondition)
inlinestaticprotectedinherited

Definition at line 170 of file drc_re_base_constraint_data.h.

References CTX_QUOTED_STR, and EscapeString().

Referenced by buildRule().

◆ sanitizeRuleName()

static wxString DRC_RE_BASE_CONSTRAINT_DATA::sanitizeRuleName ( const wxString & aRuleName)
inlinestaticinherited

Sanitize a rule name for use in S-expression output.

Replaces spaces and invalid characters with underscores.

Definition at line 138 of file drc_re_base_constraint_data.h.

References result.

Referenced by buildRule(), and DRC_RULE_SAVER::generateMergedRuleText().

◆ SetComment()

void RULE_EDITOR_DATA_BASE::SetComment ( wxString aComment)
inlineinherited

Set the comment for the rule.

Parameters
aCommentThe comment to set.

Definition at line 111 of file rule_editor_data_base.h.

References m_comment.

◆ SetConstraintCode()

void DRC_RE_BASE_CONSTRAINT_DATA::SetConstraintCode ( wxString aCode)
inlineinherited

Definition at line 100 of file drc_re_base_constraint_data.h.

References m_constraintCode.

Referenced by BOOST_AUTO_TEST_CASE(), BOOST_AUTO_TEST_CASE(), and DRC_RULE_EDITOR_UTILS::ConstraintFromKicadDrc().

◆ SetGeneratedRule()

void DRC_RE_BASE_CONSTRAINT_DATA::SetGeneratedRule ( const wxString & aRule)
inlineinherited

Definition at line 104 of file drc_re_base_constraint_data.h.

References m_generatedRule.

◆ SetId()

void RULE_EDITOR_DATA_BASE::SetId ( int aId)
inlineinherited

Set the unique ID of the rule.

Parameters
aIdThe unique ID to set.

Definition at line 69 of file rule_editor_data_base.h.

References m_id.

Referenced by DIALOG_DRC_RULE_EDITOR::buildRuleTreeNodeData().

◆ SetIsNew()

void RULE_EDITOR_DATA_BASE::SetIsNew ( bool aIsNew)
inlineinherited

Mark the rule as new or not.

Parameters
aIsNewTrue to mark the rule as new, false to mark it as existing.

Definition at line 125 of file rule_editor_data_base.h.

References m_isNew.

Referenced by DIALOG_DRC_RULE_EDITOR::buildRuleTreeNode(), and DIALOG_DRC_RULE_EDITOR::UpdateRuleTypeTreeItemData().

◆ SetLayers()

void DRC_RE_BASE_CONSTRAINT_DATA::SetLayers ( std::vector< PCB_LAYER_ID > aLayers)
inlineinherited

Definition at line 88 of file drc_re_base_constraint_data.h.

References m_layers.

◆ SetLayerSource()

void DRC_RE_BASE_CONSTRAINT_DATA::SetLayerSource ( wxString aSource)
inlineinherited

Definition at line 92 of file drc_re_base_constraint_data.h.

References m_layerSource.

◆ SetMaxGap()

void DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::SetMaxGap ( double aMaxGap)
inline

Definition at line 193 of file drc_re_rtg_diff_pair_constraint_data.h.

References m_maxGap.

◆ SetMaxSkew()

void DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::SetMaxSkew ( double aMaxSkew)
inline

Definition at line 197 of file drc_re_rtg_diff_pair_constraint_data.h.

References m_maxSkew.

◆ SetMaxUncoupledLength()

void DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::SetMaxUncoupledLength ( double aMaxUncoupledLength)
inline

Definition at line 166 of file drc_re_rtg_diff_pair_constraint_data.h.

References m_maxUncoupledLength.

◆ SetMaxWidth()

void DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::SetMaxWidth ( double aMaxWidth)
inline

Definition at line 181 of file drc_re_rtg_diff_pair_constraint_data.h.

References m_maxWidth.

◆ SetMinGap()

void DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::SetMinGap ( double aMinGap)
inline

Definition at line 185 of file drc_re_rtg_diff_pair_constraint_data.h.

References m_minGap.

◆ SetMinWidth()

void DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::SetMinWidth ( double aMinWidth)
inline

Definition at line 173 of file drc_re_rtg_diff_pair_constraint_data.h.

References m_minWidth.

◆ SetOriginalRuleText()

void DRC_RE_BASE_CONSTRAINT_DATA::SetOriginalRuleText ( const wxString & aText)
inlineinherited

Definition at line 108 of file drc_re_base_constraint_data.h.

References m_originalRuleText.

◆ SetParentId()

void RULE_EDITOR_DATA_BASE::SetParentId ( int aParentId)
inlineinherited

Set the parent ID of the rule.

Parameters
aParentIdThe parent ID to set.

Definition at line 83 of file rule_editor_data_base.h.

References m_parentId.

Referenced by DIALOG_DRC_RULE_EDITOR::buildRuleTreeNodeData().

◆ SetPreferredGap()

void DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::SetPreferredGap ( double aPreferredGap)
inline

Definition at line 189 of file drc_re_rtg_diff_pair_constraint_data.h.

References m_preferredGap.

◆ SetPreferredWidth()

void DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::SetPreferredWidth ( double aPreferredWidth)
inline

Definition at line 177 of file drc_re_rtg_diff_pair_constraint_data.h.

References m_preferredWidth.

◆ SetRuleCondition()

void DRC_RE_BASE_CONSTRAINT_DATA::SetRuleCondition ( wxString aRuleCondition)
inlineinherited

Definition at line 96 of file drc_re_base_constraint_data.h.

References m_ruleCondition.

Referenced by BOOST_AUTO_TEST_CASE(), and BOOST_AUTO_TEST_CASE().

◆ SetRuleName()

void RULE_EDITOR_DATA_BASE::SetRuleName ( wxString aRuleName)
inlineinherited

Set the name of the rule.

Parameters
aRuleNameThe name of the rule to set.

Definition at line 97 of file rule_editor_data_base.h.

References m_ruleName.

◆ SetSeverity()

void DRC_RE_BASE_CONSTRAINT_DATA::SetSeverity ( SEVERITY aSeverity)
inlineinherited

Definition at line 116 of file drc_re_base_constraint_data.h.

References m_severity.

◆ SetWasEdited()

void DRC_RE_BASE_CONSTRAINT_DATA::SetWasEdited ( bool aEdited)
inlineinherited

Definition at line 112 of file drc_re_base_constraint_data.h.

References m_wasEdited.

◆ trimTrailingZeros()

static wxString DRC_RE_BASE_CONSTRAINT_DATA::trimTrailingZeros ( const wxString & aValue)
inlinestaticprotectedinherited

Definition at line 175 of file drc_re_base_constraint_data.h.

References result.

Referenced by formatDouble().

◆ Validate()

VALIDATION_RESULT DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::Validate ( ) const
inlineoverridevirtual

Validates the constraint data.

Override in derived classes to add constraint-specific validation.

Returns
Validation result containing any errors.

Reimplemented from DRC_RE_BASE_CONSTRAINT_DATA.

Definition at line 73 of file drc_re_rtg_diff_pair_constraint_data.h.

References _, m_maxGap, m_maxSkew, m_maxUncoupledLength, m_maxWidth, m_minGap, m_minWidth, m_preferredGap, m_preferredWidth, and result.

Referenced by BOOST_AUTO_TEST_CASE(), and BOOST_AUTO_TEST_CASE().

◆ WasEdited()

bool DRC_RE_BASE_CONSTRAINT_DATA::WasEdited ( ) const
inlineinherited

Definition at line 110 of file drc_re_base_constraint_data.h.

References m_wasEdited.

Member Data Documentation

◆ m_comment

wxString RULE_EDITOR_DATA_BASE::m_comment
privateinherited

Definition at line 143 of file rule_editor_data_base.h.

Referenced by CopyFrom(), GetComment(), and SetComment().

◆ m_constraintCode

wxString DRC_RE_BASE_CONSTRAINT_DATA::m_constraintCode
privateinherited

Definition at line 239 of file drc_re_base_constraint_data.h.

Referenced by CopyFrom(), GetConstraintCode(), and SetConstraintCode().

◆ m_generatedRule

wxString DRC_RE_BASE_CONSTRAINT_DATA::m_generatedRule
privateinherited

Definition at line 240 of file drc_re_base_constraint_data.h.

Referenced by CopyFrom(), GetGeneratedRule(), and SetGeneratedRule().

◆ m_id

int RULE_EDITOR_DATA_BASE::m_id
privateinherited

Definition at line 140 of file rule_editor_data_base.h.

Referenced by GetId(), RULE_EDITOR_DATA_BASE(), and SetId().

◆ m_isNew

bool RULE_EDITOR_DATA_BASE::m_isNew
privateinherited

Flag indicating if the user is creating a new rule (true) or editing an existing rule (false).

Definition at line 144 of file rule_editor_data_base.h.

Referenced by IsNew(), RULE_EDITOR_DATA_BASE(), and SetIsNew().

◆ m_layers

std::vector<PCB_LAYER_ID> DRC_RE_BASE_CONSTRAINT_DATA::m_layers
privateinherited

Definition at line 236 of file drc_re_base_constraint_data.h.

Referenced by CopyFrom(), GetLayers(), and SetLayers().

◆ m_layerSource

wxString DRC_RE_BASE_CONSTRAINT_DATA::m_layerSource
privateinherited

Original layer text: "inner", "outer", or layer name.

Definition at line 237 of file drc_re_base_constraint_data.h.

Referenced by CopyFrom(), GetLayerSource(), and SetLayerSource().

◆ m_maxGap

double DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::m_maxGap { 0 }
private

Definition at line 223 of file drc_re_rtg_diff_pair_constraint_data.h.

Referenced by CopyFrom(), DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA(), GetConstraintClauses(), GetMaxGap(), SetMaxGap(), and Validate().

◆ m_maxSkew

double DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::m_maxSkew { 0 }
private

Definition at line 224 of file drc_re_rtg_diff_pair_constraint_data.h.

Referenced by CopyFrom(), GetConstraintClauses(), GetMaxSkew(), SetMaxSkew(), and Validate().

◆ m_maxUncoupledLength

double DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::m_maxUncoupledLength { 0 }
private

Definition at line 217 of file drc_re_rtg_diff_pair_constraint_data.h.

Referenced by CopyFrom(), DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA(), GetConstraintClauses(), GetMaxUncoupledLength(), SetMaxUncoupledLength(), and Validate().

◆ m_maxWidth

double DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::m_maxWidth { 0 }
private

Definition at line 220 of file drc_re_rtg_diff_pair_constraint_data.h.

Referenced by CopyFrom(), DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA(), GetConstraintClauses(), GetMaxWidth(), SetMaxWidth(), and Validate().

◆ m_minGap

double DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::m_minGap { 0 }
private

Definition at line 221 of file drc_re_rtg_diff_pair_constraint_data.h.

Referenced by CopyFrom(), DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA(), GetConstraintClauses(), GetMinGap(), SetMinGap(), and Validate().

◆ m_minWidth

double DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::m_minWidth { 0 }
private

Definition at line 218 of file drc_re_rtg_diff_pair_constraint_data.h.

Referenced by CopyFrom(), DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA(), GetConstraintClauses(), GetMinWidth(), SetMinWidth(), and Validate().

◆ m_originalRuleText

wxString DRC_RE_BASE_CONSTRAINT_DATA::m_originalRuleText
privateinherited

Definition at line 241 of file drc_re_base_constraint_data.h.

Referenced by CopyFrom(), GetOriginalRuleText(), and SetOriginalRuleText().

◆ m_parentId

std::optional<int> RULE_EDITOR_DATA_BASE::m_parentId
privateinherited

Definition at line 141 of file rule_editor_data_base.h.

Referenced by GetParentId(), RULE_EDITOR_DATA_BASE(), and SetParentId().

◆ m_preferredGap

double DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::m_preferredGap { 0 }
private

Definition at line 222 of file drc_re_rtg_diff_pair_constraint_data.h.

Referenced by CopyFrom(), DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA(), GetConstraintClauses(), GetPreferredGap(), SetPreferredGap(), and Validate().

◆ m_preferredWidth

double DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA::m_preferredWidth { 0 }
private

Definition at line 219 of file drc_re_rtg_diff_pair_constraint_data.h.

Referenced by CopyFrom(), DRC_RE_ROUTING_DIFF_PAIR_CONSTRAINT_DATA(), GetConstraintClauses(), GetPreferredWidth(), SetPreferredWidth(), and Validate().

◆ m_ruleCondition

wxString DRC_RE_BASE_CONSTRAINT_DATA::m_ruleCondition
privateinherited

Definition at line 238 of file drc_re_base_constraint_data.h.

Referenced by CopyFrom(), GetRuleCondition(), and SetRuleCondition().

◆ m_ruleName

wxString RULE_EDITOR_DATA_BASE::m_ruleName
privateinherited

Definition at line 142 of file rule_editor_data_base.h.

Referenced by GetRuleName(), RULE_EDITOR_DATA_BASE(), and SetRuleName().

◆ m_severity

SEVERITY DRC_RE_BASE_CONSTRAINT_DATA::m_severity = RPT_SEVERITY_UNDEFINED
privateinherited

Definition at line 243 of file drc_re_base_constraint_data.h.

Referenced by CopyFrom(), GetSeverity(), and SetSeverity().

◆ m_wasEdited

bool DRC_RE_BASE_CONSTRAINT_DATA::m_wasEdited = false
privateinherited

Definition at line 242 of file drc_re_base_constraint_data.h.

Referenced by CopyFrom(), SetWasEdited(), and WasEdited().

The documentation for this class was generated from the following file:
