EASYPC::SOURCE_SHAPE Struct Reference

A vertex list. More...

#include <easypc_classes_geometry.h>

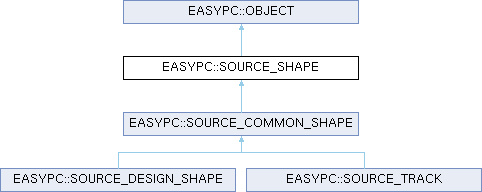

Inheritance diagram for EASYPC::SOURCE_SHAPE:

Public Member Functions
LOAD_TASK	Load (ARCHIVE &aAr) override
	Read this object's fields.
LOAD_TASK	LoadShape (ARCHIVE &aAr, int aFormat)
bool	IsClosed () const
	The last vertex links back to the first (formats 1 and 2) or the closed byte is set (format 3)
virtual int	ItemFormat (const ARCHIVE &aAr) const
	The version this object gates on; the base is the archive's current read format.

Public Attributes
int	Format = 0
std::vector< OBJECT * >	Segments
	the vertex list as read
bool	Closed = false
bool	HasClosed = false
const char *	ClassName = "object"
	registered class name
uint16_t	Schema = 0
	object schema from the class tag, 0 for an embedded member
size_t	Offset = 0
	stream offset of the tag or of an embedded member's first field

Detailed Description

A vertex list.

Definition at line 104 of file easypc_classes_geometry.h.

Member Function Documentation

IsClosed()

bool EASYPC::SOURCE_SHAPE::IsClosed

(

)

const

The last vertex links back to the first (formats 1 and 2) or the closed byte is set (format 3)

Definition at line 157 of file easypc_classes_geometry.cpp.

References Closed, HasClosed, EASYPC::SOURCE_SEGMENT::Next, and Segments.

Referenced by EASYPC_PCB::AddShapeItem(), EASYPC::ConvertShape(), and EASYPC_PCB::ShapeItemArea().

ItemFormat()

int EASYPC::OBJECT::ItemFormat ( const ARCHIVE & aAr ) const

virtualinherited

The version this object gates on; the base is the archive's current read format.

Reimplemented in EASYPC::DESIGN_MEMBER, EASYPC::SOURCE_COMMON_SEGMENT, EASYPC::SOURCE_COMMON_SHAPE, EASYPC::SOURCE_DESIGN, EASYPC::SOURCE_DESIGN_DATA, EASYPC::SOURCE_DESIGN_ITEM, EASYPC::SOURCE_DESIGN_LIST, EASYPC::SOURCE_PCB_COMPONENT, EASYPC::SOURCE_SCM_COMPONENT, and EASYPC::SOURCE_SYMBOL.

Definition at line 85 of file easypc_archive.cpp.

References EASYPC::ARCHIVE::CurrentReadFormat().

Referenced by EASYPC::SOURCE_COMMON_SEGMENT::ItemFormat().

Load()

LOAD_TASK EASYPC::SOURCE_SHAPE::Load ( ARCHIVE & aAr )

overridevirtual

Read this object's fields.

Reimplemented from EASYPC::OBJECT.

Reimplemented in EASYPC::SOURCE_TRACK.

Definition at line 151 of file easypc_classes_geometry.cpp.

References LoadShape(), and EASYPC::ARCHIVE::ShapeFormat().

LoadShape()

LOAD_TASK EASYPC::SOURCE_SHAPE::LoadShape	(	ARCHIVE &	aAr,
		int	aFormat )

Definition at line 107 of file easypc_classes_geometry.cpp.

References Closed, EASYPC::ARCHIVE::Count(), Format, HasClosed, EASYPC::SOURCE_SEGMENT::Next, EASYPC::ARCHIVE::Object(), Segments, EASYPC::ARCHIVE::SetShapeFormat(), EASYPC::ARCHIVE::ShapeFormat(), and EASYPC::ARCHIVE::U8().

Referenced by EASYPC::SOURCE_COMMON_SHAPE::Load(), and Load().

Member Data Documentation

ClassName

const char* EASYPC::OBJECT::ClassName = "object"

inherited

registered class name

Definition at line 130 of file easypc_archive.h.

Referenced by EASYPC::ARCHIVE::drive(), EASYPC::ARCHIVE::Embedded(), EASYPC::SOURCE_DESIGN_ITEM::ItemFormat(), EASYPC::ARCHIVE::MapObject(), EASYPC::ARCHIVE::readTag(), and EASYPC::ARCHIVE::throwBadClass().

Closed

bool EASYPC::SOURCE_SHAPE::Closed = false

Definition at line 114 of file easypc_classes_geometry.h.

Referenced by IsClosed(), and LoadShape().

Format

int EASYPC::SOURCE_SHAPE::Format = 0

Definition at line 112 of file easypc_classes_geometry.h.

Referenced by LoadShape().

HasClosed

bool EASYPC::SOURCE_SHAPE::HasClosed = false

Definition at line 115 of file easypc_classes_geometry.h.

Referenced by IsClosed(), and LoadShape().

Offset

size_t EASYPC::OBJECT::Offset = 0

inherited

stream offset of the tag or of an embedded member's first field

Definition at line 132 of file easypc_archive.h.

Referenced by EASYPC::ARCHIVE::drive(), EASYPC::SOURCE_DESIGN_ITEM::ItemFormat(), EASYPC::ARCHIVE::readTag(), and EASYPC::ARCHIVE::throwBadClass().

Schema

uint16_t EASYPC::OBJECT::Schema = 0

inherited

object schema from the class tag, 0 for an embedded member

Definition at line 131 of file easypc_archive.h.

Referenced by EASYPC::SOURCE_COMMON_SHAPE::Load(), and EASYPC::ARCHIVE::readTag().

Segments

std::vector<OBJECT*> EASYPC::SOURCE_SHAPE::Segments

the vertex list as read

Definition at line 113 of file easypc_classes_geometry.h.

Referenced by IsClosed(), LoadShape(), and EASYPC::ShapeVertices().

---

The documentation for this struct was generated from the following files:

• easypc_classes_geometry.h
• easypc_classes_geometry.cpp
