EASYPC::SOURCE_SCM_COMPONENT Struct Reference

#include <easypc_classes_library.h>

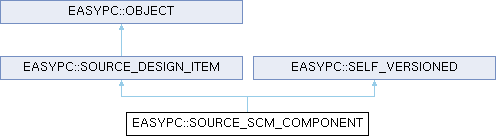

Inheritance diagram for EASYPC::SOURCE_SCM_COMPONENT:
EASYPC::SOURCE_DESIGN_ITEM EASYPC::SELF_VERSIONED EASYPC::OBJECT

Public Member Functions

LOAD_TASK Load (ARCHIVE &aAr) override
 Read this object's fields.

int ItemFormat (const ARCHIVE &aAr) const override
 The version this object gates on; the base is the archive's current read format.

void LoadOldFormat (ARCHIVE &aAr, int &aFormat) const
 An older item format, stored only while the format is still 0.


Static Public Member Functions

static void LoadFormatted (ARCHIVE &aAr, int &aFormat)
 An item format, stored only from object schema 2, which governs what follows.


Public Attributes

wxString Name

wxString Package

OBJECT * Gates = nullptr

wxString DefaultReference

wxString Description

wxString Library

uint32_t SuppressionFlags = 0

OBJECT * Parent = nullptr
 null is the document in a design, nothing in a library item

OBJECT * Attributes = nullptr
 attribute array

const char * ClassName = "object"
 registered class name

uint16_t Schema = 0
 object schema from the class tag, 0 for an embedded member

size_t Offset = 0
 stream offset of the tag or of an embedded member's first field

int Format = NEWEST_ITEM_FORMAT


Detailed Description

Definition at line 155 of file easypc_classes_library.h.

Member Function Documentation

◆ ItemFormat()

int EASYPC::SOURCE_SCM_COMPONENT::ItemFormat ( const ARCHIVE & aAr) const
inlineoverridevirtual

The version this object gates on; the base is the archive's current read format.

Reimplemented from EASYPC::SOURCE_DESIGN_ITEM.

Definition at line 158 of file easypc_classes_library.h.

References EASYPC::SELF_VERSIONED::Format.

◆ Load()

LOAD_TASK EASYPC::SOURCE_SCM_COMPONENT::Load ( ARCHIVE & aAr)
overridevirtual

Read this object's fields.

Reimplemented from EASYPC::SOURCE_DESIGN_ITEM.

Definition at line 217 of file easypc_classes_library.cpp.

References DefaultReference, Description, EASYPC::SELF_VERSIONED::Format, Gates, Library, EASYPC::SOURCE_DESIGN_ITEM::Load(), EASYPC::SOURCE_DESIGN_ITEM::LoadOldFormat(), Name, EASYPC::NEWEST_ITEM_FORMAT, EASYPC::ARCHIVE::Object(), Package, EASYPC::ARCHIVE::Product(), EASYPC::PRODUCT_DESIGNSPARK, EASYPC::PRODUCT_DESIGNSPARK_CREATOR, EASYPC::PRODUCT_DESIGNSPARK_PRO, EASYPC::ARCHIVE::ReadString(), EASYPC::ARCHIVE::Skip(), SuppressionFlags, and EASYPC::ARCHIVE::U32().

◆ LoadFormatted()

void EASYPC::SOURCE_DESIGN_ITEM::LoadFormatted ( ARCHIVE & aAr,
int & aFormat )
staticinherited

An item format, stored only from object schema 2, which governs what follows.

Definition at line 154 of file easypc_classes_styles.cpp.

References EASYPC::ARCHIVE::I32(), EASYPC::ARCHIVE::ObjectSchema(), and EASYPC::ARCHIVE::SetReadFormat().

◆ LoadOldFormat()

void EASYPC::SOURCE_DESIGN_ITEM::LoadOldFormat ( ARCHIVE & aAr,
int & aFormat ) const
inherited

An older item format, stored only while the format is still 0.

Definition at line 162 of file easypc_classes_styles.cpp.

References EASYPC::ARCHIVE::I32(), ItemFormat(), and EASYPC::ARCHIVE::SetReadFormat().

Referenced by EASYPC::SOURCE_PCB_COMPONENT::Load(), EASYPC::SOURCE_SCM_COMPONENT::Load(), and EASYPC::SOURCE_SYMBOL::Load().

Member Data Documentation

◆ Attributes

OBJECT* EASYPC::SOURCE_DESIGN_ITEM::Attributes = nullptr
inherited

attribute array

Definition at line 133 of file easypc_classes_styles.h.

Referenced by EASYPC::ConvertComponentSymbol(), Load(), and EASYPC::partAttributes().

◆ ClassName

const char* EASYPC::OBJECT::ClassName = "object"
inherited

registered class name

Definition at line 130 of file easypc_archive.h.

Referenced by EASYPC::ARCHIVE::drive(), EASYPC::ARCHIVE::Embedded(), EASYPC::SOURCE_DESIGN_ITEM::ItemFormat(), EASYPC::ARCHIVE::MapObject(), EASYPC::ARCHIVE::readTag(), and EASYPC::ARCHIVE::throwBadClass().

◆ DefaultReference

wxString EASYPC::SOURCE_SCM_COMPONENT::DefaultReference

Definition at line 163 of file easypc_classes_library.h.

Referenced by EASYPC::ConvertComponentSymbol(), and Load().

◆ Description

wxString EASYPC::SOURCE_SCM_COMPONENT::Description

Definition at line 164 of file easypc_classes_library.h.

Referenced by EASYPC::ConvertComponentSymbol(), Load(), and EASYPC::valueLines().

◆ Format

int EASYPC::SELF_VERSIONED::Format = NEWEST_ITEM_FORMAT
inherited

Definition at line 45 of file easypc_classes_library.h.

Referenced by EASYPC::SOURCE_PCB_COMPONENT::ItemFormat(), EASYPC::SOURCE_SCM_COMPONENT::ItemFormat(), EASYPC::SOURCE_SYMBOL::ItemFormat(), EASYPC::SOURCE_PCB_COMPONENT::Load(), EASYPC::SOURCE_SCM_COMPONENT::Load(), and EASYPC::SOURCE_SYMBOL::Load().

◆ Gates

OBJECT* EASYPC::SOURCE_SCM_COMPONENT::Gates = nullptr

Definition at line 162 of file easypc_classes_library.h.

Referenced by EASYPC::SCH_BUILDER::buildSymbols(), SCH_IO_EASYPC::convertComponent(), EASYPC::ConvertComponentSymbol(), Load(), packagesAgree(), and EASYPC::SCH_BUILDER::placePinItems().

◆ Library

wxString EASYPC::SOURCE_SCM_COMPONENT::Library

Definition at line 165 of file easypc_classes_library.h.

Referenced by Load().

◆ Name

wxString EASYPC::SOURCE_SCM_COMPONENT::Name

Definition at line 160 of file easypc_classes_library.h.

Referenced by EASYPC::SCH_BUILDER::buildSymbols(), EASYPC::ConvertComponentSymbol(), Load(), and EASYPC::valueLines().

◆ Offset

size_t EASYPC::OBJECT::Offset = 0
inherited

stream offset of the tag or of an embedded member's first field

Definition at line 132 of file easypc_archive.h.

Referenced by EASYPC::ARCHIVE::drive(), EASYPC::SOURCE_DESIGN_ITEM::ItemFormat(), EASYPC::ARCHIVE::readTag(), and EASYPC::ARCHIVE::throwBadClass().

◆ Package

wxString EASYPC::SOURCE_SCM_COMPONENT::Package

Definition at line 161 of file easypc_classes_library.h.

Referenced by SCH_IO_EASYPC::convertComponent(), and Load().

◆ Parent

OBJECT* EASYPC::SOURCE_DESIGN_ITEM::Parent = nullptr
inherited

null is the document in a design, nothing in a library item

Definition at line 132 of file easypc_classes_styles.h.

Referenced by ItemFormat(), Load(), and EASYPC::netOf().

◆ Schema

uint16_t EASYPC::OBJECT::Schema = 0
inherited

object schema from the class tag, 0 for an embedded member

Definition at line 131 of file easypc_archive.h.

Referenced by EASYPC::SOURCE_COMMON_SHAPE::Load(), and EASYPC::ARCHIVE::readTag().

◆ SuppressionFlags

uint32_t EASYPC::SOURCE_SCM_COMPONENT::SuppressionFlags = 0

Definition at line 166 of file easypc_classes_library.h.

Referenced by Load().

The documentation for this struct was generated from the following files:
