EASYPC::SOURCE_PCB_COMPONENT Struct Reference

The package half of a component. More...

#include <easypc_classes_library.h>

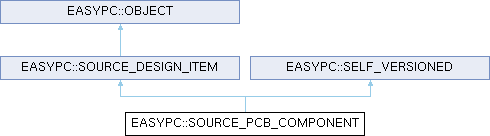

Inheritance diagram for EASYPC::SOURCE_PCB_COMPONENT:

Public Member Functions
LOAD_TASK	Load (ARCHIVE &aAr) override
	Read this object's fields.
int	ItemFormat (const ARCHIVE &aAr) const override
	The version this object gates on; the base is the archive's current read format.
void	LoadOldFormat (ARCHIVE &aAr, int &aFormat) const
	An older item format, stored only while the format is still 0.

Static Public Member Functions
static void	LoadFormatted (ARCHIVE &aAr, int &aFormat)
	An item format, stored only from object schema 2, which governs what follows.

Public Attributes
wxString	Package
wxString	Symbol
	footprint name
OBJECT *	GateMaps = nullptr
	one per schematic gate in order
wxString	Library
OBJECT *	Parent = nullptr
	null is the document in a design, nothing in a library item
OBJECT *	Attributes = nullptr
	attribute array
const char *	ClassName = "object"
	registered class name
uint16_t	Schema = 0
	object schema from the class tag, 0 for an embedded member
size_t	Offset = 0
	stream offset of the tag or of an embedded member's first field
int	Format = NEWEST_ITEM_FORMAT

Detailed Description

The package half of a component.

Definition at line 171 of file easypc_classes_library.h.

Member Function Documentation

ItemFormat()

int EASYPC::SOURCE_PCB_COMPONENT::ItemFormat ( const ARCHIVE & aAr ) const

inlineoverridevirtual

The version this object gates on; the base is the archive's current read format.

Reimplemented from EASYPC::SOURCE_DESIGN_ITEM.

Definition at line 174 of file easypc_classes_library.h.

References EASYPC::SELF_VERSIONED::Format.

Load()

LOAD_TASK EASYPC::SOURCE_PCB_COMPONENT::Load ( ARCHIVE & aAr )

overridevirtual

Read this object's fields.

Reimplemented from EASYPC::SOURCE_DESIGN_ITEM.

Definition at line 262 of file easypc_classes_library.cpp.

References EASYPC::SELF_VERSIONED::Format, GateMaps, Library, EASYPC::SOURCE_DESIGN_ITEM::Load(), EASYPC::SOURCE_DESIGN_ITEM::LoadOldFormat(), EASYPC::NEWEST_ITEM_FORMAT, EASYPC::ARCHIVE::Object(), Package, EASYPC::ARCHIVE::ReadString(), EASYPC::ARCHIVE::Skip(), EASYPC::ARCHIVE::SkipString(), and Symbol.

LoadFormatted()

void EASYPC::SOURCE_DESIGN_ITEM::LoadFormatted ( ARCHIVE & aAr, int & aFormat )

staticinherited

An item format, stored only from object schema 2, which governs what follows.

Definition at line 154 of file easypc_classes_styles.cpp.

References EASYPC::ARCHIVE::I32(), EASYPC::ARCHIVE::ObjectSchema(), and EASYPC::ARCHIVE::SetReadFormat().

LoadOldFormat()

void EASYPC::SOURCE_DESIGN_ITEM::LoadOldFormat ( ARCHIVE & aAr, int & aFormat ) const

inherited

An older item format, stored only while the format is still 0.

Definition at line 162 of file easypc_classes_styles.cpp.

References EASYPC::ARCHIVE::I32(), ItemFormat(), and EASYPC::ARCHIVE::SetReadFormat().

Referenced by EASYPC::SOURCE_PCB_COMPONENT::Load(), EASYPC::SOURCE_SCM_COMPONENT::Load(), and EASYPC::SOURCE_SYMBOL::Load().

Member Data Documentation

Attributes

OBJECT* EASYPC::SOURCE_DESIGN_ITEM::Attributes = nullptr

inherited

attribute array

Definition at line 133 of file easypc_classes_styles.h.

Referenced by EASYPC::ConvertComponentSymbol(), Load(), and EASYPC::partAttributes().

ClassName

const char* EASYPC::OBJECT::ClassName = "object"

inherited

registered class name

Definition at line 130 of file easypc_archive.h.

Referenced by EASYPC::ARCHIVE::drive(), EASYPC::ARCHIVE::Embedded(), EASYPC::SOURCE_DESIGN_ITEM::ItemFormat(), EASYPC::ARCHIVE::MapObject(), EASYPC::ARCHIVE::readTag(), and EASYPC::ARCHIVE::throwBadClass().

Format

int EASYPC::SELF_VERSIONED::Format = NEWEST_ITEM_FORMAT

inherited

Definition at line 45 of file easypc_classes_library.h.

Referenced by EASYPC::SOURCE_PCB_COMPONENT::ItemFormat(), EASYPC::SOURCE_SCM_COMPONENT::ItemFormat(), EASYPC::SOURCE_SYMBOL::ItemFormat(), EASYPC::SOURCE_PCB_COMPONENT::Load(), EASYPC::SOURCE_SCM_COMPONENT::Load(), and EASYPC::SOURCE_SYMBOL::Load().

GateMaps

OBJECT* EASYPC::SOURCE_PCB_COMPONENT::GateMaps = nullptr

one per schematic gate in order

Definition at line 178 of file easypc_classes_library.h.

Referenced by EASYPC::isScmOnly(), Load(), and EASYPC::ResolveTerminal().

Library

wxString EASYPC::SOURCE_PCB_COMPONENT::Library

Definition at line 179 of file easypc_classes_library.h.

Referenced by SCH_IO_EASYPC::convertComponent(), and Load().

Offset

size_t EASYPC::OBJECT::Offset = 0

inherited

stream offset of the tag or of an embedded member's first field

Definition at line 132 of file easypc_archive.h.

Referenced by EASYPC::ARCHIVE::drive(), EASYPC::SOURCE_DESIGN_ITEM::ItemFormat(), EASYPC::ARCHIVE::readTag(), and EASYPC::ARCHIVE::throwBadClass().

Package

wxString EASYPC::SOURCE_PCB_COMPONENT::Package

Definition at line 176 of file easypc_classes_library.h.

Referenced by EASYPC_PCB::ConvertFootprint(), EASYPC::isScmOnly(), Load(), and EASYPC::valueLines().

Parent

OBJECT* EASYPC::SOURCE_DESIGN_ITEM::Parent = nullptr

inherited

null is the document in a design, nothing in a library item

Definition at line 132 of file easypc_classes_styles.h.

Referenced by ItemFormat(), Load(), and EASYPC::netOf().

Schema

uint16_t EASYPC::OBJECT::Schema = 0

inherited

object schema from the class tag, 0 for an embedded member

Definition at line 131 of file easypc_archive.h.

Referenced by EASYPC::SOURCE_COMMON_SHAPE::Load(), and EASYPC::ARCHIVE::readTag().

Symbol

wxString EASYPC::SOURCE_PCB_COMPONENT::Symbol

footprint name

Definition at line 177 of file easypc_classes_library.h.

Referenced by EASYPC::SCH_BUILDER::buildSymbols(), SCH_IO_EASYPC::convertComponent(), and Load().

---

The documentation for this struct was generated from the following files:

• easypc_classes_library.h
• easypc_classes_library.cpp
