pcbnew.ZONE Class Reference

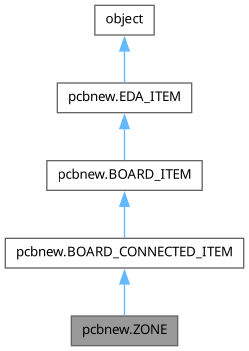

Inheritance diagram for pcbnew.ZONE:
Inheritance graph
[legend]

Public Member Functions

 __init__ (self, *args)

 Serialize (self, aContainer)

 Deserialize (self, aContainer)

 InitDataFromSrcInCopyCtor (self, aZone, aLayer=UNDEFINED_LAYER)

 IsConflicting (self)

 SetAssignedPriority (self, aPriority)

 GetAssignedPriority (self)

 HigherPriority (self, aOther)

 SameNet (self, aOther)

 SetLayerSetAndRemoveUnusedFills (self, aLayerSet)

 LayerProperties (self, *args)

 SetLayerProperties (self, aOther)

 GetZoneName (self)

 SetZoneName (self, aName)

 CacheBoundingBox (self)

 SetLocalClearance (self, aClearance)

 GetLocalClearance (self, *args)

 GetFirstLayer (self)

 ViewGetLOD (self, aLayer, aView)

 SetFillMode (self, aFillMode)

 GetFillMode (self)

 SetThermalReliefGap (self, aThermalReliefGap)

 GetThermalReliefGap (self, *args)

 SetThermalReliefSpokeWidth (self, aThermalReliefSpokeWidth)

 GetThermalReliefSpokeWidth (self)

 CalculateFilledArea (self)

 CalculateOutlineArea (self)

 GetFilledArea (self)

 GetOutlineArea (self)

 GetFillFlag (self, aLayer)

 SetFillFlag (self, aLayer, aFlag)

 IsFilled (self)

 SetIsFilled (self, isFilled)

 NeedRefill (self)

 SetNeedRefill (self, aNeedRefill)

 GetPadConnection (self)

 SetPadConnection (self, aPadConnection)

 GetMinThickness (self)

 SetMinThickness (self, aMinThickness)

 GetHatchThickness (self)

 SetHatchThickness (self, aThickness)

 GetHatchGap (self)

 SetHatchGap (self, aStep)

 GetHatchOrientation (self)

 SetHatchOrientation (self, aStep)

 GetHatchSmoothingLevel (self)

 SetHatchSmoothingLevel (self, aLevel)

 GetHatchSmoothingValue (self)

 SetHatchSmoothingValue (self, aValue)

 GetHatchHoleMinArea (self)

 SetHatchHoleMinArea (self, aPct)

 GetHatchBorderAlgorithm (self)

 SetHatchBorderAlgorithm (self, aAlgo)

 GetLocalFlags (self)

 SetLocalFlags (self, aFlags)

 Outline (self, *args)

 SetOutline (self, aOutline)

 GetEffectiveShape (self, *args)

 HitTestFilledArea (self, aLayer, aRefPos, aAccuracy=0)

 HitTestCutout (self, aRefPos, aOutlineIdx=None, aHoleIdx=None)

 GetInteractingZones (self, aLayer, aSameNetCollidingZones, aOtherNetIntersectingZones)

 TransformSolidAreasShapesToPolygon (self, aLayer, aBuffer)

 TransformSmoothedOutlineToPolygon (self, aBuffer, aClearance, aError, aErrorLoc, aBoardOutline)

 TransformShapeToPolygon (self, aBuffer, aLayer, aClearance, aError, aErrorLoc, ignoreLineWidth=False)

 HitTestForCorner (self, refPos, aAccuracy, aCornerHit=None)

 HitTestForEdge (self, refPos, aAccuracy, aCornerHit=None)

 HitTest (self, *args)

 UnFill (self)

 MoveEdge (self, offset, aEdge)

 GetClass (self)

 GetNumCorners (self)

 Iterate (self)

 IterateWithHoles (self)

 CIterateWithHoles (self)

 RemoveAllContours (self)

 GetCornerPosition (self, aCornerIndex)

 NewHole (self)

 AppendCorner (self, aPosition, aHoleIdx, aAllowDuplication=False)

 GetHatchStyle (self)

 SetHatchStyle (self, aStyle)

 HasFilledPolysForLayer (self, aLayer)

 GetFilledPolysList (self, aLayer)

 GetFill (self, aLayer)

 CacheTriangulation (self, aLayer=UNDEFINED_LAYER)

 SetFilledPolysList (self, aLayer, aPolysList)

 IsIsland (self, aLayer, aPolyIdx)

 SetIsIsland (self, aLayer, aPolyIdx)

 BuildSmoothedPoly (self, aSmoothedPoly, aLayer, aBoardOutline, aSmoothedPolyWithApron=None)

 SetCornerSmoothingType (self, aType)

 GetCornerSmoothingType (self)

 SetCornerRadius (self, aRadius)

 GetCornerRadius (self)

 RemoveCutout (self, aOutlineIdx, aHoleIdx)

 AddPolygon (self, *args)

 Clone (self, *args)

 Duplicate (self, addToParentGroup, aCommit=None)

 IsTeardropArea (self)

 SetTeardropAreaType (self, aType)

 GetTeardropAreaType (self)

 HasKeepoutParametersSet (self)

 GetIsRuleArea (self)

 SetIsRuleArea (self, aEnable)

 GetPlacementAreaEnabled (self)

 SetPlacementAreaEnabled (self, aEnabled)

 GetPlacementAreaSource (self)

 SetPlacementAreaSource (self, aSource)

 GetPlacementAreaSourceType (self)

 SetPlacementAreaSourceType (self, aType)

 GetDoNotAllowZoneFills (self)

 GetDoNotAllowVias (self)

 GetDoNotAllowTracks (self)

 GetDoNotAllowPads (self)

 GetDoNotAllowFootprints (self)

 SetDoNotAllowZoneFills (self, aEnable)

 SetDoNotAllowVias (self, aEnable)

 SetDoNotAllowTracks (self, aEnable)

 SetDoNotAllowPads (self, aEnable)

 SetDoNotAllowFootprints (self, aEnable)

 GetIslandRemovalMode (self)

 SetIslandRemovalMode (self, aRemove)

 GetMinIslandArea (self)

 SetMinIslandArea (self, aArea)

 GetBorderHatchPitch (self)

 SetBorderHatchPitch (self, aPitch)

 SetBorderDisplayStyle (self, aBorderHatchStyle, aBorderHatchPitch, aRebuilBorderdHatch)

 UnHatchBorder (self)

 HatchBorder (self)

 GetHatchLines (self)

 BuildHashValue (self, aLayer)

 GetHashValue (self, aLayer)

 __eq__ (self, *args)

- Public Member Functions inherited from pcbnew.BOARD_CONNECTED_ITEM
 __init__ (self, *args, **kwargs)

 GetNet (self)

 SetNet (self, aNetInfo)

 UnpackNet (self, aProto)

 PackNet (self, aProto)

 GetNetCode (self)

 SetNetCode (self, *args)

 GetNetname (self)

 GetNetnameMsg (self)

 GetShortNetname (self)

 GetDisplayNetname (self)

 GetOwnClearance (self, aLayer, aSource=None)

 GetClearanceOverrides (self, aSource)

 GetEffectiveNetClass (self)

 GetNetClassName (self)

 SetLocalRatsnestVisible (self, aVisible)

 GetLocalRatsnestVisible (self)

 GetTeardropParams (self, *args)

 SetTeardropsEnabled (self, aEnable)

 GetTeardropsEnabled (self)

 SetTeardropBestLengthRatio (self, aRatio)

 GetTeardropBestLengthRatio (self)

 SetTeardropMaxLength (self, aMaxLength)

 GetTeardropMaxLength (self)

 SetTeardropBestWidthRatio (self, aRatio)

 GetTeardropBestWidthRatio (self)

 SetTeardropMaxWidth (self, aMaxWidth)

 GetTeardropMaxWidth (self)

 SetTeardropCurved (self, aCurve)

 GetTeardropCurved (self)

 SetTeardropPreferZoneConnections (self, aPrefer)

 GetTeardropPreferZoneConnections (self)

 SetTeardropAllowSpanTwoTracks (self, aAllow)

 GetTeardropAllowSpanTwoTracks (self)

 SetTeardropMaxTrackWidth (self, aRatio)

 GetTeardropMaxTrackWidth (self)

- Public Member Functions inherited from pcbnew.BOARD_ITEM
 __init__ (self, *args, **kwargs)

 CopyFrom (self, aOther)

 IsGroupableType (self)

 GetX (self)

 GetY (self)

 GetCenter (self)

 SetX (self, aX)

 SetY (self, aY)

 IsConnected (self)

 Similarity (self, aItem)

 __eq__ (self, aItem)

 IsOnCopperLayer (self)

 HasHole (self)

 HasDrilledHole (self)

 IsTented (self, aLayer)

 GetEffectiveHoleShape (self)

 RunOnChildren (self, aFunction, aMode)

 GetParent (self)

 GetParentFootprint (self)

 SetUuidDirect (self, aUuid)

 ResetUuidDirect (self)

 SetUuid (self, aUuid)

 ResetUuid (self)

 GetFPRelativePosition (self)

 SetFPRelativePosition (self, aPos)

 HasLineStroke (self)

 GetStroke (self)

 SetStroke (self, aStroke)

 GetFontMetrics (self)

 GetLayer (self)

 BoardLayerCount (self)

 BoardCopperLayerCount (self)

 BoardLayerSet (self)

 GetLayerSet (self)

 SetLayerSet (self, aLayers)

 IsSideSpecific (self)

 SetLayer (self, aLayer)

 SwapItemData (self, aImage)

 IsOnLayer (self, aLayer)

 IsKnockout (self)

 SetIsKnockout (self, aKnockout)

 IsIndexedInBoard (self)

 GetMaxError (self)

 StyleFromSettings (self, settings, aCheckSide)

 DeleteStructure (self)

 Move (self, aMoveVector)

 Rotate (self, aRotCentre, aAngle)

 Flip (self, aCentre, aFlipDirection)

 Mirror (self, aCentre, aFlipDirection)

 Normalize (self)

 NormalizeForCompare (self)

 GetBoard (self, *args)

 GetParentAsString (self)

 GetLayerName (self)

 TransformShapeToPolySet (self, aBuffer, aLayer, aClearance, aError, aErrorLoc, aRenderSettings=None)

 LayerMaskDescribe (self)

 Cast (self)

 SetPos (self, p)

 SetStartEnd (self, start, end)

- Public Member Functions inherited from pcbnew.EDA_ITEM
 __init__ (self, *args, **kwargs)

 Type (self)

 SetParent (self, aParent)

 SetParentGroup (self, aGroup)

 GetParentGroup (self)

 GetParentGroupId (self)

 HasSelectedAncestorGroup (self)

 IsLocked (self)

 SetLocked (self, aLocked)

 IsModified (self)

 IsNew (self)

 IsMoving (self)

 IsSelected (self)

 IsEntered (self)

 IsBrightened (self)

 IsRollover (self)

 GetRolloverPos (self)

 SetIsRollover (self, aIsRollover, aMousePos)

 SetSelected (self)

 SetBrightened (self)

 ClearSelected (self)

 ClearBrightened (self)

 SetModified (self)

 SetFlags (self, aMask)

 XorFlags (self, aMask)

 ClearFlags (self, *args)

 GetFlags (self)

 HasFlag (self, aFlag)

 GetEditFlags (self)

 ClearEditFlags (self)

 GetTempFlags (self)

 ClearTempFlags (self)

 RenderAsBitmap (self, aWorldScale)

 SetIsShownAsBitmap (self, aBitmap)

 IsShownAsBitmap (self)

 IsType (self, aScanTypes)

 SetForceVisible (self, aEnable)

 IsForceVisible (self)

 GetMsgPanelInfo (self, aFrame, aList)

 GetFriendlyName (self)

 GetBoundingBox (self)

 GetPosition (self)

 SetPosition (self, aPos)

 GetFocusPosition (self)

 GetSortPosition (self)

 Visit (self, inspector, testData, aScanTypes)

 GetTypeDesc (self)

 GetItemDescription (self, aUnitsProvider, aFull)

 DisambiguateItemDescription (self, aUnitsProvider, aFull)

 GetMenuImage (self)

 Matches (self, aSearchData, aAuxData)

 Replace (self, *args)

 IsReplaceable (self)

 __lt__ (self, aItem)

 ViewBBox (self)

 ViewGetLayers (self)

 GetEmbeddedFiles (self)

 GetEmbeddedFonts (self)

 PyGetClass (self)


Static Public Member Functions

 ClassOf (aItem)

 GetDefaultHatchPitch ()

- Static Public Member Functions inherited from pcbnew.EDA_ITEM
 Sort (aLeft, aRight)


Properties

 thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

- Properties inherited from pcbnew.BOARD_CONNECTED_ITEM
 thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

- Properties inherited from pcbnew.BOARD_ITEM
 thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

- Properties inherited from pcbnew.EDA_ITEM
 thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

 m_Uuid = property(_pcbnew.EDA_ITEM_m_Uuid_get, doc=)


Additional Inherited Members

- Static Public Attributes inherited from pcbnew.BOARD_ITEM
 DRC = _pcbnew.BOARD_ITEM_DRC

 INSTANCE_TO_INSTANCE = _pcbnew.BOARD_ITEM_INSTANCE_TO_INSTANCE


Detailed Description

Proxy of C++ ZONE class.

Definition at line 16855 of file pcbnew.py.

Constructor & Destructor Documentation

◆ __init__()

pcbnew.ZONE.__init__ ( self,
* args )
    __init__(ZONE self, BOARD_ITEM_CONTAINER parent) -> ZONE
    __init__(ZONE self, ZONE aZone) -> ZONE

Definition at line 16861 of file pcbnew.py.

Member Function Documentation

◆ __eq__()

pcbnew.ZONE.__eq__ ( self,
* args )
    __eq__(ZONE self, ZONE aOther) -> bool
    __eq__(ZONE self, BOARD_ITEM aOther) -> bool

Definition at line 17418 of file pcbnew.py.

◆ AddPolygon()

pcbnew.ZONE.AddPolygon ( self,
* args )
    AddPolygon(ZONE self, VECTOR_VECTOR2I aPolygon)
    AddPolygon(ZONE self, SHAPE_LINE_CHAIN aPolygon)

Definition at line 17259 of file pcbnew.py.

◆ AppendCorner()

pcbnew.ZONE.AppendCorner ( self,
aPosition,
aHoleIdx,
aAllowDuplication = False )
AppendCorner(ZONE self, VECTOR2I aPosition, int aHoleIdx, bool aAllowDuplication=False) -> bool

Definition at line 17195 of file pcbnew.py.

◆ BuildHashValue()

pcbnew.ZONE.BuildHashValue ( self,
aLayer )
BuildHashValue(ZONE self, PCB_LAYER_ID aLayer)

Definition at line 17410 of file pcbnew.py.

◆ BuildSmoothedPoly()

pcbnew.ZONE.BuildSmoothedPoly ( self,
aSmoothedPoly,
aLayer,
aBoardOutline,
aSmoothedPolyWithApron = None )
BuildSmoothedPoly(ZONE self, SHAPE_POLY_SET aSmoothedPoly, PCB_LAYER_ID aLayer, SHAPE_POLY_SET aBoardOutline, SHAPE_POLY_SET aSmoothedPolyWithApron=None) -> bool

Definition at line 17235 of file pcbnew.py.

◆ CacheBoundingBox()

pcbnew.ZONE.CacheBoundingBox ( self)
CacheBoundingBox(ZONE self)

Definition at line 16930 of file pcbnew.py.

◆ CacheTriangulation()

pcbnew.ZONE.CacheTriangulation ( self,
aLayer = UNDEFINED_LAYER )
CacheTriangulation(ZONE self, PCB_LAYER_ID aLayer=UNDEFINED_LAYER)

Definition at line 17219 of file pcbnew.py.

◆ CalculateFilledArea()

pcbnew.ZONE.CalculateFilledArea ( self)
CalculateFilledArea(ZONE self) -> double

Definition at line 16980 of file pcbnew.py.

◆ CalculateOutlineArea()

pcbnew.ZONE.CalculateOutlineArea ( self)
CalculateOutlineArea(ZONE self) -> double

Definition at line 16984 of file pcbnew.py.

◆ CIterateWithHoles()

pcbnew.ZONE.CIterateWithHoles ( self)
CIterateWithHoles(ZONE self) -> SHAPE_POLY_SET::CONST_ITERATOR

Definition at line 17179 of file pcbnew.py.

◆ ClassOf()

pcbnew.ZONE.ClassOf ( aItem)
static
ClassOf(EDA_ITEM aItem) -> bool

Reimplemented from pcbnew.BOARD_CONNECTED_ITEM.

Definition at line 16870 of file pcbnew.py.

◆ Clone()

pcbnew.ZONE.Clone ( self,
* args )
    Clone(ZONE self) -> EDA_ITEM
    Clone(ZONE self, PCB_LAYER_ID aLayer) -> ZONE

Reimplemented from pcbnew.EDA_ITEM.

Definition at line 17266 of file pcbnew.py.

◆ Deserialize()

pcbnew.ZONE.Deserialize ( self,
aContainer )
Deserialize(ZONE self, google::protobuf::Any const & aContainer) -> bool

Definition at line 16878 of file pcbnew.py.

◆ Duplicate()

pcbnew.ZONE.Duplicate ( self,
addToParentGroup,
aCommit = None )
Duplicate(ZONE self, bool addToParentGroup, BOARD_COMMIT * aCommit=None) -> BOARD_ITEM

Reimplemented from pcbnew.BOARD_ITEM.

Definition at line 17273 of file pcbnew.py.

◆ GetAssignedPriority()

pcbnew.ZONE.GetAssignedPriority ( self)
GetAssignedPriority(ZONE self) -> unsigned int

Definition at line 16894 of file pcbnew.py.

◆ GetBorderHatchPitch()

pcbnew.ZONE.GetBorderHatchPitch ( self)
GetBorderHatchPitch(ZONE self) -> int

Definition at line 17381 of file pcbnew.py.

◆ GetClass()

pcbnew.ZONE.GetClass ( self)
GetClass(ZONE self) -> wxString

Reimplemented from pcbnew.EDA_ITEM.

Definition at line 17163 of file pcbnew.py.

◆ GetCornerPosition()

pcbnew.ZONE.GetCornerPosition ( self,
aCornerIndex )
GetCornerPosition(ZONE self, int aCornerIndex) -> VECTOR2I

Definition at line 17187 of file pcbnew.py.

◆ GetCornerRadius()

pcbnew.ZONE.GetCornerRadius ( self)
GetCornerRadius(ZONE self) -> unsigned int

Definition at line 17251 of file pcbnew.py.

◆ GetCornerSmoothingType()

pcbnew.ZONE.GetCornerSmoothingType ( self)
GetCornerSmoothingType(ZONE self) -> ZONE_SETTINGS::CORNER_SMOOTHING

Definition at line 17243 of file pcbnew.py.

◆ GetDefaultHatchPitch()

pcbnew.ZONE.GetDefaultHatchPitch ( )
static
GetDefaultHatchPitch() -> int

Definition at line 17390 of file pcbnew.py.

◆ GetDoNotAllowFootprints()

pcbnew.ZONE.GetDoNotAllowFootprints ( self)
GetDoNotAllowFootprints(ZONE self) -> bool

Definition at line 17341 of file pcbnew.py.

◆ GetDoNotAllowPads()

pcbnew.ZONE.GetDoNotAllowPads ( self)
GetDoNotAllowPads(ZONE self) -> bool

Definition at line 17337 of file pcbnew.py.

◆ GetDoNotAllowTracks()

pcbnew.ZONE.GetDoNotAllowTracks ( self)
GetDoNotAllowTracks(ZONE self) -> bool

Definition at line 17333 of file pcbnew.py.

◆ GetDoNotAllowVias()

pcbnew.ZONE.GetDoNotAllowVias ( self)
GetDoNotAllowVias(ZONE self) -> bool

Definition at line 17329 of file pcbnew.py.

◆ GetDoNotAllowZoneFills()

pcbnew.ZONE.GetDoNotAllowZoneFills ( self)
GetDoNotAllowZoneFills(ZONE self) -> bool

Definition at line 17325 of file pcbnew.py.

◆ GetEffectiveShape()

pcbnew.ZONE.GetEffectiveShape ( self,
* args )
GetEffectiveShape(ZONE self, PCB_LAYER_ID aLayer=UNDEFINED_LAYER, FLASHING aFlash=DEFAULT) -> std::shared_ptr< SHAPE >

Reimplemented from pcbnew.BOARD_ITEM.

Definition at line 17111 of file pcbnew.py.

◆ GetFill()

pcbnew.ZONE.GetFill ( self,
aLayer )
GetFill(ZONE self, PCB_LAYER_ID aLayer) -> SHAPE_POLY_SET

Definition at line 17215 of file pcbnew.py.

◆ GetFilledArea()

pcbnew.ZONE.GetFilledArea ( self)
GetFilledArea(ZONE self) -> double

Definition at line 16988 of file pcbnew.py.

◆ GetFilledPolysList()

pcbnew.ZONE.GetFilledPolysList ( self,
aLayer )
GetFilledPolysList(ZONE self, PCB_LAYER_ID aLayer) -> std::shared_ptr< SHAPE_POLY_SET >

Definition at line 17211 of file pcbnew.py.

◆ GetFillFlag()

pcbnew.ZONE.GetFillFlag ( self,
aLayer )
GetFillFlag(ZONE self, PCB_LAYER_ID aLayer) -> int

Definition at line 16996 of file pcbnew.py.

◆ GetFillMode()

pcbnew.ZONE.GetFillMode ( self)
GetFillMode(ZONE self) -> ZONE_FILL_MODE

Definition at line 16957 of file pcbnew.py.

◆ GetFirstLayer()

pcbnew.ZONE.GetFirstLayer ( self)
GetFirstLayer(ZONE self) -> PCB_LAYER_ID

Definition at line 16945 of file pcbnew.py.

◆ GetHashValue()

pcbnew.ZONE.GetHashValue ( self,
aLayer )
GetHashValue(ZONE self, PCB_LAYER_ID aLayer) -> HASH_128

Definition at line 17414 of file pcbnew.py.

◆ GetHatchBorderAlgorithm()

pcbnew.ZONE.GetHatchBorderAlgorithm ( self)
GetHatchBorderAlgorithm(ZONE self) -> int

Definition at line 17084 of file pcbnew.py.

◆ GetHatchGap()

pcbnew.ZONE.GetHatchGap ( self)
GetHatchGap(ZONE self) -> int

Definition at line 17044 of file pcbnew.py.

◆ GetHatchHoleMinArea()

pcbnew.ZONE.GetHatchHoleMinArea ( self)
GetHatchHoleMinArea(ZONE self) -> double

Definition at line 17076 of file pcbnew.py.

◆ GetHatchLines()

pcbnew.ZONE.GetHatchLines ( self)
GetHatchLines(ZONE self) -> std::vector< SEG,std::allocator< SEG > > const &

Definition at line 17406 of file pcbnew.py.

◆ GetHatchOrientation()

pcbnew.ZONE.GetHatchOrientation ( self)
GetHatchOrientation(ZONE self) -> EDA_ANGLE

Definition at line 17052 of file pcbnew.py.

◆ GetHatchSmoothingLevel()

pcbnew.ZONE.GetHatchSmoothingLevel ( self)
GetHatchSmoothingLevel(ZONE self) -> int

Definition at line 17060 of file pcbnew.py.

◆ GetHatchSmoothingValue()

pcbnew.ZONE.GetHatchSmoothingValue ( self)
GetHatchSmoothingValue(ZONE self) -> double

Definition at line 17068 of file pcbnew.py.

◆ GetHatchStyle()

pcbnew.ZONE.GetHatchStyle ( self)
GetHatchStyle(ZONE self) -> ZONE_BORDER_DISPLAY_STYLE

Definition at line 17199 of file pcbnew.py.

◆ GetHatchThickness()

pcbnew.ZONE.GetHatchThickness ( self)
GetHatchThickness(ZONE self) -> int

Definition at line 17036 of file pcbnew.py.

◆ GetInteractingZones()

pcbnew.ZONE.GetInteractingZones ( self,
aLayer,
aSameNetCollidingZones,
aOtherNetIntersectingZones )
GetInteractingZones(ZONE self, PCB_LAYER_ID aLayer, ZONES aSameNetCollidingZones, ZONES aOtherNetIntersectingZones)

Definition at line 17123 of file pcbnew.py.

◆ GetIslandRemovalMode()

pcbnew.ZONE.GetIslandRemovalMode ( self)
GetIslandRemovalMode(ZONE self) -> ISLAND_REMOVAL_MODE

Definition at line 17365 of file pcbnew.py.

◆ GetIsRuleArea()

pcbnew.ZONE.GetIsRuleArea ( self)
GetIsRuleArea(ZONE self) -> bool

Definition at line 17293 of file pcbnew.py.

◆ GetLocalClearance()

pcbnew.ZONE.GetLocalClearance ( self,
* args )
    GetLocalClearance(ZONE self) -> std::optional< int >
    GetLocalClearance(ZONE self, wxString aSource) -> std::optional< int >

Reimplemented from pcbnew.BOARD_CONNECTED_ITEM.

Definition at line 16938 of file pcbnew.py.

◆ GetLocalFlags()

pcbnew.ZONE.GetLocalFlags ( self)
GetLocalFlags(ZONE self) -> int

Definition at line 17092 of file pcbnew.py.

◆ GetMinIslandArea()

pcbnew.ZONE.GetMinIslandArea ( self)
GetMinIslandArea(ZONE self) -> long long

Definition at line 17373 of file pcbnew.py.

◆ GetMinThickness()

pcbnew.ZONE.GetMinThickness ( self)
GetMinThickness(ZONE self) -> int

Definition at line 17028 of file pcbnew.py.

◆ GetNumCorners()

pcbnew.ZONE.GetNumCorners ( self)
GetNumCorners(ZONE self) -> int

Definition at line 17167 of file pcbnew.py.

◆ GetOutlineArea()

pcbnew.ZONE.GetOutlineArea ( self)
GetOutlineArea(ZONE self) -> double

Definition at line 16992 of file pcbnew.py.

◆ GetPadConnection()

pcbnew.ZONE.GetPadConnection ( self)
GetPadConnection(ZONE self) -> ZONE_CONNECTION

Definition at line 17020 of file pcbnew.py.

◆ GetPlacementAreaEnabled()

pcbnew.ZONE.GetPlacementAreaEnabled ( self)
GetPlacementAreaEnabled(ZONE self) -> bool

Definition at line 17301 of file pcbnew.py.

◆ GetPlacementAreaSource()

pcbnew.ZONE.GetPlacementAreaSource ( self)
GetPlacementAreaSource(ZONE self) -> wxString

Definition at line 17309 of file pcbnew.py.

◆ GetPlacementAreaSourceType()

pcbnew.ZONE.GetPlacementAreaSourceType ( self)
GetPlacementAreaSourceType(ZONE self) -> PLACEMENT_SOURCE_T

Definition at line 17317 of file pcbnew.py.

◆ GetTeardropAreaType()

pcbnew.ZONE.GetTeardropAreaType ( self)
GetTeardropAreaType(ZONE self) -> TEARDROP_TYPE

Definition at line 17285 of file pcbnew.py.

◆ GetThermalReliefGap()

pcbnew.ZONE.GetThermalReliefGap ( self,
* args )
    GetThermalReliefGap(ZONE self) -> int
    GetThermalReliefGap(ZONE self, PAD aPad, wxString aSource=None) -> int

Definition at line 16965 of file pcbnew.py.

◆ GetThermalReliefSpokeWidth()

pcbnew.ZONE.GetThermalReliefSpokeWidth ( self)
GetThermalReliefSpokeWidth(ZONE self) -> int

Definition at line 16976 of file pcbnew.py.

◆ GetZoneName()

pcbnew.ZONE.GetZoneName ( self)
GetZoneName(ZONE self) -> wxString

Definition at line 16922 of file pcbnew.py.

◆ HasFilledPolysForLayer()

pcbnew.ZONE.HasFilledPolysForLayer ( self,
aLayer )
HasFilledPolysForLayer(ZONE self, PCB_LAYER_ID aLayer) -> bool

Definition at line 17207 of file pcbnew.py.

◆ HasKeepoutParametersSet()

pcbnew.ZONE.HasKeepoutParametersSet ( self)
HasKeepoutParametersSet(ZONE self) -> bool

Definition at line 17289 of file pcbnew.py.

◆ HatchBorder()

pcbnew.ZONE.HatchBorder ( self)
HatchBorder(ZONE self)

Definition at line 17402 of file pcbnew.py.

◆ HigherPriority()

pcbnew.ZONE.HigherPriority ( self,
aOther )
HigherPriority(ZONE self, ZONE aOther) -> bool

Definition at line 16898 of file pcbnew.py.

◆ HitTest()

pcbnew.ZONE.HitTest ( self,
* args )
    HitTest(ZONE self, VECTOR2I aPosition, int aAccuracy=0) -> bool
    HitTest(ZONE self, BOX2I aRect, bool aContained=True, int aAccuracy=0) -> bool
    HitTest(ZONE self, SHAPE_LINE_CHAIN aPoly, bool aContained) -> bool

Reimplemented from pcbnew.EDA_ITEM.

Definition at line 17147 of file pcbnew.py.

◆ HitTestCutout()

pcbnew.ZONE.HitTestCutout ( self,
aRefPos,
aOutlineIdx = None,
aHoleIdx = None )
HitTestCutout(ZONE self, VECTOR2I aRefPos, int * aOutlineIdx=None, int * aHoleIdx=None) -> bool

Definition at line 17119 of file pcbnew.py.

◆ HitTestFilledArea()

pcbnew.ZONE.HitTestFilledArea ( self,
aLayer,
aRefPos,
aAccuracy = 0 )
HitTestFilledArea(ZONE self, PCB_LAYER_ID aLayer, VECTOR2I aRefPos, int aAccuracy=0) -> bool

Definition at line 17115 of file pcbnew.py.

◆ HitTestForCorner()

pcbnew.ZONE.HitTestForCorner ( self,
refPos,
aAccuracy,
aCornerHit = None )
HitTestForCorner(ZONE self, VECTOR2I refPos, int aAccuracy, SHAPE_POLY_SET::VERTEX_INDEX * aCornerHit=None) -> bool

Definition at line 17139 of file pcbnew.py.

◆ HitTestForEdge()

pcbnew.ZONE.HitTestForEdge ( self,
refPos,
aAccuracy,
aCornerHit = None )
HitTestForEdge(ZONE self, VECTOR2I refPos, int aAccuracy, SHAPE_POLY_SET::VERTEX_INDEX * aCornerHit=None) -> bool

Definition at line 17143 of file pcbnew.py.

◆ InitDataFromSrcInCopyCtor()

pcbnew.ZONE.InitDataFromSrcInCopyCtor ( self,
aZone,
aLayer = UNDEFINED_LAYER )
InitDataFromSrcInCopyCtor(ZONE self, ZONE aZone, PCB_LAYER_ID aLayer=UNDEFINED_LAYER)

Definition at line 16882 of file pcbnew.py.

◆ IsConflicting()

pcbnew.ZONE.IsConflicting ( self)
IsConflicting(ZONE self) -> bool

Definition at line 16886 of file pcbnew.py.

◆ IsFilled()

pcbnew.ZONE.IsFilled ( self)
IsFilled(ZONE self) -> bool

Definition at line 17004 of file pcbnew.py.

◆ IsIsland()

pcbnew.ZONE.IsIsland ( self,
aLayer,
aPolyIdx )
IsIsland(ZONE self, PCB_LAYER_ID aLayer, int aPolyIdx) -> bool

Definition at line 17227 of file pcbnew.py.

◆ IsTeardropArea()

pcbnew.ZONE.IsTeardropArea ( self)
IsTeardropArea(ZONE self) -> bool

Definition at line 17277 of file pcbnew.py.

◆ Iterate()

pcbnew.ZONE.Iterate ( self)
Iterate(ZONE self) -> SHAPE_POLY_SET::ITERATOR

Definition at line 17171 of file pcbnew.py.

◆ IterateWithHoles()

pcbnew.ZONE.IterateWithHoles ( self)
IterateWithHoles(ZONE self) -> SHAPE_POLY_SET::ITERATOR

Definition at line 17175 of file pcbnew.py.

◆ LayerProperties()

pcbnew.ZONE.LayerProperties ( self,
* args )
    LayerProperties(ZONE self, PCB_LAYER_ID aLayer) -> ZONE_LAYER_PROPERTIES
    LayerProperties(ZONE self) -> std::map< PCB_LAYER_ID,ZONE_LAYER_PROPERTIES,std::less< PCB_LAYER_ID >,std::allocator< std::pair< PCB_LAYER_ID const,ZONE_LAYER_PROPERTIES > > >
    LayerProperties(ZONE self) -> std::map< PCB_LAYER_ID,ZONE_LAYER_PROPERTIES,std::less< PCB_LAYER_ID >,std::allocator< std::pair< PCB_LAYER_ID const,ZONE_LAYER_PROPERTIES > > > const &

Definition at line 16910 of file pcbnew.py.

◆ MoveEdge()

pcbnew.ZONE.MoveEdge ( self,
offset,
aEdge )
MoveEdge(ZONE self, VECTOR2I offset, int aEdge)

Definition at line 17159 of file pcbnew.py.

◆ NeedRefill()

pcbnew.ZONE.NeedRefill ( self)
NeedRefill(ZONE self) -> bool

Definition at line 17012 of file pcbnew.py.

◆ NewHole()

pcbnew.ZONE.NewHole ( self)
NewHole(ZONE self)

Definition at line 17191 of file pcbnew.py.

◆ Outline()

pcbnew.ZONE.Outline ( self,
* args )
    Outline(ZONE self) -> SHAPE_POLY_SET
    Outline(ZONE self) -> SHAPE_POLY_SET

Definition at line 17100 of file pcbnew.py.

◆ RemoveAllContours()

pcbnew.ZONE.RemoveAllContours ( self)
RemoveAllContours(ZONE self)

Definition at line 17183 of file pcbnew.py.

◆ RemoveCutout()

pcbnew.ZONE.RemoveCutout ( self,
aOutlineIdx,
aHoleIdx )
RemoveCutout(ZONE self, int aOutlineIdx, int aHoleIdx)

Definition at line 17255 of file pcbnew.py.

◆ SameNet()

pcbnew.ZONE.SameNet ( self,
aOther )
SameNet(ZONE self, ZONE aOther) -> bool

Definition at line 16902 of file pcbnew.py.

◆ Serialize()

pcbnew.ZONE.Serialize ( self,
aContainer )
Serialize(ZONE self, google::protobuf::Any & aContainer)

Definition at line 16874 of file pcbnew.py.

◆ SetAssignedPriority()

pcbnew.ZONE.SetAssignedPriority ( self,
aPriority )
SetAssignedPriority(ZONE self, unsigned int aPriority)

Definition at line 16890 of file pcbnew.py.

◆ SetBorderDisplayStyle()

pcbnew.ZONE.SetBorderDisplayStyle ( self,
aBorderHatchStyle,
aBorderHatchPitch,
aRebuilBorderdHatch )
SetBorderDisplayStyle(ZONE self, ZONE_BORDER_DISPLAY_STYLE aBorderHatchStyle, int aBorderHatchPitch, bool aRebuilBorderdHatch)

Definition at line 17394 of file pcbnew.py.

◆ SetBorderHatchPitch()

pcbnew.ZONE.SetBorderHatchPitch ( self,
aPitch )
SetBorderHatchPitch(ZONE self, int aPitch)

Definition at line 17385 of file pcbnew.py.

◆ SetCornerRadius()

pcbnew.ZONE.SetCornerRadius ( self,
aRadius )
SetCornerRadius(ZONE self, unsigned int aRadius)

Definition at line 17247 of file pcbnew.py.

◆ SetCornerSmoothingType()

pcbnew.ZONE.SetCornerSmoothingType ( self,
aType )
SetCornerSmoothingType(ZONE self, ZONE_SETTINGS::CORNER_SMOOTHING aType)

Definition at line 17239 of file pcbnew.py.

◆ SetDoNotAllowFootprints()

pcbnew.ZONE.SetDoNotAllowFootprints ( self,
aEnable )
SetDoNotAllowFootprints(ZONE self, bool aEnable)

Definition at line 17361 of file pcbnew.py.

◆ SetDoNotAllowPads()

pcbnew.ZONE.SetDoNotAllowPads ( self,
aEnable )
SetDoNotAllowPads(ZONE self, bool aEnable)

Definition at line 17357 of file pcbnew.py.

◆ SetDoNotAllowTracks()

pcbnew.ZONE.SetDoNotAllowTracks ( self,
aEnable )
SetDoNotAllowTracks(ZONE self, bool aEnable)

Definition at line 17353 of file pcbnew.py.

◆ SetDoNotAllowVias()

pcbnew.ZONE.SetDoNotAllowVias ( self,
aEnable )
SetDoNotAllowVias(ZONE self, bool aEnable)

Definition at line 17349 of file pcbnew.py.

◆ SetDoNotAllowZoneFills()

pcbnew.ZONE.SetDoNotAllowZoneFills ( self,
aEnable )
SetDoNotAllowZoneFills(ZONE self, bool aEnable)

Definition at line 17345 of file pcbnew.py.

◆ SetFilledPolysList()

pcbnew.ZONE.SetFilledPolysList ( self,
aLayer,
aPolysList )
SetFilledPolysList(ZONE self, PCB_LAYER_ID aLayer, SHAPE_POLY_SET aPolysList)

Definition at line 17223 of file pcbnew.py.

◆ SetFillFlag()

pcbnew.ZONE.SetFillFlag ( self,
aLayer,
aFlag )
SetFillFlag(ZONE self, PCB_LAYER_ID aLayer, bool aFlag)

Definition at line 17000 of file pcbnew.py.

◆ SetFillMode()

pcbnew.ZONE.SetFillMode ( self,
aFillMode )
SetFillMode(ZONE self, ZONE_FILL_MODE aFillMode)

Definition at line 16953 of file pcbnew.py.

◆ SetHatchBorderAlgorithm()

pcbnew.ZONE.SetHatchBorderAlgorithm ( self,
aAlgo )
SetHatchBorderAlgorithm(ZONE self, int aAlgo)

Definition at line 17088 of file pcbnew.py.

◆ SetHatchGap()

pcbnew.ZONE.SetHatchGap ( self,
aStep )
SetHatchGap(ZONE self, int aStep)

Definition at line 17048 of file pcbnew.py.

◆ SetHatchHoleMinArea()

pcbnew.ZONE.SetHatchHoleMinArea ( self,
aPct )
SetHatchHoleMinArea(ZONE self, double aPct)

Definition at line 17080 of file pcbnew.py.

◆ SetHatchOrientation()

pcbnew.ZONE.SetHatchOrientation ( self,
aStep )
SetHatchOrientation(ZONE self, EDA_ANGLE aStep)

Definition at line 17056 of file pcbnew.py.

◆ SetHatchSmoothingLevel()

pcbnew.ZONE.SetHatchSmoothingLevel ( self,
aLevel )
SetHatchSmoothingLevel(ZONE self, int aLevel)

Definition at line 17064 of file pcbnew.py.

◆ SetHatchSmoothingValue()

pcbnew.ZONE.SetHatchSmoothingValue ( self,
aValue )
SetHatchSmoothingValue(ZONE self, double aValue)

Definition at line 17072 of file pcbnew.py.

◆ SetHatchStyle()

pcbnew.ZONE.SetHatchStyle ( self,
aStyle )
SetHatchStyle(ZONE self, ZONE_BORDER_DISPLAY_STYLE aStyle)

Definition at line 17203 of file pcbnew.py.

◆ SetHatchThickness()

pcbnew.ZONE.SetHatchThickness ( self,
aThickness )
SetHatchThickness(ZONE self, int aThickness)

Definition at line 17040 of file pcbnew.py.

◆ SetIsFilled()

pcbnew.ZONE.SetIsFilled ( self,
isFilled )
SetIsFilled(ZONE self, bool isFilled)

Definition at line 17008 of file pcbnew.py.

◆ SetIsIsland()

pcbnew.ZONE.SetIsIsland ( self,
aLayer,
aPolyIdx )
SetIsIsland(ZONE self, PCB_LAYER_ID aLayer, int aPolyIdx)

Definition at line 17231 of file pcbnew.py.

◆ SetIslandRemovalMode()

pcbnew.ZONE.SetIslandRemovalMode ( self,
aRemove )
SetIslandRemovalMode(ZONE self, ISLAND_REMOVAL_MODE aRemove)

Definition at line 17369 of file pcbnew.py.

◆ SetIsRuleArea()

pcbnew.ZONE.SetIsRuleArea ( self,
aEnable )
SetIsRuleArea(ZONE self, bool aEnable)

Definition at line 17297 of file pcbnew.py.

◆ SetLayerProperties()

pcbnew.ZONE.SetLayerProperties ( self,
aOther )
SetLayerProperties(ZONE self, std::map< PCB_LAYER_ID,ZONE_LAYER_PROPERTIES,std::less< PCB_LAYER_ID >,std::allocator< std::pair< PCB_LAYER_ID const,ZONE_LAYER_PROPERTIES > > > const & aOther)

Definition at line 16918 of file pcbnew.py.

◆ SetLayerSetAndRemoveUnusedFills()

pcbnew.ZONE.SetLayerSetAndRemoveUnusedFills ( self,
aLayerSet )
SetLayerSetAndRemoveUnusedFills(ZONE self, LSET aLayerSet)

Definition at line 16906 of file pcbnew.py.

◆ SetLocalClearance()

pcbnew.ZONE.SetLocalClearance ( self,
aClearance )
SetLocalClearance(ZONE self, std::optional< int > aClearance)

Definition at line 16934 of file pcbnew.py.

◆ SetLocalFlags()

pcbnew.ZONE.SetLocalFlags ( self,
aFlags )
SetLocalFlags(ZONE self, int aFlags)

Definition at line 17096 of file pcbnew.py.

◆ SetMinIslandArea()

pcbnew.ZONE.SetMinIslandArea ( self,
aArea )
SetMinIslandArea(ZONE self, long long aArea)

Definition at line 17377 of file pcbnew.py.

◆ SetMinThickness()

pcbnew.ZONE.SetMinThickness ( self,
aMinThickness )
SetMinThickness(ZONE self, int aMinThickness)

Definition at line 17032 of file pcbnew.py.

◆ SetNeedRefill()

pcbnew.ZONE.SetNeedRefill ( self,
aNeedRefill )
SetNeedRefill(ZONE self, bool aNeedRefill)

Definition at line 17016 of file pcbnew.py.

◆ SetOutline()

pcbnew.ZONE.SetOutline ( self,
aOutline )
SetOutline(ZONE self, SHAPE_POLY_SET aOutline)

Definition at line 17107 of file pcbnew.py.

◆ SetPadConnection()

pcbnew.ZONE.SetPadConnection ( self,
aPadConnection )
SetPadConnection(ZONE self, ZONE_CONNECTION aPadConnection)

Definition at line 17024 of file pcbnew.py.

◆ SetPlacementAreaEnabled()

pcbnew.ZONE.SetPlacementAreaEnabled ( self,
aEnabled )
SetPlacementAreaEnabled(ZONE self, bool aEnabled)

Definition at line 17305 of file pcbnew.py.

◆ SetPlacementAreaSource()

pcbnew.ZONE.SetPlacementAreaSource ( self,
aSource )
SetPlacementAreaSource(ZONE self, wxString aSource)

Definition at line 17313 of file pcbnew.py.

◆ SetPlacementAreaSourceType()

pcbnew.ZONE.SetPlacementAreaSourceType ( self,
aType )
SetPlacementAreaSourceType(ZONE self, PLACEMENT_SOURCE_T aType)

Definition at line 17321 of file pcbnew.py.

◆ SetTeardropAreaType()

pcbnew.ZONE.SetTeardropAreaType ( self,
aType )
SetTeardropAreaType(ZONE self, TEARDROP_TYPE aType)

Definition at line 17281 of file pcbnew.py.

◆ SetThermalReliefGap()

pcbnew.ZONE.SetThermalReliefGap ( self,
aThermalReliefGap )
SetThermalReliefGap(ZONE self, int aThermalReliefGap)

Definition at line 16961 of file pcbnew.py.

◆ SetThermalReliefSpokeWidth()

pcbnew.ZONE.SetThermalReliefSpokeWidth ( self,
aThermalReliefSpokeWidth )
SetThermalReliefSpokeWidth(ZONE self, int aThermalReliefSpokeWidth)

Definition at line 16972 of file pcbnew.py.

◆ SetZoneName()

pcbnew.ZONE.SetZoneName ( self,
aName )
SetZoneName(ZONE self, wxString aName)

Definition at line 16926 of file pcbnew.py.

◆ TransformShapeToPolygon()

pcbnew.ZONE.TransformShapeToPolygon ( self,
aBuffer,
aLayer,
aClearance,
aError,
aErrorLoc,
ignoreLineWidth = False )
TransformShapeToPolygon(ZONE self, SHAPE_POLY_SET aBuffer, PCB_LAYER_ID aLayer, int aClearance, int aError, ERROR_LOC aErrorLoc, bool ignoreLineWidth=False)

Reimplemented from pcbnew.BOARD_ITEM.

Definition at line 17135 of file pcbnew.py.

◆ TransformSmoothedOutlineToPolygon()

pcbnew.ZONE.TransformSmoothedOutlineToPolygon ( self,
aBuffer,
aClearance,
aError,
aErrorLoc,
aBoardOutline )
TransformSmoothedOutlineToPolygon(ZONE self, SHAPE_POLY_SET aBuffer, int aClearance, int aError, ERROR_LOC aErrorLoc, SHAPE_POLY_SET aBoardOutline)

Definition at line 17131 of file pcbnew.py.

◆ TransformSolidAreasShapesToPolygon()

pcbnew.ZONE.TransformSolidAreasShapesToPolygon ( self,
aLayer,
aBuffer )
TransformSolidAreasShapesToPolygon(ZONE self, PCB_LAYER_ID aLayer, SHAPE_POLY_SET aBuffer)

Definition at line 17127 of file pcbnew.py.

◆ UnFill()

pcbnew.ZONE.UnFill ( self)
UnFill(ZONE self) -> bool

Definition at line 17155 of file pcbnew.py.

◆ UnHatchBorder()

pcbnew.ZONE.UnHatchBorder ( self)
UnHatchBorder(ZONE self)

Definition at line 17398 of file pcbnew.py.

◆ ViewGetLOD()

pcbnew.ZONE.ViewGetLOD ( self,
aLayer,
aView )
ViewGetLOD(ZONE self, int aLayer, KIGFX::VIEW const * aView) -> double

Definition at line 16949 of file pcbnew.py.

Property Documentation

◆ thisown

pcbnew.ZONE.thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")
static

Definition at line 16858 of file pcbnew.py.

The documentation for this class was generated from the following file:
Generated on Wed Oct 21 2026 20:46:10 for KiCad Pcbnew Python Scripting by doxygen 1.13.2
