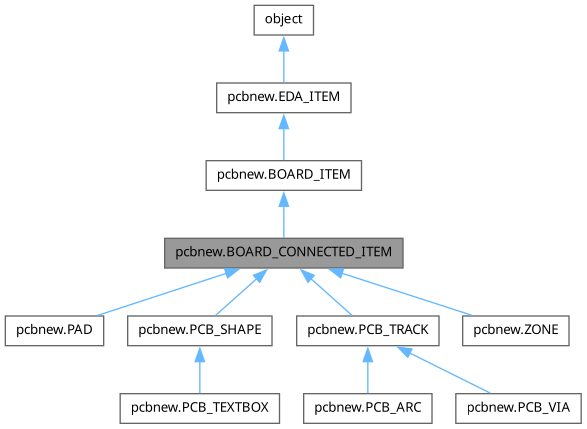

Inheritance diagram for pcbnew.BOARD_CONNECTED_ITEM:

[legend]

Public Member Functions
	__init__ (self, args, *kwargs)

	GetNet (self)

	SetNet (self, aNetInfo)

	UnpackNet (self, aProto)

	PackNet (self, aProto)

	GetNetCode (self)

	SetNetCode (self, *args)

	GetNetname (self)

	GetNetnameMsg (self)

	GetShortNetname (self)

	GetDisplayNetname (self)

	GetOwnClearance (self, aLayer, aSource=None)

	GetClearanceOverrides (self, aSource)

	GetLocalClearance (self, *args)

	GetEffectiveNetClass (self)

	GetNetClassName (self)

	SetLocalRatsnestVisible (self, aVisible)

	GetLocalRatsnestVisible (self)

	GetTeardropParams (self, *args)

	SetTeardropsEnabled (self, aEnable)

	GetTeardropsEnabled (self)

	SetTeardropBestLengthRatio (self, aRatio)

	GetTeardropBestLengthRatio (self)

	SetTeardropMaxLength (self, aMaxLength)

	GetTeardropMaxLength (self)

	SetTeardropBestWidthRatio (self, aRatio)

	GetTeardropBestWidthRatio (self)

	SetTeardropMaxWidth (self, aMaxWidth)

	GetTeardropMaxWidth (self)

	SetTeardropCurved (self, aCurve)

	GetTeardropCurved (self)

	SetTeardropPreferZoneConnections (self, aPrefer)

	GetTeardropPreferZoneConnections (self)

	SetTeardropAllowSpanTwoTracks (self, aAllow)

	GetTeardropAllowSpanTwoTracks (self)

	SetTeardropMaxTrackWidth (self, aRatio)

	GetTeardropMaxTrackWidth (self)

Public Member Functions inherited from pcbnew.BOARD_ITEM
	__init__ (self, args, *kwargs)

	CopyFrom (self, aOther)

	IsGroupableType (self)

	GetX (self)

	GetY (self)

	GetCenter (self)

	SetX (self, aX)

	SetY (self, aY)

	IsConnected (self)

	Similarity (self, aItem)

	__eq__ (self, aItem)

	IsOnCopperLayer (self)

	HasHole (self)

	HasDrilledHole (self)

	IsTented (self, aLayer)

	GetEffectiveShape (self, *args)

	GetEffectiveHoleShape (self)

	RunOnChildren (self, aFunction, aMode)

	GetParent (self)

	GetParentFootprint (self)

	SetUuidDirect (self, aUuid)

	ResetUuidDirect (self)

	SetUuid (self, aUuid)

	ResetUuid (self)

	GetFPRelativePosition (self)

	SetFPRelativePosition (self, aPos)

	HasLineStroke (self)

	GetStroke (self)

	SetStroke (self, aStroke)

	GetFontMetrics (self)

	GetLayer (self)

	BoardLayerCount (self)

	BoardCopperLayerCount (self)

	BoardLayerSet (self)

	GetLayerSet (self)

	SetLayerSet (self, aLayers)

	IsSideSpecific (self)

	SetLayer (self, aLayer)

	Duplicate (self, addToParentGroup, aCommit=None)

	SwapItemData (self, aImage)

	IsOnLayer (self, aLayer)

	IsKnockout (self)

	SetIsKnockout (self, aKnockout)

	IsIndexedInBoard (self)

	GetMaxError (self)

	StyleFromSettings (self, settings, aCheckSide)

	DeleteStructure (self)

	Move (self, aMoveVector)

	Rotate (self, aRotCentre, aAngle)

	Flip (self, aCentre, aFlipDirection)

	Mirror (self, aCentre, aFlipDirection)

	Normalize (self)

	NormalizeForCompare (self)

	GetBoard (self, *args)

	GetParentAsString (self)

	GetLayerName (self)

	TransformShapeToPolygon (self, aBuffer, aLayer, aClearance, aError, aErrorLoc, ignoreLineWidth=False)

	TransformShapeToPolySet (self, aBuffer, aLayer, aClearance, aError, aErrorLoc, aRenderSettings=None)

	LayerMaskDescribe (self)

	Cast (self)

	Duplicate (self)

	SetPos (self, p)

	SetStartEnd (self, start, end)

Public Member Functions inherited from pcbnew.EDA_ITEM
	__init__ (self, args, *kwargs)

	Type (self)

	SetParent (self, aParent)

	SetParentGroup (self, aGroup)

	GetParentGroup (self)

	GetParentGroupId (self)

	HasSelectedAncestorGroup (self)

	IsLocked (self)

	SetLocked (self, aLocked)

	IsModified (self)

	IsNew (self)

	IsMoving (self)

	IsSelected (self)

	IsEntered (self)

	IsBrightened (self)

	IsRollover (self)

	GetRolloverPos (self)

	SetIsRollover (self, aIsRollover, aMousePos)

	SetSelected (self)

	SetBrightened (self)

	ClearSelected (self)

	ClearBrightened (self)

	SetModified (self)

	SetFlags (self, aMask)

	XorFlags (self, aMask)

	ClearFlags (self, *args)

	GetFlags (self)

	HasFlag (self, aFlag)

	GetEditFlags (self)

	ClearEditFlags (self)

	GetTempFlags (self)

	ClearTempFlags (self)

	RenderAsBitmap (self, aWorldScale)

	SetIsShownAsBitmap (self, aBitmap)

	IsShownAsBitmap (self)

	IsType (self, aScanTypes)

	SetForceVisible (self, aEnable)

	IsForceVisible (self)

	GetMsgPanelInfo (self, aFrame, aList)

	GetFriendlyName (self)

	HitTest (self, *args)

	GetBoundingBox (self)

	GetPosition (self)

	SetPosition (self, aPos)

	GetFocusPosition (self)

	GetSortPosition (self)

	Clone (self)

	Visit (self, inspector, testData, aScanTypes)

	GetTypeDesc (self)

	GetItemDescription (self, aUnitsProvider, aFull)

	DisambiguateItemDescription (self, aUnitsProvider, aFull)

	GetMenuImage (self)

	Matches (self, aSearchData, aAuxData)

	Replace (self, *args)

	IsReplaceable (self)

	__lt__ (self, aItem)

	ViewBBox (self)

	ViewGetLayers (self)

	GetEmbeddedFiles (self)

	GetEmbeddedFonts (self)

	PyGetClass (self)

	GetClass (self)

Static Public Member Functions
	ClassOf (aItem)

Static Public Member Functions inherited from pcbnew.EDA_ITEM
	Sort (aLeft, aRight)

Properties
	thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

Properties inherited from pcbnew.BOARD_ITEM
	thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

Properties inherited from pcbnew.EDA_ITEM
	thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

	m_Uuid = property(_pcbnew.EDA_ITEM_m_Uuid_get, doc=)

Additional Inherited Members
Static Public Attributes inherited from pcbnew.BOARD_ITEM
	DRC = _pcbnew.BOARD_ITEM_DRC

	INSTANCE_TO_INSTANCE = _pcbnew.BOARD_ITEM_INSTANCE_TO_INSTANCE

Detailed Description

Proxy of C++ BOARD_CONNECTED_ITEM class.

Definition at line 11325 of file pcbnew.py.

Constructor & Destructor Documentation

◆ init()

pcbnew.BOARD_CONNECTED_ITEM.__init__	(		self,
		*	args,
		**	kwargs )

Definition at line 11330 of file pcbnew.py.

Member Function Documentation

◆ ClassOf()

pcbnew.BOARD_CONNECTED_ITEM.ClassOf ( aItem )

static

ClassOf(EDA_ITEM aItem) -> bool

Reimplemented in pcbnew.PAD, pcbnew.PCB_ARC, pcbnew.PCB_SHAPE, pcbnew.PCB_TEXTBOX, pcbnew.PCB_TRACK, pcbnew.PCB_VIA, and pcbnew.ZONE.

Definition at line 11335 of file pcbnew.py.

◆ GetClearanceOverrides()

pcbnew.BOARD_CONNECTED_ITEM.GetClearanceOverrides	(		self,
			aSource )

GetClearanceOverrides(BOARD_CONNECTED_ITEM self, wxString aSource) -> std::optional< int >

Definition at line 11386 of file pcbnew.py.

◆ GetDisplayNetname()

pcbnew.BOARD_CONNECTED_ITEM.GetDisplayNetname ( self )

GetDisplayNetname(BOARD_CONNECTED_ITEM self) -> wxString

Definition at line 11378 of file pcbnew.py.

◆ GetEffectiveNetClass()

pcbnew.BOARD_CONNECTED_ITEM.GetEffectiveNetClass ( self )

GetEffectiveNetClass(BOARD_CONNECTED_ITEM self) -> NETCLASS

Definition at line 11397 of file pcbnew.py.

◆ GetLocalClearance()

pcbnew.BOARD_CONNECTED_ITEM.GetLocalClearance	(		self,
		*	args )

    GetLocalClearance(BOARD_CONNECTED_ITEM self) -> std::optional< int >
    GetLocalClearance(BOARD_CONNECTED_ITEM self, wxString aSource) -> std::optional< int >

Reimplemented in pcbnew.PAD, and pcbnew.ZONE.

Definition at line 11390 of file pcbnew.py.

◆ GetLocalRatsnestVisible()

pcbnew.BOARD_CONNECTED_ITEM.GetLocalRatsnestVisible ( self )

GetLocalRatsnestVisible(BOARD_CONNECTED_ITEM self) -> bool

Definition at line 11409 of file pcbnew.py.

◆ GetNet()

pcbnew.BOARD_CONNECTED_ITEM.GetNet ( self )

GetNet(BOARD_CONNECTED_ITEM self) -> NETINFO_ITEM

Definition at line 11339 of file pcbnew.py.

◆ GetNetClassName()

pcbnew.BOARD_CONNECTED_ITEM.GetNetClassName ( self )

GetNetClassName(BOARD_CONNECTED_ITEM self) -> wxString

Definition at line 11401 of file pcbnew.py.

◆ GetNetCode()

pcbnew.BOARD_CONNECTED_ITEM.GetNetCode ( self )

GetNetCode(BOARD_CONNECTED_ITEM self) -> int

Definition at line 11355 of file pcbnew.py.

◆ GetNetname()

pcbnew.BOARD_CONNECTED_ITEM.GetNetname ( self )

GetNetname(BOARD_CONNECTED_ITEM self) -> wxString

Definition at line 11366 of file pcbnew.py.

◆ GetNetnameMsg()

pcbnew.BOARD_CONNECTED_ITEM.GetNetnameMsg ( self )

GetNetnameMsg(BOARD_CONNECTED_ITEM self) -> wxString

Definition at line 11370 of file pcbnew.py.

◆ GetOwnClearance()

pcbnew.BOARD_CONNECTED_ITEM.GetOwnClearance	(	self,
		aLayer,
		aSource = None )

GetOwnClearance(BOARD_CONNECTED_ITEM self, PCB_LAYER_ID aLayer, wxString aSource=None) -> int

Reimplemented in pcbnew.PAD.

Definition at line 11382 of file pcbnew.py.

◆ GetShortNetname()

pcbnew.BOARD_CONNECTED_ITEM.GetShortNetname ( self )

GetShortNetname(BOARD_CONNECTED_ITEM self) -> wxString

Definition at line 11374 of file pcbnew.py.

◆ GetTeardropAllowSpanTwoTracks()

pcbnew.BOARD_CONNECTED_ITEM.GetTeardropAllowSpanTwoTracks ( self )

GetTeardropAllowSpanTwoTracks(BOARD_CONNECTED_ITEM self) -> bool

Definition at line 11480 of file pcbnew.py.

◆ GetTeardropBestLengthRatio()

pcbnew.BOARD_CONNECTED_ITEM.GetTeardropBestLengthRatio ( self )

GetTeardropBestLengthRatio(BOARD_CONNECTED_ITEM self) -> double

Definition at line 11432 of file pcbnew.py.

◆ GetTeardropBestWidthRatio()

pcbnew.BOARD_CONNECTED_ITEM.GetTeardropBestWidthRatio ( self )

GetTeardropBestWidthRatio(BOARD_CONNECTED_ITEM self) -> double

Definition at line 11448 of file pcbnew.py.

◆ GetTeardropCurved()

pcbnew.BOARD_CONNECTED_ITEM.GetTeardropCurved ( self )

GetTeardropCurved(BOARD_CONNECTED_ITEM self) -> bool

Definition at line 11464 of file pcbnew.py.

◆ GetTeardropMaxLength()

pcbnew.BOARD_CONNECTED_ITEM.GetTeardropMaxLength ( self )

GetTeardropMaxLength(BOARD_CONNECTED_ITEM self) -> int

Definition at line 11440 of file pcbnew.py.

◆ GetTeardropMaxTrackWidth()

pcbnew.BOARD_CONNECTED_ITEM.GetTeardropMaxTrackWidth ( self )

GetTeardropMaxTrackWidth(BOARD_CONNECTED_ITEM self) -> double

Definition at line 11488 of file pcbnew.py.

◆ GetTeardropMaxWidth()

pcbnew.BOARD_CONNECTED_ITEM.GetTeardropMaxWidth ( self )

GetTeardropMaxWidth(BOARD_CONNECTED_ITEM self) -> int

Definition at line 11456 of file pcbnew.py.

◆ GetTeardropParams()

pcbnew.BOARD_CONNECTED_ITEM.GetTeardropParams	(		self,
		*	args )

    GetTeardropParams(BOARD_CONNECTED_ITEM self) -> TEARDROP_PARAMETERS
    GetTeardropParams(BOARD_CONNECTED_ITEM self) -> TEARDROP_PARAMETERS const &

Definition at line 11413 of file pcbnew.py.

◆ GetTeardropPreferZoneConnections()

pcbnew.BOARD_CONNECTED_ITEM.GetTeardropPreferZoneConnections ( self )

GetTeardropPreferZoneConnections(BOARD_CONNECTED_ITEM self) -> bool

Definition at line 11472 of file pcbnew.py.

◆ GetTeardropsEnabled()

pcbnew.BOARD_CONNECTED_ITEM.GetTeardropsEnabled ( self )

GetTeardropsEnabled(BOARD_CONNECTED_ITEM self) -> bool

Definition at line 11424 of file pcbnew.py.

◆ PackNet()

pcbnew.BOARD_CONNECTED_ITEM.PackNet	(		self,
			aProto )

PackNet(BOARD_CONNECTED_ITEM self, kiapi::board::types::Net * aProto)

Definition at line 11351 of file pcbnew.py.

◆ SetLocalRatsnestVisible()

pcbnew.BOARD_CONNECTED_ITEM.SetLocalRatsnestVisible	(		self,
			aVisible )

SetLocalRatsnestVisible(BOARD_CONNECTED_ITEM self, bool aVisible)

Definition at line 11405 of file pcbnew.py.

◆ SetNet()

pcbnew.BOARD_CONNECTED_ITEM.SetNet	(		self,
			aNetInfo )

SetNet(BOARD_CONNECTED_ITEM self, NETINFO_ITEM aNetInfo)

Definition at line 11343 of file pcbnew.py.

◆ SetNetCode()

pcbnew.BOARD_CONNECTED_ITEM.SetNetCode	(		self,
		*	args )

    SetNetCode(BOARD_CONNECTED_ITEM self, int aNetCode, bool aNoAssert) -> bool
    SetNetCode(BOARD_CONNECTED_ITEM self, int aNetCode)

Definition at line 11359 of file pcbnew.py.

◆ SetTeardropAllowSpanTwoTracks()

pcbnew.BOARD_CONNECTED_ITEM.SetTeardropAllowSpanTwoTracks	(		self,
			aAllow )

SetTeardropAllowSpanTwoTracks(BOARD_CONNECTED_ITEM self, bool aAllow)

Definition at line 11476 of file pcbnew.py.

◆ SetTeardropBestLengthRatio()

pcbnew.BOARD_CONNECTED_ITEM.SetTeardropBestLengthRatio	(		self,
			aRatio )

SetTeardropBestLengthRatio(BOARD_CONNECTED_ITEM self, double aRatio)

Definition at line 11428 of file pcbnew.py.

◆ SetTeardropBestWidthRatio()

pcbnew.BOARD_CONNECTED_ITEM.SetTeardropBestWidthRatio	(		self,
			aRatio )

SetTeardropBestWidthRatio(BOARD_CONNECTED_ITEM self, double aRatio)

Definition at line 11444 of file pcbnew.py.

◆ SetTeardropCurved()

pcbnew.BOARD_CONNECTED_ITEM.SetTeardropCurved	(		self,
			aCurve )

SetTeardropCurved(BOARD_CONNECTED_ITEM self, bool aCurve)

Definition at line 11460 of file pcbnew.py.

◆ SetTeardropMaxLength()

pcbnew.BOARD_CONNECTED_ITEM.SetTeardropMaxLength	(		self,
			aMaxLength )

SetTeardropMaxLength(BOARD_CONNECTED_ITEM self, int aMaxLength)

Definition at line 11436 of file pcbnew.py.

◆ SetTeardropMaxTrackWidth()

pcbnew.BOARD_CONNECTED_ITEM.SetTeardropMaxTrackWidth	(		self,
			aRatio )

SetTeardropMaxTrackWidth(BOARD_CONNECTED_ITEM self, double aRatio)

Definition at line 11484 of file pcbnew.py.

◆ SetTeardropMaxWidth()

pcbnew.BOARD_CONNECTED_ITEM.SetTeardropMaxWidth	(		self,
			aMaxWidth )

SetTeardropMaxWidth(BOARD_CONNECTED_ITEM self, int aMaxWidth)

Definition at line 11452 of file pcbnew.py.

◆ SetTeardropPreferZoneConnections()

pcbnew.BOARD_CONNECTED_ITEM.SetTeardropPreferZoneConnections	(		self,
			aPrefer )

SetTeardropPreferZoneConnections(BOARD_CONNECTED_ITEM self, bool aPrefer)

Definition at line 11468 of file pcbnew.py.

◆ SetTeardropsEnabled()

pcbnew.BOARD_CONNECTED_ITEM.SetTeardropsEnabled	(		self,
			aEnable )

SetTeardropsEnabled(BOARD_CONNECTED_ITEM self, bool aEnable)

Definition at line 11420 of file pcbnew.py.

◆ UnpackNet()

pcbnew.BOARD_CONNECTED_ITEM.UnpackNet	(		self,
			aProto )

UnpackNet(BOARD_CONNECTED_ITEM self, kiapi::board::types::Net const & aProto)

Definition at line 11347 of file pcbnew.py.

Property Documentation

◆ thisown

pcbnew.BOARD_CONNECTED_ITEM.thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")
