Public Member Functions | Protected Member Functions | Protected Attributes | List of all members
GRID_CELL_RUN_FUNCTION_EDITOR Class Reference

A cell editor which runs a provided function when the grid cell button is clicked. More...

#include <grid_text_button_helpers.h>

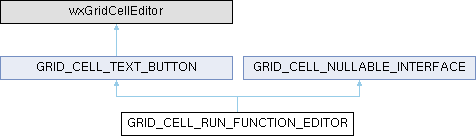

Inheritance diagram for GRID_CELL_RUN_FUNCTION_EDITOR:
GRID_CELL_TEXT_BUTTON GRID_CELL_NULLABLE_INTERFACE

Public Member Functions

 GRID_CELL_RUN_FUNCTION_EDITOR (DIALOG_SHIM *aParent, const std::function< void(int, int)> aFunction, const bool aIsNullable=false)

wxGridCellEditor * Clone () const override

void Create (wxWindow *aParent, wxWindowID aId, wxEvtHandler *aEventHandler) override

void BeginEdit (int aRow, int aCol, wxGrid *aGrid) override

wxString GetValue () const override

void SetSize (const wxRect &aRect) override

void StartingKey (wxKeyEvent &event) override

bool EndEdit (int, int, const wxGrid *, const wxString &, wxString *aNewVal) override

void ApplyEdit (int aRow, int aCol, wxGrid *aGrid) override

void Reset () override

void OnTextChange (wxCommandEvent &event)

virtual bool IsNullable () const


Protected Member Functions

wxComboCtrl * Combo () const

 wxDECLARE_NO_COPY_CLASS (GRID_CELL_TEXT_BUTTON)


Protected Attributes

DIALOG_SHIM * m_dlg

int m_row

int m_col

std::function< void(int, int)> m_function

wxGrid * m_grid

wxString m_value

bool m_isNullable { false }


Detailed Description

A cell editor which runs a provided function when the grid cell button is clicked.

The function has the signature (int, int) -> void. The passed parameters are the (row, col) of the clicked grid cell

Definition at line 204 of file grid_text_button_helpers.h.

Constructor & Destructor Documentation

◆ GRID_CELL_RUN_FUNCTION_EDITOR()

GRID_CELL_RUN_FUNCTION_EDITOR::GRID_CELL_RUN_FUNCTION_EDITOR ( DIALOG_SHIM * aParent,
const std::function< void(int, int)> aFunction,
const bool aIsNullable = false )
inline

Definition at line 207 of file grid_text_button_helpers.h.

References GRID_CELL_NULLABLE_INTERFACE::GRID_CELL_NULLABLE_INTERFACE(), m_col, m_dlg, m_function, and m_row.

Referenced by Clone().

Member Function Documentation

◆ ApplyEdit()

void GRID_CELL_TEXT_BUTTON::ApplyEdit ( int aRow,
int aCol,
wxGrid * aGrid )
overrideinherited

Definition at line 506 of file grid_text_helpers.cpp.

References m_value.

Referenced by OnTextChange().

◆ BeginEdit()

void GRID_CELL_RUN_FUNCTION_EDITOR::BeginEdit ( int aRow,
int aCol,
wxGrid * aGrid )
override

Definition at line 557 of file grid_text_button_helpers.cpp.

References GRID_CELL_TEXT_BUTTON::BeginEdit(), m_col, and m_row.

◆ Clone()

wxGridCellEditor * GRID_CELL_RUN_FUNCTION_EDITOR::Clone ( ) const
inlineoverride

Definition at line 217 of file grid_text_button_helpers.h.

References GRID_CELL_RUN_FUNCTION_EDITOR(), GRID_CELL_NULLABLE_INTERFACE::IsNullable(), m_dlg, and m_function.

◆ Combo()

wxComboCtrl * GRID_CELL_TEXT_BUTTON::Combo ( ) const
inlineprotectedinherited

Definition at line 150 of file grid_text_helpers.h.

Referenced by BeginEdit(), GRID_CELL_FPID_EDITOR::Create(), GRID_CELL_PATH_EDITOR::Create(), GRID_CELL_RUN_FUNCTION_EDITOR::Create(), GRID_CELL_SYMBOL_ID_EDITOR::Create(), GRID_CELL_URL_EDITOR::Create(), EndEdit(), GetValue(), OnTextChange(), Reset(), and StartingKey().

◆ Create()

void GRID_CELL_RUN_FUNCTION_EDITOR::Create ( wxWindow * aParent,
wxWindowID aId,
wxEvtHandler * aEventHandler )
override

Definition at line 540 of file grid_text_button_helpers.cpp.

References WX_GRID::CellEditorSetMargins(), GRID_CELL_TEXT_BUTTON::Combo(), m_col, m_dlg, m_function, and m_row.

◆ EndEdit()

bool GRID_CELL_TEXT_BUTTON::EndEdit ( int ,
int ,
const wxGrid * ,
const wxString & ,
wxString * aNewVal )
overrideinherited

Definition at line 485 of file grid_text_helpers.cpp.

References Combo(), m_col, m_grid, m_row, m_value, and OnTextChange().

◆ GetValue()

wxString GRID_CELL_TEXT_BUTTON::GetValue ( ) const
overrideinherited

Definition at line 386 of file grid_text_helpers.cpp.

References Combo().

◆ IsNullable()

virtual bool GRID_CELL_NULLABLE_INTERFACE::IsNullable ( ) const
inlinevirtualinherited

Definition at line 157 of file grid_icon_text_helpers.h.

References m_isNullable.

Referenced by GRID_CELL_MARK_AS_NULLABLE::Clone(), and GRID_CELL_RUN_FUNCTION_EDITOR::Clone().

◆ OnTextChange()

void GRID_CELL_TEXT_BUTTON::OnTextChange ( wxCommandEvent & event)
inherited

Definition at line 473 of file grid_text_helpers.cpp.

References ApplyEdit(), Combo(), m_col, m_grid, m_row, and m_value.

Referenced by BeginEdit(), and EndEdit().

◆ Reset()

void GRID_CELL_TEXT_BUTTON::Reset ( )
overrideinherited

Definition at line 512 of file grid_text_helpers.cpp.

References Combo(), and m_value.

◆ SetSize()

void GRID_CELL_TEXT_BUTTON::SetSize ( const wxRect & aRect)
overrideinherited

Definition at line 392 of file grid_text_helpers.cpp.

References WX_GRID::CellEditorTransformSizeRect().

◆ StartingKey()

void GRID_CELL_TEXT_BUTTON::StartingKey ( wxKeyEvent & event)
overrideinherited

Definition at line 401 of file grid_text_helpers.cpp.

References Combo().

◆ wxDECLARE_NO_COPY_CLASS()

GRID_CELL_TEXT_BUTTON::wxDECLARE_NO_COPY_CLASS ( GRID_CELL_TEXT_BUTTON )
protectedinherited

References GRID_CELL_TEXT_BUTTON().

Member Data Documentation

◆ m_col

int GRID_CELL_RUN_FUNCTION_EDITOR::m_col
protected

Definition at line 229 of file grid_text_button_helpers.h.

Referenced by BeginEdit(), Create(), and GRID_CELL_RUN_FUNCTION_EDITOR().

◆ m_dlg

DIALOG_SHIM* GRID_CELL_RUN_FUNCTION_EDITOR::m_dlg
protected

Definition at line 227 of file grid_text_button_helpers.h.

Referenced by Clone(), Create(), and GRID_CELL_RUN_FUNCTION_EDITOR().

◆ m_function

std::function<void( int, int )> GRID_CELL_RUN_FUNCTION_EDITOR::m_function
protected

Definition at line 230 of file grid_text_button_helpers.h.

Referenced by Clone(), Create(), and GRID_CELL_RUN_FUNCTION_EDITOR().

◆ m_grid

wxGrid* GRID_CELL_TEXT_BUTTON::m_grid
protectedinherited

Definition at line 157 of file grid_text_helpers.h.

Referenced by BeginEdit(), EndEdit(), GRID_CELL_TEXT_BUTTON(), and OnTextChange().

◆ m_isNullable

bool GRID_CELL_NULLABLE_INTERFACE::m_isNullable { false }
protectedinherited

Definition at line 160 of file grid_icon_text_helpers.h.

Referenced by GRID_CELL_NULLABLE_INTERFACE(), GRID_CELL_NULLABLE_INTERFACE(), and IsNullable().

◆ m_row

int GRID_CELL_RUN_FUNCTION_EDITOR::m_row
protected

Definition at line 228 of file grid_text_button_helpers.h.

Referenced by BeginEdit(), Create(), and GRID_CELL_RUN_FUNCTION_EDITOR().

◆ m_value

wxString GRID_CELL_TEXT_BUTTON::m_value
protectedinherited

Definition at line 160 of file grid_text_helpers.h.

Referenced by ApplyEdit(), BeginEdit(), EndEdit(), OnTextChange(), and Reset().

The documentation for this class was generated from the following files:
