plugins.PadArray.PadArray Class Reference

A class to assist in creating repetitive grids of pads. More...

Inheritance diagram for plugins.PadArray.PadArray:

Public Member Functions
def	__init__ (self, pad)
def	SetPinNames (self, pinNames)
	Set a name for all the pins.
def	SetFirstPadType (self, firstPad)
	If the array has a different first pad, this is the pad that is used.
def	SetFirstPadInArray (self, fpNum)
	Set the numbering for the first pad in the array.
def	AddPad (self, pad)
	Add a pad to the array, under the same footprint as the main prototype pad.
def	GetPad (self, is_first_pad, pos)
	Get a pad in the array with the given position.
def	GetName (self, *args, **kwargs)
	Get the pad name from the naming function, or the pre-set pinNames parameter (set with SetPinNames)
def	NamingFunction (self, *args, **kwargs)
	Implement this as needed for each array type.

Public Attributes
	firstPadNum
	pinNames
	pad
	firstPad

Detailed Description

A class to assist in creating repetitive grids of pads.

Generally, PadArrays have an internal prototypical pad, and copy this for each pad in the array. They can also have a special pad for the first pad, and a custom function to name the pad.

Generally, PadArray is used as a base class for more specific array types.

Definition at line 127 of file PadArray.py.

Constructor & Destructor Documentation

__init__()

def plugins.PadArray.PadArray.__init__	(		self,
			pad
	)

Parameters

pad	the prototypical pad

Reimplemented in plugins.PadArray.PadCustomArray, plugins.PadArray.PadLineArray, plugins.PadArray.PadCircleArray, plugins.PadArray.PadGridArray, and plugins.PadArray.PadZGridArray.

Definition at line 139 of file PadArray.py.

Member Function Documentation

AddPad()

def plugins.PadArray.PadArray.AddPad	(		self,
			pad
	)

Add a pad to the array, under the same footprint as the main prototype pad.

Parameters

pad	pad to add

Definition at line 175 of file PadArray.py.

Here is the caller graph for this function:

GetName()

def plugins.PadArray.PadArray.GetName	(		self,
		*	args,
		**	kwargs
	)

Get the pad name from the naming function, or the pre-set pinNames parameter (set with SetPinNames)

Definition at line 200 of file PadArray.py.

Here is the caller graph for this function:

GetPad()

def plugins.PadArray.PadArray.GetPad	(		self,
			is_first_pad,
			pos
	)

Get a pad in the array with the given position.

Parameters

is_first_pad	use the special first pad if there is one
pos	the pad position

Definition at line 183 of file PadArray.py.

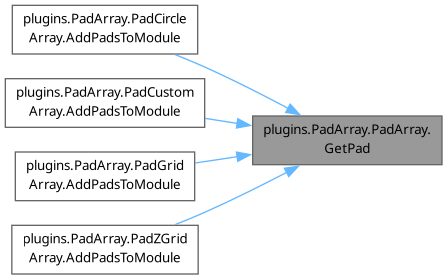

Here is the caller graph for this function:

NamingFunction()

def plugins.PadArray.PadArray.NamingFunction	(		self,
		*	args,
		**	kwargs
	)

Implement this as needed for each array type.

Reimplemented in plugins.PadArray.PadCircleArray, plugins.PadArray.PadCustomArray, plugins.PadArray.EPADGridArray, plugins.PadArray.PadZGridArray, and plugins.PadArray.PadGridArray.

Definition at line 211 of file PadArray.py.

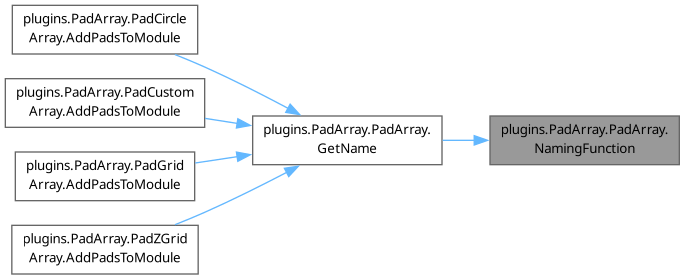

Here is the caller graph for this function:

SetFirstPadInArray()

def plugins.PadArray.PadArray.SetFirstPadInArray	(		self,
			fpNum
	)

Set the numbering for the first pad in the array.

Parameters

fpNum

the number for the first pad

Definition at line 168 of file PadArray.py.

SetFirstPadType()

def plugins.PadArray.PadArray.SetFirstPadType	(		self,
			firstPad
	)

If the array has a different first pad, this is the pad that is used.

Parameters

firstPad

the prototypical first pad

Definition at line 160 of file PadArray.py.

SetPinNames()

def plugins.PadArray.PadArray.SetPinNames	(		self,
			pinNames
	)

Set a name for all the pins.

If given, this overrides the naming function.

Parameters

pinNames

the name to use for all pins

Definition at line 151 of file PadArray.py.

Member Data Documentation

firstPad

plugins.PadArray.PadArray.firstPad

Definition at line 149 of file PadArray.py.

firstPadNum

plugins.PadArray.PadArray.firstPadNum

Definition at line 143 of file PadArray.py.

pad

plugins.PadArray.PadArray.pad

Definition at line 148 of file PadArray.py.

pinNames

plugins.PadArray.PadArray.pinNames

Definition at line 144 of file PadArray.py.

---

The documentation for this class was generated from the following file:

• /src/pcbnew/python/plugins/PadArray.py
