plugins.FootprintWizardBase.FootprintWizard Class Reference

A class to simplify many aspects of footprint creation, leaving only the footprint specific routines to the wizards themselves. More...

Inheritance diagram for plugins.FootprintWizardBase.FootprintWizard:
Inheritance graph
[legend]

Public Member Functions

def __init__ (self)

def GetName (self)
 Return the name of the footprint wizard.

def GetDescription (self)
 Return the footprint wizard description.

def GetValue (self)
 Return the value (name) of the generated footprint.

def GenerateParameterList (self)
 Footprint parameter specification is done here.

def CheckParameters (self)
 Any custom parameter checking should be performed here.

def BuildThisFootprint (self)
 Draw the footprint.

def BuildFootprint (self)
 Actually make the footprint.

def SetModule3DModel (self)
 If your plug-in sets a 3D model, override this function.

def GetTextSize (self)
 Get the default text size for the footprint.

def GetTextThickness (self)
 Thicker than IPC guidelines (10% of text height = 0.12mm) as 5 wires/mm is a common silk screen limitation.

- Public Member Functions inherited from pcbnew.FootprintWizardPlugin
def __init__ (self)

def defaults (self)

def AddParam (self, page, name, unit, default, **kwarg)

def parameters (self)

def values (self)

def ResetWizard (self)

def GetName (self)

def GetImage (self)

def GetDescription (self)

def GetValue (self)

def GetReferencePrefix (self)

def GetParam (self, page, name)

def CheckParam (self, page, name, **kwarg)

def AnyErrors (self)

def pages (self)

def GetNumParameterPages (self)

def GetParameterPageName (self, page_n)

def GetParametersByPageName (self, page_name)

def GetParametersByPageIndex (self, page_index)

def GetParameterDesignators (self, page_index)

def GetParameterNames (self, page_index)

def GetParameterValues (self, page_index)

def GetParameterErrors (self, page_index)

def GetParameterTypes (self, page_index)

def GetParameterHints (self, page_index)

def GetParameterDesignators (self, page_index)

def SetParameterValues (self, page_index, list_of_values)

def GetFootprint (self)

def BuildFootprint (self)

def GetBuildMessages (self)

def Show (self)

- Public Member Functions inherited from pcbnew.KiCadPlugin
def __init__ (self)

def register (self)

def deregister (self)

def GetPluginPath (self)


Public Attributes

 buildmessages

 module

 draw

- Public Attributes inherited from pcbnew.FootprintWizardPlugin
 module

 params

 name

 description


 buildmessages


Static Public Attributes

pcbnew uMM = pcbnew.uMM

pcbnew uMils = pcbnew.uMils

pcbnew uFloat = pcbnew.uFloat

pcbnew uInteger = pcbnew.uInteger

pcbnew uBool = pcbnew.uBool

pcbnew uRadians = pcbnew.uRadians

pcbnew uDegrees = pcbnew.uDegrees

pcbnew uPercent = pcbnew.uPercent

pcbnew uString = pcbnew.uString


Detailed Description

A class to simplify many aspects of footprint creation, leaving only the footprint specific routines to the wizards themselves.

Inherit this class to make a new wizard.

Provides simplified access to helpers like drawing functions, a transform matrix stack and simple parameter checking.

Generally, you need to implement: GetValue() GenerateParameterList() CheckParameters() BuildThisFootprint() GetName() GetDescription()

Definition at line 27 of file FootprintWizardBase.py.

Constructor & Destructor Documentation

◆ __init__()

def plugins.FootprintWizardBase.FootprintWizard.__init__ (   self)

Reimplemented from pcbnew.FootprintWizardPlugin.

Definition at line 57 of file FootprintWizardBase.py.

Member Function Documentation

◆ BuildFootprint()

def plugins.FootprintWizardBase.FootprintWizard.BuildFootprint (   self)

Actually make the footprint.

We defer all but the set-up to the implementing class

Reimplemented from pcbnew.FootprintWizardPlugin.

Definition at line 101 of file FootprintWizardBase.py.

Here is the caller graph for this function:

◆ BuildThisFootprint()

def plugins.FootprintWizardBase.FootprintWizard.BuildThisFootprint (   self)

Draw the footprint.

This is specific to each footprint class, you need to implement this to draw what you want

Definition at line 91 of file FootprintWizardBase.py.

◆ CheckParameters()

def plugins.FootprintWizardBase.FootprintWizard.CheckParameters (   self)

Any custom parameter checking should be performed here.

Definition at line 85 of file FootprintWizardBase.py.

◆ GenerateParameterList()

def plugins.FootprintWizardBase.FootprintWizard.GenerateParameterList (   self)

Footprint parameter specification is done here.

Definition at line 79 of file FootprintWizardBase.py.

Here is the caller graph for this function:

◆ GetDescription()

def plugins.FootprintWizardBase.FootprintWizard.GetDescription (   self)

Return the footprint wizard description.

Reimplemented from pcbnew.FootprintWizardPlugin.

Definition at line 67 of file FootprintWizardBase.py.

Here is the caller graph for this function:

◆ GetName()

def plugins.FootprintWizardBase.FootprintWizard.GetName (   self)

Return the name of the footprint wizard.

Reimplemented from pcbnew.FootprintWizardPlugin.

Definition at line 61 of file FootprintWizardBase.py.

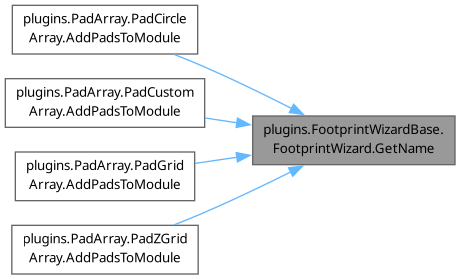

Here is the caller graph for this function:

◆ GetTextSize()

def plugins.FootprintWizardBase.FootprintWizard.GetTextSize (   self)

Get the default text size for the footprint.

Override to change it.

Defaults to IPC nominal of 1.0mm

Definition at line 164 of file FootprintWizardBase.py.

◆ GetTextThickness()

def plugins.FootprintWizardBase.FootprintWizard.GetTextThickness (   self)

Thicker than IPC guidelines (10% of text height = 0.12mm) as 5 wires/mm is a common silk screen limitation.

Definition at line 172 of file FootprintWizardBase.py.

◆ GetValue()

def plugins.FootprintWizardBase.FootprintWizard.GetValue (   self)

Return the value (name) of the generated footprint.

Reimplemented from pcbnew.FootprintWizardPlugin.

Definition at line 73 of file FootprintWizardBase.py.

◆ SetModule3DModel()

def plugins.FootprintWizardBase.FootprintWizard.SetModule3DModel (   self)

If your plug-in sets a 3D model, override this function.

Definition at line 158 of file FootprintWizardBase.py.

Member Data Documentation

◆ buildmessages

plugins.FootprintWizardBase.FootprintWizard.buildmessages

Definition at line 107 of file FootprintWizardBase.py.

◆ draw

plugins.FootprintWizardBase.FootprintWizard.draw

Definition at line 138 of file FootprintWizardBase.py.

◆ module

plugins.FootprintWizardBase.FootprintWizard.module

Definition at line 108 of file FootprintWizardBase.py.

◆ uBool

pcbnew plugins.FootprintWizardBase.FootprintWizard.uBool = pcbnew.uBool
static

Definition at line 51 of file FootprintWizardBase.py.

◆ uDegrees

pcbnew plugins.FootprintWizardBase.FootprintWizard.uDegrees = pcbnew.uDegrees
static

Definition at line 53 of file FootprintWizardBase.py.

◆ uFloat

pcbnew plugins.FootprintWizardBase.FootprintWizard.uFloat = pcbnew.uFloat
static

Definition at line 49 of file FootprintWizardBase.py.

◆ uInteger

pcbnew plugins.FootprintWizardBase.FootprintWizard.uInteger = pcbnew.uInteger
static

Definition at line 50 of file FootprintWizardBase.py.

◆ uMils

pcbnew plugins.FootprintWizardBase.FootprintWizard.uMils = pcbnew.uMils
static

Definition at line 48 of file FootprintWizardBase.py.

◆ uMM

pcbnew plugins.FootprintWizardBase.FootprintWizard.uMM = pcbnew.uMM
static

Definition at line 47 of file FootprintWizardBase.py.

◆ uPercent

pcbnew plugins.FootprintWizardBase.FootprintWizard.uPercent = pcbnew.uPercent
static

Definition at line 54 of file FootprintWizardBase.py.

◆ uRadians

pcbnew plugins.FootprintWizardBase.FootprintWizard.uRadians = pcbnew.uRadians
static

Definition at line 52 of file FootprintWizardBase.py.

◆ uString

pcbnew plugins.FootprintWizardBase.FootprintWizard.uString = pcbnew.uString
static

Definition at line 55 of file FootprintWizardBase.py.


The documentation for this class was generated from the following file:
