pcbnew.PCB_FIELD Class Reference
Inheritance diagram for pcbnew.PCB_FIELD:

Public Member Functions

 __init__ (self, *args)

 Serialize (self, aContainer)

 Deserialize (self, aContainer)

 GetClass (self)

 IsReference (self)

 IsValue (self)

 IsDatasheet (self)

 IsComponentClass (self)

 IsMandatory (self)

 IsHypertext (self)

 ViewGetLOD (self, aLayer, aView)

 CloneField (self)

 GetName (self, aUseDefaultName=True)

 GetCanonicalName (self)

 SetName (self, aName)

 GetId (self)

 GetOrdinal (self)

 SetOrdinal (self, aOrdinal)

 __eq__ (self, *args)

- Public Member Functions inherited from pcbnew.PCB_TEXT
 __init__ (self, *args)

 KeepUpright (self)

 GetShownText (self, aAllowExtraText, aDepth=0)

 TextHitTest (self, *args)

 HitTest (self, *args)

 TransformTextToPolySet (self, aBuffer, aClearance, aMaxError, aErrorLoc)

 TransformShapeToPolygon (self, aBuffer, aLayer, aClearance, aMaxError, aErrorLoc, aIgnoreLineWidth=False)

 GetEffectiveShape (self, *args)

 GetKnockoutCache (self, aFont, forResolvedText, aMaxError)

 GetTextTypeDescription (self)

 __eq__ (self, *args)

- Public Member Functions inherited from pcbnew.BOARD_ITEM
 __init__ (self, *args, **kwargs)

 CopyFrom (self, aOther)

 IsGroupableType (self)

 GetX (self)

 GetY (self)

 GetCenter (self)

 SetX (self, aX)

 SetY (self, aY)

 IsConnected (self)

 Similarity (self, aItem)

 __eq__ (self, aItem)

 IsOnCopperLayer (self)

 HasHole (self)

 HasDrilledHole (self)

 IsTented (self, aLayer)

 GetEffectiveHoleShape (self)

 RunOnChildren (self, aFunction, aMode)

 GetParent (self)

 GetParentFootprint (self)

 GetFPRelativePosition (self)

 SetFPRelativePosition (self, aPos)

 HasLineStroke (self)

 GetStroke (self)

 SetStroke (self, aStroke)

 GetFontMetrics (self)

 GetLayer (self)

 BoardLayerCount (self)

 BoardCopperLayerCount (self)

 BoardLayerSet (self)

 GetLayerSet (self)

 SetLayerSet (self, aLayers)

 IsSideSpecific (self)

 SetLayer (self, aLayer)

 Duplicate (self, addToParentGroup, aCommit=None)

 SwapItemData (self, aImage)

 IsOnLayer (self, aLayer)

 IsKnockout (self)

 SetIsKnockout (self, aKnockout)

 GetMaxError (self)

 StyleFromSettings (self, settings)

 DeleteStructure (self)

 Move (self, aMoveVector)

 Rotate (self, aRotCentre, aAngle)

 Flip (self, aCentre, aFlipDirection)

 Mirror (self, aCentre, aFlipDirection)

 Normalize (self)

 NormalizeForCompare (self)

 GetBoard (self, *args)

 GetParentAsString (self)

 GetLayerName (self)

 TransformShapeToPolySet (self, aBuffer, aLayer, aClearance, aError, aErrorLoc)

 Cast (self)

 Duplicate (self)

 SetPos (self, p)

 SetStartEnd (self, start, end)

- Public Member Functions inherited from pcbnew.EDA_ITEM
 __init__ (self, *args, **kwargs)

 Type (self)

 SetParent (self, aParent)

 SetParentGroup (self, aGroup)

 GetParentGroup (self)

 GetParentGroupId (self)

 IsLocked (self)

 SetLocked (self, aLocked)

 IsModified (self)

 IsNew (self)

 IsMoving (self)

 IsSelected (self)

 IsEntered (self)

 IsBrightened (self)

 IsRollover (self)

 SetIsRollover (self, aIsRollover)

 SetSelected (self)

 SetBrightened (self)

 ClearSelected (self)

 ClearBrightened (self)

 SetModified (self)

 SetFlags (self, aMask)

 XorFlags (self, aMask)

 ClearFlags (self, *args)

 GetFlags (self)

 HasFlag (self, aFlag)

 GetEditFlags (self)

 ClearEditFlags (self)

 GetTempFlags (self)

 ClearTempFlags (self)

 RenderAsBitmap (self, aWorldScale)

 SetIsShownAsBitmap (self, aBitmap)

 IsShownAsBitmap (self)

 IsType (self, aScanTypes)

 SetForceVisible (self, aEnable)

 IsForceVisible (self)

 GetMsgPanelInfo (self, aFrame, aList)

 GetFriendlyName (self)

 GetBoundingBox (self)

 GetPosition (self)

 SetPosition (self, aPos)

 GetFocusPosition (self)

 GetSortPosition (self)

 Clone (self)

 Visit (self, inspector, testData, aScanTypes)

 GetTypeDesc (self)

 GetItemDescription (self, aUnitsProvider, aFull)

 GetMenuImage (self)

 Matches (self, aSearchData, aAuxData)

 Replace (self, *args)

 IsReplaceable (self)

 __lt__ (self, aItem)

 ViewBBox (self)

 ViewGetLayers (self)

 GetEmbeddedFiles (self)

 GetEmbeddedFonts (self)

 PyGetClass (self)

- Public Member Functions inherited from pcbnew.EDA_TEXT
 __init__ (self, *args)

 GetText (self)

 HasTextVars (self)

 SetText (self, aText)

 EvaluateText (self, aText)

 SetTextThickness (self, aWidth)

 GetTextThickness (self)

 GetTextThicknessProperty (self)

 SetAutoThickness (self, aAuto)

 GetAutoThickness (self)

 GetEffectiveTextPenWidth (self, aDefaultPenWidth=0)

 SetTextAngle (self, aAngle)

 GetTextAngle (self)

 SetTextAngleDegrees (self, aOrientation)

 GetTextAngleDegrees (self)

 SetItalic (self, aItalic)

 SetItalicFlag (self, aItalic)

 IsItalic (self)

 SetBold (self, aBold)

 SetBoldFlag (self, aBold)

 IsBold (self)

 SetVisible (self, aVisible)

 IsVisible (self)

 SetMirrored (self, isMirrored)

 IsMirrored (self)

 SetMultilineAllowed (self, aAllow)

 IsMultilineAllowed (self)

 SetHorizJustify (self, aType)

 GetHorizJustify (self)

 SetVertJustify (self, aType)

 GetVertJustify (self)

 SetKeepUpright (self, aKeepUpright)

 IsKeepUpright (self)

 FlipHJustify (self)

 SwapAttributes (self, aTradingPartner)

 SwapText (self, aTradingPartner)

 CopyText (self, aSrc)

 SetAttributes (self, *args)

 GetAttributes (self)

 Replace (self, aSearchData)

 IsDefaultFormatting (self)

 SetFont (self, aFont)

 GetFont (self)

 SetUnresolvedFontName (self, aFontName)

 ResolveFont (self, aEmbeddedFonts)

 GetFontName (self)

 SetFontProp (self, aFontName)

 GetFontProp (self)

 SetLineSpacing (self, aLineSpacing)

 GetLineSpacing (self)

 SetTextSize (self, aNewSize, aEnforceMinTextSize=True)

 GetTextSize (self)

 SetTextWidth (self, aWidth)

 GetTextWidth (self)

 SetTextHeight (self, aHeight)

 GetTextHeight (self)

 SetTextColor (self, aColor)

 GetTextColor (self)

 SetTextPos (self, aPoint)

 GetTextPos (self)

 SetTextX (self, aX)

 SetTextY (self, aY)

 Offset (self, aOffset)

 Empty (self)

 Print (self, aSettings, aOffset, aColor)

 GetEffectiveTextShape (self, *args)

 GetTextBox (self, aSettings, aLine=-1)

 GetInterline (self, aSettings)

 GetTextStyleName (self)

 GetLinePositions (self, aSettings, aPositions, aLineCount)

 Levenshtein (self, aOther)

 Similarity (self, aOther)

 Format (self, aFormatter, aControlBits)

 GetDrawRotation (self)

 GetDrawPos (self)

 GetDrawFont (self, aSettings)

 ClearRenderCache (self)

 ClearBoundingBoxCache (self)

 GetRenderCache (self, *args)

 SetupRenderCache (self, aResolvedText, aFont, aAngle, aOffset)

 AddRenderCacheGlyph (self, aPoly)

 Compare (self, aOther)

 __eq__ (self, aRhs)

 __lt__ (self, aRhs)

 __gt__ (self, aRhs)

 HasHyperlink (self)

 GetHyperlink (self)

 SetHyperlink (self, aLink)

 RemoveHyperlink (self)


Static Public Member Functions

 ClassOf (aItem)

- Static Public Member Functions inherited from pcbnew.EDA_ITEM
 Sort (aLeft, aRight)

- Static Public Member Functions inherited from pcbnew.EDA_TEXT
 MapHorizJustify (aHorizJustify)

 MapVertJustify (aVertJustify)

 ValidateHyperlink (aURL)

 IsGotoPageHref (aHref, aDestination=None)

 GotoPageHref (aDestination)


Properties

 thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

- Properties inherited from pcbnew.PCB_TEXT
 thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

- Properties inherited from pcbnew.BOARD_ITEM
 thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

- Properties inherited from pcbnew.EDA_ITEM
 thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

 m_Uuid = property(_pcbnew.EDA_ITEM_m_Uuid_get, doc=)

- Properties inherited from pcbnew.EDA_TEXT
 thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")


Additional Inherited Members

- Static Public Attributes inherited from pcbnew.BOARD_ITEM
 DRC = _pcbnew.BOARD_ITEM_DRC

 INSTANCE_TO_INSTANCE = _pcbnew.BOARD_ITEM_INSTANCE_TO_INSTANCE


Detailed Description

Proxy of C++ PCB_FIELD class.

Definition at line 17480 of file pcbnew.py.

Constructor & Destructor Documentation

◆ __init__()

pcbnew.PCB_FIELD.__init__ ( self,
* args )
    __init__(PCB_FIELD self, FOOTPRINT aParent, FIELD_T aFieldId, wxString aName=wxEmptyString) -> PCB_FIELD
    __init__(PCB_FIELD self, PCB_TEXT aText, FIELD_T aFieldId, wxString aName=wxEmptyString) -> PCB_FIELD

Definition at line 17486 of file pcbnew.py.

Member Function Documentation

◆ __eq__()

pcbnew.PCB_FIELD.__eq__ ( self,
* args )
    __eq__(PCB_FIELD self, PCB_FIELD aOther) -> bool
    __eq__(PCB_FIELD self, BOARD_ITEM aOther) -> bool

Definition at line 17566 of file pcbnew.py.

◆ ClassOf()

pcbnew.PCB_FIELD.ClassOf ( aItem)
static
ClassOf(EDA_ITEM aItem) -> bool

Reimplemented from pcbnew.PCB_TEXT.

Definition at line 17502 of file pcbnew.py.

◆ CloneField()

pcbnew.PCB_FIELD.CloneField ( self)
CloneField(PCB_FIELD self) -> PCB_FIELD

Definition at line 17538 of file pcbnew.py.

◆ Deserialize()

pcbnew.PCB_FIELD.Deserialize ( self,
aContainer )
Deserialize(PCB_FIELD self, google::protobuf::Any const & aContainer) -> bool

Reimplemented from pcbnew.PCB_TEXT.

Definition at line 17497 of file pcbnew.py.

◆ GetCanonicalName()

pcbnew.PCB_FIELD.GetCanonicalName ( self)
GetCanonicalName(PCB_FIELD self) -> wxString

Definition at line 17546 of file pcbnew.py.

◆ GetClass()

pcbnew.PCB_FIELD.GetClass ( self)
GetClass(PCB_FIELD self) -> wxString

Reimplemented from pcbnew.PCB_TEXT.

Definition at line 17506 of file pcbnew.py.

◆ GetId()

pcbnew.PCB_FIELD.GetId ( self)
GetId(PCB_FIELD self) -> FIELD_T

Definition at line 17554 of file pcbnew.py.

◆ GetName()

pcbnew.PCB_FIELD.GetName ( self,
aUseDefaultName = True )
GetName(PCB_FIELD self, bool aUseDefaultName=True) -> wxString

Definition at line 17542 of file pcbnew.py.

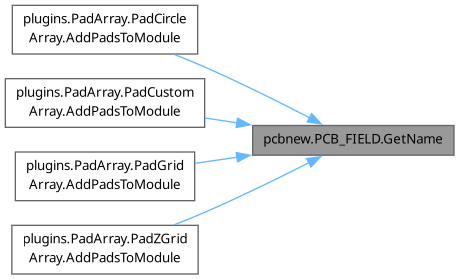

Here is the caller graph for this function:

◆ GetOrdinal()

pcbnew.PCB_FIELD.GetOrdinal ( self)
GetOrdinal(PCB_FIELD self) -> int

Definition at line 17558 of file pcbnew.py.

◆ IsComponentClass()

pcbnew.PCB_FIELD.IsComponentClass ( self)
IsComponentClass(PCB_FIELD self) -> bool

Definition at line 17522 of file pcbnew.py.

◆ IsDatasheet()

pcbnew.PCB_FIELD.IsDatasheet ( self)
IsDatasheet(PCB_FIELD self) -> bool

Definition at line 17518 of file pcbnew.py.

◆ IsHypertext()

pcbnew.PCB_FIELD.IsHypertext ( self)
IsHypertext(PCB_FIELD self) -> bool

Definition at line 17530 of file pcbnew.py.

◆ IsMandatory()

pcbnew.PCB_FIELD.IsMandatory ( self)
IsMandatory(PCB_FIELD self) -> bool

Definition at line 17526 of file pcbnew.py.

◆ IsReference()

pcbnew.PCB_FIELD.IsReference ( self)
IsReference(PCB_FIELD self) -> bool

Definition at line 17510 of file pcbnew.py.

◆ IsValue()

pcbnew.PCB_FIELD.IsValue ( self)
IsValue(PCB_FIELD self) -> bool

Definition at line 17514 of file pcbnew.py.

◆ Serialize()

pcbnew.PCB_FIELD.Serialize ( self,
aContainer )
Serialize(PCB_FIELD self, google::protobuf::Any & aContainer)

Reimplemented from pcbnew.PCB_TEXT.

Definition at line 17493 of file pcbnew.py.

◆ SetName()

pcbnew.PCB_FIELD.SetName ( self,
aName )
SetName(PCB_FIELD self, wxString aName)

Definition at line 17550 of file pcbnew.py.

◆ SetOrdinal()

pcbnew.PCB_FIELD.SetOrdinal ( self,
aOrdinal )
SetOrdinal(PCB_FIELD self, int aOrdinal)

Definition at line 17562 of file pcbnew.py.

◆ ViewGetLOD()

pcbnew.PCB_FIELD.ViewGetLOD ( self,
aLayer,
aView )
ViewGetLOD(PCB_FIELD self, int aLayer, KIGFX::VIEW const * aView) -> double

Reimplemented from pcbnew.PCB_TEXT.

Definition at line 17534 of file pcbnew.py.

Property Documentation

◆ thisown

pcbnew.PCB_FIELD.thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")
static

Definition at line 17483 of file pcbnew.py.


The documentation for this class was generated from the following file:
