pcbnew.PAD Class Reference
Inheritance diagram for pcbnew.PAD:
Inheritance graph
[legend]

Public Member Functions

 __init__ (self, *args)

 Serialize (self, aContainer)

 Deserialize (self, aContainer)

 ImportSettingsFrom (self, aMasterPad)

 IsFlipped (self)

 SetNumber (self, aNumber)

 GetNumber (self)

 CanHaveNumber (self)

 SetPinFunction (self, aName)

 GetPinFunction (self)

 SetPinType (self, aType)

 GetPinType (self)

 SameLogicalPadAs (self, aOther)

 SharesNetTieGroup (self, aOther)

 IsNoConnectPad (self)

 IsFreePad (self)

 SetFrontShape (self, aShape)

 GetFrontShape (self)

 GetAnchorPadShape (self, aLayer)

 GetCustomShapeInZoneOpt (self)

 SetCustomShapeInZoneOpt (self, aOption)

 SetAnchorPadShape (self, aLayer, aShape)

 SetY (self, y)

 SetX (self, x)

 HasExplicitDefinitionForLayer (self, aLayer)

 SetSizeX (self, aX)

 GetSizeX (self)

 SetSizeY (self, aY)

 GetSizeY (self)

 SetPrimaryDrillSize (self, aSize)

 GetPrimaryDrillSize (self)

 SetPrimaryDrillSizeX (self, aX)

 GetPrimaryDrillSizeX (self)

 SetPrimaryDrillSizeY (self, aY)

 GetPrimaryDrillSizeY (self)

 SetDrillSize (self, aSize)

 GetDrillSize (self)

 SetDrillSizeX (self, aX)

 GetDrillSizeX (self)

 SetDrillSizeY (self, aY)

 GetDrillSizeY (self)

 Padstack (self, *args)

 SetPadstack (self, aPadstack)

 AddPrimitivePoly (self, *args)

 MergePrimitivesAsPolygon (self, aLayer, aMergedPolygon, aErrorLoc=ERROR_INSIDE)

 DeletePrimitivesList (self, aLayer=UNDEFINED_LAYER)

 GetPrimitives (self, aLayer)

 FlipPrimitives (self, aFlipDirection)

 ReplacePrimitives (self, aLayer, aPrimitivesList)

 AppendPrimitives (self, aLayer, aPrimitivesList)

 AddPrimitiveShape (self, aLayer, aPrimitive)

 SetOrientation (self, aAngle)

 SetFPRelativeOrientation (self, aAngle)

 GetOrientation (self)

 GetFPRelativeOrientation (self)

 SetOrientationDegrees (self, aOrientation)

 GetOrientationDegrees (self)

 SetPrimaryDrillShape (self, aShape)

 GetPrimaryDrillShape (self)

 SetDrillShape (self, aShape)

 GetDrillShape (self)

 SetPrimaryDrillStartLayer (self, aLayer)

 GetPrimaryDrillStartLayer (self)

 SetPrimaryDrillEndLayer (self, aLayer)

 GetPrimaryDrillEndLayer (self)

 SetFrontPostMachining (self, aMode)

 GetFrontPostMachining (self)

 SetFrontPostMachiningMode (self, aMode)

 GetFrontPostMachiningMode (self)

 SetFrontPostMachiningSize (self, aSize)

 GetFrontPostMachiningSize (self)

 SetFrontPostMachiningDepth (self, aDepth)

 GetFrontPostMachiningDepth (self)

 SetFrontPostMachiningAngle (self, aAngle)

 GetFrontPostMachiningAngle (self)

 SetBackPostMachining (self, aMode)

 GetBackPostMachining (self)

 SetBackPostMachiningMode (self, aMode)

 GetBackPostMachiningMode (self)

 SetBackPostMachiningSize (self, aSize)

 GetBackPostMachiningSize (self)

 SetBackPostMachiningDepth (self, aDepth)

 GetBackPostMachiningDepth (self)

 SetBackPostMachiningAngle (self, aAngle)

 GetBackPostMachiningAngle (self)

 IsBackdrilledOrPostMachined (self, aLayer)

 GetPostMachiningKnockout (self, aLayer)

 SetPrimaryDrillFilled (self, aFilled)

 SetPrimaryDrillFilledFlag (self, aFilled)

 GetPrimaryDrillFilled (self)

 GetPrimaryDrillFilledFlag (self)

 SetPrimaryDrillCapped (self, aCapped)

 SetPrimaryDrillCappedFlag (self, aCapped)

 GetPrimaryDrillCapped (self)

 GetPrimaryDrillCappedFlag (self)

 SetSecondaryDrillSize (self, aSize)

 GetSecondaryDrillSize (self)

 ClearSecondaryDrillSize (self)

 SetSecondaryDrillSizeX (self, aX)

 GetSecondaryDrillSizeX (self)

 SetSecondaryDrillSizeY (self, aY)

 GetSecondaryDrillSizeY (self)

 SetSecondaryDrillShape (self, aShape)

 GetSecondaryDrillShape (self)

 SetSecondaryDrillStartLayer (self, aLayer)

 GetSecondaryDrillStartLayer (self)

 SetSecondaryDrillEndLayer (self, aLayer)

 GetSecondaryDrillEndLayer (self)

 SetTertiaryDrillSize (self, aSize)

 GetTertiaryDrillSize (self)

 ClearTertiaryDrillSize (self)

 SetTertiaryDrillSizeX (self, aX)

 GetTertiaryDrillSizeX (self)

 SetTertiaryDrillSizeY (self, aY)

 GetTertiaryDrillSizeY (self)

 SetTertiaryDrillShape (self, aShape)

 GetTertiaryDrillShape (self)

 SetTertiaryDrillStartLayer (self, aLayer)

 GetTertiaryDrillStartLayer (self)

 SetTertiaryDrillEndLayer (self, aLayer)

 GetTertiaryDrillEndLayer (self)

 IsDirty (self)

 SetDirty (self)

 SetAttribute (self, aAttribute)

 GetAttribute (self)

 SetProperty (self, aProperty)

 GetProperty (self)

 IsAperturePad (self)

 SetPadToDieLength (self, aLength)

 GetPadToDieLength (self)

 SetPadToDieDelay (self, aDelay)

 GetPadToDieDelay (self)

 SetLocalClearance (self, aClearance)

 GetLocalSolderMaskMargin (self)

 SetLocalSolderMaskMargin (self, aMargin)

 GetLocalSolderPasteMargin (self)

 SetLocalSolderPasteMargin (self, aMargin)

 GetLocalSolderPasteMarginRatio (self)

 SetLocalSolderPasteMarginRatio (self, aRatio)

 SetLocalZoneConnection (self, aType)

 GetLocalZoneConnection (self)

 GetOwnClearance (self, aLayer, aSource=None)

 TransformShapeToPolygon (self, aBuffer, aLayer, aClearance, aMaxError, aErrorLoc=ERROR_INSIDE, ignoreLineWidth=False)

 TransformHoleToPolygon (self, aBuffer, aClearance, aError, aErrorLoc=ERROR_INSIDE)

 GetEffectiveShape (self, *args)

 GetEffectivePolygon (self, aLayer, aErrorLoc=ERROR_INSIDE)

 GetBoundingRadius (self)

 GetLocalClearance (self, *args)

 GetSolderMaskExpansion (self, aLayer)

 GetSolderPasteMargin (self, aLayer)

 GetZoneConnectionOverrides (self, aSource=None)

 SetLocalThermalSpokeWidthOverride (self, aWidth)

 GetLocalThermalSpokeWidthOverride (self)

 GetLocalSpokeWidthOverride (self, aSource=None)

 SetThermalSpokeAngle (self, aAngle)

 GetThermalSpokeAngle (self)

 SetThermalSpokeAngleDegrees (self, aAngle)

 GetThermalSpokeAngleDegrees (self)

 SetThermalGap (self, aGap)

 GetThermalGap (self)

 GetLocalThermalGapOverride (self, *args)

 SetLocalThermalGapOverride (self, aOverride)

 ShapePos (self, aLayer)

 SetFrontRoundRectRadiusRatio (self, aRadiusScale)

 GetFrontRoundRectRadiusRatio (self)

 SetFrontRoundRectRadiusSize (self, aRadius)

 GetFrontRoundRectRadiusSize (self)

 GetSubRatsnest (self)

 SetSubRatsnest (self, aSubRatsnest)

 SetRemoveUnconnected (self, aSet)

 GetRemoveUnconnected (self)

 SetKeepTopBottom (self, aSet)

 GetKeepTopBottom (self)

 SetUnconnectedLayerMode (self, aMode)

 GetUnconnectedLayerMode (self)

 ConditionallyFlashed (self, aLayer)

 CanFlashLayer (self, aLayer)

 GetPrincipalLayer (self)

 FlashLayer (self, *args)

 HitTest (self, *args)

 Recombine (self, aIsDryRun, aMaxError)

 GetClass (self)

 GetBoundingBox (self, *args)

 ShowPadShape (self, *args)

 ShowLegacyPadShape (self, aLayer)

 ShowPadAttr (self)

 ClonePad (self)

 BuildEffectiveShapes (self)

 BuildEffectivePolygon (self, aErrorLoc=ERROR_INSIDE)

 ViewGetLOD (self, aLayer, aView)

 ClearZoneLayerOverrides (self)

 GetZoneLayerOverride (self, aLayer)

 SetZoneLayerOverride (self, aLayer, aOverride)

 CheckPad (self, aUnitsProvider, aForPadProperties, aErrorHandler)

 GetBackdrillMode (self)

 SetBackdrillMode (self, aMode)

 GetBottomBackdrillSize (self)

 SetBottomBackdrillSize (self, aSize)

 GetBottomBackdrillLayer (self)

 SetBottomBackdrillLayer (self, aLayer)

 GetTopBackdrillSize (self)

 SetTopBackdrillSize (self, aSize)

 GetTopBackdrillLayer (self)

 SetTopBackdrillLayer (self, aLayer)

 __eq__ (self, *args)

 GetShape (self, *args)

 SetShape (self, *args)

 GetSize (self, *args)

 SetSize (self, *args)

 GetDelta (self, *args)

 SetDelta (self, *args)

 GetOffset (self, *args)

 SetOffset (self, *args)

 GetRoundRectCornerRadius (self, *args)

 SetRoundRectCornerRadius (self, *args)

 GetRoundRectRadiusRatio (self, *args)

 SetRoundRectRadiusRatio (self, *args)

 GetChamferRectRatio (self, *args)

 SetChamferRectRatio (self, *args)

 GetChamferPositions (self, *args)

 SetChamferPositions (self, *args)

 SetPadName (self, aName)

 SetName (self, aName)

 GetPadName (self)

 GetName (self)

 AddPrimitive (self, *args)

 GetCustomShapeAsPolygon (self, layer=UNDEFINED_LAYER)

- Public Member Functions inherited from pcbnew.BOARD_CONNECTED_ITEM
 __init__ (self, *args, **kwargs)

 GetNet (self)

 SetNet (self, aNetInfo)

 UnpackNet (self, aProto)

 PackNet (self, aProto)

 GetNetCode (self)

 SetNetCode (self, *args)

 GetNetname (self)

 GetNetnameMsg (self)

 GetShortNetname (self)

 GetDisplayNetname (self)

 GetClearanceOverrides (self, aSource)

 GetEffectiveNetClass (self)

 GetNetClassName (self)

 SetLocalRatsnestVisible (self, aVisible)

 GetLocalRatsnestVisible (self)

 GetTeardropParams (self, *args)

 SetTeardropsEnabled (self, aEnable)

 GetTeardropsEnabled (self)

 SetTeardropBestLengthRatio (self, aRatio)

 GetTeardropBestLengthRatio (self)

 SetTeardropMaxLength (self, aMaxLength)

 GetTeardropMaxLength (self)

 SetTeardropBestWidthRatio (self, aRatio)

 GetTeardropBestWidthRatio (self)

 SetTeardropMaxWidth (self, aMaxWidth)

 GetTeardropMaxWidth (self)

 SetTeardropCurved (self, aCurve)

 GetTeardropCurved (self)

 SetTeardropPreferZoneConnections (self, aPrefer)

 GetTeardropPreferZoneConnections (self)

 SetTeardropAllowSpanTwoTracks (self, aAllow)

 GetTeardropAllowSpanTwoTracks (self)

 SetTeardropMaxTrackWidth (self, aRatio)

 GetTeardropMaxTrackWidth (self)

- Public Member Functions inherited from pcbnew.BOARD_ITEM
 __init__ (self, *args, **kwargs)

 CopyFrom (self, aOther)

 IsGroupableType (self)

 GetX (self)

 GetY (self)

 GetCenter (self)

 IsConnected (self)

 Similarity (self, aItem)

 __eq__ (self, aItem)

 IsOnCopperLayer (self)

 HasHole (self)

 HasDrilledHole (self)

 IsTented (self, aLayer)

 GetEffectiveHoleShape (self)

 RunOnChildren (self, aFunction, aMode)

 GetParent (self)

 GetParentFootprint (self)

 GetFPRelativePosition (self)

 SetFPRelativePosition (self, aPos)

 HasLineStroke (self)

 GetStroke (self)

 SetStroke (self, aStroke)

 GetFontMetrics (self)

 GetLayer (self)

 BoardLayerCount (self)

 BoardCopperLayerCount (self)

 BoardLayerSet (self)

 GetLayerSet (self)

 SetLayerSet (self, aLayers)

 IsSideSpecific (self)

 SetLayer (self, aLayer)

 Duplicate (self, addToParentGroup, aCommit=None)

 SwapItemData (self, aImage)

 IsOnLayer (self, aLayer)

 IsKnockout (self)

 SetIsKnockout (self, aKnockout)

 GetMaxError (self)

 StyleFromSettings (self, settings, aCheckSide)

 DeleteStructure (self)

 Move (self, aMoveVector)

 Rotate (self, aRotCentre, aAngle)

 Flip (self, aCentre, aFlipDirection)

 Mirror (self, aCentre, aFlipDirection)

 Normalize (self)

 NormalizeForCompare (self)

 GetBoard (self, *args)

 GetParentAsString (self)

 GetLayerName (self)

 TransformShapeToPolySet (self, aBuffer, aLayer, aClearance, aError, aErrorLoc, aRenderSettings=None)

 LayerMaskDescribe (self)

 Cast (self)

 Duplicate (self)

 SetPos (self, p)

 SetStartEnd (self, start, end)

- Public Member Functions inherited from pcbnew.EDA_ITEM
 __init__ (self, *args, **kwargs)

 Type (self)

 SetParent (self, aParent)

 SetParentGroup (self, aGroup)

 GetParentGroup (self)

 GetParentGroupId (self)

 IsLocked (self)

 SetLocked (self, aLocked)

 IsModified (self)

 IsNew (self)

 IsMoving (self)

 IsSelected (self)

 IsEntered (self)

 IsBrightened (self)

 IsRollover (self)

 GetRolloverPos (self)

 SetIsRollover (self, aIsRollover, aMousePos)

 SetActiveUrl (self, aUrl)

 SetSelected (self)

 SetBrightened (self)

 ClearSelected (self)

 ClearBrightened (self)

 SetModified (self)

 SetFlags (self, aMask)

 XorFlags (self, aMask)

 ClearFlags (self, *args)

 GetFlags (self)

 HasFlag (self, aFlag)

 GetEditFlags (self)

 ClearEditFlags (self)

 GetTempFlags (self)

 ClearTempFlags (self)

 RenderAsBitmap (self, aWorldScale)

 SetIsShownAsBitmap (self, aBitmap)

 IsShownAsBitmap (self)

 IsType (self, aScanTypes)

 SetForceVisible (self, aEnable)

 IsForceVisible (self)

 GetMsgPanelInfo (self, aFrame, aList)

 GetFriendlyName (self)

 GetPosition (self)

 SetPosition (self, aPos)

 GetFocusPosition (self)

 GetSortPosition (self)

 Clone (self)

 Visit (self, inspector, testData, aScanTypes)

 GetTypeDesc (self)

 GetItemDescription (self, aUnitsProvider, aFull)

 GetMenuImage (self)

 Matches (self, aSearchData, aAuxData)

 Replace (self, *args)

 IsReplaceable (self)

 __lt__ (self, aItem)

 ViewBBox (self)

 ViewGetLayers (self)

 GetEmbeddedFiles (self)

 GetEmbeddedFonts (self)

 PyGetClass (self)


Static Public Member Functions

 PTHMask ()

 SMDMask ()

 ConnSMDMask ()

 UnplatedHoleMask ()

 ApertureMask ()

 ClassOf (aItem)

 Compare (aPadRef, aPadCmp)

- Static Public Member Functions inherited from pcbnew.EDA_ITEM
 Sort (aLeft, aRight)


Properties

 thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

- Properties inherited from pcbnew.BOARD_CONNECTED_ITEM
 thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

- Properties inherited from pcbnew.BOARD_ITEM
 thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

- Properties inherited from pcbnew.EDA_ITEM
 thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

 m_Uuid = property(_pcbnew.EDA_ITEM_m_Uuid_get, doc=)


Additional Inherited Members

- Static Public Attributes inherited from pcbnew.BOARD_ITEM
 DRC = _pcbnew.BOARD_ITEM_DRC

 INSTANCE_TO_INSTANCE = _pcbnew.BOARD_ITEM_INSTANCE_TO_INSTANCE


Detailed Description

Proxy of C++ PAD class.

Definition at line 14712 of file pcbnew.py.

Constructor & Destructor Documentation

◆ __init__()

pcbnew.PAD.__init__ ( self,
* args )
    __init__(PAD self, FOOTPRINT parent) -> PAD
    __init__(PAD self, PAD aPad) -> PAD

Definition at line 14718 of file pcbnew.py.

Member Function Documentation

◆ __eq__()

pcbnew.PAD.__eq__ ( self,
* args )
    __eq__(PAD self, PAD aOther) -> bool
    __eq__(PAD self, BOARD_ITEM aBoardItem) -> bool

Definition at line 15598 of file pcbnew.py.

◆ AddPrimitive()

pcbnew.PAD.AddPrimitive ( self,
* args )

Definition at line 15738 of file pcbnew.py.

◆ AddPrimitivePoly()

pcbnew.PAD.AddPrimitivePoly ( self,
* args )
    AddPrimitivePoly(PAD self, PCB_LAYER_ID aLayer, SHAPE_POLY_SET aPoly, int aThickness, bool aFilled)
    AddPrimitivePoly(PAD self, PCB_LAYER_ID aLayer, VECTOR_VECTOR2I aPoly, int aThickness, bool aFilled)

Definition at line 14926 of file pcbnew.py.

◆ AddPrimitiveShape()

pcbnew.PAD.AddPrimitiveShape ( self,
aLayer,
aPrimitive )
AddPrimitiveShape(PAD self, PCB_LAYER_ID aLayer, PCB_SHAPE aPrimitive)

Definition at line 14957 of file pcbnew.py.

◆ ApertureMask()

pcbnew.PAD.ApertureMask ( )
static
ApertureMask() -> LSET

Definition at line 14754 of file pcbnew.py.

◆ AppendPrimitives()

pcbnew.PAD.AppendPrimitives ( self,
aLayer,
aPrimitivesList )
AppendPrimitives(PAD self, PCB_LAYER_ID aLayer, std::vector< std::shared_ptr< PCB_SHAPE >,std::allocator< std::shared_ptr< PCB_SHAPE > > > const & aPrimitivesList)

Definition at line 14953 of file pcbnew.py.

◆ BuildEffectivePolygon()

pcbnew.PAD.BuildEffectivePolygon ( self,
aErrorLoc = ERROR_INSIDE )
BuildEffectivePolygon(PAD self, ERROR_LOC aErrorLoc=ERROR_INSIDE)

Definition at line 15534 of file pcbnew.py.

◆ BuildEffectiveShapes()

pcbnew.PAD.BuildEffectiveShapes ( self)
BuildEffectiveShapes(PAD self)

Definition at line 15530 of file pcbnew.py.

◆ CanFlashLayer()

pcbnew.PAD.CanFlashLayer ( self,
aLayer )
CanFlashLayer(PAD self, int aLayer) -> bool

Definition at line 15467 of file pcbnew.py.

◆ CanHaveNumber()

pcbnew.PAD.CanHaveNumber ( self)
CanHaveNumber(PAD self) -> bool

Definition at line 14779 of file pcbnew.py.

◆ CheckPad()

pcbnew.PAD.CheckPad ( self,
aUnitsProvider,
aForPadProperties,
aErrorHandler )
CheckPad(PAD self, UNITS_PROVIDER aUnitsProvider, bool aForPadProperties, std::function< void (int,wxString const &) > const & aErrorHandler)

Definition at line 15554 of file pcbnew.py.

◆ ClassOf()

pcbnew.PAD.ClassOf ( aItem)
static
ClassOf(EDA_ITEM aItem) -> bool

Reimplemented from pcbnew.BOARD_CONNECTED_ITEM.

Definition at line 14759 of file pcbnew.py.

◆ ClearSecondaryDrillSize()

pcbnew.PAD.ClearSecondaryDrillSize ( self)
ClearSecondaryDrillSize(PAD self)

Definition at line 15145 of file pcbnew.py.

◆ ClearTertiaryDrillSize()

pcbnew.PAD.ClearTertiaryDrillSize ( self)
ClearTertiaryDrillSize(PAD self)

Definition at line 15197 of file pcbnew.py.

◆ ClearZoneLayerOverrides()

pcbnew.PAD.ClearZoneLayerOverrides ( self)
ClearZoneLayerOverrides(PAD self)

Definition at line 15542 of file pcbnew.py.

◆ ClonePad()

pcbnew.PAD.ClonePad ( self)
ClonePad(PAD self) -> PAD

Definition at line 15526 of file pcbnew.py.

◆ Compare()

pcbnew.PAD.Compare ( aPadRef,
aPadCmp )
static
Compare(PAD aPadRef, PAD aPadCmp) -> int

Definition at line 15507 of file pcbnew.py.

◆ ConditionallyFlashed()

pcbnew.PAD.ConditionallyFlashed ( self,
aLayer )
ConditionallyFlashed(PAD self, PCB_LAYER_ID aLayer) -> bool

Definition at line 15463 of file pcbnew.py.

◆ ConnSMDMask()

pcbnew.PAD.ConnSMDMask ( )
static
ConnSMDMask() -> LSET

Definition at line 14744 of file pcbnew.py.

◆ DeletePrimitivesList()

pcbnew.PAD.DeletePrimitivesList ( self,
aLayer = UNDEFINED_LAYER )
DeletePrimitivesList(PAD self, PCB_LAYER_ID aLayer=UNDEFINED_LAYER)

Definition at line 14937 of file pcbnew.py.

◆ Deserialize()

pcbnew.PAD.Deserialize ( self,
aContainer )
Deserialize(PAD self, google::protobuf::Any const & aContainer) -> bool

Definition at line 14729 of file pcbnew.py.

◆ FlashLayer()

pcbnew.PAD.FlashLayer ( self,
* args )
    FlashLayer(PAD self, int aLayer, bool aOnlyCheckIfPermitted=False) -> bool
    FlashLayer(PAD self, LSET aLayers) -> bool

Definition at line 15475 of file pcbnew.py.

◆ FlipPrimitives()

pcbnew.PAD.FlipPrimitives ( self,
aFlipDirection )
FlipPrimitives(PAD self, FLIP_DIRECTION aFlipDirection)

Definition at line 14945 of file pcbnew.py.

◆ GetAnchorPadShape()

pcbnew.PAD.GetAnchorPadShape ( self,
aLayer )
GetAnchorPadShape(PAD self, PCB_LAYER_ID aLayer) -> PAD_SHAPE

Definition at line 14823 of file pcbnew.py.

◆ GetAttribute()

pcbnew.PAD.GetAttribute ( self)
GetAttribute(PAD self) -> PAD_ATTRIB

Definition at line 15253 of file pcbnew.py.

◆ GetBackdrillMode()

pcbnew.PAD.GetBackdrillMode ( self)
GetBackdrillMode(PAD self) -> BACKDRILL_MODE

Definition at line 15558 of file pcbnew.py.

◆ GetBackPostMachining()

pcbnew.PAD.GetBackPostMachining ( self)
GetBackPostMachining(PAD self) -> std::optional< PAD_DRILL_POST_MACHINING_MODE >

Definition at line 15061 of file pcbnew.py.

◆ GetBackPostMachiningAngle()

pcbnew.PAD.GetBackPostMachiningAngle ( self)
GetBackPostMachiningAngle(PAD self) -> int

Definition at line 15093 of file pcbnew.py.

◆ GetBackPostMachiningDepth()

pcbnew.PAD.GetBackPostMachiningDepth ( self)
GetBackPostMachiningDepth(PAD self) -> int

Definition at line 15085 of file pcbnew.py.

◆ GetBackPostMachiningMode()

pcbnew.PAD.GetBackPostMachiningMode ( self)
GetBackPostMachiningMode(PAD self) -> PAD_DRILL_POST_MACHINING_MODE

Definition at line 15069 of file pcbnew.py.

◆ GetBackPostMachiningSize()

pcbnew.PAD.GetBackPostMachiningSize ( self)
GetBackPostMachiningSize(PAD self) -> int

Definition at line 15077 of file pcbnew.py.

◆ GetBottomBackdrillLayer()

pcbnew.PAD.GetBottomBackdrillLayer ( self)
GetBottomBackdrillLayer(PAD self) -> PCB_LAYER_ID

Definition at line 15574 of file pcbnew.py.

◆ GetBottomBackdrillSize()

pcbnew.PAD.GetBottomBackdrillSize ( self)
GetBottomBackdrillSize(PAD self) -> std::optional< int >

Definition at line 15566 of file pcbnew.py.

◆ GetBoundingBox()

pcbnew.PAD.GetBoundingBox ( self,
* args )
    GetBoundingBox(PAD self) -> BOX2I
    GetBoundingBox(PAD self, PCB_LAYER_ID aLayer) -> BOX2I

Reimplemented from pcbnew.EDA_ITEM.

Definition at line 15499 of file pcbnew.py.

◆ GetBoundingRadius()

pcbnew.PAD.GetBoundingRadius ( self)
GetBoundingRadius(PAD self) -> int

Definition at line 15341 of file pcbnew.py.

◆ GetChamferPositions()

pcbnew.PAD.GetChamferPositions ( self,
* args )
    GetChamferPositions(PAD self, PCB_LAYER_ID aLayer) -> int
    GetChamferPositions(PAD self) -> int

Definition at line 15703 of file pcbnew.py.

◆ GetChamferRectRatio()

pcbnew.PAD.GetChamferRectRatio ( self,
* args )
    GetChamferRectRatio(PAD self, PCB_LAYER_ID aLayer) -> double
    GetChamferRectRatio(PAD self) -> double

Definition at line 15689 of file pcbnew.py.

◆ GetClass()

pcbnew.PAD.GetClass ( self)
GetClass(PAD self) -> wxString

Reimplemented from pcbnew.EDA_ITEM.

Definition at line 15495 of file pcbnew.py.

◆ GetCustomShapeAsPolygon()

pcbnew.PAD.GetCustomShapeAsPolygon ( self,
layer = UNDEFINED_LAYER )

Definition at line 15771 of file pcbnew.py.

◆ GetCustomShapeInZoneOpt()

pcbnew.PAD.GetCustomShapeInZoneOpt ( self)
GetCustomShapeInZoneOpt(PAD self) -> CUSTOM_SHAPE_ZONE_MODE

Definition at line 14827 of file pcbnew.py.

◆ GetDelta()

pcbnew.PAD.GetDelta ( self,
* args )
    GetDelta(PAD self, PCB_LAYER_ID aLayer) -> VECTOR2I
    GetDelta(PAD self) -> VECTOR2I

Definition at line 15633 of file pcbnew.py.

◆ GetDrillShape()

pcbnew.PAD.GetDrillShape ( self)
GetDrillShape(PAD self) -> PAD_DRILL_SHAPE

Definition at line 14997 of file pcbnew.py.

◆ GetDrillSize()

pcbnew.PAD.GetDrillSize ( self)
GetDrillSize(PAD self) -> VECTOR2I

Definition at line 14895 of file pcbnew.py.

◆ GetDrillSizeX()

pcbnew.PAD.GetDrillSizeX ( self)
GetDrillSizeX(PAD self) -> int

Definition at line 14903 of file pcbnew.py.

◆ GetDrillSizeY()

pcbnew.PAD.GetDrillSizeY ( self)
GetDrillSizeY(PAD self) -> int

Definition at line 14911 of file pcbnew.py.

◆ GetEffectivePolygon()

pcbnew.PAD.GetEffectivePolygon ( self,
aLayer,
aErrorLoc = ERROR_INSIDE )
GetEffectivePolygon(PAD self, PCB_LAYER_ID aLayer, ERROR_LOC aErrorLoc=ERROR_INSIDE) -> std::shared_ptr< SHAPE_POLY_SET > const

Definition at line 15337 of file pcbnew.py.

◆ GetEffectiveShape()

pcbnew.PAD.GetEffectiveShape ( self,
* args )
GetEffectiveShape(PAD self, PCB_LAYER_ID aLayer, FLASHING flashPTHPads=DEFAULT) -> std::shared_ptr< SHAPE >

Reimplemented from pcbnew.BOARD_ITEM.

Definition at line 15333 of file pcbnew.py.

◆ GetFPRelativeOrientation()

pcbnew.PAD.GetFPRelativeOrientation ( self)
GetFPRelativeOrientation(PAD self) -> EDA_ANGLE

Definition at line 14973 of file pcbnew.py.

◆ GetFrontPostMachining()

pcbnew.PAD.GetFrontPostMachining ( self)
GetFrontPostMachining(PAD self) -> std::optional< PAD_DRILL_POST_MACHINING_MODE >

Definition at line 15021 of file pcbnew.py.

◆ GetFrontPostMachiningAngle()

pcbnew.PAD.GetFrontPostMachiningAngle ( self)
GetFrontPostMachiningAngle(PAD self) -> int

Definition at line 15053 of file pcbnew.py.

◆ GetFrontPostMachiningDepth()

pcbnew.PAD.GetFrontPostMachiningDepth ( self)
GetFrontPostMachiningDepth(PAD self) -> int

Definition at line 15045 of file pcbnew.py.

◆ GetFrontPostMachiningMode()

pcbnew.PAD.GetFrontPostMachiningMode ( self)
GetFrontPostMachiningMode(PAD self) -> PAD_DRILL_POST_MACHINING_MODE

Definition at line 15029 of file pcbnew.py.

◆ GetFrontPostMachiningSize()

pcbnew.PAD.GetFrontPostMachiningSize ( self)
GetFrontPostMachiningSize(PAD self) -> int

Definition at line 15037 of file pcbnew.py.

◆ GetFrontRoundRectRadiusRatio()

pcbnew.PAD.GetFrontRoundRectRadiusRatio ( self)
GetFrontRoundRectRadiusRatio(PAD self) -> double

Definition at line 15419 of file pcbnew.py.

◆ GetFrontRoundRectRadiusSize()

pcbnew.PAD.GetFrontRoundRectRadiusSize ( self)
GetFrontRoundRectRadiusSize(PAD self) -> int

Definition at line 15427 of file pcbnew.py.

◆ GetFrontShape()

pcbnew.PAD.GetFrontShape ( self)
GetFrontShape(PAD self) -> PAD_SHAPE

Definition at line 14819 of file pcbnew.py.

◆ GetKeepTopBottom()

pcbnew.PAD.GetKeepTopBottom ( self)
GetKeepTopBottom(PAD self) -> bool

Definition at line 15451 of file pcbnew.py.

◆ GetLocalClearance()

pcbnew.PAD.GetLocalClearance ( self,
* args )
    GetLocalClearance(PAD self) -> std::optional< int >
    GetLocalClearance(PAD self, wxString aSource) -> std::optional< int >

Reimplemented from pcbnew.BOARD_CONNECTED_ITEM.

Definition at line 15345 of file pcbnew.py.

◆ GetLocalSolderMaskMargin()

pcbnew.PAD.GetLocalSolderMaskMargin ( self)
GetLocalSolderMaskMargin(PAD self) -> std::optional< int >

Definition at line 15289 of file pcbnew.py.

◆ GetLocalSolderPasteMargin()

pcbnew.PAD.GetLocalSolderPasteMargin ( self)
GetLocalSolderPasteMargin(PAD self) -> std::optional< int >

Definition at line 15297 of file pcbnew.py.

◆ GetLocalSolderPasteMarginRatio()

pcbnew.PAD.GetLocalSolderPasteMarginRatio ( self)
GetLocalSolderPasteMarginRatio(PAD self) -> std::optional< double >

Definition at line 15305 of file pcbnew.py.

◆ GetLocalSpokeWidthOverride()

pcbnew.PAD.GetLocalSpokeWidthOverride ( self,
aSource = None )
GetLocalSpokeWidthOverride(PAD self, wxString aSource=None) -> int

Definition at line 15372 of file pcbnew.py.

◆ GetLocalThermalGapOverride()

pcbnew.PAD.GetLocalThermalGapOverride ( self,
* args )
    GetLocalThermalGapOverride(PAD self, wxString aSource) -> int
    GetLocalThermalGapOverride(PAD self) -> std::optional< int >

Definition at line 15400 of file pcbnew.py.

◆ GetLocalThermalSpokeWidthOverride()

pcbnew.PAD.GetLocalThermalSpokeWidthOverride ( self)
GetLocalThermalSpokeWidthOverride(PAD self) -> std::optional< int >

Definition at line 15368 of file pcbnew.py.

◆ GetLocalZoneConnection()

pcbnew.PAD.GetLocalZoneConnection ( self)
GetLocalZoneConnection(PAD self) -> ZONE_CONNECTION

Definition at line 15317 of file pcbnew.py.

◆ GetName()

pcbnew.PAD.GetName ( self)

Definition at line 15731 of file pcbnew.py.

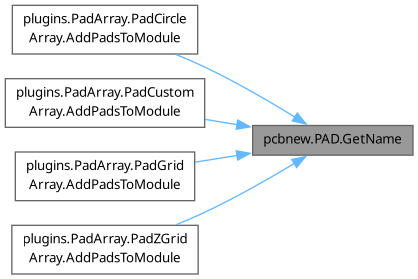

Here is the caller graph for this function:

◆ GetNumber()

pcbnew.PAD.GetNumber ( self)
GetNumber(PAD self) -> wxString

Definition at line 14775 of file pcbnew.py.

◆ GetOffset()

pcbnew.PAD.GetOffset ( self,
* args )
    GetOffset(PAD self, PCB_LAYER_ID aLayer) -> VECTOR2I
    GetOffset(PAD self) -> VECTOR2I

Definition at line 15647 of file pcbnew.py.

◆ GetOrientation()

pcbnew.PAD.GetOrientation ( self)
GetOrientation(PAD self) -> EDA_ANGLE

Definition at line 14969 of file pcbnew.py.

◆ GetOrientationDegrees()

pcbnew.PAD.GetOrientationDegrees ( self)
GetOrientationDegrees(PAD self) -> double

Definition at line 14981 of file pcbnew.py.

◆ GetOwnClearance()

pcbnew.PAD.GetOwnClearance ( self,
aLayer,
aSource = None )
GetOwnClearance(PAD self, PCB_LAYER_ID aLayer, wxString aSource=None) -> int

Reimplemented from pcbnew.BOARD_CONNECTED_ITEM.

Definition at line 15321 of file pcbnew.py.

◆ GetPadName()

pcbnew.PAD.GetPadName ( self)

Definition at line 15728 of file pcbnew.py.

◆ GetPadToDieDelay()

pcbnew.PAD.GetPadToDieDelay ( self)
GetPadToDieDelay(PAD self) -> int

Definition at line 15281 of file pcbnew.py.

◆ GetPadToDieLength()

pcbnew.PAD.GetPadToDieLength ( self)
GetPadToDieLength(PAD self) -> int

Definition at line 15273 of file pcbnew.py.

◆ GetPinFunction()

pcbnew.PAD.GetPinFunction ( self)
GetPinFunction(PAD self) -> wxString

Definition at line 14787 of file pcbnew.py.

◆ GetPinType()

pcbnew.PAD.GetPinType ( self)
GetPinType(PAD self) -> wxString

Definition at line 14795 of file pcbnew.py.

◆ GetPostMachiningKnockout()

pcbnew.PAD.GetPostMachiningKnockout ( self,
aLayer )
GetPostMachiningKnockout(PAD self, PCB_LAYER_ID aLayer) -> int

Definition at line 15101 of file pcbnew.py.

◆ GetPrimaryDrillCapped()

pcbnew.PAD.GetPrimaryDrillCapped ( self)
GetPrimaryDrillCapped(PAD self) -> std::optional< bool >

Definition at line 15129 of file pcbnew.py.

◆ GetPrimaryDrillCappedFlag()

pcbnew.PAD.GetPrimaryDrillCappedFlag ( self)
GetPrimaryDrillCappedFlag(PAD self) -> bool

Definition at line 15133 of file pcbnew.py.

◆ GetPrimaryDrillEndLayer()

pcbnew.PAD.GetPrimaryDrillEndLayer ( self)
GetPrimaryDrillEndLayer(PAD self) -> PCB_LAYER_ID

Definition at line 15013 of file pcbnew.py.

◆ GetPrimaryDrillFilled()

pcbnew.PAD.GetPrimaryDrillFilled ( self)
GetPrimaryDrillFilled(PAD self) -> std::optional< bool >

Definition at line 15113 of file pcbnew.py.

◆ GetPrimaryDrillFilledFlag()

pcbnew.PAD.GetPrimaryDrillFilledFlag ( self)
GetPrimaryDrillFilledFlag(PAD self) -> bool

Definition at line 15117 of file pcbnew.py.

◆ GetPrimaryDrillShape()

pcbnew.PAD.GetPrimaryDrillShape ( self)
GetPrimaryDrillShape(PAD self) -> PAD_DRILL_SHAPE

Definition at line 14989 of file pcbnew.py.

◆ GetPrimaryDrillSize()

pcbnew.PAD.GetPrimaryDrillSize ( self)
GetPrimaryDrillSize(PAD self) -> VECTOR2I

Definition at line 14871 of file pcbnew.py.

◆ GetPrimaryDrillSizeX()

pcbnew.PAD.GetPrimaryDrillSizeX ( self)
GetPrimaryDrillSizeX(PAD self) -> int

Definition at line 14879 of file pcbnew.py.

◆ GetPrimaryDrillSizeY()

pcbnew.PAD.GetPrimaryDrillSizeY ( self)
GetPrimaryDrillSizeY(PAD self) -> int

Definition at line 14887 of file pcbnew.py.

◆ GetPrimaryDrillStartLayer()

pcbnew.PAD.GetPrimaryDrillStartLayer ( self)
GetPrimaryDrillStartLayer(PAD self) -> PCB_LAYER_ID

Definition at line 15005 of file pcbnew.py.

◆ GetPrimitives()

pcbnew.PAD.GetPrimitives ( self,
aLayer )
GetPrimitives(PAD self, PCB_LAYER_ID aLayer) -> std::vector< std::shared_ptr< PCB_SHAPE >,std::allocator< std::shared_ptr< PCB_SHAPE > > > const &

Definition at line 14941 of file pcbnew.py.

◆ GetPrincipalLayer()

pcbnew.PAD.GetPrincipalLayer ( self)
GetPrincipalLayer(PAD self) -> PCB_LAYER_ID

Definition at line 15471 of file pcbnew.py.

◆ GetProperty()

pcbnew.PAD.GetProperty ( self)
GetProperty(PAD self) -> PAD_PROP

Definition at line 15261 of file pcbnew.py.

◆ GetRemoveUnconnected()

pcbnew.PAD.GetRemoveUnconnected ( self)
GetRemoveUnconnected(PAD self) -> bool

Definition at line 15443 of file pcbnew.py.

◆ GetRoundRectCornerRadius()

pcbnew.PAD.GetRoundRectCornerRadius ( self,
* args )
    GetRoundRectCornerRadius(PAD self, PCB_LAYER_ID aLayer) -> int
    GetRoundRectCornerRadius(PAD self) -> double

Definition at line 15661 of file pcbnew.py.

◆ GetRoundRectRadiusRatio()

pcbnew.PAD.GetRoundRectRadiusRatio ( self,
* args )
    GetRoundRectRadiusRatio(PAD self, PCB_LAYER_ID aLayer) -> double
    GetRoundRectRadiusRatio(PAD self) -> double

Definition at line 15675 of file pcbnew.py.

◆ GetSecondaryDrillEndLayer()

pcbnew.PAD.GetSecondaryDrillEndLayer ( self)
GetSecondaryDrillEndLayer(PAD self) -> PCB_LAYER_ID

Definition at line 15185 of file pcbnew.py.

◆ GetSecondaryDrillShape()

pcbnew.PAD.GetSecondaryDrillShape ( self)
GetSecondaryDrillShape(PAD self) -> PAD_DRILL_SHAPE

Definition at line 15169 of file pcbnew.py.

◆ GetSecondaryDrillSize()

pcbnew.PAD.GetSecondaryDrillSize ( self)
GetSecondaryDrillSize(PAD self) -> VECTOR2I

Definition at line 15141 of file pcbnew.py.

◆ GetSecondaryDrillSizeX()

pcbnew.PAD.GetSecondaryDrillSizeX ( self)
GetSecondaryDrillSizeX(PAD self) -> int

Definition at line 15153 of file pcbnew.py.

◆ GetSecondaryDrillSizeY()

pcbnew.PAD.GetSecondaryDrillSizeY ( self)
GetSecondaryDrillSizeY(PAD self) -> int

Definition at line 15161 of file pcbnew.py.

◆ GetSecondaryDrillStartLayer()

pcbnew.PAD.GetSecondaryDrillStartLayer ( self)
GetSecondaryDrillStartLayer(PAD self) -> PCB_LAYER_ID

Definition at line 15177 of file pcbnew.py.

◆ GetShape()

pcbnew.PAD.GetShape ( self,
* args )
    GetShape(PAD self, PCB_LAYER_ID aLayer) -> PAD_SHAPE
    GetShape(PAD self) -> PAD_SHAPE

Definition at line 15605 of file pcbnew.py.

◆ GetSize()

pcbnew.PAD.GetSize ( self,
* args )
    GetSize(PAD self, PCB_LAYER_ID aLayer) -> VECTOR2I
    GetSize(PAD self) -> VECTOR2I

Definition at line 15619 of file pcbnew.py.

◆ GetSizeX()

pcbnew.PAD.GetSizeX ( self)
GetSizeX(PAD self) -> int

Definition at line 14855 of file pcbnew.py.

◆ GetSizeY()

pcbnew.PAD.GetSizeY ( self)
GetSizeY(PAD self) -> int

Definition at line 14863 of file pcbnew.py.

◆ GetSolderMaskExpansion()

pcbnew.PAD.GetSolderMaskExpansion ( self,
aLayer )
GetSolderMaskExpansion(PAD self, PCB_LAYER_ID aLayer) -> int

Definition at line 15352 of file pcbnew.py.

◆ GetSolderPasteMargin()

pcbnew.PAD.GetSolderPasteMargin ( self,
aLayer )
GetSolderPasteMargin(PAD self, PCB_LAYER_ID aLayer) -> VECTOR2I

Definition at line 15356 of file pcbnew.py.

◆ GetSubRatsnest()

pcbnew.PAD.GetSubRatsnest ( self)
GetSubRatsnest(PAD self) -> int

Definition at line 15431 of file pcbnew.py.

◆ GetTertiaryDrillEndLayer()

pcbnew.PAD.GetTertiaryDrillEndLayer ( self)
GetTertiaryDrillEndLayer(PAD self) -> PCB_LAYER_ID

Definition at line 15237 of file pcbnew.py.

◆ GetTertiaryDrillShape()

pcbnew.PAD.GetTertiaryDrillShape ( self)
GetTertiaryDrillShape(PAD self) -> PAD_DRILL_SHAPE

Definition at line 15221 of file pcbnew.py.

◆ GetTertiaryDrillSize()

pcbnew.PAD.GetTertiaryDrillSize ( self)
GetTertiaryDrillSize(PAD self) -> VECTOR2I

Definition at line 15193 of file pcbnew.py.

◆ GetTertiaryDrillSizeX()

pcbnew.PAD.GetTertiaryDrillSizeX ( self)
GetTertiaryDrillSizeX(PAD self) -> int

Definition at line 15205 of file pcbnew.py.

◆ GetTertiaryDrillSizeY()

pcbnew.PAD.GetTertiaryDrillSizeY ( self)
GetTertiaryDrillSizeY(PAD self) -> int

Definition at line 15213 of file pcbnew.py.

◆ GetTertiaryDrillStartLayer()

pcbnew.PAD.GetTertiaryDrillStartLayer ( self)
GetTertiaryDrillStartLayer(PAD self) -> PCB_LAYER_ID

Definition at line 15229 of file pcbnew.py.

◆ GetThermalGap()

pcbnew.PAD.GetThermalGap ( self)
GetThermalGap(PAD self) -> int

Definition at line 15396 of file pcbnew.py.

◆ GetThermalSpokeAngle()

pcbnew.PAD.GetThermalSpokeAngle ( self)
GetThermalSpokeAngle(PAD self) -> EDA_ANGLE

Definition at line 15380 of file pcbnew.py.

◆ GetThermalSpokeAngleDegrees()

pcbnew.PAD.GetThermalSpokeAngleDegrees ( self)
GetThermalSpokeAngleDegrees(PAD self) -> double

Definition at line 15388 of file pcbnew.py.

◆ GetTopBackdrillLayer()

pcbnew.PAD.GetTopBackdrillLayer ( self)
GetTopBackdrillLayer(PAD self) -> PCB_LAYER_ID

Definition at line 15590 of file pcbnew.py.

◆ GetTopBackdrillSize()

pcbnew.PAD.GetTopBackdrillSize ( self)
GetTopBackdrillSize(PAD self) -> std::optional< int >

Definition at line 15582 of file pcbnew.py.

◆ GetUnconnectedLayerMode()

pcbnew.PAD.GetUnconnectedLayerMode ( self)
GetUnconnectedLayerMode(PAD self) -> UNCONNECTED_LAYER_MODE

Definition at line 15459 of file pcbnew.py.

◆ GetZoneConnectionOverrides()

pcbnew.PAD.GetZoneConnectionOverrides ( self,
aSource = None )
GetZoneConnectionOverrides(PAD self, wxString aSource=None) -> ZONE_CONNECTION

Definition at line 15360 of file pcbnew.py.

◆ GetZoneLayerOverride()

pcbnew.PAD.GetZoneLayerOverride ( self,
aLayer )
GetZoneLayerOverride(PAD self, PCB_LAYER_ID aLayer) -> ZONE_LAYER_OVERRIDE const &

Definition at line 15546 of file pcbnew.py.

◆ HasExplicitDefinitionForLayer()

pcbnew.PAD.HasExplicitDefinitionForLayer ( self,
aLayer )
HasExplicitDefinitionForLayer(PAD self, PCB_LAYER_ID aLayer) -> bool

Definition at line 14847 of file pcbnew.py.

◆ HitTest()

pcbnew.PAD.HitTest ( self,
* args )
    HitTest(PAD self, VECTOR2I aPosition, int aAccuracy=0) -> bool
    HitTest(PAD self, BOX2I aRect, bool aContained, int aAccuracy=0) -> bool
    HitTest(PAD self, SHAPE_LINE_CHAIN aPoly, bool aContained) -> bool
    HitTest(PAD self, VECTOR2I aPosition, int aAccuracy, PCB_LAYER_ID aLayer) -> bool

Reimplemented from pcbnew.EDA_ITEM.

Definition at line 15482 of file pcbnew.py.

◆ ImportSettingsFrom()

pcbnew.PAD.ImportSettingsFrom ( self,
aMasterPad )
ImportSettingsFrom(PAD self, PAD aMasterPad)

Definition at line 14763 of file pcbnew.py.

◆ IsAperturePad()

pcbnew.PAD.IsAperturePad ( self)
IsAperturePad(PAD self) -> bool

Definition at line 15265 of file pcbnew.py.

◆ IsBackdrilledOrPostMachined()

pcbnew.PAD.IsBackdrilledOrPostMachined ( self,
aLayer )
IsBackdrilledOrPostMachined(PAD self, PCB_LAYER_ID aLayer) -> bool

Definition at line 15097 of file pcbnew.py.

◆ IsDirty()

pcbnew.PAD.IsDirty ( self)
IsDirty(PAD self) -> bool

Definition at line 15241 of file pcbnew.py.

◆ IsFlipped()

pcbnew.PAD.IsFlipped ( self)
IsFlipped(PAD self) -> bool

Definition at line 14767 of file pcbnew.py.

◆ IsFreePad()

pcbnew.PAD.IsFreePad ( self)
IsFreePad(PAD self) -> bool

Definition at line 14811 of file pcbnew.py.

◆ IsNoConnectPad()

pcbnew.PAD.IsNoConnectPad ( self)
IsNoConnectPad(PAD self) -> bool

Definition at line 14807 of file pcbnew.py.

◆ MergePrimitivesAsPolygon()

pcbnew.PAD.MergePrimitivesAsPolygon ( self,
aLayer,
aMergedPolygon,
aErrorLoc = ERROR_INSIDE )
MergePrimitivesAsPolygon(PAD self, PCB_LAYER_ID aLayer, SHAPE_POLY_SET aMergedPolygon, ERROR_LOC aErrorLoc=ERROR_INSIDE)

Definition at line 14933 of file pcbnew.py.

◆ Padstack()

pcbnew.PAD.Padstack ( self,
* args )
    Padstack(PAD self) -> PADSTACK
    Padstack(PAD self) -> PADSTACK

Definition at line 14915 of file pcbnew.py.

◆ PTHMask()

pcbnew.PAD.PTHMask ( )
static
PTHMask() -> LSET

Definition at line 14734 of file pcbnew.py.

◆ Recombine()

pcbnew.PAD.Recombine ( self,
aIsDryRun,
aMaxError )
Recombine(PAD self, bool aIsDryRun, int aMaxError) -> std::vector< PCB_SHAPE *,std::allocator< PCB_SHAPE * > >

Definition at line 15491 of file pcbnew.py.

◆ ReplacePrimitives()

pcbnew.PAD.ReplacePrimitives ( self,
aLayer,
aPrimitivesList )
ReplacePrimitives(PAD self, PCB_LAYER_ID aLayer, std::vector< std::shared_ptr< PCB_SHAPE >,std::allocator< std::shared_ptr< PCB_SHAPE > > > const & aPrimitivesList)

Definition at line 14949 of file pcbnew.py.

◆ SameLogicalPadAs()

pcbnew.PAD.SameLogicalPadAs ( self,
aOther )
SameLogicalPadAs(PAD self, PAD aOther) -> bool

Definition at line 14799 of file pcbnew.py.

◆ Serialize()

pcbnew.PAD.Serialize ( self,
aContainer )
Serialize(PAD self, google::protobuf::Any & aContainer)

Definition at line 14725 of file pcbnew.py.

◆ SetAnchorPadShape()

pcbnew.PAD.SetAnchorPadShape ( self,
aLayer,
aShape )
SetAnchorPadShape(PAD self, PCB_LAYER_ID aLayer, PAD_SHAPE aShape)

Definition at line 14835 of file pcbnew.py.

◆ SetAttribute()

pcbnew.PAD.SetAttribute ( self,
aAttribute )
SetAttribute(PAD self, PAD_ATTRIB aAttribute)

Definition at line 15249 of file pcbnew.py.

◆ SetBackdrillMode()

pcbnew.PAD.SetBackdrillMode ( self,
aMode )
SetBackdrillMode(PAD self, BACKDRILL_MODE aMode)

Definition at line 15562 of file pcbnew.py.

◆ SetBackPostMachining()

pcbnew.PAD.SetBackPostMachining ( self,
aMode )
SetBackPostMachining(PAD self, std::optional< PAD_DRILL_POST_MACHINING_MODE > const & aMode)

Definition at line 15057 of file pcbnew.py.

◆ SetBackPostMachiningAngle()

pcbnew.PAD.SetBackPostMachiningAngle ( self,
aAngle )
SetBackPostMachiningAngle(PAD self, int aAngle)

Definition at line 15089 of file pcbnew.py.

◆ SetBackPostMachiningDepth()

pcbnew.PAD.SetBackPostMachiningDepth ( self,
aDepth )
SetBackPostMachiningDepth(PAD self, int aDepth)

Definition at line 15081 of file pcbnew.py.

◆ SetBackPostMachiningMode()

pcbnew.PAD.SetBackPostMachiningMode ( self,
aMode )
SetBackPostMachiningMode(PAD self, PAD_DRILL_POST_MACHINING_MODE aMode)

Definition at line 15065 of file pcbnew.py.

◆ SetBackPostMachiningSize()

pcbnew.PAD.SetBackPostMachiningSize ( self,
aSize )
SetBackPostMachiningSize(PAD self, int aSize)

Definition at line 15073 of file pcbnew.py.

◆ SetBottomBackdrillLayer()

pcbnew.PAD.SetBottomBackdrillLayer ( self,
aLayer )
SetBottomBackdrillLayer(PAD self, PCB_LAYER_ID aLayer)

Definition at line 15578 of file pcbnew.py.

◆ SetBottomBackdrillSize()

pcbnew.PAD.SetBottomBackdrillSize ( self,
aSize )
SetBottomBackdrillSize(PAD self, std::optional< int > aSize)

Definition at line 15570 of file pcbnew.py.

◆ SetChamferPositions()

pcbnew.PAD.SetChamferPositions ( self,
* args )
    SetChamferPositions(PAD self, PCB_LAYER_ID aLayer, int aPositions)
    SetChamferPositions(PAD self, int aPositions)

Definition at line 15710 of file pcbnew.py.

◆ SetChamferRectRatio()

pcbnew.PAD.SetChamferRectRatio ( self,
* args )
    SetChamferRectRatio(PAD self, PCB_LAYER_ID aLayer, double aChamferScale)
    SetChamferRectRatio(PAD self, double aRatio)

Definition at line 15696 of file pcbnew.py.

◆ SetCustomShapeInZoneOpt()

pcbnew.PAD.SetCustomShapeInZoneOpt ( self,
aOption )
SetCustomShapeInZoneOpt(PAD self, CUSTOM_SHAPE_ZONE_MODE aOption)

Definition at line 14831 of file pcbnew.py.

◆ SetDelta()

pcbnew.PAD.SetDelta ( self,
* args )
    SetDelta(PAD self, PCB_LAYER_ID aLayer, VECTOR2I aSize)
    SetDelta(PAD self, VECTOR2I aSize)

Definition at line 15640 of file pcbnew.py.

◆ SetDirty()

pcbnew.PAD.SetDirty ( self)
SetDirty(PAD self)

Definition at line 15245 of file pcbnew.py.

◆ SetDrillShape()

pcbnew.PAD.SetDrillShape ( self,
aShape )
SetDrillShape(PAD self, PAD_DRILL_SHAPE aShape)

Definition at line 14993 of file pcbnew.py.

◆ SetDrillSize()

pcbnew.PAD.SetDrillSize ( self,
aSize )
SetDrillSize(PAD self, VECTOR2I aSize)

Definition at line 14891 of file pcbnew.py.

◆ SetDrillSizeX()

pcbnew.PAD.SetDrillSizeX ( self,
aX )
SetDrillSizeX(PAD self, int aX)

Definition at line 14899 of file pcbnew.py.

◆ SetDrillSizeY()

pcbnew.PAD.SetDrillSizeY ( self,
aY )
SetDrillSizeY(PAD self, int aY)

Definition at line 14907 of file pcbnew.py.

◆ SetFPRelativeOrientation()

pcbnew.PAD.SetFPRelativeOrientation ( self,
aAngle )
SetFPRelativeOrientation(PAD self, EDA_ANGLE aAngle)

Definition at line 14965 of file pcbnew.py.

◆ SetFrontPostMachining()

pcbnew.PAD.SetFrontPostMachining ( self,
aMode )
SetFrontPostMachining(PAD self, std::optional< PAD_DRILL_POST_MACHINING_MODE > const & aMode)

Definition at line 15017 of file pcbnew.py.

◆ SetFrontPostMachiningAngle()

pcbnew.PAD.SetFrontPostMachiningAngle ( self,
aAngle )
SetFrontPostMachiningAngle(PAD self, int aAngle)

Definition at line 15049 of file pcbnew.py.

◆ SetFrontPostMachiningDepth()

pcbnew.PAD.SetFrontPostMachiningDepth ( self,
aDepth )
SetFrontPostMachiningDepth(PAD self, int aDepth)

Definition at line 15041 of file pcbnew.py.

◆ SetFrontPostMachiningMode()

pcbnew.PAD.SetFrontPostMachiningMode ( self,
aMode )
SetFrontPostMachiningMode(PAD self, PAD_DRILL_POST_MACHINING_MODE aMode)

Definition at line 15025 of file pcbnew.py.

◆ SetFrontPostMachiningSize()

pcbnew.PAD.SetFrontPostMachiningSize ( self,
aSize )
SetFrontPostMachiningSize(PAD self, int aSize)

Definition at line 15033 of file pcbnew.py.

◆ SetFrontRoundRectRadiusRatio()

pcbnew.PAD.SetFrontRoundRectRadiusRatio ( self,
aRadiusScale )
SetFrontRoundRectRadiusRatio(PAD self, double aRadiusScale)

Definition at line 15415 of file pcbnew.py.

◆ SetFrontRoundRectRadiusSize()

pcbnew.PAD.SetFrontRoundRectRadiusSize ( self,
aRadius )
SetFrontRoundRectRadiusSize(PAD self, int aRadius)

Definition at line 15423 of file pcbnew.py.

◆ SetFrontShape()

pcbnew.PAD.SetFrontShape ( self,
aShape )
SetFrontShape(PAD self, PAD_SHAPE aShape)

Definition at line 14815 of file pcbnew.py.

◆ SetKeepTopBottom()

pcbnew.PAD.SetKeepTopBottom ( self,
aSet )
SetKeepTopBottom(PAD self, bool aSet)

Definition at line 15447 of file pcbnew.py.

◆ SetLocalClearance()

pcbnew.PAD.SetLocalClearance ( self,
aClearance )
SetLocalClearance(PAD self, std::optional< int > aClearance)

Definition at line 15285 of file pcbnew.py.

◆ SetLocalSolderMaskMargin()

pcbnew.PAD.SetLocalSolderMaskMargin ( self,
aMargin )
SetLocalSolderMaskMargin(PAD self, std::optional< int > aMargin)

Definition at line 15293 of file pcbnew.py.

◆ SetLocalSolderPasteMargin()

pcbnew.PAD.SetLocalSolderPasteMargin ( self,
aMargin )
SetLocalSolderPasteMargin(PAD self, std::optional< int > aMargin)

Definition at line 15301 of file pcbnew.py.

◆ SetLocalSolderPasteMarginRatio()

pcbnew.PAD.SetLocalSolderPasteMarginRatio ( self,
aRatio )
SetLocalSolderPasteMarginRatio(PAD self, std::optional< double > aRatio)

Definition at line 15309 of file pcbnew.py.

◆ SetLocalThermalGapOverride()

pcbnew.PAD.SetLocalThermalGapOverride ( self,
aOverride )
SetLocalThermalGapOverride(PAD self, std::optional< int > const & aOverride)

Definition at line 15407 of file pcbnew.py.

◆ SetLocalThermalSpokeWidthOverride()

pcbnew.PAD.SetLocalThermalSpokeWidthOverride ( self,
aWidth )
SetLocalThermalSpokeWidthOverride(PAD self, std::optional< int > aWidth)

Definition at line 15364 of file pcbnew.py.

◆ SetLocalZoneConnection()

pcbnew.PAD.SetLocalZoneConnection ( self,
aType )
SetLocalZoneConnection(PAD self, ZONE_CONNECTION aType)

Definition at line 15313 of file pcbnew.py.

◆ SetName()

pcbnew.PAD.SetName ( self,
aName )

Definition at line 15723 of file pcbnew.py.

◆ SetNumber()

pcbnew.PAD.SetNumber ( self,
aNumber )
SetNumber(PAD self, wxString aNumber)

Definition at line 14771 of file pcbnew.py.

◆ SetOffset()

pcbnew.PAD.SetOffset ( self,
* args )
    SetOffset(PAD self, PCB_LAYER_ID aLayer, VECTOR2I aOffset)
    SetOffset(PAD self, VECTOR2I aOffset)

Definition at line 15654 of file pcbnew.py.

◆ SetOrientation()

pcbnew.PAD.SetOrientation ( self,
aAngle )
SetOrientation(PAD self, EDA_ANGLE aAngle)

Definition at line 14961 of file pcbnew.py.

◆ SetOrientationDegrees()

pcbnew.PAD.SetOrientationDegrees ( self,
aOrientation )
SetOrientationDegrees(PAD self, double aOrientation)

Definition at line 14977 of file pcbnew.py.

◆ SetPadName()

pcbnew.PAD.SetPadName ( self,
aName )

Definition at line 15720 of file pcbnew.py.

◆ SetPadstack()

pcbnew.PAD.SetPadstack ( self,
aPadstack )
SetPadstack(PAD self, PADSTACK aPadstack)

Definition at line 14922 of file pcbnew.py.

◆ SetPadToDieDelay()

pcbnew.PAD.SetPadToDieDelay ( self,
aDelay )
SetPadToDieDelay(PAD self, int aDelay)

Definition at line 15277 of file pcbnew.py.

◆ SetPadToDieLength()

pcbnew.PAD.SetPadToDieLength ( self,
aLength )
SetPadToDieLength(PAD self, int aLength)

Definition at line 15269 of file pcbnew.py.

◆ SetPinFunction()

pcbnew.PAD.SetPinFunction ( self,
aName )
SetPinFunction(PAD self, wxString aName)

Definition at line 14783 of file pcbnew.py.

◆ SetPinType()

pcbnew.PAD.SetPinType ( self,
aType )
SetPinType(PAD self, wxString aType)

Definition at line 14791 of file pcbnew.py.

◆ SetPrimaryDrillCapped()

pcbnew.PAD.SetPrimaryDrillCapped ( self,
aCapped )
SetPrimaryDrillCapped(PAD self, std::optional< bool > const & aCapped)

Definition at line 15121 of file pcbnew.py.

◆ SetPrimaryDrillCappedFlag()

pcbnew.PAD.SetPrimaryDrillCappedFlag ( self,
aCapped )
SetPrimaryDrillCappedFlag(PAD self, bool aCapped)

Definition at line 15125 of file pcbnew.py.

◆ SetPrimaryDrillEndLayer()

pcbnew.PAD.SetPrimaryDrillEndLayer ( self,
aLayer )
SetPrimaryDrillEndLayer(PAD self, PCB_LAYER_ID aLayer)

Definition at line 15009 of file pcbnew.py.

◆ SetPrimaryDrillFilled()

pcbnew.PAD.SetPrimaryDrillFilled ( self,
aFilled )
SetPrimaryDrillFilled(PAD self, std::optional< bool > const & aFilled)

Definition at line 15105 of file pcbnew.py.

◆ SetPrimaryDrillFilledFlag()

pcbnew.PAD.SetPrimaryDrillFilledFlag ( self,
aFilled )
SetPrimaryDrillFilledFlag(PAD self, bool aFilled)

Definition at line 15109 of file pcbnew.py.

◆ SetPrimaryDrillShape()

pcbnew.PAD.SetPrimaryDrillShape ( self,
aShape )
SetPrimaryDrillShape(PAD self, PAD_DRILL_SHAPE aShape)

Definition at line 14985 of file pcbnew.py.

◆ SetPrimaryDrillSize()

pcbnew.PAD.SetPrimaryDrillSize ( self,
aSize )
SetPrimaryDrillSize(PAD self, VECTOR2I aSize)

Definition at line 14867 of file pcbnew.py.

◆ SetPrimaryDrillSizeX()

pcbnew.PAD.SetPrimaryDrillSizeX ( self,
aX )
SetPrimaryDrillSizeX(PAD self, int aX)

Definition at line 14875 of file pcbnew.py.

◆ SetPrimaryDrillSizeY()

pcbnew.PAD.SetPrimaryDrillSizeY ( self,
aY )
SetPrimaryDrillSizeY(PAD self, int aY)

Definition at line 14883 of file pcbnew.py.

◆ SetPrimaryDrillStartLayer()

pcbnew.PAD.SetPrimaryDrillStartLayer ( self,
aLayer )
SetPrimaryDrillStartLayer(PAD self, PCB_LAYER_ID aLayer)

Definition at line 15001 of file pcbnew.py.

◆ SetProperty()

pcbnew.PAD.SetProperty ( self,
aProperty )
SetProperty(PAD self, PAD_PROP aProperty)

Definition at line 15257 of file pcbnew.py.

◆ SetRemoveUnconnected()

pcbnew.PAD.SetRemoveUnconnected ( self,
aSet )
SetRemoveUnconnected(PAD self, bool aSet)

Definition at line 15439 of file pcbnew.py.

◆ SetRoundRectCornerRadius()

pcbnew.PAD.SetRoundRectCornerRadius ( self,
* args )
    SetRoundRectCornerRadius(PAD self, PCB_LAYER_ID aLayer, double aRadius)
    SetRoundRectCornerRadius(PAD self, double aRadius)

Definition at line 15668 of file pcbnew.py.

◆ SetRoundRectRadiusRatio()

pcbnew.PAD.SetRoundRectRadiusRatio ( self,
* args )
    SetRoundRectRadiusRatio(PAD self, PCB_LAYER_ID aLayer, double aRadiusScale)
    SetRoundRectRadiusRatio(PAD self, double aRatio)

Definition at line 15682 of file pcbnew.py.

◆ SetSecondaryDrillEndLayer()

pcbnew.PAD.SetSecondaryDrillEndLayer ( self,
aLayer )
SetSecondaryDrillEndLayer(PAD self, PCB_LAYER_ID aLayer)

Definition at line 15181 of file pcbnew.py.

◆ SetSecondaryDrillShape()

pcbnew.PAD.SetSecondaryDrillShape ( self,
aShape )
SetSecondaryDrillShape(PAD self, PAD_DRILL_SHAPE aShape)

Definition at line 15165 of file pcbnew.py.

◆ SetSecondaryDrillSize()

pcbnew.PAD.SetSecondaryDrillSize ( self,
aSize )
SetSecondaryDrillSize(PAD self, VECTOR2I aSize)

Definition at line 15137 of file pcbnew.py.

◆ SetSecondaryDrillSizeX()

pcbnew.PAD.SetSecondaryDrillSizeX ( self,
aX )
SetSecondaryDrillSizeX(PAD self, int aX)

Definition at line 15149 of file pcbnew.py.

◆ SetSecondaryDrillSizeY()

pcbnew.PAD.SetSecondaryDrillSizeY ( self,
aY )
SetSecondaryDrillSizeY(PAD self, int aY)

Definition at line 15157 of file pcbnew.py.

◆ SetSecondaryDrillStartLayer()

pcbnew.PAD.SetSecondaryDrillStartLayer ( self,
aLayer )
SetSecondaryDrillStartLayer(PAD self, PCB_LAYER_ID aLayer)

Definition at line 15173 of file pcbnew.py.

◆ SetShape()

pcbnew.PAD.SetShape ( self,
* args )
    SetShape(PAD self, PCB_LAYER_ID aLayer, PAD_SHAPE aShape)
    SetShape(PAD self, PAD_SHAPE aShape)

Definition at line 15612 of file pcbnew.py.

◆ SetSize()

pcbnew.PAD.SetSize ( self,
* args )
    SetSize(PAD self, PCB_LAYER_ID aLayer, VECTOR2I aSize)
    SetSize(PAD self, VECTOR2I aSize)

Definition at line 15626 of file pcbnew.py.

◆ SetSizeX()

pcbnew.PAD.SetSizeX ( self,
aX )
SetSizeX(PAD self, int const aX)

Definition at line 14851 of file pcbnew.py.

◆ SetSizeY()

pcbnew.PAD.SetSizeY ( self,
aY )
SetSizeY(PAD self, int const aY)

Definition at line 14859 of file pcbnew.py.

◆ SetSubRatsnest()

pcbnew.PAD.SetSubRatsnest ( self,
aSubRatsnest )
SetSubRatsnest(PAD self, int aSubRatsnest)

Definition at line 15435 of file pcbnew.py.

◆ SetTertiaryDrillEndLayer()

pcbnew.PAD.SetTertiaryDrillEndLayer ( self,
aLayer )
SetTertiaryDrillEndLayer(PAD self, PCB_LAYER_ID aLayer)

Definition at line 15233 of file pcbnew.py.

◆ SetTertiaryDrillShape()

pcbnew.PAD.SetTertiaryDrillShape ( self,
aShape )
SetTertiaryDrillShape(PAD self, PAD_DRILL_SHAPE aShape)

Definition at line 15217 of file pcbnew.py.

◆ SetTertiaryDrillSize()

pcbnew.PAD.SetTertiaryDrillSize ( self,
aSize )
SetTertiaryDrillSize(PAD self, VECTOR2I aSize)

Definition at line 15189 of file pcbnew.py.

◆ SetTertiaryDrillSizeX()

pcbnew.PAD.SetTertiaryDrillSizeX ( self,
aX )
SetTertiaryDrillSizeX(PAD self, int aX)

Definition at line 15201 of file pcbnew.py.

◆ SetTertiaryDrillSizeY()

pcbnew.PAD.SetTertiaryDrillSizeY ( self,
aY )
SetTertiaryDrillSizeY(PAD self, int aY)

Definition at line 15209 of file pcbnew.py.

◆ SetTertiaryDrillStartLayer()

pcbnew.PAD.SetTertiaryDrillStartLayer ( self,
aLayer )
SetTertiaryDrillStartLayer(PAD self, PCB_LAYER_ID aLayer)

Definition at line 15225 of file pcbnew.py.

◆ SetThermalGap()

pcbnew.PAD.SetThermalGap ( self,
aGap )
SetThermalGap(PAD self, int aGap)

Definition at line 15392 of file pcbnew.py.

◆ SetThermalSpokeAngle()

pcbnew.PAD.SetThermalSpokeAngle ( self,
aAngle )
SetThermalSpokeAngle(PAD self, EDA_ANGLE aAngle)

Definition at line 15376 of file pcbnew.py.

◆ SetThermalSpokeAngleDegrees()

pcbnew.PAD.SetThermalSpokeAngleDegrees ( self,
aAngle )
SetThermalSpokeAngleDegrees(PAD self, double aAngle)

Definition at line 15384 of file pcbnew.py.

◆ SetTopBackdrillLayer()

pcbnew.PAD.SetTopBackdrillLayer ( self,
aLayer )
SetTopBackdrillLayer(PAD self, PCB_LAYER_ID aLayer)

Definition at line 15594 of file pcbnew.py.

◆ SetTopBackdrillSize()

pcbnew.PAD.SetTopBackdrillSize ( self,
aSize )
SetTopBackdrillSize(PAD self, std::optional< int > aSize)

Definition at line 15586 of file pcbnew.py.

◆ SetUnconnectedLayerMode()

pcbnew.PAD.SetUnconnectedLayerMode ( self,
aMode )
SetUnconnectedLayerMode(PAD self, UNCONNECTED_LAYER_MODE aMode)

Definition at line 15455 of file pcbnew.py.

◆ SetX()

pcbnew.PAD.SetX ( self,
x )
SetX(PAD self, int x)

Reimplemented from pcbnew.BOARD_ITEM.

Definition at line 14843 of file pcbnew.py.

◆ SetY()

pcbnew.PAD.SetY ( self,
y )
SetY(PAD self, int y)

Reimplemented from pcbnew.BOARD_ITEM.

Definition at line 14839 of file pcbnew.py.

◆ SetZoneLayerOverride()

pcbnew.PAD.SetZoneLayerOverride ( self,
aLayer,
aOverride )
SetZoneLayerOverride(PAD self, PCB_LAYER_ID aLayer, ZONE_LAYER_OVERRIDE aOverride)

Definition at line 15550 of file pcbnew.py.

◆ ShapePos()

pcbnew.PAD.ShapePos ( self,
aLayer )
ShapePos(PAD self, PCB_LAYER_ID aLayer) -> VECTOR2I

Definition at line 15411 of file pcbnew.py.

◆ SharesNetTieGroup()

pcbnew.PAD.SharesNetTieGroup ( self,
aOther )
SharesNetTieGroup(PAD self, PAD aOther) -> bool

Definition at line 14803 of file pcbnew.py.

◆ ShowLegacyPadShape()

pcbnew.PAD.ShowLegacyPadShape ( self,
aLayer )
ShowLegacyPadShape(PAD self, PCB_LAYER_ID aLayer) -> wxString

Definition at line 15518 of file pcbnew.py.

◆ ShowPadAttr()

pcbnew.PAD.ShowPadAttr ( self)
ShowPadAttr(PAD self) -> wxString

Definition at line 15522 of file pcbnew.py.

◆ ShowPadShape()

pcbnew.PAD.ShowPadShape ( self,
* args )
    ShowPadShape(PAD self, PAD_SHAPE aShape) -> wxString
    ShowPadShape(PAD self, PCB_LAYER_ID aLayer) -> wxString

Definition at line 15511 of file pcbnew.py.

◆ SMDMask()

pcbnew.PAD.SMDMask ( )
static
SMDMask() -> LSET

Definition at line 14739 of file pcbnew.py.

◆ TransformHoleToPolygon()

pcbnew.PAD.TransformHoleToPolygon ( self,
aBuffer,
aClearance,
aError,
aErrorLoc = ERROR_INSIDE )
TransformHoleToPolygon(PAD self, SHAPE_POLY_SET aBuffer, int aClearance, int aError, ERROR_LOC aErrorLoc=ERROR_INSIDE) -> bool

Definition at line 15329 of file pcbnew.py.

◆ TransformShapeToPolygon()

pcbnew.PAD.TransformShapeToPolygon ( self,
aBuffer,
aLayer,
aClearance,
aMaxError,
aErrorLoc = ERROR_INSIDE,
ignoreLineWidth = False )
TransformShapeToPolygon(PAD self, SHAPE_POLY_SET aBuffer, PCB_LAYER_ID aLayer, int aClearance, int aMaxError, ERROR_LOC aErrorLoc=ERROR_INSIDE, bool ignoreLineWidth=False)

Reimplemented from pcbnew.BOARD_ITEM.

Definition at line 15325 of file pcbnew.py.

◆ UnplatedHoleMask()

pcbnew.PAD.UnplatedHoleMask ( )
static
UnplatedHoleMask() -> LSET

Definition at line 14749 of file pcbnew.py.

◆ ViewGetLOD()

pcbnew.PAD.ViewGetLOD ( self,
aLayer,
aView )
ViewGetLOD(PAD self, int aLayer, KIGFX::VIEW const * aView) -> double

Definition at line 15538 of file pcbnew.py.

Property Documentation

◆ thisown

pcbnew.PAD.thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")
static

Definition at line 14715 of file pcbnew.py.

The documentation for this class was generated from the following file:
Generated on Thu Jan 8 2026 00:11:28 for KiCad Pcbnew Python Scripting by doxygen 1.13.2
