Inheritance diagram for pcbnew.FOOTPRINT:

[legend]

Public Member Functions
	__init__ (self, *args)

	Serialize (self, aContainer)

	Deserialize (self, aContainer)

	InvalidateGeometryCaches (self)

	GetPrivateLayers (self)

	SetPrivateLayers (self, aLayers)

	AddNative (self, *args)

	RemoveNative (self, *args)

	ClearAllNets (self)

	FixUuids (self)

	GetFpPadsLocalBbox (self)

	GetBoundingHull (self, *args)

	TextOnly (self)

	GetLayerBoundingBox (self, aLayers)

	Pads (self, *args)

	GraphicalItems (self, *args)

	Zones (self, *args)

	Groups (self, *args)

	Points (self, *args)

	HasThroughHolePads (self)

	Models (self, *args)

	SetOrientation (self, aNewAngle)

	GetOrientation (self)

	SetLayerAndFlip (self, aLayer)

	SetOrientationDegrees (self, aOrientation)

	GetOrientationDegrees (self)

	GetFPID (self)

	SetFPID (self, aFPID)

	GetFPIDAsString (self)

	SetFPIDAsString (self, aFPID)

	GetLIB_ID (self)

	GetName (self)

	GetLibNickname (self)

	GetDesc (self)

	GetPinCount (self)

	GetSearchTerms (self)

	GetLibDescription (self)

	SetLibDescription (self, aDesc)

	GetKeywords (self)

	SetKeywords (self, aKeywords)

	GetPath (self)

	SetPath (self, aPath)

	GetSheetname (self)

	SetSheetname (self, aSheetname)

	GetSheetfile (self)

	SetSheetfile (self, aSheetfile)

	GetFilters (self)

	SetFilters (self, aFilters)

	SetLocalClearance (self, aClearance)

	GetLocalSolderMaskMargin (self)

	SetLocalSolderMaskMargin (self, aMargin)

	GetLocalSolderPasteMargin (self)

	SetLocalSolderPasteMargin (self, aMargin)

	GetLocalSolderPasteMarginRatio (self)

	SetLocalSolderPasteMarginRatio (self, aRatio)

	SetLocalZoneConnection (self, aType)

	GetLocalZoneConnection (self)

	SetStackupMode (self, aMode)

	GetStackupMode (self)

	SetStackupLayers (self, aLayers)

	GetStackupLayers (self)

	GetAttributes (self)

	SetAttributes (self, aAttributes)

	AllowMissingCourtyard (self)

	SetAllowMissingCourtyard (self, aAllow)

	AllowSolderMaskBridges (self)

	SetAllowSolderMaskBridges (self, aAllow)

	SetFlag (self, aFlag)

	IncrementFlag (self)

	GetFlag (self)

	IsNetTie (self)

	GetLocalClearance (self, *args)

	GetClearanceOverrides (self, aSource)

	GetZoneConnectionOverrides (self, aSource)

	GetNetTiePadGroups (self)

	ClearNetTiePadGroups (self)

	AddNetTiePadGroup (self, aGroup)

	MapPadNumbersToNetTieGroups (self)

	GetNetTiePads (self, aPad)

	GetLikelyAttribute (self)

	MoveAnchorPosition (self, aMoveVector)

	IsFlipped (self)

	GetSide (self)

	IsConflicting (self)

	IsPlaced (self)

	SetIsPlaced (self, isPlaced)

	NeedsPlaced (self)

	SetNeedsPlaced (self, needsPlaced)

	LegacyPadsLocked (self)

	CheckFootprintAttributes (self, aErrorHandler)

	CheckPads (self, aUnitsProvider, aErrorHandler)

	CheckShortingPads (self, aErrorHandler)

	CheckNetTies (self, aErrorHandler)

	CheckNetTiePadGroups (self, aErrorHandler)

	CheckClippedSilk (self, aErrorHandler)

	BuildNetTieCache (self)

	GetNetTieCache (self, aItem)

	TransformPadsToPolySet (self, aBuffer, aLayer, aClearance, aMaxError, aErrorLoc)

	TransformFPShapesToPolySet (self, aBuffer, aLayer, aClearance, aError, aErrorLoc, aIncludeText=True, aIncludeShapes=True, aIncludePrivateItems=False)

	TransformFPTextToPolySet (self, aBuffer, aLayer, aClearance, aError, aErrorLoc)

	GetContextualTextVars (self, aVars)

	ResolveTextVar (self, token, aDepth=0)

	HitTestAccurate (self, aPosition, aAccuracy=0)

	HitTest (self, *args)

	HitTestOnLayer (self, *args)

	GetReference (self)

	SetReference (self, aReference)

	GetReferenceAsString (self)

	IncrementReference (self, aDelta)

	GetValue (self)

	SetValue (self, aValue)

	GetValueAsString (self)

	Value (self, *args)

	Reference (self, *args)

	GetField (self, *args)

	HasField (self, aFieldName)

	GetFields (self, *args)

	GetNextFieldOrdinal (self)

	ApplyDefaultSettings (self, board, aStyleFields, aStyleText, aStyleShapes, aStyleDimensions, aStyleBarcodes)

	SetUnitInfo (self, aUnits)

	GetUnitInfo (self)

	IsBoardOnly (self)

	SetBoardOnly (self, aIsBoardOnly=True)

	IsExcludedFromPosFiles (self)

	SetExcludedFromPosFiles (self, aExclude=True)

	IsExcludedFromBOM (self)

	SetExcludedFromBOM (self, aExclude=True)

	IsDNP (self)

	SetDNP (self, aDNP=True)

	GetVariant (self, *args)

	SetVariant (self, aVariant)

	AddVariant (self, aVariantName)

	DeleteVariant (self, aVariantName)

	RenameVariant (self, aOldName, aNewName)

	HasVariant (self, aVariantName)

	GetVariants (self)

	GetDNPForVariant (self, aVariantName)

	GetExcludedFromBOMForVariant (self, aVariantName)

	GetExcludedFromPosFilesForVariant (self, aVariantName)

	GetFieldValueForVariant (self, aVariantName, aFieldName)

	SetFileFormatVersionAtLoad (self, aVersion)

	GetFileFormatVersionAtLoad (self)

	FindPadByNumber (self, aPadNumber, aSearchAfterMe=None)

	GetPad (self, *args)

	GetPads (self, aPadNumber, aIgnore=None)

	GetPadCount (self, *args)

	GetUniquePadCount (self, *args)

	GetUniquePadNumbers (self, *args)

	GetNextPadNumber (self, aLastPadName)

	GetDuplicatePadNumbersAreJumpers (self)

	SetDuplicatePadNumbersAreJumpers (self, aEnabled)

	JumperPadGroups (self, *args)

	GetJumperPadGroup (self, aPadNumber)

	AutoPositionFields (self)

	GetTypeName (self)

	GetArea (self, aPadding=0)

	GetLink (self)

	SetLink (self, aLink)

	Duplicate (self, addToParentGroup, aCommit=None)

	DuplicateItem (self, addToParentGroup, aCommit, aItem, addToFootprint=False)

	Add3DModel (self, a3DModel)

	GetClass (self)

	ViewGetLOD (self, aLayer, aView)

	FootprintNeedsUpdate (self, aLibFP, aCompareFlags=0, aReporter=None)

	SetInitialComments (self, aInitialComments)

	CoverageRatio (self, aCollector)

	GetInitialComments (self)

	GetCourtyard (self, aLayer)

	GetCachedCourtyard (self, aLayer)

	BuildCourtyardCaches (self, aErrorHandler=None)

	GetEffectiveShape (self, *args)

	GetEmbeddedFiles (self, *args)

	GetFonts (self)

	EmbedFonts (self)

	SetStaticComponentClass (self, aClass)

	GetStaticComponentClass (self)

	GetComponentClass (self)

	GetComponentClassAsString (self)

	RecomputeComponentClass (self)

	InvalidateComponentClassCache (self)

	SetTransientComponentClassNames (self, classNames)

	GetTransientComponentClassNames (self)

	ClearTransientComponentClassNames (self)

	ResolveComponentClassNames (self, aBoard, aComponentClassNames)

	FixUpPadsForBoard (self, aBoard)

	__eq__ (self, *args)

	GetFieldsText (self)

	GetFieldsShownText (self)

	GetFieldText (self, key)

	GetFieldShownText (self, key)

	SetField (self, key, value)

	SetFields (self, fields)

	GetBoundingBox (self, *args)

Public Member Functions inherited from pcbnew.BOARD_ITEM_CONTAINER
	__init__ (self, args, *kwargs)

	DeleteNative (self, aItem)

	Add (self, item)

	Remove (self, item)

	Delete (self, item)

Public Member Functions inherited from pcbnew.BOARD_ITEM
	__init__ (self, args, *kwargs)

	CopyFrom (self, aOther)

	IsGroupableType (self)

	GetX (self)

	GetY (self)

	GetCenter (self)

	SetX (self, aX)

	SetY (self, aY)

	IsConnected (self)

	Similarity (self, aItem)

	__eq__ (self, aItem)

	IsOnCopperLayer (self)

	HasHole (self)

	HasDrilledHole (self)

	IsTented (self, aLayer)

	GetEffectiveHoleShape (self)

	RunOnChildren (self, aFunction, aMode)

	GetParent (self)

	GetParentFootprint (self)

	GetFPRelativePosition (self)

	SetFPRelativePosition (self, aPos)

	HasLineStroke (self)

	GetStroke (self)

	SetStroke (self, aStroke)

	GetFontMetrics (self)

	GetLayer (self)

	BoardLayerCount (self)

	BoardCopperLayerCount (self)

	BoardLayerSet (self)

	GetLayerSet (self)

	SetLayerSet (self, aLayers)

	IsSideSpecific (self)

	SetLayer (self, aLayer)

	SwapItemData (self, aImage)

	IsOnLayer (self, aLayer)

	IsKnockout (self)

	SetIsKnockout (self, aKnockout)

	GetMaxError (self)

	StyleFromSettings (self, settings, aCheckSide)

	DeleteStructure (self)

	Move (self, aMoveVector)

	Rotate (self, aRotCentre, aAngle)

	Flip (self, aCentre, aFlipDirection)

	Mirror (self, aCentre, aFlipDirection)

	Normalize (self)

	NormalizeForCompare (self)

	GetBoard (self, *args)

	GetParentAsString (self)

	GetLayerName (self)

	TransformShapeToPolygon (self, aBuffer, aLayer, aClearance, aError, aErrorLoc, ignoreLineWidth=False)

	TransformShapeToPolySet (self, aBuffer, aLayer, aClearance, aError, aErrorLoc, aRenderSettings=None)

	LayerMaskDescribe (self)

	Cast (self)

	SetPos (self, p)

	SetStartEnd (self, start, end)

Public Member Functions inherited from pcbnew.EDA_ITEM
	__init__ (self, args, *kwargs)

	Type (self)

	SetParent (self, aParent)

	SetParentGroup (self, aGroup)

	GetParentGroup (self)

	GetParentGroupId (self)

	IsLocked (self)

	SetLocked (self, aLocked)

	IsModified (self)

	IsNew (self)

	IsMoving (self)

	IsSelected (self)

	IsEntered (self)

	IsBrightened (self)

	IsRollover (self)

	GetRolloverPos (self)

	SetIsRollover (self, aIsRollover, aMousePos)

	SetSelected (self)

	SetBrightened (self)

	ClearSelected (self)

	ClearBrightened (self)

	SetModified (self)

	SetFlags (self, aMask)

	XorFlags (self, aMask)

	ClearFlags (self, *args)

	GetFlags (self)

	HasFlag (self, aFlag)

	GetEditFlags (self)

	ClearEditFlags (self)

	GetTempFlags (self)

	ClearTempFlags (self)

	RenderAsBitmap (self, aWorldScale)

	SetIsShownAsBitmap (self, aBitmap)

	IsShownAsBitmap (self)

	IsType (self, aScanTypes)

	SetForceVisible (self, aEnable)

	IsForceVisible (self)

	GetMsgPanelInfo (self, aFrame, aList)

	GetFriendlyName (self)

	GetPosition (self)

	SetPosition (self, aPos)

	GetFocusPosition (self)

	GetSortPosition (self)

	Clone (self)

	Visit (self, inspector, testData, aScanTypes)

	GetTypeDesc (self)

	GetItemDescription (self, aUnitsProvider, aFull)

	DisambiguateItemDescription (self, aUnitsProvider, aFull)

	GetMenuImage (self)

	Matches (self, aSearchData, aAuxData)

	Replace (self, *args)

	IsReplaceable (self)

	__lt__ (self, aItem)

	ViewBBox (self)

	ViewGetLayers (self)

	GetEmbeddedFonts (self)

	PyGetClass (self)

Static Public Member Functions
	ClassOf (aItem)

	IsLibNameValid (aName)

	StringLibNameInvalidChars (aUserReadable)

	GetCoverageArea (aItem, aCollector)

Static Public Member Functions inherited from pcbnew.EDA_ITEM
	Sort (aLeft, aRight)

Properties
	thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

Properties inherited from pcbnew.BOARD_ITEM_CONTAINER
	thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

Properties inherited from pcbnew.BOARD_ITEM
	thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

Properties inherited from pcbnew.EDA_ITEM
	thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

	m_Uuid = property(_pcbnew.EDA_ITEM_m_Uuid_get, doc=)

Additional Inherited Members
Static Public Attributes inherited from pcbnew.BOARD_ITEM
	DRC = _pcbnew.BOARD_ITEM_DRC

	INSTANCE_TO_INSTANCE = _pcbnew.BOARD_ITEM_INSTANCE_TO_INSTANCE

Detailed Description

Proxy of C++ FOOTPRINT class.

Definition at line 22629 of file pcbnew.py.

Constructor & Destructor Documentation

◆ init()

pcbnew.FOOTPRINT.__init__	(		self,
		*	args )

    __init__(FOOTPRINT self, BOARD parent) -> FOOTPRINT
    __init__(FOOTPRINT self, FOOTPRINT aFootprint) -> FOOTPRINT
    __init__(FOOTPRINT self, FOOTPRINT aFootprint) -> FOOTPRINT

Definition at line 22635 of file pcbnew.py.

Member Function Documentation

◆ eq()

pcbnew.FOOTPRINT.__eq__	(		self,
		*	args )

    __eq__(FOOTPRINT self, BOARD_ITEM aOther) -> bool
    __eq__(FOOTPRINT self, FOOTPRINT aOther) -> bool

Definition at line 23454 of file pcbnew.py.

◆ Add3DModel()

pcbnew.FOOTPRINT.Add3DModel	(		self,
			a3DModel )

Add3DModel(FOOTPRINT self, FP_3DMODEL a3DModel)

Definition at line 23336 of file pcbnew.py.

◆ AddNative()

pcbnew.FOOTPRINT.AddNative	(		self,
		*	args )

AddNative(FOOTPRINT self, BOARD_ITEM aItem, ADD_MODE aMode=INSERT, bool aSkipConnectivity=False)

Reimplemented from pcbnew.BOARD_ITEM_CONTAINER.

Definition at line 22669 of file pcbnew.py.

◆ AddNetTiePadGroup()

pcbnew.FOOTPRINT.AddNetTiePadGroup	(		self,
			aGroup )

AddNetTiePadGroup(FOOTPRINT self, wxString aGroup)

Definition at line 22973 of file pcbnew.py.

◆ AddVariant()

pcbnew.FOOTPRINT.AddVariant	(		self,
			aVariantName )

AddVariant(FOOTPRINT self, wxString aVariantName) -> FOOTPRINT_VARIANT

Definition at line 23217 of file pcbnew.py.

◆ AllowMissingCourtyard()

pcbnew.FOOTPRINT.AllowMissingCourtyard ( self )

AllowMissingCourtyard(FOOTPRINT self) -> bool

Definition at line 22918 of file pcbnew.py.

◆ AllowSolderMaskBridges()

pcbnew.FOOTPRINT.AllowSolderMaskBridges ( self )

AllowSolderMaskBridges(FOOTPRINT self) -> bool

Definition at line 22926 of file pcbnew.py.

◆ ApplyDefaultSettings()

pcbnew.FOOTPRINT.ApplyDefaultSettings	(	self,
		board,
		aStyleFields,
		aStyleText,
		aStyleShapes,
		aStyleDimensions,
		aStyleBarcodes )

ApplyDefaultSettings(FOOTPRINT self, BOARD board, bool aStyleFields, bool aStyleText, bool aStyleShapes, bool aStyleDimensions, bool aStyleBarcodes)

Definition at line 23162 of file pcbnew.py.

◆ AutoPositionFields()

pcbnew.FOOTPRINT.AutoPositionFields ( self )

AutoPositionFields(FOOTPRINT self)

Definition at line 23308 of file pcbnew.py.

◆ BuildCourtyardCaches()

pcbnew.FOOTPRINT.BuildCourtyardCaches	(		self,
			aErrorHandler = None )

BuildCourtyardCaches(FOOTPRINT self, OUTLINE_ERROR_HANDLER * aErrorHandler=None)

Definition at line 23387 of file pcbnew.py.

◆ BuildNetTieCache()

pcbnew.FOOTPRINT.BuildNetTieCache ( self )

BuildNetTieCache(FOOTPRINT self)

Definition at line 23049 of file pcbnew.py.

◆ CheckClippedSilk()

pcbnew.FOOTPRINT.CheckClippedSilk	(		self,
			aErrorHandler )

CheckClippedSilk(FOOTPRINT self, std::function< void (BOARD_ITEM *,BOARD_ITEM *,VECTOR2I const &) > const & aErrorHandler)

Definition at line 23045 of file pcbnew.py.

◆ CheckFootprintAttributes()

pcbnew.FOOTPRINT.CheckFootprintAttributes	(		self,
			aErrorHandler )

CheckFootprintAttributes(FOOTPRINT self, std::function< void (wxString const &) > const & aErrorHandler)

Definition at line 23025 of file pcbnew.py.

◆ CheckNetTiePadGroups()

pcbnew.FOOTPRINT.CheckNetTiePadGroups	(		self,
			aErrorHandler )

CheckNetTiePadGroups(FOOTPRINT self, std::function< void (wxString const &) > const & aErrorHandler)

Definition at line 23041 of file pcbnew.py.

◆ CheckNetTies()

pcbnew.FOOTPRINT.CheckNetTies	(		self,
			aErrorHandler )

CheckNetTies(FOOTPRINT self, std::function< void (BOARD_ITEM const *,BOARD_ITEM const *,BOARD_ITEM const *,VECTOR2I const &) > const & aErrorHandler)

Definition at line 23037 of file pcbnew.py.

◆ CheckPads()

pcbnew.FOOTPRINT.CheckPads	(	self,
		aUnitsProvider,
		aErrorHandler )

CheckPads(FOOTPRINT self, UNITS_PROVIDER aUnitsProvider, std::function< void (PAD const *,int,wxString const &) > const & aErrorHandler)

Definition at line 23029 of file pcbnew.py.

◆ CheckShortingPads()

pcbnew.FOOTPRINT.CheckShortingPads	(		self,
			aErrorHandler )

CheckShortingPads(FOOTPRINT self, std::function< void (PAD const *,PAD const *,int,VECTOR2I const &) > const & aErrorHandler)

Definition at line 23033 of file pcbnew.py.

◆ ClassOf()

pcbnew.FOOTPRINT.ClassOf ( aItem )

static

ClassOf(EDA_ITEM aItem) -> bool

Definition at line 22653 of file pcbnew.py.

◆ ClearAllNets()

pcbnew.FOOTPRINT.ClearAllNets ( self )

ClearAllNets(FOOTPRINT self)

Definition at line 22677 of file pcbnew.py.

◆ ClearNetTiePadGroups()

pcbnew.FOOTPRINT.ClearNetTiePadGroups ( self )

ClearNetTiePadGroups(FOOTPRINT self)

Definition at line 22969 of file pcbnew.py.

◆ ClearTransientComponentClassNames()

pcbnew.FOOTPRINT.ClearTransientComponentClassNames ( self )

ClearTransientComponentClassNames(FOOTPRINT self)

Definition at line 23442 of file pcbnew.py.

◆ CoverageRatio()

pcbnew.FOOTPRINT.CoverageRatio	(		self,
			aCollector )

CoverageRatio(FOOTPRINT self, GENERAL_COLLECTOR const & aCollector) -> double

Definition at line 23366 of file pcbnew.py.

◆ DeleteVariant()

pcbnew.FOOTPRINT.DeleteVariant	(		self,
			aVariantName )

DeleteVariant(FOOTPRINT self, wxString aVariantName)

Definition at line 23221 of file pcbnew.py.

◆ Deserialize()

pcbnew.FOOTPRINT.Deserialize	(		self,
			aContainer )

Deserialize(FOOTPRINT self, google::protobuf::Any const & aContainer) -> bool

Definition at line 22648 of file pcbnew.py.

◆ Duplicate()

pcbnew.FOOTPRINT.Duplicate	(	self,
		addToParentGroup,
		aCommit = None )

Duplicate(FOOTPRINT self, bool addToParentGroup, BOARD_COMMIT * aCommit=None) -> BOARD_ITEM

Reimplemented from pcbnew.BOARD_ITEM.

Definition at line 23328 of file pcbnew.py.

◆ DuplicateItem()

pcbnew.FOOTPRINT.DuplicateItem	(	self,
		addToParentGroup,
		aCommit,
		aItem,
		addToFootprint = False )

DuplicateItem(FOOTPRINT self, bool addToParentGroup, BOARD_COMMIT * aCommit, BOARD_ITEM aItem, bool addToFootprint=False) -> BOARD_ITEM

Definition at line 23332 of file pcbnew.py.

◆ EmbedFonts()

pcbnew.FOOTPRINT.EmbedFonts ( self )

EmbedFonts(FOOTPRINT self)

Definition at line 23406 of file pcbnew.py.

◆ FindPadByNumber()

pcbnew.FOOTPRINT.FindPadByNumber	(	self,
		aPadNumber,
		aSearchAfterMe = None )

FindPadByNumber(FOOTPRINT self, wxString aPadNumber, PAD aSearchAfterMe=None) -> PAD

Definition at line 23261 of file pcbnew.py.

◆ FixUpPadsForBoard()

pcbnew.FOOTPRINT.FixUpPadsForBoard	(		self,
			aBoard )

FixUpPadsForBoard(FOOTPRINT self, BOARD aBoard)

Definition at line 23450 of file pcbnew.py.

◆ FixUuids()

pcbnew.FOOTPRINT.FixUuids ( self )

FixUuids(FOOTPRINT self) -> bool

Definition at line 22681 of file pcbnew.py.

◆ FootprintNeedsUpdate()

pcbnew.FOOTPRINT.FootprintNeedsUpdate	(	self,
		aLibFP,
		aCompareFlags = 0,
		aReporter = None )

FootprintNeedsUpdate(FOOTPRINT self, FOOTPRINT aLibFP, int aCompareFlags=0, REPORTER * aReporter=None) -> bool

Definition at line 23358 of file pcbnew.py.

◆ GetArea()

pcbnew.FOOTPRINT.GetArea	(		self,
			aPadding = 0 )

GetArea(FOOTPRINT self, int aPadding=0) -> double

Definition at line 23316 of file pcbnew.py.

◆ GetAttributes()

pcbnew.FOOTPRINT.GetAttributes ( self )

GetAttributes(FOOTPRINT self) -> int

Definition at line 22910 of file pcbnew.py.

◆ GetBoundingBox()

pcbnew.FOOTPRINT.GetBoundingBox	(		self,
		*	args )

  GetBoundingBox(FOOTPRINT self) -> BOX2I
  GetBoundingBox(FOOTPRINT self, bool aIncludeText) -> BOX2I
  GetBoundingBox(FOOTPRINT self, bool aIncludeText, bool includeHiddenText) -> BOX2I

Reimplemented from pcbnew.EDA_ITEM.

Definition at line 23508 of file pcbnew.py.

◆ GetBoundingHull()

pcbnew.FOOTPRINT.GetBoundingHull	(		self,
		*	args )

    GetBoundingHull(FOOTPRINT self) -> SHAPE_POLY_SET
    GetBoundingHull(FOOTPRINT self, PCB_LAYER_ID aLayer) -> SHAPE_POLY_SET

Definition at line 22689 of file pcbnew.py.

◆ GetCachedCourtyard()

pcbnew.FOOTPRINT.GetCachedCourtyard	(		self,
			aLayer )

GetCachedCourtyard(FOOTPRINT self, PCB_LAYER_ID aLayer) -> SHAPE_POLY_SET

Definition at line 23383 of file pcbnew.py.

◆ GetClass()

pcbnew.FOOTPRINT.GetClass ( self )

GetClass(FOOTPRINT self) -> wxString

Reimplemented from pcbnew.EDA_ITEM.

Definition at line 23340 of file pcbnew.py.

◆ GetClearanceOverrides()

pcbnew.FOOTPRINT.GetClearanceOverrides	(		self,
			aSource )

GetClearanceOverrides(FOOTPRINT self, wxString aSource) -> std::optional< int >

Definition at line 22957 of file pcbnew.py.

◆ GetComponentClass()

pcbnew.FOOTPRINT.GetComponentClass ( self )

GetComponentClass(FOOTPRINT self) -> COMPONENT_CLASS const *

Definition at line 23418 of file pcbnew.py.

◆ GetComponentClassAsString()

pcbnew.FOOTPRINT.GetComponentClassAsString ( self )

GetComponentClassAsString(FOOTPRINT self) -> wxString

Definition at line 23422 of file pcbnew.py.

◆ GetContextualTextVars()

pcbnew.FOOTPRINT.GetContextualTextVars	(		self,
			aVars )

GetContextualTextVars(FOOTPRINT self, wxArrayString * aVars)

Definition at line 23069 of file pcbnew.py.

◆ GetCourtyard()

pcbnew.FOOTPRINT.GetCourtyard	(		self,
			aLayer )

GetCourtyard(FOOTPRINT self, PCB_LAYER_ID aLayer) -> SHAPE_POLY_SET

Definition at line 23379 of file pcbnew.py.

◆ GetCoverageArea()

pcbnew.FOOTPRINT.GetCoverageArea	(		aItem,
			aCollector )

static

GetCoverageArea(BOARD_ITEM aItem, GENERAL_COLLECTOR const & aCollector) -> double

Definition at line 23371 of file pcbnew.py.

◆ GetDesc()

pcbnew.FOOTPRINT.GetDesc ( self )

GetDesc(FOOTPRINT self) -> wxString

Definition at line 22798 of file pcbnew.py.

◆ GetDNPForVariant()

pcbnew.FOOTPRINT.GetDNPForVariant	(		self,
			aVariantName )

GetDNPForVariant(FOOTPRINT self, wxString aVariantName) -> bool

Definition at line 23237 of file pcbnew.py.

◆ GetDuplicatePadNumbersAreJumpers()

pcbnew.FOOTPRINT.GetDuplicatePadNumbersAreJumpers ( self )

GetDuplicatePadNumbersAreJumpers(FOOTPRINT self) -> bool

Definition at line 23289 of file pcbnew.py.

◆ GetEffectiveShape()

pcbnew.FOOTPRINT.GetEffectiveShape	(		self,
		*	args )

GetEffectiveShape(FOOTPRINT self, PCB_LAYER_ID aLayer=UNDEFINED_LAYER, FLASHING aFlash=DEFAULT) -> std::shared_ptr< SHAPE >

Reimplemented from pcbnew.BOARD_ITEM.

Definition at line 23391 of file pcbnew.py.

◆ GetEmbeddedFiles()

pcbnew.FOOTPRINT.GetEmbeddedFiles	(		self,
		*	args )

    GetEmbeddedFiles(FOOTPRINT self) -> EMBEDDED_FILES
    GetEmbeddedFiles(FOOTPRINT self) -> EMBEDDED_FILES const *

Reimplemented from pcbnew.EDA_ITEM.

Definition at line 23395 of file pcbnew.py.

◆ GetExcludedFromBOMForVariant()

pcbnew.FOOTPRINT.GetExcludedFromBOMForVariant	(		self,
			aVariantName )

GetExcludedFromBOMForVariant(FOOTPRINT self, wxString aVariantName) -> bool

Definition at line 23241 of file pcbnew.py.

◆ GetExcludedFromPosFilesForVariant()

pcbnew.FOOTPRINT.GetExcludedFromPosFilesForVariant	(		self,
			aVariantName )

GetExcludedFromPosFilesForVariant(FOOTPRINT self, wxString aVariantName) -> bool

Definition at line 23245 of file pcbnew.py.

◆ GetField()

pcbnew.FOOTPRINT.GetField	(		self,
		*	args )

    GetField(FOOTPRINT self, FIELD_T aFieldType) -> PCB_FIELD
    GetField(FOOTPRINT self, FIELD_T aFieldNdx) -> PCB_FIELD
    GetField(FOOTPRINT self, wxString aFieldName) -> PCB_FIELD

Definition at line 23138 of file pcbnew.py.

◆ GetFields()

pcbnew.FOOTPRINT.GetFields	(		self,
		*	args )

    GetFields(FOOTPRINT self, PCB_FIELD_VEC aVector, bool aVisibleOnly)
    GetFields(FOOTPRINT self) -> PCB_FIELDS
    GetFields(FOOTPRINT self) -> PCB_FIELDS

Definition at line 23150 of file pcbnew.py.

◆ GetFieldShownText()

pcbnew.FOOTPRINT.GetFieldShownText	(		self,
			key )

 Returns Field shown text with a given key if it exists, throws KeyError otherwise.

Definition at line 23487 of file pcbnew.py.

◆ GetFieldsShownText()

pcbnew.FOOTPRINT.GetFieldsShownText ( self )

 Returns footprint fields name to shown text map.

Definition at line 23475 of file pcbnew.py.

◆ GetFieldsText()

pcbnew.FOOTPRINT.GetFieldsText ( self )

 Returns footprint fields name to text map.

Definition at line 23470 of file pcbnew.py.

◆ GetFieldText()

pcbnew.FOOTPRINT.GetFieldText	(		self,
			key )

 Returns Field text with a given key if it exists, throws KeyError otherwise.

Definition at line 23480 of file pcbnew.py.

◆ GetFieldValueForVariant()

pcbnew.FOOTPRINT.GetFieldValueForVariant	(	self,
		aVariantName,
		aFieldName )

GetFieldValueForVariant(FOOTPRINT self, wxString aVariantName, wxString aFieldName) -> wxString

Definition at line 23249 of file pcbnew.py.

◆ GetFileFormatVersionAtLoad()

pcbnew.FOOTPRINT.GetFileFormatVersionAtLoad ( self )

GetFileFormatVersionAtLoad(FOOTPRINT self) -> int

Definition at line 23257 of file pcbnew.py.

◆ GetFilters()

pcbnew.FOOTPRINT.GetFilters ( self )

GetFilters(FOOTPRINT self) -> wxString

Definition at line 22850 of file pcbnew.py.

◆ GetFlag()

pcbnew.FOOTPRINT.GetFlag ( self )

GetFlag(FOOTPRINT self) -> int

Definition at line 22942 of file pcbnew.py.

◆ GetFonts()

pcbnew.FOOTPRINT.GetFonts ( self )

GetFonts(FOOTPRINT self) -> std::set< KIFONT::OUTLINE_FONT *,std::less< KIFONT::OUTLINE_FONT * >,std::allocator< KIFONT::OUTLINE_FONT * > >

Definition at line 23402 of file pcbnew.py.

◆ GetFPID()

pcbnew.FOOTPRINT.GetFPID ( self )

GetFPID(FOOTPRINT self) -> LIB_ID

Definition at line 22770 of file pcbnew.py.

◆ GetFPIDAsString()

pcbnew.FOOTPRINT.GetFPIDAsString ( self )

GetFPIDAsString(FOOTPRINT self) -> wxString

Definition at line 22778 of file pcbnew.py.

◆ GetFpPadsLocalBbox()

pcbnew.FOOTPRINT.GetFpPadsLocalBbox ( self )

GetFpPadsLocalBbox(FOOTPRINT self) -> BOX2I

Definition at line 22685 of file pcbnew.py.

◆ GetInitialComments()

pcbnew.FOOTPRINT.GetInitialComments ( self )

GetInitialComments(FOOTPRINT self) -> wxArrayString const *

Definition at line 23375 of file pcbnew.py.

◆ GetJumperPadGroup()

pcbnew.FOOTPRINT.GetJumperPadGroup	(		self,
			aPadNumber )

GetJumperPadGroup(FOOTPRINT self, wxString aPadNumber) -> std::optional< std::set< wxString,std::less< wxString >,std::allocator< wxString > > const >

Definition at line 23304 of file pcbnew.py.

◆ GetKeywords()

pcbnew.FOOTPRINT.GetKeywords ( self )

GetKeywords(FOOTPRINT self) -> wxString

Definition at line 22818 of file pcbnew.py.

◆ GetLayerBoundingBox()

pcbnew.FOOTPRINT.GetLayerBoundingBox	(		self,
			aLayers )

GetLayerBoundingBox(FOOTPRINT self, LSET aLayers) -> BOX2I

Definition at line 22700 of file pcbnew.py.

◆ GetLIB_ID()

pcbnew.FOOTPRINT.GetLIB_ID ( self )

GetLIB_ID(FOOTPRINT self) -> LIB_ID

Definition at line 22786 of file pcbnew.py.

◆ GetLibDescription()

pcbnew.FOOTPRINT.GetLibDescription ( self )

GetLibDescription(FOOTPRINT self) -> wxString

Definition at line 22810 of file pcbnew.py.

◆ GetLibNickname()

pcbnew.FOOTPRINT.GetLibNickname ( self )

GetLibNickname(FOOTPRINT self) -> wxString

Definition at line 22794 of file pcbnew.py.

◆ GetLikelyAttribute()

pcbnew.FOOTPRINT.GetLikelyAttribute ( self )

GetLikelyAttribute(FOOTPRINT self) -> int

Definition at line 22985 of file pcbnew.py.

◆ GetLink()

pcbnew.FOOTPRINT.GetLink ( self )

GetLink(FOOTPRINT self) -> KIID

Definition at line 23320 of file pcbnew.py.

◆ GetLocalClearance()

pcbnew.FOOTPRINT.GetLocalClearance	(		self,
		*	args )

    GetLocalClearance(FOOTPRINT self) -> std::optional< int >
    GetLocalClearance(FOOTPRINT self, wxString aSource) -> std::optional< int >

Definition at line 22950 of file pcbnew.py.

◆ GetLocalSolderMaskMargin()

pcbnew.FOOTPRINT.GetLocalSolderMaskMargin ( self )

GetLocalSolderMaskMargin(FOOTPRINT self) -> std::optional< int >

Definition at line 22862 of file pcbnew.py.

◆ GetLocalSolderPasteMargin()

pcbnew.FOOTPRINT.GetLocalSolderPasteMargin ( self )

GetLocalSolderPasteMargin(FOOTPRINT self) -> std::optional< int >

Definition at line 22870 of file pcbnew.py.

◆ GetLocalSolderPasteMarginRatio()

pcbnew.FOOTPRINT.GetLocalSolderPasteMarginRatio ( self )

GetLocalSolderPasteMarginRatio(FOOTPRINT self) -> std::optional< double >

Definition at line 22878 of file pcbnew.py.

◆ GetLocalZoneConnection()

pcbnew.FOOTPRINT.GetLocalZoneConnection ( self )

GetLocalZoneConnection(FOOTPRINT self) -> ZONE_CONNECTION

Definition at line 22890 of file pcbnew.py.

◆ GetName()

pcbnew.FOOTPRINT.GetName ( self )

GetName(FOOTPRINT self) -> wxString

Definition at line 22790 of file pcbnew.py.

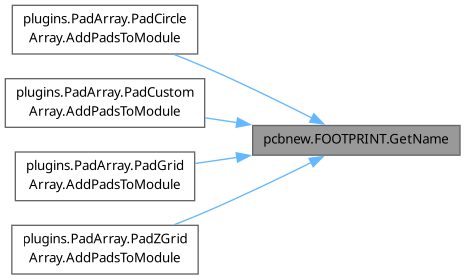

Here is the caller graph for this function:

◆ GetNetTieCache()

pcbnew.FOOTPRINT.GetNetTieCache	(		self,
			aItem )

GetNetTieCache(FOOTPRINT self, BOARD_ITEM aItem) -> std::set< int,std::less< int >,std::allocator< int > > const &

Definition at line 23053 of file pcbnew.py.

◆ GetNetTiePadGroups()

pcbnew.FOOTPRINT.GetNetTiePadGroups ( self )

GetNetTiePadGroups(FOOTPRINT self) -> std::vector< wxString,std::allocator< wxString > > const &

Definition at line 22965 of file pcbnew.py.

◆ GetNetTiePads()

pcbnew.FOOTPRINT.GetNetTiePads	(		self,
			aPad )

GetNetTiePads(FOOTPRINT self, PAD aPad) -> PADS_VEC

Definition at line 22981 of file pcbnew.py.

◆ GetNextFieldOrdinal()

pcbnew.FOOTPRINT.GetNextFieldOrdinal ( self )

GetNextFieldOrdinal(FOOTPRINT self) -> int

Definition at line 23158 of file pcbnew.py.

◆ GetNextPadNumber()

pcbnew.FOOTPRINT.GetNextPadNumber	(		self,
			aLastPadName )

GetNextPadNumber(FOOTPRINT self, wxString aLastPadName) -> wxString

Definition at line 23285 of file pcbnew.py.

◆ GetOrientation()

pcbnew.FOOTPRINT.GetOrientation ( self )

GetOrientation(FOOTPRINT self) -> EDA_ANGLE

Definition at line 22754 of file pcbnew.py.

◆ GetOrientationDegrees()

pcbnew.FOOTPRINT.GetOrientationDegrees ( self )

GetOrientationDegrees(FOOTPRINT self) -> double

Definition at line 22766 of file pcbnew.py.

◆ GetPad()

pcbnew.FOOTPRINT.GetPad	(		self,
		*	args )

GetPad(FOOTPRINT self, VECTOR2I aPosition, LSET aLayerMask=LSET::AllLayersMask()) -> PAD

Definition at line 23265 of file pcbnew.py.

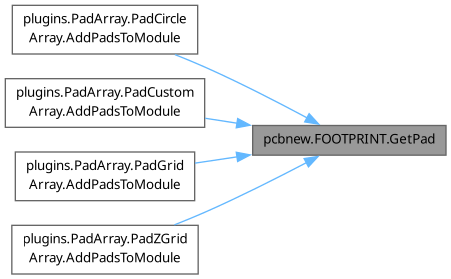

Here is the caller graph for this function:

◆ GetPadCount()

pcbnew.FOOTPRINT.GetPadCount	(		self,
		*	args )

GetPadCount(FOOTPRINT self, INCLUDE_NPTH_T aIncludeNPTH=INCLUDE_NPTH_T(INCLUDE_NPTH)) -> unsigned int

Definition at line 23273 of file pcbnew.py.

◆ GetPads()

pcbnew.FOOTPRINT.GetPads	(	self,
		aPadNumber,
		aIgnore = None )

GetPads(FOOTPRINT self, wxString aPadNumber, PAD aIgnore=None) -> std::vector< PAD const *,std::allocator< PAD const * > >

Definition at line 23269 of file pcbnew.py.

◆ GetPath()

pcbnew.FOOTPRINT.GetPath ( self )

GetPath(FOOTPRINT self) -> KIID_PATH

Definition at line 22826 of file pcbnew.py.

◆ GetPinCount()

pcbnew.FOOTPRINT.GetPinCount ( self )

GetPinCount(FOOTPRINT self) -> int

Definition at line 22802 of file pcbnew.py.

◆ GetPrivateLayers()

pcbnew.FOOTPRINT.GetPrivateLayers ( self )

GetPrivateLayers(FOOTPRINT self) -> LSET

Definition at line 22661 of file pcbnew.py.

◆ GetReference()

pcbnew.FOOTPRINT.GetReference ( self )

GetReference(FOOTPRINT self) -> wxString

Definition at line 23096 of file pcbnew.py.

◆ GetReferenceAsString()

pcbnew.FOOTPRINT.GetReferenceAsString ( self )

GetReferenceAsString(FOOTPRINT self) -> wxString

Definition at line 23104 of file pcbnew.py.

◆ GetSearchTerms()

pcbnew.FOOTPRINT.GetSearchTerms ( self )

GetSearchTerms(FOOTPRINT self) -> std::vector< SEARCH_TERM,std::allocator< SEARCH_TERM > > &

Definition at line 22806 of file pcbnew.py.

◆ GetSheetfile()

pcbnew.FOOTPRINT.GetSheetfile ( self )

GetSheetfile(FOOTPRINT self) -> wxString

Definition at line 22842 of file pcbnew.py.

◆ GetSheetname()

pcbnew.FOOTPRINT.GetSheetname ( self )

GetSheetname(FOOTPRINT self) -> wxString

Definition at line 22834 of file pcbnew.py.

◆ GetSide()

pcbnew.FOOTPRINT.GetSide ( self )

GetSide(FOOTPRINT self) -> PCB_LAYER_ID

Definition at line 22997 of file pcbnew.py.

◆ GetStackupLayers()

pcbnew.FOOTPRINT.GetStackupLayers ( self )

GetStackupLayers(FOOTPRINT self) -> LSET

Definition at line 22906 of file pcbnew.py.

◆ GetStackupMode()

pcbnew.FOOTPRINT.GetStackupMode ( self )

GetStackupMode(FOOTPRINT self) -> FOOTPRINT_STACKUP

Definition at line 22898 of file pcbnew.py.

◆ GetStaticComponentClass()

pcbnew.FOOTPRINT.GetStaticComponentClass ( self )

GetStaticComponentClass(FOOTPRINT self) -> COMPONENT_CLASS const *

Definition at line 23414 of file pcbnew.py.

◆ GetTransientComponentClassNames()

pcbnew.FOOTPRINT.GetTransientComponentClassNames ( self )

GetTransientComponentClassNames(FOOTPRINT self) -> std::unordered_set< wxString > const &

Definition at line 23438 of file pcbnew.py.

◆ GetTypeName()

pcbnew.FOOTPRINT.GetTypeName ( self )

GetTypeName(FOOTPRINT self) -> wxString

Definition at line 23312 of file pcbnew.py.

◆ GetUniquePadCount()

pcbnew.FOOTPRINT.GetUniquePadCount	(		self,
		*	args )

GetUniquePadCount(FOOTPRINT self, INCLUDE_NPTH_T aIncludeNPTH=INCLUDE_NPTH_T(INCLUDE_NPTH)) -> unsigned int

Definition at line 23277 of file pcbnew.py.

◆ GetUniquePadNumbers()

pcbnew.FOOTPRINT.GetUniquePadNumbers	(		self,
		*	args )

GetUniquePadNumbers(FOOTPRINT self, INCLUDE_NPTH_T aIncludeNPTH=INCLUDE_NPTH_T(INCLUDE_NPTH)) -> STRINGSET

Definition at line 23281 of file pcbnew.py.

◆ GetUnitInfo()

pcbnew.FOOTPRINT.GetUnitInfo ( self )

GetUnitInfo(FOOTPRINT self) -> std::vector< FOOTPRINT::FP_UNIT_INFO,std::allocator< FOOTPRINT::FP_UNIT_INFO > > const &

Definition at line 23170 of file pcbnew.py.

◆ GetValue()

pcbnew.FOOTPRINT.GetValue ( self )

GetValue(FOOTPRINT self) -> wxString

Definition at line 23112 of file pcbnew.py.

◆ GetValueAsString()

pcbnew.FOOTPRINT.GetValueAsString ( self )

GetValueAsString(FOOTPRINT self) -> wxString

Definition at line 23120 of file pcbnew.py.

◆ GetVariant()

pcbnew.FOOTPRINT.GetVariant	(		self,
		*	args )

    GetVariant(FOOTPRINT self, wxString aVariantName) -> FOOTPRINT_VARIANT
    GetVariant(FOOTPRINT self, wxString aVariantName) -> FOOTPRINT_VARIANT

Definition at line 23206 of file pcbnew.py.

◆ GetVariants()

pcbnew.FOOTPRINT.GetVariants ( self )

GetVariants(FOOTPRINT self) -> CASE_INSENSITIVE_MAP< FOOTPRINT_VARIANT > const &

Definition at line 23233 of file pcbnew.py.

◆ GetZoneConnectionOverrides()

pcbnew.FOOTPRINT.GetZoneConnectionOverrides	(		self,
			aSource )

GetZoneConnectionOverrides(FOOTPRINT self, wxString aSource) -> ZONE_CONNECTION

Definition at line 22961 of file pcbnew.py.

◆ GraphicalItems()

pcbnew.FOOTPRINT.GraphicalItems	(		self,
		*	args )

    GraphicalItems(FOOTPRINT self) -> DRAWINGS
    GraphicalItems(FOOTPRINT self) -> DRAWINGS

Definition at line 22711 of file pcbnew.py.

◆ Groups()

pcbnew.FOOTPRINT.Groups	(		self,
		*	args )

    Groups(FOOTPRINT self) -> GROUPS
    Groups(FOOTPRINT self) -> GROUPS

Definition at line 22725 of file pcbnew.py.

◆ HasField()

pcbnew.FOOTPRINT.HasField	(		self,
			aFieldName )

HasField(FOOTPRINT self, wxString aFieldName) -> bool

Definition at line 23146 of file pcbnew.py.

◆ HasThroughHolePads()

pcbnew.FOOTPRINT.HasThroughHolePads ( self )

HasThroughHolePads(FOOTPRINT self) -> bool

Definition at line 22739 of file pcbnew.py.

◆ HasVariant()

pcbnew.FOOTPRINT.HasVariant	(		self,
			aVariantName )

HasVariant(FOOTPRINT self, wxString aVariantName) -> bool

Definition at line 23229 of file pcbnew.py.

◆ HitTest()

pcbnew.FOOTPRINT.HitTest	(		self,
		*	args )

    HitTest(FOOTPRINT self, VECTOR2I aPosition, int aAccuracy=0) -> bool
    HitTest(FOOTPRINT self, BOX2I aRect, bool aContained, int aAccuracy=0) -> bool
    HitTest(FOOTPRINT self, SHAPE_LINE_CHAIN aPoly, bool aContained) -> bool

Reimplemented from pcbnew.EDA_ITEM.

Definition at line 23081 of file pcbnew.py.

◆ HitTestAccurate()

pcbnew.FOOTPRINT.HitTestAccurate	(	self,
		aPosition,
		aAccuracy = 0 )

HitTestAccurate(FOOTPRINT self, VECTOR2I aPosition, int aAccuracy=0) -> bool

Definition at line 23077 of file pcbnew.py.

◆ HitTestOnLayer()

pcbnew.FOOTPRINT.HitTestOnLayer	(		self,
		*	args )

    HitTestOnLayer(FOOTPRINT self, VECTOR2I aPosition, PCB_LAYER_ID aLayer, int aAccuracy=0) -> bool
    HitTestOnLayer(FOOTPRINT self, BOX2I aRect, bool aContained, PCB_LAYER_ID aLayer, int aAccuracy=0) -> bool

Definition at line 23089 of file pcbnew.py.

◆ IncrementFlag()

pcbnew.FOOTPRINT.IncrementFlag ( self )

IncrementFlag(FOOTPRINT self)

Definition at line 22938 of file pcbnew.py.

◆ IncrementReference()

pcbnew.FOOTPRINT.IncrementReference	(		self,
			aDelta )

IncrementReference(FOOTPRINT self, int aDelta)

Definition at line 23108 of file pcbnew.py.

◆ InvalidateComponentClassCache()

pcbnew.FOOTPRINT.InvalidateComponentClassCache ( self )

InvalidateComponentClassCache(FOOTPRINT self)

Definition at line 23430 of file pcbnew.py.

◆ InvalidateGeometryCaches()

pcbnew.FOOTPRINT.InvalidateGeometryCaches ( self )

InvalidateGeometryCaches(FOOTPRINT self)

Definition at line 22657 of file pcbnew.py.

◆ IsBoardOnly()

pcbnew.FOOTPRINT.IsBoardOnly ( self )

IsBoardOnly(FOOTPRINT self) -> bool

Definition at line 23174 of file pcbnew.py.

◆ IsConflicting()

pcbnew.FOOTPRINT.IsConflicting ( self )

IsConflicting(FOOTPRINT self) -> bool

Definition at line 23001 of file pcbnew.py.

◆ IsDNP()

pcbnew.FOOTPRINT.IsDNP ( self )

IsDNP(FOOTPRINT self) -> bool

Definition at line 23198 of file pcbnew.py.

◆ IsExcludedFromBOM()

pcbnew.FOOTPRINT.IsExcludedFromBOM ( self )

IsExcludedFromBOM(FOOTPRINT self) -> bool

Definition at line 23190 of file pcbnew.py.

◆ IsExcludedFromPosFiles()

pcbnew.FOOTPRINT.IsExcludedFromPosFiles ( self )

IsExcludedFromPosFiles(FOOTPRINT self) -> bool

Definition at line 23182 of file pcbnew.py.

◆ IsFlipped()

pcbnew.FOOTPRINT.IsFlipped ( self )

IsFlipped(FOOTPRINT self) -> bool

Definition at line 22993 of file pcbnew.py.

◆ IsLibNameValid()

pcbnew.FOOTPRINT.IsLibNameValid ( aName )

static

IsLibNameValid(wxString aName) -> bool

Definition at line 23349 of file pcbnew.py.

◆ IsNetTie()

pcbnew.FOOTPRINT.IsNetTie ( self )

IsNetTie(FOOTPRINT self) -> bool

Definition at line 22946 of file pcbnew.py.

◆ IsPlaced()

pcbnew.FOOTPRINT.IsPlaced ( self )

IsPlaced(FOOTPRINT self) -> bool

Definition at line 23005 of file pcbnew.py.

◆ JumperPadGroups()

pcbnew.FOOTPRINT.JumperPadGroups	(		self,
		*	args )

    JumperPadGroups(FOOTPRINT self) -> std::vector< std::set< wxString,std::less< wxString >,std::allocator< wxString > >,std::allocator< std::set< wxString,std::less< wxString >,std::allocator< wxString > > > >
    JumperPadGroups(FOOTPRINT self) -> std::vector< std::set< wxString,std::less< wxString >,std::allocator< wxString > >,std::allocator< std::set< wxString,std::less< wxString >,std::allocator< wxString > > > > const &

Definition at line 23297 of file pcbnew.py.

◆ LegacyPadsLocked()

pcbnew.FOOTPRINT.LegacyPadsLocked ( self )

LegacyPadsLocked(FOOTPRINT self) -> bool

Definition at line 23021 of file pcbnew.py.

◆ MapPadNumbersToNetTieGroups()

pcbnew.FOOTPRINT.MapPadNumbersToNetTieGroups ( self )

MapPadNumbersToNetTieGroups(FOOTPRINT self) -> std::map< wxString,int,std::less< wxString >,std::allocator< std::pair< wxString const,int > > >

Definition at line 22977 of file pcbnew.py.

◆ Models()

pcbnew.FOOTPRINT.Models	(		self,
		*	args )

    Models(FOOTPRINT self) -> VECTOR_FP_3DMODEL
    Models(FOOTPRINT self) -> VECTOR_FP_3DMODEL

Definition at line 22743 of file pcbnew.py.

◆ MoveAnchorPosition()

pcbnew.FOOTPRINT.MoveAnchorPosition	(		self,
			aMoveVector )

MoveAnchorPosition(FOOTPRINT self, VECTOR2I aMoveVector)

Definition at line 22989 of file pcbnew.py.

◆ NeedsPlaced()

pcbnew.FOOTPRINT.NeedsPlaced ( self )

NeedsPlaced(FOOTPRINT self) -> bool

Definition at line 23013 of file pcbnew.py.

◆ Pads()

pcbnew.FOOTPRINT.Pads	(		self,
		*	args )

    Pads(FOOTPRINT self) -> PADS
    Pads(FOOTPRINT self) -> PADS

Definition at line 22704 of file pcbnew.py.

◆ Points()

pcbnew.FOOTPRINT.Points	(		self,
		*	args )

    Points(FOOTPRINT self) -> PCB_POINTS
    Points(FOOTPRINT self) -> PCB_POINTS

Definition at line 22732 of file pcbnew.py.

◆ RecomputeComponentClass()

pcbnew.FOOTPRINT.RecomputeComponentClass ( self )

RecomputeComponentClass(FOOTPRINT self)

Definition at line 23426 of file pcbnew.py.

◆ Reference()

pcbnew.FOOTPRINT.Reference	(		self,
		*	args )

    Reference(FOOTPRINT self) -> PCB_FIELD
    Reference(FOOTPRINT self) -> PCB_FIELD

Definition at line 23131 of file pcbnew.py.

◆ RemoveNative()

pcbnew.FOOTPRINT.RemoveNative	(		self,
		*	args )

RemoveNative(FOOTPRINT self, BOARD_ITEM aItem, REMOVE_MODE aMode=NORMAL)

Reimplemented from pcbnew.BOARD_ITEM_CONTAINER.

Definition at line 22673 of file pcbnew.py.

◆ RenameVariant()

pcbnew.FOOTPRINT.RenameVariant	(	self,
		aOldName,
		aNewName )

RenameVariant(FOOTPRINT self, wxString aOldName, wxString aNewName)

Definition at line 23225 of file pcbnew.py.

◆ ResolveComponentClassNames()

pcbnew.FOOTPRINT.ResolveComponentClassNames	(	self,
		aBoard,
		aComponentClassNames )

ResolveComponentClassNames(FOOTPRINT self, BOARD aBoard, std::unordered_set< wxString > const & aComponentClassNames)

Definition at line 23446 of file pcbnew.py.

◆ ResolveTextVar()

pcbnew.FOOTPRINT.ResolveTextVar	(	self,
		token,
		aDepth = 0 )

ResolveTextVar(FOOTPRINT self, wxString token, int aDepth=0) -> bool

Definition at line 23073 of file pcbnew.py.

◆ Serialize()

pcbnew.FOOTPRINT.Serialize	(		self,
			aContainer )

Serialize(FOOTPRINT self, google::protobuf::Any & aContainer)

Definition at line 22644 of file pcbnew.py.

◆ SetAllowMissingCourtyard()

pcbnew.FOOTPRINT.SetAllowMissingCourtyard	(		self,
			aAllow )

SetAllowMissingCourtyard(FOOTPRINT self, bool aAllow)

Definition at line 22922 of file pcbnew.py.

◆ SetAllowSolderMaskBridges()

pcbnew.FOOTPRINT.SetAllowSolderMaskBridges	(		self,
			aAllow )

SetAllowSolderMaskBridges(FOOTPRINT self, bool aAllow)

Definition at line 22930 of file pcbnew.py.

◆ SetAttributes()

pcbnew.FOOTPRINT.SetAttributes	(		self,
			aAttributes )

SetAttributes(FOOTPRINT self, int aAttributes)

Definition at line 22914 of file pcbnew.py.

◆ SetBoardOnly()

pcbnew.FOOTPRINT.SetBoardOnly	(		self,
			aIsBoardOnly = True )

SetBoardOnly(FOOTPRINT self, bool aIsBoardOnly=True)

Definition at line 23178 of file pcbnew.py.

◆ SetDNP()

pcbnew.FOOTPRINT.SetDNP	(		self,
			aDNP = True )

SetDNP(FOOTPRINT self, bool aDNP=True)

Definition at line 23202 of file pcbnew.py.

◆ SetDuplicatePadNumbersAreJumpers()

pcbnew.FOOTPRINT.SetDuplicatePadNumbersAreJumpers	(		self,
			aEnabled )

SetDuplicatePadNumbersAreJumpers(FOOTPRINT self, bool aEnabled)

Definition at line 23293 of file pcbnew.py.

◆ SetExcludedFromBOM()

pcbnew.FOOTPRINT.SetExcludedFromBOM	(		self,
			aExclude = True )

SetExcludedFromBOM(FOOTPRINT self, bool aExclude=True)

Definition at line 23194 of file pcbnew.py.

◆ SetExcludedFromPosFiles()

pcbnew.FOOTPRINT.SetExcludedFromPosFiles	(		self,
			aExclude = True )

SetExcludedFromPosFiles(FOOTPRINT self, bool aExclude=True)

Definition at line 23186 of file pcbnew.py.

◆ SetField()

pcbnew.FOOTPRINT.SetField	(	self,
		key,
		value )

Definition at line 23494 of file pcbnew.py.

◆ SetFields()

pcbnew.FOOTPRINT.SetFields	(		self,
			fields )

 Sets footprint fields map.

Definition at line 23502 of file pcbnew.py.

◆ SetFileFormatVersionAtLoad()

pcbnew.FOOTPRINT.SetFileFormatVersionAtLoad	(		self,
			aVersion )

SetFileFormatVersionAtLoad(FOOTPRINT self, int aVersion)

Definition at line 23253 of file pcbnew.py.

◆ SetFilters()

pcbnew.FOOTPRINT.SetFilters	(		self,
			aFilters )

SetFilters(FOOTPRINT self, wxString aFilters)

Definition at line 22854 of file pcbnew.py.

◆ SetFlag()

pcbnew.FOOTPRINT.SetFlag	(		self,
			aFlag )

SetFlag(FOOTPRINT self, int aFlag)

Definition at line 22934 of file pcbnew.py.

◆ SetFPID()

pcbnew.FOOTPRINT.SetFPID	(		self,
			aFPID )

SetFPID(FOOTPRINT self, LIB_ID aFPID)

Definition at line 22774 of file pcbnew.py.

◆ SetFPIDAsString()

pcbnew.FOOTPRINT.SetFPIDAsString	(		self,
			aFPID )

SetFPIDAsString(FOOTPRINT self, wxString aFPID)

Definition at line 22782 of file pcbnew.py.

◆ SetInitialComments()

pcbnew.FOOTPRINT.SetInitialComments	(		self,
			aInitialComments )

SetInitialComments(FOOTPRINT self, wxArrayString * aInitialComments)

Definition at line 23362 of file pcbnew.py.

◆ SetIsPlaced()

pcbnew.FOOTPRINT.SetIsPlaced	(		self,
			isPlaced )

SetIsPlaced(FOOTPRINT self, bool isPlaced)

Definition at line 23009 of file pcbnew.py.

◆ SetKeywords()

pcbnew.FOOTPRINT.SetKeywords	(		self,
			aKeywords )

SetKeywords(FOOTPRINT self, wxString aKeywords)

Definition at line 22822 of file pcbnew.py.

◆ SetLayerAndFlip()

pcbnew.FOOTPRINT.SetLayerAndFlip	(		self,
			aLayer )

SetLayerAndFlip(FOOTPRINT self, PCB_LAYER_ID aLayer)

Definition at line 22758 of file pcbnew.py.

◆ SetLibDescription()

pcbnew.FOOTPRINT.SetLibDescription	(		self,
			aDesc )

SetLibDescription(FOOTPRINT self, wxString aDesc)

Definition at line 22814 of file pcbnew.py.

◆ SetLink()

pcbnew.FOOTPRINT.SetLink	(		self,
			aLink )

SetLink(FOOTPRINT self, KIID aLink)

Definition at line 23324 of file pcbnew.py.

◆ SetLocalClearance()

pcbnew.FOOTPRINT.SetLocalClearance	(		self,
			aClearance )

SetLocalClearance(FOOTPRINT self, std::optional< int > aClearance)

Definition at line 22858 of file pcbnew.py.

◆ SetLocalSolderMaskMargin()

pcbnew.FOOTPRINT.SetLocalSolderMaskMargin	(		self,
			aMargin )

SetLocalSolderMaskMargin(FOOTPRINT self, std::optional< int > aMargin)

Definition at line 22866 of file pcbnew.py.

◆ SetLocalSolderPasteMargin()

pcbnew.FOOTPRINT.SetLocalSolderPasteMargin	(		self,
			aMargin )

SetLocalSolderPasteMargin(FOOTPRINT self, std::optional< int > aMargin)

Definition at line 22874 of file pcbnew.py.

◆ SetLocalSolderPasteMarginRatio()

pcbnew.FOOTPRINT.SetLocalSolderPasteMarginRatio	(		self,
			aRatio )

SetLocalSolderPasteMarginRatio(FOOTPRINT self, std::optional< double > aRatio)

Definition at line 22882 of file pcbnew.py.

◆ SetLocalZoneConnection()

pcbnew.FOOTPRINT.SetLocalZoneConnection	(		self,
			aType )

SetLocalZoneConnection(FOOTPRINT self, ZONE_CONNECTION aType)

Definition at line 22886 of file pcbnew.py.

◆ SetNeedsPlaced()

pcbnew.FOOTPRINT.SetNeedsPlaced	(		self,
			needsPlaced )

SetNeedsPlaced(FOOTPRINT self, bool needsPlaced)

Definition at line 23017 of file pcbnew.py.

◆ SetOrientation()

pcbnew.FOOTPRINT.SetOrientation	(		self,
			aNewAngle )

SetOrientation(FOOTPRINT self, EDA_ANGLE aNewAngle)

Definition at line 22750 of file pcbnew.py.

◆ SetOrientationDegrees()

pcbnew.FOOTPRINT.SetOrientationDegrees	(		self,
			aOrientation )

SetOrientationDegrees(FOOTPRINT self, double aOrientation)

Definition at line 22762 of file pcbnew.py.

◆ SetPath()

pcbnew.FOOTPRINT.SetPath	(		self,
			aPath )

SetPath(FOOTPRINT self, KIID_PATH aPath)

Definition at line 22830 of file pcbnew.py.

◆ SetPrivateLayers()

pcbnew.FOOTPRINT.SetPrivateLayers	(		self,
			aLayers )

SetPrivateLayers(FOOTPRINT self, LSET aLayers)

Definition at line 22665 of file pcbnew.py.

◆ SetReference()

pcbnew.FOOTPRINT.SetReference	(		self,
			aReference )

SetReference(FOOTPRINT self, wxString aReference)

Definition at line 23100 of file pcbnew.py.

◆ SetSheetfile()

pcbnew.FOOTPRINT.SetSheetfile	(		self,
			aSheetfile )

SetSheetfile(FOOTPRINT self, wxString aSheetfile)

Definition at line 22846 of file pcbnew.py.

◆ SetSheetname()

pcbnew.FOOTPRINT.SetSheetname	(		self,
			aSheetname )

SetSheetname(FOOTPRINT self, wxString aSheetname)

Definition at line 22838 of file pcbnew.py.

◆ SetStackupLayers()

pcbnew.FOOTPRINT.SetStackupLayers	(		self,
			aLayers )

SetStackupLayers(FOOTPRINT self, LSET aLayers)

Definition at line 22902 of file pcbnew.py.

◆ SetStackupMode()

pcbnew.FOOTPRINT.SetStackupMode	(		self,
			aMode )

SetStackupMode(FOOTPRINT self, FOOTPRINT_STACKUP aMode)

Definition at line 22894 of file pcbnew.py.

◆ SetStaticComponentClass()

pcbnew.FOOTPRINT.SetStaticComponentClass	(		self,
			aClass )

SetStaticComponentClass(FOOTPRINT self, COMPONENT_CLASS const * aClass)

Definition at line 23410 of file pcbnew.py.

◆ SetTransientComponentClassNames()

pcbnew.FOOTPRINT.SetTransientComponentClassNames	(		self,
			classNames )

SetTransientComponentClassNames(FOOTPRINT self, std::unordered_set< wxString > const & classNames)

Definition at line 23434 of file pcbnew.py.

◆ SetUnitInfo()

pcbnew.FOOTPRINT.SetUnitInfo	(		self,
			aUnits )

SetUnitInfo(FOOTPRINT self, std::vector< FOOTPRINT::FP_UNIT_INFO,std::allocator< FOOTPRINT::FP_UNIT_INFO > > const & aUnits)

Definition at line 23166 of file pcbnew.py.

◆ SetValue()

pcbnew.FOOTPRINT.SetValue	(		self,
			aValue )

SetValue(FOOTPRINT self, wxString aValue)

Definition at line 23116 of file pcbnew.py.

◆ SetVariant()

pcbnew.FOOTPRINT.SetVariant	(		self,
			aVariant )

SetVariant(FOOTPRINT self, FOOTPRINT_VARIANT aVariant)

Definition at line 23213 of file pcbnew.py.

◆ StringLibNameInvalidChars()

pcbnew.FOOTPRINT.StringLibNameInvalidChars ( aUserReadable )

static

StringLibNameInvalidChars(bool aUserReadable) -> wxChar const *

Definition at line 23354 of file pcbnew.py.

◆ TextOnly()

pcbnew.FOOTPRINT.TextOnly ( self )

TextOnly(FOOTPRINT self) -> bool

Definition at line 22696 of file pcbnew.py.

◆ TransformFPShapesToPolySet()

pcbnew.FOOTPRINT.TransformFPShapesToPolySet	(	self,
		aBuffer,
		aLayer,
		aClearance,
		aError,
		aErrorLoc,
		aIncludeText = True,
		aIncludeShapes = True,
		aIncludePrivateItems = False )

TransformFPShapesToPolySet(FOOTPRINT self, SHAPE_POLY_SET aBuffer, PCB_LAYER_ID aLayer, int aClearance, int aError, ERROR_LOC aErrorLoc, bool aIncludeText=True, bool aIncludeShapes=True, bool aIncludePrivateItems=False)

Definition at line 23061 of file pcbnew.py.

◆ TransformFPTextToPolySet()

pcbnew.FOOTPRINT.TransformFPTextToPolySet	(	self,
		aBuffer,
		aLayer,
		aClearance,
		aError,
		aErrorLoc )

TransformFPTextToPolySet(FOOTPRINT self, SHAPE_POLY_SET aBuffer, PCB_LAYER_ID aLayer, int aClearance, int aError, ERROR_LOC aErrorLoc)

Definition at line 23065 of file pcbnew.py.

◆ TransformPadsToPolySet()

pcbnew.FOOTPRINT.TransformPadsToPolySet	(	self,
		aBuffer,
		aLayer,
		aClearance,
		aMaxError,
		aErrorLoc )

TransformPadsToPolySet(FOOTPRINT self, SHAPE_POLY_SET aBuffer, PCB_LAYER_ID aLayer, int aClearance, int aMaxError, ERROR_LOC aErrorLoc)

Definition at line 23057 of file pcbnew.py.

◆ Value()

pcbnew.FOOTPRINT.Value	(		self,
		*	args )

    Value(FOOTPRINT self) -> PCB_FIELD
    Value(FOOTPRINT self) -> PCB_FIELD

Definition at line 23124 of file pcbnew.py.

◆ ViewGetLOD()

pcbnew.FOOTPRINT.ViewGetLOD	(	self,
		aLayer,
		aView )

ViewGetLOD(FOOTPRINT self, int aLayer, KIGFX::VIEW const * aView) -> double

Definition at line 23344 of file pcbnew.py.

◆ Zones()

pcbnew.FOOTPRINT.Zones	(		self,
		*	args )

    Zones(FOOTPRINT self) -> ZONES
    Zones(FOOTPRINT self) -> ZONES

Definition at line 22718 of file pcbnew.py.

Property Documentation

◆ thisown

pcbnew.FOOTPRINT.thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

static

Definition at line 22632 of file pcbnew.py.

The documentation for this class was generated from the following file:

pcbnew.py

Public Member Functions

Static Public Member Functions

Properties

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ __init__()

Member Function Documentation

◆ __eq__()

◆ Add3DModel()

◆ AddNative()

◆ AddNetTiePadGroup()

◆ AddVariant()

◆ AllowMissingCourtyard()

◆ AllowSolderMaskBridges()

◆ ApplyDefaultSettings()

◆ AutoPositionFields()

◆ BuildCourtyardCaches()

◆ BuildNetTieCache()

◆ CheckClippedSilk()

◆ CheckFootprintAttributes()

◆ CheckNetTiePadGroups()

◆ CheckNetTies()

◆ CheckPads()

◆ CheckShortingPads()

◆ ClassOf()

◆ ClearAllNets()

◆ ClearNetTiePadGroups()

◆ ClearTransientComponentClassNames()

◆ CoverageRatio()

◆ DeleteVariant()

◆ Deserialize()

◆ Duplicate()

◆ DuplicateItem()

◆ EmbedFonts()

◆ FindPadByNumber()

◆ FixUpPadsForBoard()

◆ FixUuids()

◆ FootprintNeedsUpdate()

◆ GetArea()

◆ GetAttributes()

◆ GetBoundingBox()

◆ GetBoundingHull()

◆ GetCachedCourtyard()

◆ GetClass()

◆ GetClearanceOverrides()

◆ GetComponentClass()

◆ GetComponentClassAsString()

◆ GetContextualTextVars()

◆ GetCourtyard()

◆ GetCoverageArea()

◆ GetDesc()

◆ GetDNPForVariant()

◆ GetDuplicatePadNumbersAreJumpers()

◆ GetEffectiveShape()

◆ GetEmbeddedFiles()

◆ GetExcludedFromBOMForVariant()

◆ GetExcludedFromPosFilesForVariant()

◆ GetField()

◆ GetFields()

◆ GetFieldShownText()

◆ GetFieldsShownText()

◆ GetFieldsText()

◆ GetFieldText()

◆ GetFieldValueForVariant()

◆ GetFileFormatVersionAtLoad()

◆ GetFilters()

◆ GetFlag()

◆ GetFonts()

◆ GetFPID()

◆ GetFPIDAsString()

◆ GetFpPadsLocalBbox()

◆ GetInitialComments()

◆ GetJumperPadGroup()

◆ GetKeywords()

◆ GetLayerBoundingBox()

◆ GetLIB_ID()

◆ GetLibDescription()

◆ GetLibNickname()

◆ GetLikelyAttribute()

◆ init()

◆ eq()
