Inheritance diagram for pcbnew.BOARD:

[legend]

Public Member Functions
	__init__ (self, args, *kwargs)

	SetBoardUse (self, aUse)

	GetBoardUse (self)

	IncrementTimeStamp (self)

	GetTimeStamp (self)

	IsFootprintHolder (self)

	SetFileName (self, aFileName)

	GetFileName (self)

	Footprints (self)

	Zones (self)

	Generators (self)

	BoardOutline (self, *args)

	UpdateBoardOutline (self)

	Markers (self)

	Points (self)

	Drawings (self, *args)

	Tracks (self, *args)

	GetItemSet (self)

	Groups (self)

	AllConnectedItems (self)

	GetProperties (self)

	SetProperties (self, aProps)

	GetCurrentVariant (self)

	SetCurrentVariant (self, aVariant)

	GetVariantNames (self)

	SetVariantNames (self, aNames)

	HasVariant (self, aVariantName)

	AddVariant (self, aVariantName)

	DeleteVariant (self, aVariantName)

	RenameVariant (self, aOldName, aNewName)

	GetVariantDescription (self, aVariantName)

	SetVariantDescription (self, aVariantName, aDescription)

	GetVariantNamesForUI (self)

	GetContextualTextVars (self, aVars)

	ResolveTextVar (self, token, aDepth)

	IsEmpty (self)

	SetFileFormatVersionAtLoad (self, aVersion)

	GetFileFormatVersionAtLoad (self)

	SetGenerator (self, aGenerator)

	GetGenerator (self)

	AddNative (self, *args)

	RemoveNative (self, *args)

	RemoveAll (self, *args)

	HasItemsOnLayer (self, aLayer)

	RemoveAllItemsOnLayer (self, aLayer)

	BulkRemoveStaleTeardrops (self, aCommit)

	FinalizeBulkAdd (self, aNewItems)

	FinalizeBulkRemove (self, aRemovedItems)

	FixupEmbeddedData (self)

	RunOnNestedEmbeddedFiles (self, aFunction)

	CacheTriangulation (self, *args)

	GetFirstFootprint (self)

	DeleteAllFootprints (self)

	DetachAllFootprints (self)

	ResolveItem (self, aID, aAllowNullptrReturn=False)

	FillItemMap (self, aMap)

	ConvertCrossReferencesToKIIDs (self, aSource)

	ConvertKIIDsToCrossReferences (self, aSource)

	GetConnectivity (self)

	BuildConnectivity (self, aReporter=None)

	DeleteMARKERs (self, *args)

	GetProject (self)

	SetProject (self, aProject, aReferenceOnly=False)

	ClearProject (self)

	ResolveDRCExclusions (self, aCreateMarkers)

	RecordDRCExclusions (self)

	UpdateRatsnestExclusions (self)

	ResetNetHighLight (self)

	GetHighLightNetCodes (self)

	SetHighLightNet (self, aNetCode, aMulti=False)

	IsHighLightNetON (self)

	HighLightON (self, aValue=True)

	HighLightOFF (self)

	GetCopperLayerCount (self)

	SetCopperLayerCount (self, aCount)

	GetUserDefinedLayerCount (self)

	SetUserDefinedLayerCount (self, aCount)

	GetCopperLayerStackMaxId (self)

	FlipLayer (self, aLayer)

	LayerDepth (self, aStartLayer, aEndLayer)

	GetEnabledLayers (self)

	SetEnabledLayers (self, aLayerMask)

	IsLayerEnabled (self, aLayer)

	IsLayerVisible (self, aLayer)

	GetVisibleLayers (self)

	SetVisibleLayers (self, aLayerMask)

	GetVisibleElements (self)

	SetVisibleElements (self, aMask)

	SetVisibleAlls (self)

	IsElementVisible (self, aLayer)

	SetElementVisibility (self, aLayer, aNewState)

	IsFootprintLayerVisible (self, aLayer)

	GetDesignSettings (self)

	SetDesignSettings (self, aSettings)

	InvalidateClearanceCache (self, aUuid)

	InitializeClearanceCache (self)

	GetStackupOrDefault (self)

	GetPageSettings (self)

	SetPageSettings (self, aPageSettings)

	GetPlotOptions (self)

	SetPlotOptions (self, aOptions)

	GetTitleBlock (self, *args)

	SetTitleBlock (self, aTitleBlock)

	GetUserUnits (self)

	SetUserUnits (self, aUnits)

	UpdateUserUnits (self, aItem, aView)

	GetBoardPolygonOutlines (self, aOutlines, aInferOutlineIfNecessary, aErrorHandler=None, aAllowUseArcsInPolygons=False, aIncludeNPTHAsOutlines=False)

	GetOutlinesChainingEpsilon (self)

	SetOutlinesChainingEpsilon (self, aValue)

	ConvertBrdLayerToPolygonalContours (self, aLayer, aOutlines, aRenderSettings=None)

	GetLayerID (self, aLayerName)

	GetLayerName (self, aLayer)

	SetLayerName (self, aLayer, aLayerName)

	SetLayerDescr (self, aIndex, aLayer)

	IsFrontLayer (self, aLayer)

	IsBackLayer (self, aLayer)

	GetLayerType (self, aLayer)

	SetLayerType (self, aLayer, aLayerType)

	GetNodesCount (self, aNet=-1)

	GetPads (self)

	BuildListOfNets (self)

	FindNet (self, *args)

	MatchDpSuffix (self, aNetName, aComplementNet)

	DpCoupledNet (self, aNet)

	GetNetInfo (self)

	RemoveUnusedNets (self, aCommit)

	GetNetCount (self)

	GetPadWithPressFitAttrCount (self)

	GetPadWithCastellatedAttrCount (self)

	ComputeBoundingBox (self, aBoardEdgesOnly=False, aPhysicalLayersOnly=False)

	GetBoardEdgesBoundingBox (self)

	FindFootprintByReference (self, aReference)

	FindFootprintByPath (self, aPath)

	GetNetClassAssignmentCandidates (self)

	SynchronizeNetsAndNetClasses (self, aResetTrackAndViaSizes)

	SynchronizeComponentClasses (self, aNewSheetPaths)

	SynchronizeProperties (self)

	SynchronizeTuningProfileProperties (self)

	GetClass (self)

	SetAreasNetCodesFromNetNames (self)

	GetArea (self, index)

	GetZoneList (self, aIncludeZonesInFootprints=False)

	GetAreaCount (self)

	AddArea (self, aNewZonesList, aNetcode, aLayer, aStartPointPosition, aHatch)

	TestZoneIntersection (self, aZone1, aZone2)

	GetPad (self, *args)

	GetSortedPadListByXthenYCoord (self, aVector, aNetCode=-1)

	GetTrackLength (self, aTrack)

	TracksInNet (self, aNetCode)

	GetFootprint (self, aPosition, aActiveLayer, aVisibleOnly, aIgnoreLocked=False)

	GetMaxClearanceValue (self)

	MapNets (self, aDestBoard)

	SanitizeNetcodes (self)

	AddListener (self, aListener)

	RemoveListener (self, aListener)

	RemoveAllListeners (self)

	OnItemChanged (self, aItem)

	OnItemsChanged (self, aItems)

	OnItemsCompositeUpdate (self, aAddedItems, aRemovedItems, aChangedItems)

	OnRatsnestChanged (self)

	GroupsSanityCheck (self, repair=False)

	GroupsSanityCheckInternal (self, repair)

	LegacyTeardrops (self)

	SetLegacyTeardrops (self, aFlag)

	GetEmbeddedFiles (self, *args)

	SetEmbeddedFilesDelegate (self, aDelegate)

	GetFonts (self)

	EmbedFonts (self)

	GetLengthCalculation (self)

	GetComponentClassManager (self)

	ProjectElementType (self)

	SaveToHistory (self, aProjectPath, aFiles)

	GetItemByIdCache (self)

	CacheItemById (self, aItem)

	UncacheItemById (self, aId)

	__init__ (self, *args)

	GetFootprints (self)

	GetDrawings (self)

	GetTracks (self)

	Save (self, filename)

	GetNetClasses (self)

	GetCurrentNetClassName (self)

	GetViasDimensionsList (self)

	GetTrackWidthList (self)

	GetNetsByName (self)

	GetNetsByNetcode (self)

	GetNetcodeFromNetname (self, netname)

	GetAllNetClasses (self)

Public Member Functions inherited from pcbnew.BOARD_ITEM_CONTAINER
	__init__ (self, args, *kwargs)

	DeleteNative (self, aItem)

	Add (self, item)

	Remove (self, item)

	Delete (self, item)

Public Member Functions inherited from pcbnew.BOARD_ITEM
	__init__ (self, args, *kwargs)

	CopyFrom (self, aOther)

	IsGroupableType (self)

	GetX (self)

	GetY (self)

	GetCenter (self)

	SetX (self, aX)

	SetY (self, aY)

	IsConnected (self)

	Similarity (self, aItem)

	__eq__ (self, aItem)

	IsOnCopperLayer (self)

	HasHole (self)

	HasDrilledHole (self)

	IsTented (self, aLayer)

	GetEffectiveShape (self, *args)

	GetEffectiveHoleShape (self)

	RunOnChildren (self, aFunction, aMode)

	GetParent (self)

	GetParentFootprint (self)

	GetFPRelativePosition (self)

	SetFPRelativePosition (self, aPos)

	HasLineStroke (self)

	GetStroke (self)

	SetStroke (self, aStroke)

	GetFontMetrics (self)

	GetLayer (self)

	BoardLayerCount (self)

	BoardCopperLayerCount (self)

	BoardLayerSet (self)

	GetLayerSet (self)

	SetLayerSet (self, aLayers)

	IsSideSpecific (self)

	SetLayer (self, aLayer)

	Duplicate (self, addToParentGroup, aCommit=None)

	SwapItemData (self, aImage)

	IsOnLayer (self, aLayer)

	IsKnockout (self)

	SetIsKnockout (self, aKnockout)

	GetMaxError (self)

	StyleFromSettings (self, settings, aCheckSide)

	DeleteStructure (self)

	Move (self, aMoveVector)

	Rotate (self, aRotCentre, aAngle)

	Flip (self, aCentre, aFlipDirection)

	Mirror (self, aCentre, aFlipDirection)

	Normalize (self)

	NormalizeForCompare (self)

	GetBoard (self, *args)

	GetParentAsString (self)

	TransformShapeToPolygon (self, aBuffer, aLayer, aClearance, aError, aErrorLoc, ignoreLineWidth=False)

	TransformShapeToPolySet (self, aBuffer, aLayer, aClearance, aError, aErrorLoc, aRenderSettings=None)

	LayerMaskDescribe (self)

	Cast (self)

	Duplicate (self)

	SetPos (self, p)

	SetStartEnd (self, start, end)

Public Member Functions inherited from pcbnew.EDA_ITEM
	__init__ (self, args, *kwargs)

	Type (self)

	SetParent (self, aParent)

	SetParentGroup (self, aGroup)

	GetParentGroup (self)

	GetParentGroupId (self)

	IsLocked (self)

	SetLocked (self, aLocked)

	IsModified (self)

	IsNew (self)

	IsMoving (self)

	IsSelected (self)

	IsEntered (self)

	IsBrightened (self)

	IsRollover (self)

	GetRolloverPos (self)

	SetIsRollover (self, aIsRollover, aMousePos)

	SetSelected (self)

	SetBrightened (self)

	ClearSelected (self)

	ClearBrightened (self)

	SetModified (self)

	SetFlags (self, aMask)

	XorFlags (self, aMask)

	ClearFlags (self, *args)

	GetFlags (self)

	HasFlag (self, aFlag)

	GetEditFlags (self)

	ClearEditFlags (self)

	GetTempFlags (self)

	ClearTempFlags (self)

	RenderAsBitmap (self, aWorldScale)

	SetIsShownAsBitmap (self, aBitmap)

	IsShownAsBitmap (self)

	IsType (self, aScanTypes)

	SetForceVisible (self, aEnable)

	IsForceVisible (self)

	GetMsgPanelInfo (self, aFrame, aList)

	GetFriendlyName (self)

	HitTest (self, *args)

	GetBoundingBox (self)

	GetPosition (self)

	SetPosition (self, aPos)

	GetFocusPosition (self)

	GetSortPosition (self)

	Clone (self)

	Visit (self, inspector, testData, aScanTypes)

	GetTypeDesc (self)

	GetItemDescription (self, aUnitsProvider, aFull)

	DisambiguateItemDescription (self, aUnitsProvider, aFull)

	GetMenuImage (self)

	Matches (self, aSearchData, aAuxData)

	Replace (self, *args)

	IsReplaceable (self)

	__lt__ (self, aItem)

	ViewBBox (self)

	ViewGetLayers (self)

	GetEmbeddedFonts (self)

	PyGetClass (self)

Static Public Member Functions
	ClassOf (aItem)

	GetStandardLayerName (aLayerId)

Static Public Member Functions inherited from pcbnew.EDA_ITEM
	Sort (aLeft, aRight)

Public Attributes
	this = this

Static Public Attributes
dict	netclassmap = {k:v for k,v in self.GetNetClasses().items()}

Static Public Attributes inherited from pcbnew.BOARD_ITEM
	DRC = _pcbnew.BOARD_ITEM_DRC

	INSTANCE_TO_INSTANCE = _pcbnew.BOARD_ITEM_INSTANCE_TO_INSTANCE

Properties
	thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

	m_LegacyVisibleLayers = property(_pcbnew.BOARD_m_LegacyVisibleLayers_get, _pcbnew.BOARD_m_LegacyVisibleLayers_set, doc=)

	m_LegacyVisibleItems = property(_pcbnew.BOARD_m_LegacyVisibleItems_get, _pcbnew.BOARD_m_LegacyVisibleItems_set, doc=)

	m_LegacyDesignSettingsLoaded = property(_pcbnew.BOARD_m_LegacyDesignSettingsLoaded_get, _pcbnew.BOARD_m_LegacyDesignSettingsLoaded_set, doc=)

	m_LegacyCopperEdgeClearanceLoaded = property(_pcbnew.BOARD_m_LegacyCopperEdgeClearanceLoaded_get, _pcbnew.BOARD_m_LegacyCopperEdgeClearanceLoaded_set, doc=)

	m_LegacyNetclassesLoaded = property(_pcbnew.BOARD_m_LegacyNetclassesLoaded_get, _pcbnew.BOARD_m_LegacyNetclassesLoaded_set, doc=)

	m_ZoneBBoxCache = property(_pcbnew.BOARD_m_ZoneBBoxCache_get, _pcbnew.BOARD_m_ZoneBBoxCache_set, doc=)

	m_maxClearanceValue = property(_pcbnew.BOARD_m_maxClearanceValue_get, _pcbnew.BOARD_m_maxClearanceValue_set, doc=)

	m_ZonesByNameCache = property(_pcbnew.BOARD_m_ZonesByNameCache_get, _pcbnew.BOARD_m_ZonesByNameCache_set, doc=)

	m_DeflatedZoneOutlineCache = property(_pcbnew.BOARD_m_DeflatedZoneOutlineCache_get, _pcbnew.BOARD_m_DeflatedZoneOutlineCache_set, doc=)

	m_SolderMaskBridges = property(_pcbnew.BOARD_m_SolderMaskBridges_get, _pcbnew.BOARD_m_SolderMaskBridges_set, doc=)

	m_ZoneIsolatedIslandsMap = property(_pcbnew.BOARD_m_ZoneIsolatedIslandsMap_get, _pcbnew.BOARD_m_ZoneIsolatedIslandsMap_set, doc=)

Properties inherited from pcbnew.BOARD_ITEM_CONTAINER
	thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

Properties inherited from pcbnew.BOARD_ITEM
	thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

Properties inherited from pcbnew.EDA_ITEM
	thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

	m_Uuid = property(_pcbnew.EDA_ITEM_m_Uuid_get, doc=)

Detailed Description

Proxy of C++ BOARD class.

Definition at line 21547 of file pcbnew.py.

Constructor & Destructor Documentation

◆ init() [1/2]

pcbnew.BOARD.__init__	(		self,
		*	args,
		**	kwargs )

Definition at line 21552 of file pcbnew.py.

◆ init() [2/2]

pcbnew.BOARD.__init__	(		self,
		*	args )

Definition at line 22305 of file pcbnew.py.

Member Function Documentation

◆ AddArea()

pcbnew.BOARD.AddArea	(	self,
		aNewZonesList,
		aNetcode,
		aLayer,
		aStartPointPosition,
		aHatch )

AddArea(BOARD self, PICKED_ITEMS_LIST * aNewZonesList, int aNetcode, PCB_LAYER_ID aLayer, VECTOR2I aStartPointPosition, ZONE_BORDER_DISPLAY_STYLE aHatch) -> ZONE

Definition at line 22163 of file pcbnew.py.

◆ AddListener()

pcbnew.BOARD.AddListener	(		self,
			aListener )

AddListener(BOARD self, BOARD_LISTENER aListener)

Definition at line 22208 of file pcbnew.py.

◆ AddNative()

pcbnew.BOARD.AddNative	(		self,
		*	args )

AddNative(BOARD self, BOARD_ITEM aItem, ADD_MODE aMode=INSERT, bool aSkipConnectivity=False)

Reimplemented from pcbnew.BOARD_ITEM_CONTAINER.

Definition at line 21732 of file pcbnew.py.

◆ AddVariant()

pcbnew.BOARD.AddVariant	(		self,
			aVariantName )

AddVariant(BOARD self, wxString aVariantName)

Definition at line 21674 of file pcbnew.py.

◆ AllConnectedItems()

pcbnew.BOARD.AllConnectedItems ( self )

AllConnectedItems(BOARD self) -> std::vector< BOARD_CONNECTED_ITEM *,std::allocator< BOARD_CONNECTED_ITEM * > > const

Definition at line 21642 of file pcbnew.py.

◆ BoardOutline()

pcbnew.BOARD.BoardOutline	(		self,
		*	args )

    BoardOutline(BOARD self) -> PCB_BOARD_OUTLINE
    BoardOutline(BOARD self) -> PCB_BOARD_OUTLINE const *

Definition at line 21601 of file pcbnew.py.

◆ BuildConnectivity()

pcbnew.BOARD.BuildConnectivity	(		self,
			aReporter = None )

BuildConnectivity(BOARD self, PROGRESS_REPORTER * aReporter=None) -> bool

Definition at line 21813 of file pcbnew.py.

◆ BuildListOfNets()

pcbnew.BOARD.BuildListOfNets ( self )

BuildListOfNets(BOARD self)

Definition at line 22068 of file pcbnew.py.

◆ BulkRemoveStaleTeardrops()

pcbnew.BOARD.BulkRemoveStaleTeardrops	(		self,
			aCommit )

BulkRemoveStaleTeardrops(BOARD self, BOARD_COMMIT & aCommit)

Definition at line 21757 of file pcbnew.py.

◆ CacheItemById()

pcbnew.BOARD.CacheItemById	(		self,
			aItem )

CacheItemById(BOARD self, BOARD_ITEM aItem)

Definition at line 22291 of file pcbnew.py.

◆ CacheTriangulation()

pcbnew.BOARD.CacheTriangulation	(		self,
		*	args )

CacheTriangulation(BOARD self, PROGRESS_REPORTER * aReporter=None, ZONES aZones={})

Definition at line 21777 of file pcbnew.py.

◆ ClassOf()

pcbnew.BOARD.ClassOf ( aItem )

static

ClassOf(EDA_ITEM aItem) -> bool

Definition at line 21557 of file pcbnew.py.

◆ ClearProject()

pcbnew.BOARD.ClearProject ( self )

ClearProject(BOARD self)

Definition at line 21832 of file pcbnew.py.

◆ ComputeBoundingBox()

pcbnew.BOARD.ComputeBoundingBox	(	self,
		aBoardEdgesOnly = False,
		aPhysicalLayersOnly = False )

ComputeBoundingBox(BOARD self, bool aBoardEdgesOnly=False, bool aPhysicalLayersOnly=False) -> BOX2I

Definition at line 22107 of file pcbnew.py.

◆ ConvertBrdLayerToPolygonalContours()

pcbnew.BOARD.ConvertBrdLayerToPolygonalContours	(	self,
		aLayer,
		aOutlines,
		aRenderSettings = None )

ConvertBrdLayerToPolygonalContours(BOARD self, PCB_LAYER_ID aLayer, SHAPE_POLY_SET aOutlines, KIGFX::RENDER_SETTINGS * aRenderSettings=None)

Definition at line 22019 of file pcbnew.py.

◆ ConvertCrossReferencesToKIIDs()

pcbnew.BOARD.ConvertCrossReferencesToKIIDs	(		self,
			aSource )

ConvertCrossReferencesToKIIDs(BOARD self, wxString aSource) -> wxString

Definition at line 21801 of file pcbnew.py.

◆ ConvertKIIDsToCrossReferences()

pcbnew.BOARD.ConvertKIIDsToCrossReferences	(		self,
			aSource )

ConvertKIIDsToCrossReferences(BOARD self, wxString aSource) -> wxString

Definition at line 21805 of file pcbnew.py.

◆ DeleteAllFootprints()

pcbnew.BOARD.DeleteAllFootprints ( self )

DeleteAllFootprints(BOARD self)

Definition at line 21785 of file pcbnew.py.

◆ DeleteMARKERs()

pcbnew.BOARD.DeleteMARKERs	(		self,
		*	args )

    DeleteMARKERs(BOARD self)
    DeleteMARKERs(BOARD self, bool aWarningsAndErrors, bool aExclusions)

Definition at line 21817 of file pcbnew.py.

◆ DeleteVariant()

pcbnew.BOARD.DeleteVariant	(		self,
			aVariantName )

DeleteVariant(BOARD self, wxString aVariantName)

Definition at line 21678 of file pcbnew.py.

◆ DetachAllFootprints()

pcbnew.BOARD.DetachAllFootprints ( self )

DetachAllFootprints(BOARD self)

Definition at line 21789 of file pcbnew.py.

◆ DpCoupledNet()

pcbnew.BOARD.DpCoupledNet	(		self,
			aNet )

DpCoupledNet(BOARD self, NETINFO_ITEM aNet) -> NETINFO_ITEM

Definition at line 22083 of file pcbnew.py.

◆ Drawings()

pcbnew.BOARD.Drawings	(		self,
		*	args )

    Drawings(BOARD self) -> DRAWINGS
    Drawings(BOARD self) -> DRAWINGS

Definition at line 21620 of file pcbnew.py.

◆ EmbedFonts()

pcbnew.BOARD.EmbedFonts ( self )

EmbedFonts(BOARD self)

Definition at line 22267 of file pcbnew.py.

◆ FillItemMap()

pcbnew.BOARD.FillItemMap	(		self,
			aMap )

FillItemMap(BOARD self, std::map< KIID,EDA_ITEM *,std::less< KIID >,std::allocator< std::pair< KIID const,EDA_ITEM * > > > & aMap)

Definition at line 21797 of file pcbnew.py.

◆ FinalizeBulkAdd()

pcbnew.BOARD.FinalizeBulkAdd	(		self,
			aNewItems )

FinalizeBulkAdd(BOARD self, std::vector< BOARD_ITEM *,std::allocator< BOARD_ITEM * > > & aNewItems)

Definition at line 21761 of file pcbnew.py.

◆ FinalizeBulkRemove()

pcbnew.BOARD.FinalizeBulkRemove	(		self,
			aRemovedItems )

FinalizeBulkRemove(BOARD self, std::vector< BOARD_ITEM *,std::allocator< BOARD_ITEM * > > & aRemovedItems)

Definition at line 21765 of file pcbnew.py.

◆ FindFootprintByPath()

pcbnew.BOARD.FindFootprintByPath	(		self,
			aPath )

FindFootprintByPath(BOARD self, KIID_PATH aPath) -> FOOTPRINT

Definition at line 22119 of file pcbnew.py.

◆ FindFootprintByReference()

pcbnew.BOARD.FindFootprintByReference	(		self,
			aReference )

FindFootprintByReference(BOARD self, wxString aReference) -> FOOTPRINT

Definition at line 22115 of file pcbnew.py.

◆ FindNet()

pcbnew.BOARD.FindNet	(		self,
		*	args )

    FindNet(BOARD self, int aNetcode) -> NETINFO_ITEM
    FindNet(BOARD self, wxString aNetname) -> NETINFO_ITEM

Definition at line 22072 of file pcbnew.py.

◆ FixupEmbeddedData()

pcbnew.BOARD.FixupEmbeddedData ( self )

FixupEmbeddedData(BOARD self)

Definition at line 21769 of file pcbnew.py.

◆ FlipLayer()

pcbnew.BOARD.FlipLayer	(		self,
			aLayer )

FlipLayer(BOARD self, PCB_LAYER_ID aLayer) -> PCB_LAYER_ID

Definition at line 21892 of file pcbnew.py.

◆ Footprints()

pcbnew.BOARD.Footprints ( self )

Footprints(BOARD self) -> FOOTPRINTS

Definition at line 21589 of file pcbnew.py.

◆ Generators()

pcbnew.BOARD.Generators ( self )

Generators(BOARD self) -> GENERATORS

Definition at line 21597 of file pcbnew.py.

◆ GetAllNetClasses()

pcbnew.BOARD.GetAllNetClasses ( self )

Return a dictionary like object with net_class_name as key and NETCLASSPTR as value
GetNetClasses(BOARD self) -> { wxString net_class_name : NETCLASSPTR }
Include the "Default" netclass also.

Definition at line 22353 of file pcbnew.py.

◆ GetArea()

pcbnew.BOARD.GetArea	(		self,
			index )

GetArea(BOARD self, int index) -> ZONE

Definition at line 22151 of file pcbnew.py.

◆ GetAreaCount()

pcbnew.BOARD.GetAreaCount ( self )

GetAreaCount(BOARD self) -> int

Definition at line 22159 of file pcbnew.py.

◆ GetBoardEdgesBoundingBox()

pcbnew.BOARD.GetBoardEdgesBoundingBox ( self )

GetBoardEdgesBoundingBox(BOARD self) -> BOX2I

Definition at line 22111 of file pcbnew.py.

◆ GetBoardPolygonOutlines()

pcbnew.BOARD.GetBoardPolygonOutlines	(	self,
		aOutlines,
		aInferOutlineIfNecessary,
		aErrorHandler = None,
		aAllowUseArcsInPolygons = False,
		aIncludeNPTHAsOutlines = False )

GetBoardPolygonOutlines(BOARD self, SHAPE_POLY_SET aOutlines, bool aInferOutlineIfNecessary, OUTLINE_ERROR_HANDLER * aErrorHandler=None, bool aAllowUseArcsInPolygons=False, bool aIncludeNPTHAsOutlines=False) -> bool

Definition at line 22007 of file pcbnew.py.

◆ GetBoardUse()

pcbnew.BOARD.GetBoardUse ( self )

GetBoardUse(BOARD self) -> BOARD_USE

Definition at line 21565 of file pcbnew.py.

◆ GetClass()

pcbnew.BOARD.GetClass ( self )

GetClass(BOARD self) -> wxString

Reimplemented from pcbnew.EDA_ITEM.

Definition at line 22143 of file pcbnew.py.

◆ GetComponentClassManager()

pcbnew.BOARD.GetComponentClassManager ( self )

GetComponentClassManager(BOARD self) -> COMPONENT_CLASS_MANAGER &

Definition at line 22275 of file pcbnew.py.

◆ GetConnectivity()

pcbnew.BOARD.GetConnectivity ( self )

GetConnectivity(BOARD self) -> std::shared_ptr< CONNECTIVITY_DATA >

Definition at line 21809 of file pcbnew.py.

◆ GetContextualTextVars()

pcbnew.BOARD.GetContextualTextVars	(		self,
			aVars )

GetContextualTextVars(BOARD self, wxArrayString * aVars)

Definition at line 21698 of file pcbnew.py.

◆ GetCopperLayerCount()

pcbnew.BOARD.GetCopperLayerCount ( self )

GetCopperLayerCount(BOARD self) -> int

Definition at line 21872 of file pcbnew.py.

◆ GetCopperLayerStackMaxId()

pcbnew.BOARD.GetCopperLayerStackMaxId ( self )

GetCopperLayerStackMaxId(BOARD self) -> PCB_LAYER_ID

Definition at line 21888 of file pcbnew.py.

◆ GetCurrentNetClassName()

pcbnew.BOARD.GetCurrentNetClassName ( self )

Definition at line 22325 of file pcbnew.py.

◆ GetCurrentVariant()

pcbnew.BOARD.GetCurrentVariant ( self )

GetCurrentVariant(BOARD self) -> wxString

Definition at line 21654 of file pcbnew.py.

◆ GetDesignSettings()

pcbnew.BOARD.GetDesignSettings ( self )

GetDesignSettings(BOARD self) -> BOARD_DESIGN_SETTINGS

Definition at line 21948 of file pcbnew.py.

◆ GetDrawings()

pcbnew.BOARD.GetDrawings ( self )

Definition at line 22316 of file pcbnew.py.

◆ GetEmbeddedFiles()

pcbnew.BOARD.GetEmbeddedFiles	(		self,
		*	args )

    GetEmbeddedFiles(BOARD self) -> EMBEDDED_FILES
    GetEmbeddedFiles(BOARD self) -> EMBEDDED_FILES const *

Reimplemented from pcbnew.EDA_ITEM.

Definition at line 22252 of file pcbnew.py.

◆ GetEnabledLayers()

pcbnew.BOARD.GetEnabledLayers ( self )

GetEnabledLayers(BOARD self) -> LSET

Definition at line 21900 of file pcbnew.py.

◆ GetFileFormatVersionAtLoad()

pcbnew.BOARD.GetFileFormatVersionAtLoad ( self )

GetFileFormatVersionAtLoad(BOARD self) -> int

Definition at line 21720 of file pcbnew.py.

◆ GetFileName()

pcbnew.BOARD.GetFileName ( self )

GetFileName(BOARD self) -> wxString

Definition at line 21585 of file pcbnew.py.

◆ GetFirstFootprint()

pcbnew.BOARD.GetFirstFootprint ( self )

GetFirstFootprint(BOARD self) -> FOOTPRINT

Definition at line 21781 of file pcbnew.py.

◆ GetFonts()

pcbnew.BOARD.GetFonts ( self )

GetFonts(BOARD self) -> std::set< KIFONT::OUTLINE_FONT *,std::less< KIFONT::OUTLINE_FONT * >,std::allocator< KIFONT::OUTLINE_FONT * > >

Definition at line 22263 of file pcbnew.py.

◆ GetFootprint()

pcbnew.BOARD.GetFootprint	(	self,
		aPosition,
		aActiveLayer,
		aVisibleOnly,
		aIgnoreLocked = False )

GetFootprint(BOARD self, VECTOR2I aPosition, PCB_LAYER_ID aActiveLayer, bool aVisibleOnly, bool aIgnoreLocked=False) -> FOOTPRINT

Definition at line 22192 of file pcbnew.py.

◆ GetFootprints()

pcbnew.BOARD.GetFootprints ( self )

Definition at line 22315 of file pcbnew.py.

◆ GetGenerator()

pcbnew.BOARD.GetGenerator ( self )

GetGenerator(BOARD self) -> wxString

Definition at line 21728 of file pcbnew.py.

◆ GetHighLightNetCodes()

pcbnew.BOARD.GetHighLightNetCodes ( self )

GetHighLightNetCodes(BOARD self) -> std::set< int,std::less< int >,std::allocator< int > > const &

Definition at line 21852 of file pcbnew.py.

◆ GetItemByIdCache()

pcbnew.BOARD.GetItemByIdCache ( self )

GetItemByIdCache(BOARD self) -> std::unordered_map< KIID,BOARD_ITEM * > const &

Definition at line 22287 of file pcbnew.py.

◆ GetItemSet()

pcbnew.BOARD.GetItemSet ( self )

GetItemSet(BOARD self) -> BOARD_ITEM_SET const

Definition at line 21634 of file pcbnew.py.

◆ GetLayerID()

pcbnew.BOARD.GetLayerID	(		self,
			aLayerName )

GetLayerID(BOARD self, wxString aLayerName) -> PCB_LAYER_ID

Definition at line 22023 of file pcbnew.py.

◆ GetLayerName()

pcbnew.BOARD.GetLayerName	(		self,
			aLayer )

GetLayerName(BOARD self, PCB_LAYER_ID aLayer) -> wxString

Reimplemented from pcbnew.BOARD_ITEM.

Definition at line 22027 of file pcbnew.py.

◆ GetLayerType()

pcbnew.BOARD.GetLayerType	(		self,
			aLayer )

GetLayerType(BOARD self, PCB_LAYER_ID aLayer) -> LAYER_T

Definition at line 22052 of file pcbnew.py.

◆ GetLengthCalculation()

pcbnew.BOARD.GetLengthCalculation ( self )

GetLengthCalculation(BOARD self) -> LENGTH_DELAY_CALCULATION *

Definition at line 22271 of file pcbnew.py.

◆ GetMaxClearanceValue()

pcbnew.BOARD.GetMaxClearanceValue ( self )

GetMaxClearanceValue(BOARD self) -> int

Definition at line 22196 of file pcbnew.py.

◆ GetNetClassAssignmentCandidates()

pcbnew.BOARD.GetNetClassAssignmentCandidates ( self )

GetNetClassAssignmentCandidates(BOARD self) -> STRINGSET

Definition at line 22123 of file pcbnew.py.

◆ GetNetClasses()

pcbnew.BOARD.GetNetClasses ( self )

Definition at line 22322 of file pcbnew.py.

◆ GetNetcodeFromNetname()

pcbnew.BOARD.GetNetcodeFromNetname	(		self,
			netname )

Given a netname, return its netcode

Definition at line 22346 of file pcbnew.py.

◆ GetNetCount()

pcbnew.BOARD.GetNetCount ( self )

GetNetCount(BOARD self) -> unsigned int

Definition at line 22095 of file pcbnew.py.

◆ GetNetInfo()

pcbnew.BOARD.GetNetInfo ( self )

GetNetInfo(BOARD self) -> NETINFO_LIST

Definition at line 22087 of file pcbnew.py.

◆ GetNetsByName()

pcbnew.BOARD.GetNetsByName ( self )

Return a dictionary like object with key:wxString netname and value:NETINFO_ITEM

Definition at line 22334 of file pcbnew.py.

◆ GetNetsByNetcode()

pcbnew.BOARD.GetNetsByNetcode ( self )

Return a dictionary like object with key:int netcode and value:NETINFO_ITEM

Definition at line 22340 of file pcbnew.py.

◆ GetNodesCount()

pcbnew.BOARD.GetNodesCount	(		self,
			aNet = -1 )

GetNodesCount(BOARD self, int aNet=-1) -> unsigned int

Definition at line 22060 of file pcbnew.py.

◆ GetOutlinesChainingEpsilon()

pcbnew.BOARD.GetOutlinesChainingEpsilon ( self )

GetOutlinesChainingEpsilon(BOARD self) -> int

Definition at line 22011 of file pcbnew.py.

◆ GetPad()

pcbnew.BOARD.GetPad	(		self,
		*	args )

    GetPad(BOARD self, VECTOR2I aPosition, LSET aLayerMask) -> PAD
    GetPad(BOARD self, VECTOR2I aPosition) -> PAD
    GetPad(BOARD self, PCB_TRACK aTrace, ENDPOINT_T aEndPoint) -> PAD
    GetPad(BOARD self, PADS_VEC aPadList, VECTOR2I aPosition, LSET aLayerMask) -> PAD

Definition at line 22171 of file pcbnew.py.

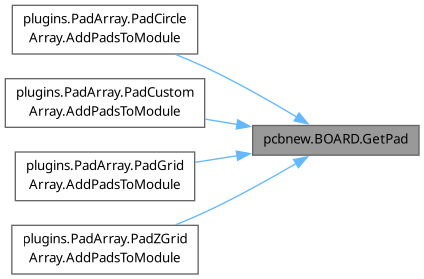

Here is the caller graph for this function:

◆ GetPads()

pcbnew.BOARD.GetPads ( self )

GetPads(BOARD self) -> PADS_VEC

Definition at line 22064 of file pcbnew.py.

◆ GetPadWithCastellatedAttrCount()

pcbnew.BOARD.GetPadWithCastellatedAttrCount ( self )

GetPadWithCastellatedAttrCount(BOARD self) -> int

Definition at line 22103 of file pcbnew.py.

◆ GetPadWithPressFitAttrCount()

pcbnew.BOARD.GetPadWithPressFitAttrCount ( self )

GetPadWithPressFitAttrCount(BOARD self) -> int

Definition at line 22099 of file pcbnew.py.

◆ GetPageSettings()

pcbnew.BOARD.GetPageSettings ( self )

GetPageSettings(BOARD self) -> PAGE_INFO const &

Definition at line 21968 of file pcbnew.py.

◆ GetPlotOptions()

pcbnew.BOARD.GetPlotOptions ( self )

GetPlotOptions(BOARD self) -> PCB_PLOT_PARAMS

Definition at line 21976 of file pcbnew.py.

◆ GetProject()

pcbnew.BOARD.GetProject ( self )

GetProject(BOARD self) -> PROJECT *

Definition at line 21824 of file pcbnew.py.

◆ GetProperties()

pcbnew.BOARD.GetProperties ( self )

GetProperties(BOARD self) -> MAP_STRING_STRING

Definition at line 21646 of file pcbnew.py.

◆ GetSortedPadListByXthenYCoord()

pcbnew.BOARD.GetSortedPadListByXthenYCoord	(	self,
		aVector,
		aNetCode = -1 )

GetSortedPadListByXthenYCoord(BOARD self, PADS_VEC aVector, int aNetCode=-1)

Definition at line 22180 of file pcbnew.py.

◆ GetStackupOrDefault()

pcbnew.BOARD.GetStackupOrDefault ( self )

GetStackupOrDefault(BOARD self) -> BOARD_STACKUP

Definition at line 21964 of file pcbnew.py.

◆ GetStandardLayerName()

pcbnew.BOARD.GetStandardLayerName ( aLayerId )

static

GetStandardLayerName(PCB_LAYER_ID aLayerId) -> wxString

Definition at line 22036 of file pcbnew.py.

◆ GetTimeStamp()

pcbnew.BOARD.GetTimeStamp ( self )

GetTimeStamp(BOARD self) -> int

Definition at line 21573 of file pcbnew.py.

◆ GetTitleBlock()

pcbnew.BOARD.GetTitleBlock	(		self,
		*	args )

    GetTitleBlock(BOARD self) -> TITLE_BLOCK
    GetTitleBlock(BOARD self) -> TITLE_BLOCK

Definition at line 21984 of file pcbnew.py.

◆ GetTrackLength()

pcbnew.BOARD.GetTrackLength	(		self,
			aTrack )

GetTrackLength(BOARD self, PCB_TRACK aTrack) -> std::tuple< int,double,double,double,double >

Definition at line 22184 of file pcbnew.py.

◆ GetTracks()

pcbnew.BOARD.GetTracks ( self )

Definition at line 22317 of file pcbnew.py.

◆ GetTrackWidthList()

pcbnew.BOARD.GetTrackWidthList ( self )

Definition at line 22331 of file pcbnew.py.

◆ GetUserDefinedLayerCount()

pcbnew.BOARD.GetUserDefinedLayerCount ( self )

GetUserDefinedLayerCount(BOARD self) -> int

Definition at line 21880 of file pcbnew.py.

◆ GetUserUnits()

pcbnew.BOARD.GetUserUnits ( self )

GetUserUnits(BOARD self) -> EDA_UNITS

Definition at line 21995 of file pcbnew.py.

◆ GetVariantDescription()

pcbnew.BOARD.GetVariantDescription	(		self,
			aVariantName )

GetVariantDescription(BOARD self, wxString aVariantName) -> wxString

Definition at line 21686 of file pcbnew.py.

◆ GetVariantNames()

pcbnew.BOARD.GetVariantNames ( self )

GetVariantNames(BOARD self) -> std::vector< wxString,std::allocator< wxString > > const &

Definition at line 21662 of file pcbnew.py.

◆ GetVariantNamesForUI()

pcbnew.BOARD.GetVariantNamesForUI ( self )

GetVariantNamesForUI(BOARD self) -> wxArrayString

Definition at line 21694 of file pcbnew.py.

◆ GetViasDimensionsList()

pcbnew.BOARD.GetViasDimensionsList ( self )

Definition at line 22328 of file pcbnew.py.

◆ GetVisibleElements()

pcbnew.BOARD.GetVisibleElements ( self )

GetVisibleElements(BOARD self) -> GAL_SET

Definition at line 21924 of file pcbnew.py.

◆ GetVisibleLayers()

pcbnew.BOARD.GetVisibleLayers ( self )

GetVisibleLayers(BOARD self) -> LSET

Definition at line 21916 of file pcbnew.py.

◆ GetZoneList()

pcbnew.BOARD.GetZoneList	(		self,
			aIncludeZonesInFootprints = False )

GetZoneList(BOARD self, bool aIncludeZonesInFootprints=False) -> std::list< ZONE *,std::allocator< ZONE * > >

Definition at line 22155 of file pcbnew.py.

◆ Groups()

pcbnew.BOARD.Groups ( self )

Groups(BOARD self) -> GROUPS

Definition at line 21638 of file pcbnew.py.

◆ GroupsSanityCheck()

pcbnew.BOARD.GroupsSanityCheck	(		self,
			repair = False )

GroupsSanityCheck(BOARD self, bool repair=False) -> wxString

Definition at line 22236 of file pcbnew.py.

◆ GroupsSanityCheckInternal()

pcbnew.BOARD.GroupsSanityCheckInternal	(		self,
			repair )

GroupsSanityCheckInternal(BOARD self, bool repair) -> wxString

Definition at line 22240 of file pcbnew.py.

◆ HasItemsOnLayer()

pcbnew.BOARD.HasItemsOnLayer	(		self,
			aLayer )

HasItemsOnLayer(BOARD self, PCB_LAYER_ID aLayer) -> bool

Definition at line 21749 of file pcbnew.py.

◆ HasVariant()

pcbnew.BOARD.HasVariant	(		self,
			aVariantName )

HasVariant(BOARD self, wxString aVariantName) -> bool

Definition at line 21670 of file pcbnew.py.

◆ HighLightOFF()

pcbnew.BOARD.HighLightOFF ( self )

HighLightOFF(BOARD self)

Definition at line 21868 of file pcbnew.py.

◆ HighLightON()

pcbnew.BOARD.HighLightON	(		self,
			aValue = True )

HighLightON(BOARD self, bool aValue=True)

Definition at line 21864 of file pcbnew.py.

◆ IncrementTimeStamp()

pcbnew.BOARD.IncrementTimeStamp ( self )

IncrementTimeStamp(BOARD self)

Definition at line 21569 of file pcbnew.py.

◆ InitializeClearanceCache()

pcbnew.BOARD.InitializeClearanceCache ( self )

InitializeClearanceCache(BOARD self)

Definition at line 21960 of file pcbnew.py.

◆ InvalidateClearanceCache()

pcbnew.BOARD.InvalidateClearanceCache	(		self,
			aUuid )

InvalidateClearanceCache(BOARD self, KIID aUuid)

Definition at line 21956 of file pcbnew.py.

◆ IsBackLayer()

pcbnew.BOARD.IsBackLayer	(		self,
			aLayer )

IsBackLayer(BOARD self, PCB_LAYER_ID aLayer) -> bool

Definition at line 22048 of file pcbnew.py.

◆ IsElementVisible()

pcbnew.BOARD.IsElementVisible	(		self,
			aLayer )

IsElementVisible(BOARD self, GAL_LAYER_ID aLayer) -> bool

Definition at line 21936 of file pcbnew.py.

◆ IsEmpty()

pcbnew.BOARD.IsEmpty ( self )

IsEmpty(BOARD self) -> bool

Definition at line 21712 of file pcbnew.py.

◆ IsFootprintHolder()

pcbnew.BOARD.IsFootprintHolder ( self )

IsFootprintHolder(BOARD self) -> bool

Definition at line 21577 of file pcbnew.py.

◆ IsFootprintLayerVisible()

pcbnew.BOARD.IsFootprintLayerVisible	(		self,
			aLayer )

IsFootprintLayerVisible(BOARD self, PCB_LAYER_ID aLayer) -> bool

Definition at line 21944 of file pcbnew.py.

◆ IsFrontLayer()

pcbnew.BOARD.IsFrontLayer	(		self,
			aLayer )

IsFrontLayer(BOARD self, PCB_LAYER_ID aLayer) -> bool

Definition at line 22044 of file pcbnew.py.

◆ IsHighLightNetON()

pcbnew.BOARD.IsHighLightNetON ( self )

IsHighLightNetON(BOARD self) -> bool

Definition at line 21860 of file pcbnew.py.

◆ IsLayerEnabled()

pcbnew.BOARD.IsLayerEnabled	(		self,
			aLayer )

IsLayerEnabled(BOARD self, PCB_LAYER_ID aLayer) -> bool

Definition at line 21908 of file pcbnew.py.

◆ IsLayerVisible()

pcbnew.BOARD.IsLayerVisible	(		self,
			aLayer )

IsLayerVisible(BOARD self, PCB_LAYER_ID aLayer) -> bool

Definition at line 21912 of file pcbnew.py.

◆ LayerDepth()

pcbnew.BOARD.LayerDepth	(	self,
		aStartLayer,
		aEndLayer )

LayerDepth(BOARD self, PCB_LAYER_ID aStartLayer, PCB_LAYER_ID aEndLayer) -> int

Definition at line 21896 of file pcbnew.py.

◆ LegacyTeardrops()

pcbnew.BOARD.LegacyTeardrops ( self )

LegacyTeardrops(BOARD self) -> bool

Definition at line 22244 of file pcbnew.py.

◆ MapNets()

pcbnew.BOARD.MapNets	(		self,
			aDestBoard )

MapNets(BOARD self, BOARD aDestBoard)

Definition at line 22200 of file pcbnew.py.

◆ Markers()

pcbnew.BOARD.Markers ( self )

Markers(BOARD self) -> MARKERS

Definition at line 21612 of file pcbnew.py.

◆ MatchDpSuffix()

pcbnew.BOARD.MatchDpSuffix	(	self,
		aNetName,
		aComplementNet )

MatchDpSuffix(BOARD self, wxString aNetName, wxString aComplementNet) -> int

Definition at line 22079 of file pcbnew.py.

◆ OnItemChanged()

pcbnew.BOARD.OnItemChanged	(		self,
			aItem )

OnItemChanged(BOARD self, BOARD_ITEM aItem)

Definition at line 22220 of file pcbnew.py.

◆ OnItemsChanged()

pcbnew.BOARD.OnItemsChanged	(		self,
			aItems )

OnItemsChanged(BOARD self, std::vector< BOARD_ITEM *,std::allocator< BOARD_ITEM * > > & aItems)

Definition at line 22224 of file pcbnew.py.

◆ OnItemsCompositeUpdate()

pcbnew.BOARD.OnItemsCompositeUpdate	(	self,
		aAddedItems,
		aRemovedItems,
		aChangedItems )

OnItemsCompositeUpdate(BOARD self, std::vector< BOARD_ITEM *,std::allocator< BOARD_ITEM * > > & aAddedItems, std::vector< BOARD_ITEM *,std::allocator< BOARD_ITEM * > > & aRemovedItems, std::vector< BOARD_ITEM *,std::allocator< BOARD_ITEM * > > & aChangedItems)

Definition at line 22228 of file pcbnew.py.

◆ OnRatsnestChanged()

pcbnew.BOARD.OnRatsnestChanged ( self )

OnRatsnestChanged(BOARD self)

Definition at line 22232 of file pcbnew.py.

◆ Points()

pcbnew.BOARD.Points ( self )

Points(BOARD self) -> PCB_POINTS

Definition at line 21616 of file pcbnew.py.

◆ ProjectElementType()

pcbnew.BOARD.ProjectElementType ( self )

ProjectElementType(BOARD self) -> PROJECT::ELEM

Definition at line 22279 of file pcbnew.py.

◆ RecordDRCExclusions()

pcbnew.BOARD.RecordDRCExclusions ( self )

RecordDRCExclusions(BOARD self)

Definition at line 21840 of file pcbnew.py.

◆ RemoveAll()

pcbnew.BOARD.RemoveAll	(		self,
		*	args )

    RemoveAll(BOARD self, std::initializer_list< KICAD_T > aTypes={ PCB_NETINFO_T, PCB_MARKER_T,
                                                                  PCB_GROUP_T, PCB_ZONE_T,
                                                                  PCB_GENERATOR_T, PCB_FOOTPRINT_T,
                                                                  PCB_TRACE_T, PCB_SHAPE_T })

Definition at line 21740 of file pcbnew.py.

◆ RemoveAllItemsOnLayer()

pcbnew.BOARD.RemoveAllItemsOnLayer	(		self,
			aLayer )

RemoveAllItemsOnLayer(BOARD self, PCB_LAYER_ID aLayer) -> bool

Definition at line 21753 of file pcbnew.py.

◆ RemoveAllListeners()

pcbnew.BOARD.RemoveAllListeners ( self )

RemoveAllListeners(BOARD self)

Definition at line 22216 of file pcbnew.py.

◆ RemoveListener()

pcbnew.BOARD.RemoveListener	(		self,
			aListener )

RemoveListener(BOARD self, BOARD_LISTENER aListener)

Definition at line 22212 of file pcbnew.py.

◆ RemoveNative()

pcbnew.BOARD.RemoveNative	(		self,
		*	args )

RemoveNative(BOARD self, BOARD_ITEM aBoardItem, REMOVE_MODE aMode=NORMAL)

Reimplemented from pcbnew.BOARD_ITEM_CONTAINER.

Definition at line 21736 of file pcbnew.py.

◆ RemoveUnusedNets()

pcbnew.BOARD.RemoveUnusedNets	(		self,
			aCommit )

RemoveUnusedNets(BOARD self, BOARD_COMMIT * aCommit)

Definition at line 22091 of file pcbnew.py.

◆ RenameVariant()

pcbnew.BOARD.RenameVariant	(	self,
		aOldName,
		aNewName )

RenameVariant(BOARD self, wxString aOldName, wxString aNewName)

Definition at line 21682 of file pcbnew.py.

◆ ResetNetHighLight()

pcbnew.BOARD.ResetNetHighLight ( self )

ResetNetHighLight(BOARD self)

Definition at line 21848 of file pcbnew.py.

◆ ResolveDRCExclusions()

pcbnew.BOARD.ResolveDRCExclusions	(		self,
			aCreateMarkers )

ResolveDRCExclusions(BOARD self, bool aCreateMarkers) -> MARKERS

Definition at line 21836 of file pcbnew.py.

◆ ResolveItem()

pcbnew.BOARD.ResolveItem	(	self,
		aID,
		aAllowNullptrReturn = False )

ResolveItem(BOARD self, KIID aID, bool aAllowNullptrReturn=False) -> BOARD_ITEM

Definition at line 21793 of file pcbnew.py.

◆ ResolveTextVar()

pcbnew.BOARD.ResolveTextVar	(	self,
		token,
		aDepth )

ResolveTextVar(BOARD self, wxString token, int aDepth) -> bool

Definition at line 21702 of file pcbnew.py.

◆ RunOnNestedEmbeddedFiles()

pcbnew.BOARD.RunOnNestedEmbeddedFiles	(		self,
			aFunction )

RunOnNestedEmbeddedFiles(BOARD self, std::function< void (EMBEDDED_FILES *) > const & aFunction)

Definition at line 21773 of file pcbnew.py.

◆ SanitizeNetcodes()

pcbnew.BOARD.SanitizeNetcodes ( self )

SanitizeNetcodes(BOARD self)

Definition at line 22204 of file pcbnew.py.

◆ Save()

pcbnew.BOARD.Save	(		self,
			filename )

Definition at line 22319 of file pcbnew.py.

◆ SaveToHistory()

pcbnew.BOARD.SaveToHistory	(	self,
		aProjectPath,
		aFiles )

SaveToHistory(BOARD self, wxString aProjectPath, std::vector< wxString,std::allocator< wxString > > & aFiles)

Definition at line 22283 of file pcbnew.py.

◆ SetAreasNetCodesFromNetNames()

pcbnew.BOARD.SetAreasNetCodesFromNetNames ( self )

SetAreasNetCodesFromNetNames(BOARD self) -> int

Definition at line 22147 of file pcbnew.py.

◆ SetBoardUse()

pcbnew.BOARD.SetBoardUse	(		self,
			aUse )

SetBoardUse(BOARD self, BOARD_USE aUse)

Definition at line 21561 of file pcbnew.py.

◆ SetCopperLayerCount()

pcbnew.BOARD.SetCopperLayerCount	(		self,
			aCount )

SetCopperLayerCount(BOARD self, int aCount)

Definition at line 21876 of file pcbnew.py.

◆ SetCurrentVariant()

pcbnew.BOARD.SetCurrentVariant	(		self,
			aVariant )

SetCurrentVariant(BOARD self, wxString aVariant)

Definition at line 21658 of file pcbnew.py.

◆ SetDesignSettings()

pcbnew.BOARD.SetDesignSettings	(		self,
			aSettings )

SetDesignSettings(BOARD self, BOARD_DESIGN_SETTINGS aSettings)

Definition at line 21952 of file pcbnew.py.

◆ SetElementVisibility()

pcbnew.BOARD.SetElementVisibility	(	self,
		aLayer,
		aNewState )

SetElementVisibility(BOARD self, GAL_LAYER_ID aLayer, bool aNewState)

Definition at line 21940 of file pcbnew.py.

◆ SetEmbeddedFilesDelegate()

pcbnew.BOARD.SetEmbeddedFilesDelegate	(		self,
			aDelegate )

SetEmbeddedFilesDelegate(BOARD self, EMBEDDED_FILES * aDelegate)

Definition at line 22259 of file pcbnew.py.

◆ SetEnabledLayers()

pcbnew.BOARD.SetEnabledLayers	(		self,
			aLayerMask )

SetEnabledLayers(BOARD self, LSET aLayerMask)

Definition at line 21904 of file pcbnew.py.

◆ SetFileFormatVersionAtLoad()

pcbnew.BOARD.SetFileFormatVersionAtLoad	(		self,
			aVersion )

SetFileFormatVersionAtLoad(BOARD self, int aVersion)

Definition at line 21716 of file pcbnew.py.

◆ SetFileName()

pcbnew.BOARD.SetFileName	(		self,
			aFileName )

SetFileName(BOARD self, wxString aFileName)

Definition at line 21581 of file pcbnew.py.

◆ SetGenerator()

pcbnew.BOARD.SetGenerator	(		self,
			aGenerator )

SetGenerator(BOARD self, wxString aGenerator)

Definition at line 21724 of file pcbnew.py.

◆ SetHighLightNet()

pcbnew.BOARD.SetHighLightNet	(	self,
		aNetCode,
		aMulti = False )

SetHighLightNet(BOARD self, int aNetCode, bool aMulti=False)

Definition at line 21856 of file pcbnew.py.

◆ SetLayerDescr()

pcbnew.BOARD.SetLayerDescr	(	self,
		aIndex,
		aLayer )

SetLayerDescr(BOARD self, PCB_LAYER_ID aIndex, LAYER aLayer) -> bool

Definition at line 22040 of file pcbnew.py.

◆ SetLayerName()

pcbnew.BOARD.SetLayerName	(	self,
		aLayer,
		aLayerName )

SetLayerName(BOARD self, PCB_LAYER_ID aLayer, wxString aLayerName) -> bool

Definition at line 22031 of file pcbnew.py.

◆ SetLayerType()

pcbnew.BOARD.SetLayerType	(	self,
		aLayer,
		aLayerType )

SetLayerType(BOARD self, PCB_LAYER_ID aLayer, LAYER_T aLayerType) -> bool

Definition at line 22056 of file pcbnew.py.

◆ SetLegacyTeardrops()

pcbnew.BOARD.SetLegacyTeardrops	(		self,
			aFlag )

SetLegacyTeardrops(BOARD self, bool aFlag)

Definition at line 22248 of file pcbnew.py.

◆ SetOutlinesChainingEpsilon()

pcbnew.BOARD.SetOutlinesChainingEpsilon	(		self,
			aValue )

SetOutlinesChainingEpsilon(BOARD self, int aValue)

Definition at line 22015 of file pcbnew.py.

◆ SetPageSettings()

pcbnew.BOARD.SetPageSettings	(		self,
			aPageSettings )

SetPageSettings(BOARD self, PAGE_INFO const & aPageSettings)

Definition at line 21972 of file pcbnew.py.

◆ SetPlotOptions()

pcbnew.BOARD.SetPlotOptions	(		self,
			aOptions )

SetPlotOptions(BOARD self, PCB_PLOT_PARAMS aOptions)

Definition at line 21980 of file pcbnew.py.

◆ SetProject()

pcbnew.BOARD.SetProject	(	self,
		aProject,
		aReferenceOnly = False )

SetProject(BOARD self, PROJECT * aProject, bool aReferenceOnly=False)

Definition at line 21828 of file pcbnew.py.

◆ SetProperties()

pcbnew.BOARD.SetProperties	(		self,
			aProps )

SetProperties(BOARD self, MAP_STRING_STRING aProps)

Definition at line 21650 of file pcbnew.py.

◆ SetTitleBlock()

pcbnew.BOARD.SetTitleBlock	(		self,
			aTitleBlock )

SetTitleBlock(BOARD self, TITLE_BLOCK aTitleBlock)

Definition at line 21991 of file pcbnew.py.

◆ SetUserDefinedLayerCount()

pcbnew.BOARD.SetUserDefinedLayerCount	(		self,
			aCount )

SetUserDefinedLayerCount(BOARD self, int aCount)

Definition at line 21884 of file pcbnew.py.

◆ SetUserUnits()

pcbnew.BOARD.SetUserUnits	(		self,
			aUnits )

SetUserUnits(BOARD self, EDA_UNITS aUnits)

Definition at line 21999 of file pcbnew.py.

◆ SetVariantDescription()

pcbnew.BOARD.SetVariantDescription	(	self,
		aVariantName,
		aDescription )

SetVariantDescription(BOARD self, wxString aVariantName, wxString aDescription)

Definition at line 21690 of file pcbnew.py.

◆ SetVariantNames()

pcbnew.BOARD.SetVariantNames	(		self,
			aNames )

SetVariantNames(BOARD self, std::vector< wxString,std::allocator< wxString > > const & aNames)

Definition at line 21666 of file pcbnew.py.

◆ SetVisibleAlls()

pcbnew.BOARD.SetVisibleAlls ( self )

SetVisibleAlls(BOARD self)

Definition at line 21932 of file pcbnew.py.

◆ SetVisibleElements()

pcbnew.BOARD.SetVisibleElements	(		self,
			aMask )

SetVisibleElements(BOARD self, GAL_SET aMask)

Definition at line 21928 of file pcbnew.py.

◆ SetVisibleLayers()

pcbnew.BOARD.SetVisibleLayers	(		self,
			aLayerMask )

SetVisibleLayers(BOARD self, LSET aLayerMask)

Definition at line 21920 of file pcbnew.py.

◆ SynchronizeComponentClasses()

pcbnew.BOARD.SynchronizeComponentClasses	(		self,
			aNewSheetPaths )

SynchronizeComponentClasses(BOARD self, std::unordered_set< wxString > const & aNewSheetPaths) -> bool

Definition at line 22131 of file pcbnew.py.

◆ SynchronizeNetsAndNetClasses()

pcbnew.BOARD.SynchronizeNetsAndNetClasses	(		self,
			aResetTrackAndViaSizes )

SynchronizeNetsAndNetClasses(BOARD self, bool aResetTrackAndViaSizes)

Definition at line 22127 of file pcbnew.py.

◆ SynchronizeProperties()

pcbnew.BOARD.SynchronizeProperties ( self )

SynchronizeProperties(BOARD self)

Definition at line 22135 of file pcbnew.py.

◆ SynchronizeTuningProfileProperties()

pcbnew.BOARD.SynchronizeTuningProfileProperties ( self )

SynchronizeTuningProfileProperties(BOARD self)

Definition at line 22139 of file pcbnew.py.

◆ TestZoneIntersection()

pcbnew.BOARD.TestZoneIntersection	(	self,
		aZone1,
		aZone2 )

TestZoneIntersection(BOARD self, ZONE aZone1, ZONE aZone2) -> bool

Definition at line 22167 of file pcbnew.py.

◆ Tracks()

pcbnew.BOARD.Tracks	(		self,
		*	args )

    Tracks(BOARD self) -> TRACKS
    Tracks(BOARD self) -> TRACKS

Definition at line 21627 of file pcbnew.py.

◆ TracksInNet()

pcbnew.BOARD.TracksInNet	(		self,
			aNetCode )

TracksInNet(BOARD self, int aNetCode) -> TRACKS

Definition at line 22188 of file pcbnew.py.

◆ UncacheItemById()

pcbnew.BOARD.UncacheItemById	(		self,
			aId )

UncacheItemById(BOARD self, KIID aId)

Definition at line 22295 of file pcbnew.py.

◆ UpdateBoardOutline()

pcbnew.BOARD.UpdateBoardOutline ( self )

UpdateBoardOutline(BOARD self)

Definition at line 21608 of file pcbnew.py.

◆ UpdateRatsnestExclusions()

pcbnew.BOARD.UpdateRatsnestExclusions ( self )

UpdateRatsnestExclusions(BOARD self)

Definition at line 21844 of file pcbnew.py.

◆ UpdateUserUnits()

pcbnew.BOARD.UpdateUserUnits	(	self,
		aItem,
		aView )

UpdateUserUnits(BOARD self, BOARD_ITEM aItem, KIGFX::VIEW * aView)

Definition at line 22003 of file pcbnew.py.

◆ Zones()

pcbnew.BOARD.Zones ( self )

Zones(BOARD self) -> ZONES

Definition at line 21593 of file pcbnew.py.

Member Data Documentation

◆ netclassmap

dict pcbnew.BOARD.netclassmap = {k:v for k,v in self.GetNetClasses().items()}

static

Definition at line 22362 of file pcbnew.py.

◆ this

pcbnew.BOARD.this = this

Definition at line 22311 of file pcbnew.py.

Property Documentation

◆ m_DeflatedZoneOutlineCache

pcbnew.BOARD.m_DeflatedZoneOutlineCache = property(_pcbnew.BOARD_m_DeflatedZoneOutlineCache_get, _pcbnew.BOARD_m_DeflatedZoneOutlineCache_set, doc=)

static

Definition at line 22301 of file pcbnew.py.

◆ m_LegacyCopperEdgeClearanceLoaded

pcbnew.BOARD.m_LegacyCopperEdgeClearanceLoaded = property(_pcbnew.BOARD_m_LegacyCopperEdgeClearanceLoaded_get, _pcbnew.BOARD_m_LegacyCopperEdgeClearanceLoaded_set, doc=)

static

Definition at line 21708 of file pcbnew.py.

◆ m_LegacyDesignSettingsLoaded

pcbnew.BOARD.m_LegacyDesignSettingsLoaded = property(_pcbnew.BOARD_m_LegacyDesignSettingsLoaded_get, _pcbnew.BOARD_m_LegacyDesignSettingsLoaded_set, doc=)

static

Definition at line 21707 of file pcbnew.py.

◆ m_LegacyNetclassesLoaded

pcbnew.BOARD.m_LegacyNetclassesLoaded = property(_pcbnew.BOARD_m_LegacyNetclassesLoaded_get, _pcbnew.BOARD_m_LegacyNetclassesLoaded_set, doc=)

static

Definition at line 21709 of file pcbnew.py.

◆ m_LegacyVisibleItems

pcbnew.BOARD.m_LegacyVisibleItems = property(_pcbnew.BOARD_m_LegacyVisibleItems_get, _pcbnew.BOARD_m_LegacyVisibleItems_set, doc=)

static

Definition at line 21706 of file pcbnew.py.

◆ m_LegacyVisibleLayers

pcbnew.BOARD.m_LegacyVisibleLayers = property(_pcbnew.BOARD_m_LegacyVisibleLayers_get, _pcbnew.BOARD_m_LegacyVisibleLayers_set, doc=)

static

Definition at line 21705 of file pcbnew.py.

◆ m_maxClearanceValue

pcbnew.BOARD.m_maxClearanceValue = property(_pcbnew.BOARD_m_maxClearanceValue_get, _pcbnew.BOARD_m_maxClearanceValue_set, doc=)

static

Definition at line 22299 of file pcbnew.py.

◆ m_SolderMaskBridges

pcbnew.BOARD.m_SolderMaskBridges = property(_pcbnew.BOARD_m_SolderMaskBridges_get, _pcbnew.BOARD_m_SolderMaskBridges_set, doc=)

static

Definition at line 22302 of file pcbnew.py.

◆ m_ZoneBBoxCache

pcbnew.BOARD.m_ZoneBBoxCache = property(_pcbnew.BOARD_m_ZoneBBoxCache_get, _pcbnew.BOARD_m_ZoneBBoxCache_set, doc=)

static

Definition at line 22298 of file pcbnew.py.

◆ m_ZoneIsolatedIslandsMap

pcbnew.BOARD.m_ZoneIsolatedIslandsMap = property(_pcbnew.BOARD_m_ZoneIsolatedIslandsMap_get, _pcbnew.BOARD_m_ZoneIsolatedIslandsMap_set, doc=)

static

Definition at line 22303 of file pcbnew.py.

◆ m_ZonesByNameCache

pcbnew.BOARD.m_ZonesByNameCache = property(_pcbnew.BOARD_m_ZonesByNameCache_get, _pcbnew.BOARD_m_ZonesByNameCache_set, doc=)

static

Definition at line 22300 of file pcbnew.py.

◆ thisown

pcbnew.BOARD.thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

static

Definition at line 21550 of file pcbnew.py.

The documentation for this class was generated from the following file:

pcbnew.py

Public Member Functions

Static Public Member Functions

Public Attributes

Static Public Attributes

Properties

Detailed Description

Constructor & Destructor Documentation

◆ __init__() [1/2]

◆ __init__() [2/2]

Member Function Documentation

◆ AddArea()

◆ AddListener()

◆ AddNative()

◆ AddVariant()

◆ AllConnectedItems()

◆ BoardOutline()

◆ BuildConnectivity()

◆ BuildListOfNets()

◆ BulkRemoveStaleTeardrops()

◆ CacheItemById()

◆ CacheTriangulation()

◆ ClassOf()

◆ ClearProject()

◆ ComputeBoundingBox()

◆ ConvertBrdLayerToPolygonalContours()

◆ ConvertCrossReferencesToKIIDs()

◆ ConvertKIIDsToCrossReferences()

◆ DeleteAllFootprints()

◆ DeleteMARKERs()

◆ DeleteVariant()

◆ DetachAllFootprints()

◆ DpCoupledNet()

◆ Drawings()

◆ EmbedFonts()

◆ FillItemMap()

◆ FinalizeBulkAdd()

◆ FinalizeBulkRemove()

◆ FindFootprintByPath()

◆ FindFootprintByReference()

◆ FindNet()

◆ FixupEmbeddedData()

◆ FlipLayer()

◆ Footprints()

◆ Generators()

◆ GetAllNetClasses()

◆ GetArea()

◆ GetAreaCount()

◆ GetBoardEdgesBoundingBox()

◆ GetBoardPolygonOutlines()

◆ GetBoardUse()

◆ GetClass()

◆ GetComponentClassManager()

◆ GetConnectivity()

◆ GetContextualTextVars()

◆ GetCopperLayerCount()

◆ GetCopperLayerStackMaxId()

◆ GetCurrentNetClassName()

◆ GetCurrentVariant()

◆ GetDesignSettings()

◆ GetDrawings()

◆ GetEmbeddedFiles()

◆ GetEnabledLayers()

◆ GetFileFormatVersionAtLoad()

◆ GetFileName()

◆ GetFirstFootprint()

◆ GetFonts()

◆ GetFootprint()

◆ GetFootprints()

◆ GetGenerator()

◆ GetHighLightNetCodes()

◆ GetItemByIdCache()

◆ GetItemSet()

◆ GetLayerID()

◆ GetLayerName()

◆ GetLayerType()

◆ GetLengthCalculation()

◆ GetMaxClearanceValue()

◆ GetNetClassAssignmentCandidates()

◆ GetNetClasses()

◆ GetNetcodeFromNetname()

◆ init() [1/2]

◆ init() [2/2]
