pcbnew.PCB_DIMENSION_BASE Class Reference

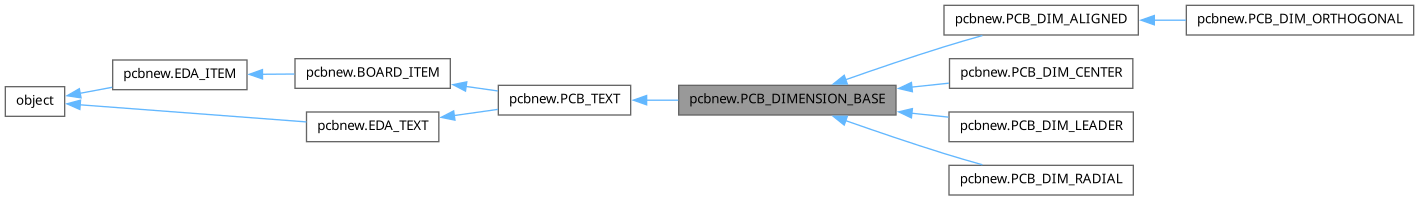

Inheritance diagram for pcbnew.PCB_DIMENSION_BASE:
Inheritance graph
[legend]

Public Member Functions

 __init__ (self, *args, **kwargs)

 Serialize (self, aContainer)

 Deserialize (self, aContainer)

 GetStart (self)

 SetStart (self, aPoint)

 GetEnd (self)

 SetEnd (self, aPoint)

 GetOverrideTextEnabled (self)

 SetOverrideTextEnabled (self, aOverride)

 GetOverrideText (self)

 SetOverrideText (self, aValue)

 ChangeOverrideText (self, aValue)

 GetMeasuredValue (self)

 SetMeasuredValue (self, aValue)

 GetValueText (self)

 Update (self)

 UpdateUnits (self)

 GetPrefix (self)

 SetPrefix (self, aPrefix)

 ChangePrefix (self, aPrefix)

 GetSuffix (self)

 SetSuffix (self, aSuffix)

 ChangeSuffix (self, aSuffix)

 GetArrowDirection (self)

 SetArrowDirection (self, aDirection)

 ChangeArrowDirection (self, aDirection)

 GetUnits (self)

 SetUnits (self, aUnits)

 GetUnitsMode (self)

 SetUnitsMode (self, aMode)

 ChangeUnitsMode (self, aMode)

 SetAutoUnits (self, aAuto=True)

 GetUnitsFormat (self)

 SetUnitsFormat (self, aFormat)

 ChangeUnitsFormat (self, aFormat)

 GetPrecision (self)

 SetPrecision (self, aPrecision)

 ChangePrecision (self, aPrecision)

 GetSuppressZeroes (self)

 SetSuppressZeroes (self, aSuppress)

 ChangeSuppressZeroes (self, aSuppress)

 GetKeepTextAligned (self)

 SetKeepTextAligned (self, aKeepAligned)

 GetTextAngleDegreesProp (self)

 ChangeTextAngleDegrees (self, aDegrees)

 ChangeKeepTextAligned (self, aKeepAligned)

 SetTextPositionMode (self, aMode)

 GetTextPositionMode (self)

 GetArrowLength (self)

 SetArrowLength (self, aLength)

 SetExtensionOffset (self, aOffset)

 GetExtensionOffset (self)

 GetLineThickness (self)

 SetLineThickness (self, aWidth)

 GetShapes (self)

 HitTest (self, *args)

 GetEffectiveShape (self, *args)

 TransformShapeToPolygon (self, aBuffer, aLayer, aClearance, aError, aErrorLoc, aIgnoreLineWidth=False)

 __eq__ (self, *args)

- Public Member Functions inherited from pcbnew.PCB_TEXT
 __init__ (self, *args)

 KeepUpright (self)

 GetShownText (self, aAllowExtraText, aDepth=0)

 TextHitTest (self, *args)

 GetClass (self)

 TransformTextToPolySet (self, aBuffer, aClearance, aMaxError, aErrorLoc)

 GetKnockoutCache (self, aFont, forResolvedText, aMaxError)

 GetTextTypeDescription (self)

 ViewGetLOD (self, aLayer, aView)

 __eq__ (self, *args)

- Public Member Functions inherited from pcbnew.BOARD_ITEM
 __init__ (self, *args, **kwargs)

 CopyFrom (self, aOther)

 IsGroupableType (self)

 GetX (self)

 GetY (self)

 GetCenter (self)

 SetX (self, aX)

 SetY (self, aY)

 IsConnected (self)

 Similarity (self, aItem)

 __eq__ (self, aItem)

 IsOnCopperLayer (self)

 HasHole (self)

 HasDrilledHole (self)

 IsTented (self, aLayer)

 GetEffectiveHoleShape (self)

 RunOnChildren (self, aFunction, aMode)

 GetParent (self)

 GetParentFootprint (self)

 SetUuidDirect (self, aUuid)

 ResetUuidDirect (self)

 SetUuid (self, aUuid)

 ResetUuid (self)

 GetFPRelativePosition (self)

 SetFPRelativePosition (self, aPos)

 HasLineStroke (self)

 GetStroke (self)

 SetStroke (self, aStroke)

 GetFontMetrics (self)

 GetLayer (self)

 BoardLayerCount (self)

 BoardCopperLayerCount (self)

 BoardLayerSet (self)

 GetLayerSet (self)

 SetLayerSet (self, aLayers)

 IsSideSpecific (self)

 SetLayer (self, aLayer)

 Duplicate (self, addToParentGroup, aCommit=None)

 SwapItemData (self, aImage)

 IsOnLayer (self, aLayer)

 IsKnockout (self)

 SetIsKnockout (self, aKnockout)

 IsIndexedInBoard (self)

 GetMaxError (self)

 StyleFromSettings (self, settings, aCheckSide)

 DeleteStructure (self)

 Move (self, aMoveVector)

 Rotate (self, aRotCentre, aAngle)

 Flip (self, aCentre, aFlipDirection)

 Mirror (self, aCentre, aFlipDirection)

 Normalize (self)

 NormalizeForCompare (self)

 GetBoard (self, *args)

 GetParentAsString (self)

 GetLayerName (self)

 TransformShapeToPolySet (self, aBuffer, aLayer, aClearance, aError, aErrorLoc, aRenderSettings=None)

 LayerMaskDescribe (self)

 Cast (self)

 Duplicate (self)

 SetPos (self, p)

 SetStartEnd (self, start, end)

- Public Member Functions inherited from pcbnew.EDA_ITEM
 __init__ (self, *args, **kwargs)

 Type (self)

 SetParent (self, aParent)

 SetParentGroup (self, aGroup)

 GetParentGroup (self)

 GetParentGroupId (self)

 HasSelectedAncestorGroup (self)

 IsLocked (self)

 SetLocked (self, aLocked)

 IsModified (self)

 IsNew (self)

 IsMoving (self)

 IsSelected (self)

 IsEntered (self)

 IsBrightened (self)

 IsRollover (self)

 GetRolloverPos (self)

 SetIsRollover (self, aIsRollover, aMousePos)

 SetSelected (self)

 SetBrightened (self)

 ClearSelected (self)

 ClearBrightened (self)

 SetModified (self)

 SetFlags (self, aMask)

 XorFlags (self, aMask)

 ClearFlags (self, *args)

 GetFlags (self)

 HasFlag (self, aFlag)

 GetEditFlags (self)

 ClearEditFlags (self)

 GetTempFlags (self)

 ClearTempFlags (self)

 RenderAsBitmap (self, aWorldScale)

 SetIsShownAsBitmap (self, aBitmap)

 IsShownAsBitmap (self)

 IsType (self, aScanTypes)

 SetForceVisible (self, aEnable)

 IsForceVisible (self)

 GetMsgPanelInfo (self, aFrame, aList)

 GetFriendlyName (self)

 GetBoundingBox (self)

 GetPosition (self)

 SetPosition (self, aPos)

 GetFocusPosition (self)

 GetSortPosition (self)

 Clone (self)

 Visit (self, inspector, testData, aScanTypes)

 GetTypeDesc (self)

 GetItemDescription (self, aUnitsProvider, aFull)

 DisambiguateItemDescription (self, aUnitsProvider, aFull)

 GetMenuImage (self)

 Matches (self, aSearchData, aAuxData)

 Replace (self, *args)

 IsReplaceable (self)

 __lt__ (self, aItem)

 ViewBBox (self)

 ViewGetLayers (self)

 GetEmbeddedFiles (self)

 GetEmbeddedFonts (self)

 PyGetClass (self)

- Public Member Functions inherited from pcbnew.EDA_TEXT
 __init__ (self, *args)

 GetText (self)

 HasTextVars (self)

 SetText (self, aText)

 EvaluateText (self, aText)

 SetTextThickness (self, aWidth)

 GetTextThickness (self)

 GetTextThicknessProperty (self)

 SetAutoThickness (self, aAuto)

 GetAutoThickness (self)

 GetEffectiveTextPenWidth (self, aDefaultPenWidth=0)

 SetTextAngle (self, aAngle)

 GetTextAngle (self)

 SetTextAngleDegrees (self, aOrientation)

 GetTextAngleDegrees (self)

 SetItalic (self, aItalic)

 SetItalicFlag (self, aItalic)

 IsItalic (self)

 SetBold (self, aBold)

 SetBoldFlag (self, aBold)

 IsBold (self)

 SetVisible (self, aVisible)

 IsVisible (self)

 SetMirrored (self, isMirrored)

 IsMirrored (self)

 SetMultilineAllowed (self, aAllow)

 IsMultilineAllowed (self)

 SetHorizJustify (self, aType)

 GetHorizJustify (self)

 SetVertJustify (self, aType)

 GetVertJustify (self)

 SetKeepUpright (self, aKeepUpright)

 IsKeepUpright (self)

 FlipHJustify (self)

 SwapAttributes (self, aTradingPartner)

 SwapText (self, aTradingPartner)

 CopyText (self, aSrc)

 SetAttributes (self, *args)

 GetAttributes (self)

 Replace (self, aSearchData)

 IsDefaultFormatting (self)

 SetFont (self, aFont)

 GetFont (self)

 SetUnresolvedFontName (self, aFontName)

 ResolveFont (self, aEmbeddedFonts)

 GetFontName (self)

 SetFontProp (self, aFontName)

 GetFontProp (self)

 SetLineSpacing (self, aLineSpacing)

 GetLineSpacing (self)

 SetTextSize (self, aNewSize, aEnforceMinTextSize=True)

 GetTextSize (self)

 SetTextWidth (self, aWidth)

 GetTextWidth (self)

 SetTextHeight (self, aHeight)

 GetTextHeight (self)

 SetTextColor (self, aColor)

 GetTextColor (self)

 SetTextPos (self, aPoint)

 GetTextPos (self)

 SetTextX (self, aX)

 SetTextY (self, aY)

 SetActiveUrl (self, aUrl)

 Offset (self, aOffset)

 Empty (self)

 Print (self, aSettings, aOffset, aColor)

 GetEffectiveTextShape (self, *args)

 GetTextBox (self, aSettings, aLine=-1)

 GetInterline (self, aSettings)

 GetTextStyleName (self)

 GetLinePositions (self, aSettings, aPositions, aLineCount)

 Levenshtein (self, aOther)

 Similarity (self, aOther)

 Format (self, aFormatter, aControlBits)

 GetDrawRotation (self)

 GetDrawPos (self)

 GetDrawFont (self, aSettings)

 ClearRenderCache (self)

 ClearBoundingBoxCache (self)

 GetRenderCache (self, *args)

 SetupRenderCache (self, aResolvedText, aFont, aAngle, aOffset)

 AddRenderCacheGlyph (self, aPoly)

 Compare (self, aOther)

 __eq__ (self, aRhs)

 __lt__ (self, aRhs)

 __gt__ (self, aRhs)

 HasHyperlink (self)

 GetHyperlink (self)

 SetHyperlink (self, aLink)

 RemoveHyperlink (self)


Properties

 thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

- Properties inherited from pcbnew.PCB_TEXT
 thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

- Properties inherited from pcbnew.BOARD_ITEM
 thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

- Properties inherited from pcbnew.EDA_ITEM
 thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

 m_Uuid = property(_pcbnew.EDA_ITEM_m_Uuid_get, doc=)

- Properties inherited from pcbnew.EDA_TEXT
 thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")


Additional Inherited Members

- Static Public Member Functions inherited from pcbnew.PCB_TEXT
 ClassOf (aItem)

 ShowSyntaxHelp (aParentWindow)

- Static Public Member Functions inherited from pcbnew.EDA_ITEM
 Sort (aLeft, aRight)

- Static Public Member Functions inherited from pcbnew.EDA_TEXT
 MapHorizJustify (aHorizJustify)

 MapVertJustify (aVertJustify)

 ValidateHyperlink (aURL)

 IsGotoPageHref (aHref, aDestination=None)

 GotoPageHref (aDestination)

- Static Public Attributes inherited from pcbnew.BOARD_ITEM
 DRC = _pcbnew.BOARD_ITEM_DRC

 INSTANCE_TO_INSTANCE = _pcbnew.BOARD_ITEM_INSTANCE_TO_INSTANCE


Detailed Description

Proxy of C++ PCB_DIMENSION_BASE class.

Definition at line 19056 of file pcbnew.py.

Constructor & Destructor Documentation

◆ __init__()

pcbnew.PCB_DIMENSION_BASE.__init__ ( self,
* args,
** kwargs )

Definition at line 19061 of file pcbnew.py.

Member Function Documentation

◆ __eq__()

pcbnew.PCB_DIMENSION_BASE.__eq__ ( self,
* args )
    __eq__(PCB_DIMENSION_BASE self, PCB_DIMENSION_BASE aOther) -> bool
    __eq__(PCB_DIMENSION_BASE self, BOARD_ITEM aBoardItem) -> bool

Definition at line 19297 of file pcbnew.py.

◆ ChangeArrowDirection()

pcbnew.PCB_DIMENSION_BASE.ChangeArrowDirection ( self,
aDirection )
ChangeArrowDirection(PCB_DIMENSION_BASE self, DIM_ARROW_DIRECTION const & aDirection)

Definition at line 19161 of file pcbnew.py.

◆ ChangeKeepTextAligned()

pcbnew.PCB_DIMENSION_BASE.ChangeKeepTextAligned ( self,
aKeepAligned )
ChangeKeepTextAligned(PCB_DIMENSION_BASE self, bool aKeepAligned)

Definition at line 19241 of file pcbnew.py.

◆ ChangeOverrideText()

pcbnew.PCB_DIMENSION_BASE.ChangeOverrideText ( self,
aValue )
ChangeOverrideText(PCB_DIMENSION_BASE self, wxString aValue)

Definition at line 19105 of file pcbnew.py.

◆ ChangePrecision()

pcbnew.PCB_DIMENSION_BASE.ChangePrecision ( self,
aPrecision )
ChangePrecision(PCB_DIMENSION_BASE self, DIM_PRECISION aPrecision)

Definition at line 19209 of file pcbnew.py.

◆ ChangePrefix()

pcbnew.PCB_DIMENSION_BASE.ChangePrefix ( self,
aPrefix )
ChangePrefix(PCB_DIMENSION_BASE self, wxString aPrefix)

Definition at line 19137 of file pcbnew.py.

◆ ChangeSuffix()

pcbnew.PCB_DIMENSION_BASE.ChangeSuffix ( self,
aSuffix )
ChangeSuffix(PCB_DIMENSION_BASE self, wxString aSuffix)

Definition at line 19149 of file pcbnew.py.

◆ ChangeSuppressZeroes()

pcbnew.PCB_DIMENSION_BASE.ChangeSuppressZeroes ( self,
aSuppress )
ChangeSuppressZeroes(PCB_DIMENSION_BASE self, bool aSuppress)

Definition at line 19221 of file pcbnew.py.

◆ ChangeTextAngleDegrees()

pcbnew.PCB_DIMENSION_BASE.ChangeTextAngleDegrees ( self,
aDegrees )
ChangeTextAngleDegrees(PCB_DIMENSION_BASE self, double aDegrees)

Definition at line 19237 of file pcbnew.py.

◆ ChangeUnitsFormat()

pcbnew.PCB_DIMENSION_BASE.ChangeUnitsFormat ( self,
aFormat )
ChangeUnitsFormat(PCB_DIMENSION_BASE self, DIM_UNITS_FORMAT const aFormat)

Definition at line 19197 of file pcbnew.py.

◆ ChangeUnitsMode()

pcbnew.PCB_DIMENSION_BASE.ChangeUnitsMode ( self,
aMode )
ChangeUnitsMode(PCB_DIMENSION_BASE self, DIM_UNITS_MODE aMode)

Definition at line 19181 of file pcbnew.py.

◆ Deserialize()

pcbnew.PCB_DIMENSION_BASE.Deserialize ( self,
aContainer )
Deserialize(PCB_DIMENSION_BASE self, google::protobuf::Any const & aContainer) -> bool

Reimplemented from pcbnew.PCB_TEXT.

Reimplemented in pcbnew.PCB_DIM_ALIGNED, pcbnew.PCB_DIM_CENTER, pcbnew.PCB_DIM_LEADER, pcbnew.PCB_DIM_ORTHOGONAL, and pcbnew.PCB_DIM_RADIAL.

Definition at line 19069 of file pcbnew.py.

◆ GetArrowDirection()

pcbnew.PCB_DIMENSION_BASE.GetArrowDirection ( self)
GetArrowDirection(PCB_DIMENSION_BASE self) -> DIM_ARROW_DIRECTION

Definition at line 19153 of file pcbnew.py.

◆ GetArrowLength()

pcbnew.PCB_DIMENSION_BASE.GetArrowLength ( self)
GetArrowLength(PCB_DIMENSION_BASE self) -> int

Definition at line 19253 of file pcbnew.py.

◆ GetEffectiveShape()

pcbnew.PCB_DIMENSION_BASE.GetEffectiveShape ( self,
* args )
GetEffectiveShape(PCB_DIMENSION_BASE self, PCB_LAYER_ID aLayer=UNDEFINED_LAYER, FLASHING aFlash=DEFAULT) -> std::shared_ptr< SHAPE >

Reimplemented from pcbnew.PCB_TEXT.

Definition at line 19289 of file pcbnew.py.

◆ GetEnd()

pcbnew.PCB_DIMENSION_BASE.GetEnd ( self)
GetEnd(PCB_DIMENSION_BASE self) -> VECTOR2I

Definition at line 19081 of file pcbnew.py.

◆ GetExtensionOffset()

pcbnew.PCB_DIMENSION_BASE.GetExtensionOffset ( self)
GetExtensionOffset(PCB_DIMENSION_BASE self) -> int

Definition at line 19265 of file pcbnew.py.

◆ GetKeepTextAligned()

pcbnew.PCB_DIMENSION_BASE.GetKeepTextAligned ( self)
GetKeepTextAligned(PCB_DIMENSION_BASE self) -> bool

Definition at line 19225 of file pcbnew.py.

◆ GetLineThickness()

pcbnew.PCB_DIMENSION_BASE.GetLineThickness ( self)
GetLineThickness(PCB_DIMENSION_BASE self) -> int

Definition at line 19269 of file pcbnew.py.

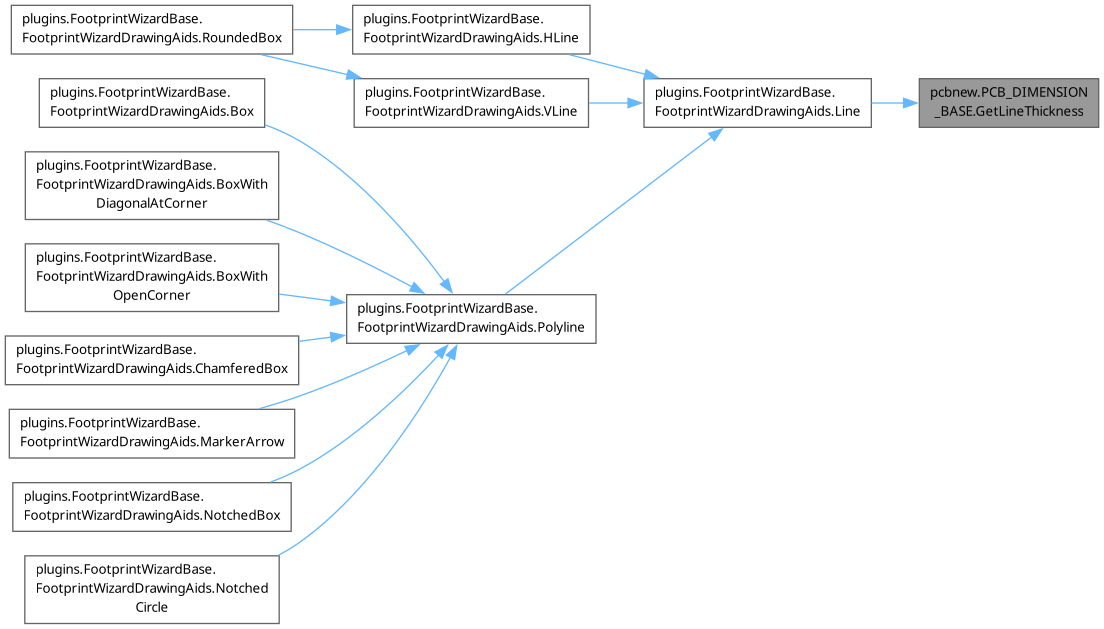

Here is the caller graph for this function:

◆ GetMeasuredValue()

pcbnew.PCB_DIMENSION_BASE.GetMeasuredValue ( self)
GetMeasuredValue(PCB_DIMENSION_BASE self) -> int

Definition at line 19109 of file pcbnew.py.

◆ GetOverrideText()

pcbnew.PCB_DIMENSION_BASE.GetOverrideText ( self)
GetOverrideText(PCB_DIMENSION_BASE self) -> wxString

Definition at line 19097 of file pcbnew.py.

◆ GetOverrideTextEnabled()

pcbnew.PCB_DIMENSION_BASE.GetOverrideTextEnabled ( self)
GetOverrideTextEnabled(PCB_DIMENSION_BASE self) -> bool

Definition at line 19089 of file pcbnew.py.

◆ GetPrecision()

pcbnew.PCB_DIMENSION_BASE.GetPrecision ( self)
GetPrecision(PCB_DIMENSION_BASE self) -> DIM_PRECISION

Definition at line 19201 of file pcbnew.py.

◆ GetPrefix()

pcbnew.PCB_DIMENSION_BASE.GetPrefix ( self)
GetPrefix(PCB_DIMENSION_BASE self) -> wxString

Definition at line 19129 of file pcbnew.py.

◆ GetShapes()

pcbnew.PCB_DIMENSION_BASE.GetShapes ( self)
GetShapes(PCB_DIMENSION_BASE self) -> VECTOR_SHAPEPTR

Definition at line 19277 of file pcbnew.py.

◆ GetStart()

pcbnew.PCB_DIMENSION_BASE.GetStart ( self)
GetStart(PCB_DIMENSION_BASE self) -> VECTOR2I

Definition at line 19073 of file pcbnew.py.

◆ GetSuffix()

pcbnew.PCB_DIMENSION_BASE.GetSuffix ( self)
GetSuffix(PCB_DIMENSION_BASE self) -> wxString

Definition at line 19141 of file pcbnew.py.

◆ GetSuppressZeroes()

pcbnew.PCB_DIMENSION_BASE.GetSuppressZeroes ( self)
GetSuppressZeroes(PCB_DIMENSION_BASE self) -> bool

Definition at line 19213 of file pcbnew.py.

◆ GetTextAngleDegreesProp()

pcbnew.PCB_DIMENSION_BASE.GetTextAngleDegreesProp ( self)
GetTextAngleDegreesProp(PCB_DIMENSION_BASE self) -> double

Definition at line 19233 of file pcbnew.py.

◆ GetTextPositionMode()

pcbnew.PCB_DIMENSION_BASE.GetTextPositionMode ( self)
GetTextPositionMode(PCB_DIMENSION_BASE self) -> DIM_TEXT_POSITION

Definition at line 19249 of file pcbnew.py.

◆ GetUnits()

pcbnew.PCB_DIMENSION_BASE.GetUnits ( self)
GetUnits(PCB_DIMENSION_BASE self) -> EDA_UNITS

Definition at line 19165 of file pcbnew.py.

◆ GetUnitsFormat()

pcbnew.PCB_DIMENSION_BASE.GetUnitsFormat ( self)
GetUnitsFormat(PCB_DIMENSION_BASE self) -> DIM_UNITS_FORMAT

Definition at line 19189 of file pcbnew.py.

◆ GetUnitsMode()

pcbnew.PCB_DIMENSION_BASE.GetUnitsMode ( self)
GetUnitsMode(PCB_DIMENSION_BASE self) -> DIM_UNITS_MODE

Definition at line 19173 of file pcbnew.py.

◆ GetValueText()

pcbnew.PCB_DIMENSION_BASE.GetValueText ( self)
GetValueText(PCB_DIMENSION_BASE self) -> wxString

Definition at line 19117 of file pcbnew.py.

◆ HitTest()

pcbnew.PCB_DIMENSION_BASE.HitTest ( self,
* args )
    HitTest(PCB_DIMENSION_BASE self, VECTOR2I aPosition, int aAccuracy) -> bool
    HitTest(PCB_DIMENSION_BASE self, BOX2I aRect, bool aContained, int aAccuracy=0) -> bool
    HitTest(PCB_DIMENSION_BASE self, SHAPE_LINE_CHAIN aPoly, bool aContained) -> bool

Reimplemented from pcbnew.PCB_TEXT.

Definition at line 19281 of file pcbnew.py.

◆ Serialize()

pcbnew.PCB_DIMENSION_BASE.Serialize ( self,
aContainer )
Serialize(PCB_DIMENSION_BASE self, google::protobuf::Any & aContainer)

Reimplemented from pcbnew.PCB_TEXT.

Reimplemented in pcbnew.PCB_DIM_ALIGNED, pcbnew.PCB_DIM_CENTER, pcbnew.PCB_DIM_LEADER, pcbnew.PCB_DIM_ORTHOGONAL, and pcbnew.PCB_DIM_RADIAL.

Definition at line 19065 of file pcbnew.py.

◆ SetArrowDirection()

pcbnew.PCB_DIMENSION_BASE.SetArrowDirection ( self,
aDirection )
SetArrowDirection(PCB_DIMENSION_BASE self, DIM_ARROW_DIRECTION const & aDirection)

Definition at line 19157 of file pcbnew.py.

◆ SetArrowLength()

pcbnew.PCB_DIMENSION_BASE.SetArrowLength ( self,
aLength )
SetArrowLength(PCB_DIMENSION_BASE self, int aLength)

Definition at line 19257 of file pcbnew.py.

◆ SetAutoUnits()

pcbnew.PCB_DIMENSION_BASE.SetAutoUnits ( self,
aAuto = True )
SetAutoUnits(PCB_DIMENSION_BASE self, bool aAuto=True)

Definition at line 19185 of file pcbnew.py.

◆ SetEnd()

pcbnew.PCB_DIMENSION_BASE.SetEnd ( self,
aPoint )
SetEnd(PCB_DIMENSION_BASE self, VECTOR2I aPoint)

Definition at line 19085 of file pcbnew.py.

◆ SetExtensionOffset()

pcbnew.PCB_DIMENSION_BASE.SetExtensionOffset ( self,
aOffset )
SetExtensionOffset(PCB_DIMENSION_BASE self, int aOffset)

Definition at line 19261 of file pcbnew.py.

◆ SetKeepTextAligned()

pcbnew.PCB_DIMENSION_BASE.SetKeepTextAligned ( self,
aKeepAligned )
SetKeepTextAligned(PCB_DIMENSION_BASE self, bool aKeepAligned)

Definition at line 19229 of file pcbnew.py.

◆ SetLineThickness()

pcbnew.PCB_DIMENSION_BASE.SetLineThickness ( self,
aWidth )
SetLineThickness(PCB_DIMENSION_BASE self, int aWidth)

Definition at line 19273 of file pcbnew.py.

Here is the caller graph for this function:

◆ SetMeasuredValue()

pcbnew.PCB_DIMENSION_BASE.SetMeasuredValue ( self,
aValue )
SetMeasuredValue(PCB_DIMENSION_BASE self, int aValue)

Definition at line 19113 of file pcbnew.py.

◆ SetOverrideText()

pcbnew.PCB_DIMENSION_BASE.SetOverrideText ( self,
aValue )
SetOverrideText(PCB_DIMENSION_BASE self, wxString aValue)

Definition at line 19101 of file pcbnew.py.

◆ SetOverrideTextEnabled()

pcbnew.PCB_DIMENSION_BASE.SetOverrideTextEnabled ( self,
aOverride )
SetOverrideTextEnabled(PCB_DIMENSION_BASE self, bool aOverride)

Definition at line 19093 of file pcbnew.py.

◆ SetPrecision()

pcbnew.PCB_DIMENSION_BASE.SetPrecision ( self,
aPrecision )
SetPrecision(PCB_DIMENSION_BASE self, DIM_PRECISION aPrecision)

Definition at line 19205 of file pcbnew.py.

◆ SetPrefix()

pcbnew.PCB_DIMENSION_BASE.SetPrefix ( self,
aPrefix )
SetPrefix(PCB_DIMENSION_BASE self, wxString aPrefix)

Definition at line 19133 of file pcbnew.py.

◆ SetStart()

pcbnew.PCB_DIMENSION_BASE.SetStart ( self,
aPoint )
SetStart(PCB_DIMENSION_BASE self, VECTOR2I aPoint)

Definition at line 19077 of file pcbnew.py.

◆ SetSuffix()

pcbnew.PCB_DIMENSION_BASE.SetSuffix ( self,
aSuffix )
SetSuffix(PCB_DIMENSION_BASE self, wxString aSuffix)

Definition at line 19145 of file pcbnew.py.

◆ SetSuppressZeroes()

pcbnew.PCB_DIMENSION_BASE.SetSuppressZeroes ( self,
aSuppress )
SetSuppressZeroes(PCB_DIMENSION_BASE self, bool aSuppress)

Definition at line 19217 of file pcbnew.py.

◆ SetTextPositionMode()

pcbnew.PCB_DIMENSION_BASE.SetTextPositionMode ( self,
aMode )
SetTextPositionMode(PCB_DIMENSION_BASE self, DIM_TEXT_POSITION aMode)

Definition at line 19245 of file pcbnew.py.

◆ SetUnits()

pcbnew.PCB_DIMENSION_BASE.SetUnits ( self,
aUnits )
SetUnits(PCB_DIMENSION_BASE self, EDA_UNITS aUnits)

Definition at line 19169 of file pcbnew.py.

◆ SetUnitsFormat()

pcbnew.PCB_DIMENSION_BASE.SetUnitsFormat ( self,
aFormat )
SetUnitsFormat(PCB_DIMENSION_BASE self, DIM_UNITS_FORMAT const aFormat)

Definition at line 19193 of file pcbnew.py.

◆ SetUnitsMode()

pcbnew.PCB_DIMENSION_BASE.SetUnitsMode ( self,
aMode )
SetUnitsMode(PCB_DIMENSION_BASE self, DIM_UNITS_MODE aMode)

Definition at line 19177 of file pcbnew.py.

◆ TransformShapeToPolygon()

pcbnew.PCB_DIMENSION_BASE.TransformShapeToPolygon ( self,
aBuffer,
aLayer,
aClearance,
aError,
aErrorLoc,
aIgnoreLineWidth = False )
TransformShapeToPolygon(PCB_DIMENSION_BASE self, SHAPE_POLY_SET aBuffer, PCB_LAYER_ID aLayer, int aClearance, int aError, ERROR_LOC aErrorLoc, bool aIgnoreLineWidth=False)

Reimplemented from pcbnew.PCB_TEXT.

Definition at line 19293 of file pcbnew.py.

◆ Update()

pcbnew.PCB_DIMENSION_BASE.Update ( self)
Update(PCB_DIMENSION_BASE self)

Definition at line 19121 of file pcbnew.py.

◆ UpdateUnits()

pcbnew.PCB_DIMENSION_BASE.UpdateUnits ( self)
UpdateUnits(PCB_DIMENSION_BASE self)

Definition at line 19125 of file pcbnew.py.

Property Documentation

◆ thisown

pcbnew.PCB_DIMENSION_BASE.thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")
static

Definition at line 19059 of file pcbnew.py.

The documentation for this class was generated from the following file:
Generated on Mon Sep 28 2026 20:49:31 for KiCad Pcbnew Python Scripting by doxygen 1.13.2
