pcbnew.FOOTPRINT_VARIANT Class Reference

Inheritance diagram for pcbnew.FOOTPRINT_VARIANT:

Public Member Functions
	__init__ (self, *args)
	GetName (self)
	SetName (self, aName)
	GetDNP (self)
	SetDNP (self, aDNP)
	GetExcludedFromBOM (self)
	SetExcludedFromBOM (self, aExclude)
	GetExcludedFromPosFiles (self)
	SetExcludedFromPosFiles (self, aExclude)
	GetFieldValue (self, aFieldName)
	SetFieldValue (self, aFieldName, aValue)
	HasFieldValue (self, aFieldName)
	GetFields (self)
	__eq__ (self, aOther)

Properties
	thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

Detailed Description

Proxy of C++ FOOTPRINT_VARIANT class.

Definition at line 22719 of file pcbnew.py.

Constructor & Destructor Documentation

__init__()

pcbnew.FOOTPRINT_VARIANT.__init__	(		self,
		*	args )

__init__(FOOTPRINT_VARIANT self, wxString aName=wxEmptyString) -> FOOTPRINT_VARIANT

Definition at line 22725 of file pcbnew.py.

Member Function Documentation

__eq__()

pcbnew.FOOTPRINT_VARIANT.__eq__	(		self,
			aOther )

__eq__(FOOTPRINT_VARIANT self, FOOTPRINT_VARIANT aOther) -> bool

Definition at line 22777 of file pcbnew.py.

GetDNP()

pcbnew.FOOTPRINT_VARIANT.GetDNP

(

self

)

GetDNP(FOOTPRINT_VARIANT self) -> bool

Definition at line 22737 of file pcbnew.py.

GetExcludedFromBOM()

pcbnew.FOOTPRINT_VARIANT.GetExcludedFromBOM

(

self

)

GetExcludedFromBOM(FOOTPRINT_VARIANT self) -> bool

Definition at line 22745 of file pcbnew.py.

GetExcludedFromPosFiles()

pcbnew.FOOTPRINT_VARIANT.GetExcludedFromPosFiles

(

self

)

GetExcludedFromPosFiles(FOOTPRINT_VARIANT self) -> bool

Definition at line 22753 of file pcbnew.py.

GetFields()

pcbnew.FOOTPRINT_VARIANT.GetFields

(

self

)

GetFields(FOOTPRINT_VARIANT self) -> MAP_STRING_STRING

Definition at line 22773 of file pcbnew.py.

GetFieldValue()

pcbnew.FOOTPRINT_VARIANT.GetFieldValue	(		self,
			aFieldName )

GetFieldValue(FOOTPRINT_VARIANT self, wxString aFieldName) -> wxString

Definition at line 22761 of file pcbnew.py.

GetName()

pcbnew.FOOTPRINT_VARIANT.GetName

(

self

)

GetName(FOOTPRINT_VARIANT self) -> wxString

Definition at line 22729 of file pcbnew.py.

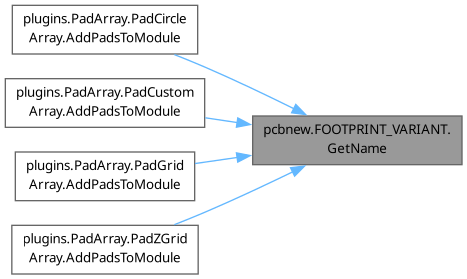

Here is the caller graph for this function:

HasFieldValue()

pcbnew.FOOTPRINT_VARIANT.HasFieldValue	(		self,
			aFieldName )

HasFieldValue(FOOTPRINT_VARIANT self, wxString aFieldName) -> bool

Definition at line 22769 of file pcbnew.py.

SetDNP()

pcbnew.FOOTPRINT_VARIANT.SetDNP	(		self,
			aDNP )

SetDNP(FOOTPRINT_VARIANT self, bool aDNP)

Definition at line 22741 of file pcbnew.py.

SetExcludedFromBOM()

pcbnew.FOOTPRINT_VARIANT.SetExcludedFromBOM	(		self,
			aExclude )

SetExcludedFromBOM(FOOTPRINT_VARIANT self, bool aExclude)

Definition at line 22749 of file pcbnew.py.

SetExcludedFromPosFiles()

pcbnew.FOOTPRINT_VARIANT.SetExcludedFromPosFiles	(		self,
			aExclude )

SetExcludedFromPosFiles(FOOTPRINT_VARIANT self, bool aExclude)

Definition at line 22757 of file pcbnew.py.

SetFieldValue()

pcbnew.FOOTPRINT_VARIANT.SetFieldValue	(		self,
			aFieldName,
			aValue )

SetFieldValue(FOOTPRINT_VARIANT self, wxString aFieldName, wxString aValue)

Definition at line 22765 of file pcbnew.py.

SetName()

pcbnew.FOOTPRINT_VARIANT.SetName	(		self,
			aName )

SetName(FOOTPRINT_VARIANT self, wxString aName)

Definition at line 22733 of file pcbnew.py.

Property Documentation

thisown

pcbnew.FOOTPRINT_VARIANT.thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

static

Definition at line 22722 of file pcbnew.py.

---

The documentation for this class was generated from the following file:

• pcbnew.py
