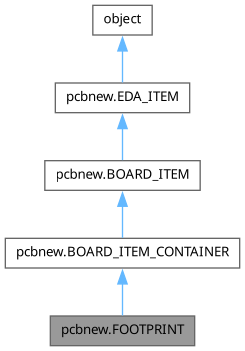

Inheritance diagram for pcbnew.FOOTPRINT:

[legend]

Public Member Functions
	__init__ (self, *args)

	Serialize (self, aContainer)

	Deserialize (self, aContainer)

	InvalidateGeometryCaches (self)

	GetPrivateLayers (self)

	SetPrivateLayers (self, aLayers)

	AddNative (self, *args)

	RemoveNative (self, *args)

	ClearAllNets (self)

	FixUuids (self)

	GetFpPadsLocalBbox (self)

	GetBoundingHull (self, *args)

	TextOnly (self)

	GetLayerBoundingBox (self, aLayers)

	Pads (self, *args)

	GraphicalItems (self, *args)

	Zones (self, *args)

	Groups (self, *args)

	Points (self, *args)

	HasThroughHolePads (self)

	Models (self, *args)

	SetOrientation (self, aNewAngle)

	GetOrientation (self)

	SetLayerAndFlip (self, aLayer)

	SetOrientationDegrees (self, aOrientation)

	GetOrientationDegrees (self)

	GetFPID (self)

	SetFPID (self, aFPID)

	GetFPIDAsString (self)

	SetFPIDAsString (self, aFPID)

	GetLIB_ID (self)

	GetName (self)

	GetLibNickname (self)

	GetDesc (self)

	GetPinCount (self)

	GetSearchTerms (self)

	GetLibDescription (self)

	SetLibDescription (self, aDesc)

	GetKeywords (self)

	SetKeywords (self, aKeywords)

	GetPath (self)

	SetPath (self, aPath)

	GetSheetname (self)

	SetSheetname (self, aSheetname)

	GetSheetfile (self)

	SetSheetfile (self, aSheetfile)

	GetFilters (self)

	SetFilters (self, aFilters)

	SetLocalClearance (self, aClearance)

	GetLocalSolderMaskMargin (self)

	SetLocalSolderMaskMargin (self, aMargin)

	GetLocalSolderPasteMargin (self)

	SetLocalSolderPasteMargin (self, aMargin)

	GetLocalSolderPasteMarginRatio (self)

	SetLocalSolderPasteMarginRatio (self, aRatio)

	SetLocalZoneConnection (self, aType)

	GetLocalZoneConnection (self)

	SetStackupMode (self, aMode)

	GetStackupMode (self)

	SetStackupLayers (self, aLayers)

	GetStackupLayers (self)

	GetAttributes (self)

	SetAttributes (self, aAttributes)

	AllowMissingCourtyard (self)

	SetAllowMissingCourtyard (self, aAllow)

	AllowSolderMaskBridges (self)

	SetAllowSolderMaskBridges (self, aAllow)

	SetFlag (self, aFlag)

	IncrementFlag (self)

	GetFlag (self)

	IsNetTie (self)

	GetLocalClearance (self, *args)

	GetClearanceOverrides (self, aSource)

	GetZoneConnectionOverrides (self, aSource)

	GetNetTiePadGroups (self)

	ClearNetTiePadGroups (self)

	AddNetTiePadGroup (self, aGroup)

	MapPadNumbersToNetTieGroups (self)

	GetNetTiePads (self, aPad)

	GetLikelyAttribute (self)

	MoveAnchorPosition (self, aMoveVector)

	IsFlipped (self)

	GetSide (self)

	IsConflicting (self)

	IsPlaced (self)

	SetIsPlaced (self, isPlaced)

	NeedsPlaced (self)

	SetNeedsPlaced (self, needsPlaced)

	LegacyPadsLocked (self)

	CheckFootprintAttributes (self, aErrorHandler)

	CheckPads (self, aUnitsProvider, aErrorHandler)

	CheckShortingPads (self, aErrorHandler)

	CheckNetTies (self, aErrorHandler)

	CheckNetTiePadGroups (self, aErrorHandler)

	CheckClippedSilk (self, aErrorHandler)

	BuildNetTieCache (self)

	GetNetTieCache (self, aItem)

	TransformPadsToPolySet (self, aBuffer, aLayer, aClearance, aMaxError, aErrorLoc)

	TransformFPShapesToPolySet (self, aBuffer, aLayer, aClearance, aError, aErrorLoc, aIncludeText=True, aIncludeShapes=True, aIncludePrivateItems=False)

	TransformFPTextToPolySet (self, aBuffer, aLayer, aClearance, aError, aErrorLoc)

	GetContextualTextVars (self, aVars)

	ResolveTextVar (self, token, aDepth=0)

	HitTestAccurate (self, aPosition, aAccuracy=0)

	HitTest (self, *args)

	HitTestOnLayer (self, *args)

	GetReference (self)

	SetReference (self, aReference)

	GetReferenceAsString (self)

	IncrementReference (self, aDelta)

	GetValue (self)

	SetValue (self, aValue)

	GetValueAsString (self)

	Value (self, *args)

	Reference (self, *args)

	GetField (self, *args)

	HasField (self, aFieldName)

	GetFields (self, *args)

	GetNextFieldOrdinal (self)

	ApplyDefaultSettings (self, board, aStyleFields, aStyleText, aStyleShapes, aStyleDimensions, aStyleBarcodes)

	SetUnitInfo (self, aUnits)

	GetUnitInfo (self)

	IsBoardOnly (self)

	SetBoardOnly (self, aIsBoardOnly=True)

	IsExcludedFromPosFiles (self)

	SetExcludedFromPosFiles (self, aExclude=True)

	IsExcludedFromBOM (self)

	SetExcludedFromBOM (self, aExclude=True)

	IsDNP (self)

	SetDNP (self, aDNP=True)

	GetVariant (self, *args)

	SetVariant (self, aVariant)

	AddVariant (self, aVariantName)

	DeleteVariant (self, aVariantName)

	RenameVariant (self, aOldName, aNewName)

	HasVariant (self, aVariantName)

	GetVariants (self)

	GetDNPForVariant (self, aVariantName)

	GetExcludedFromBOMForVariant (self, aVariantName)

	GetExcludedFromPosFilesForVariant (self, aVariantName)

	GetFieldValueForVariant (self, aVariantName, aFieldName)

	SetFileFormatVersionAtLoad (self, aVersion)

	GetFileFormatVersionAtLoad (self)

	FindPadByNumber (self, aPadNumber, aSearchAfterMe=None)

	GetPad (self, *args)

	GetPads (self, aPadNumber, aIgnore=None)

	GetPadCount (self, *args)

	GetUniquePadCount (self, *args)

	GetUniquePadNumbers (self, *args)

	GetNextPadNumber (self, aLastPadName)

	GetDuplicatePadNumbersAreJumpers (self)

	SetDuplicatePadNumbersAreJumpers (self, aEnabled)

	JumperPadGroups (self, *args)

	GetJumperPadGroup (self, aPadNumber)

	AutoPositionFields (self)

	GetTypeName (self)

	GetArea (self, aPadding=0)

	GetLink (self)

	SetLink (self, aLink)

	Duplicate (self, addToParentGroup, aCommit=None)

	DuplicateItem (self, addToParentGroup, aCommit, aItem, addToFootprint=False)

	Add3DModel (self, a3DModel)

	GetClass (self)

	ViewGetLOD (self, aLayer, aView)

	FootprintNeedsUpdate (self, aLibFP, aCompareFlags=0, aReporter=None)

	SetInitialComments (self, aInitialComments)

	CoverageRatio (self, aCollector)

	GetInitialComments (self)

	GetCourtyard (self, aLayer)

	GetCachedCourtyard (self, aLayer)

	BuildCourtyardCaches (self, aErrorHandler=None)

	GetEffectiveShape (self, *args)

	GetEmbeddedFiles (self, *args)

	GetFonts (self)

	EmbedFonts (self)

	SetStaticComponentClass (self, aClass)

	GetStaticComponentClass (self)

	GetComponentClass (self)

	GetComponentClassAsString (self)

	RecomputeComponentClass (self)

	InvalidateComponentClassCache (self)

	SetTransientComponentClassNames (self, classNames)

	GetTransientComponentClassNames (self)

	ClearTransientComponentClassNames (self)

	ResolveComponentClassNames (self, aBoard, aComponentClassNames)

	FixUpPadsForBoard (self, aBoard)

	__eq__ (self, *args)

	GetFieldsText (self)

	GetFieldsShownText (self)

	GetFieldText (self, key)

	GetFieldShownText (self, key)

	SetField (self, key, value)

	SetFields (self, fields)

	GetBoundingBox (self, *args)

Public Member Functions inherited from pcbnew.BOARD_ITEM_CONTAINER
	__init__ (self, args, *kwargs)

	DeleteNative (self, aItem)

	Add (self, item)

	Remove (self, item)

	Delete (self, item)

Public Member Functions inherited from pcbnew.BOARD_ITEM
	__init__ (self, args, *kwargs)

	CopyFrom (self, aOther)

	IsGroupableType (self)

	GetX (self)

	GetY (self)

	GetCenter (self)

	SetX (self, aX)

	SetY (self, aY)

	IsConnected (self)

	Similarity (self, aItem)

	__eq__ (self, aItem)

	IsOnCopperLayer (self)

	HasHole (self)

	HasDrilledHole (self)

	IsTented (self, aLayer)

	GetEffectiveHoleShape (self)

	RunOnChildren (self, aFunction, aMode)

	GetParent (self)

	GetParentFootprint (self)

	SetUuidDirect (self, aUuid)

	ResetUuidDirect (self)

	SetUuid (self, aUuid)

	ResetUuid (self)

	GetFPRelativePosition (self)

	SetFPRelativePosition (self, aPos)

	HasLineStroke (self)

	GetStroke (self)

	SetStroke (self, aStroke)

	GetFontMetrics (self)

	GetLayer (self)

	BoardLayerCount (self)

	BoardCopperLayerCount (self)

	BoardLayerSet (self)

	GetLayerSet (self)

	SetLayerSet (self, aLayers)

	IsSideSpecific (self)

	SetLayer (self, aLayer)

	SwapItemData (self, aImage)

	IsOnLayer (self, aLayer)

	IsKnockout (self)

	SetIsKnockout (self, aKnockout)

	IsIndexedInBoard (self)

	GetMaxError (self)

	StyleFromSettings (self, settings, aCheckSide)

	DeleteStructure (self)

	Move (self, aMoveVector)

	Rotate (self, aRotCentre, aAngle)

	Flip (self, aCentre, aFlipDirection)

	Mirror (self, aCentre, aFlipDirection)

	Normalize (self)

	NormalizeForCompare (self)

	GetBoard (self, *args)

	GetParentAsString (self)

	GetLayerName (self)

	TransformShapeToPolygon (self, aBuffer, aLayer, aClearance, aError, aErrorLoc, ignoreLineWidth=False)

	TransformShapeToPolySet (self, aBuffer, aLayer, aClearance, aError, aErrorLoc, aRenderSettings=None)

	LayerMaskDescribe (self)

	Cast (self)

	SetPos (self, p)

	SetStartEnd (self, start, end)

Public Member Functions inherited from pcbnew.EDA_ITEM
	__init__ (self, args, *kwargs)

	Type (self)

	SetParent (self, aParent)

	SetParentGroup (self, aGroup)

	GetParentGroup (self)

	GetParentGroupId (self)

	HasSelectedAncestorGroup (self)

	IsLocked (self)

	SetLocked (self, aLocked)

	IsModified (self)

	IsNew (self)

	IsMoving (self)

	IsSelected (self)

	IsEntered (self)

	IsBrightened (self)

	IsRollover (self)

	GetRolloverPos (self)

	SetIsRollover (self, aIsRollover, aMousePos)

	SetSelected (self)

	SetBrightened (self)

	ClearSelected (self)

	ClearBrightened (self)

	SetModified (self)

	SetFlags (self, aMask)

	XorFlags (self, aMask)

	ClearFlags (self, *args)

	GetFlags (self)

	HasFlag (self, aFlag)

	GetEditFlags (self)

	ClearEditFlags (self)

	GetTempFlags (self)

	ClearTempFlags (self)

	RenderAsBitmap (self, aWorldScale)

	SetIsShownAsBitmap (self, aBitmap)

	IsShownAsBitmap (self)

	IsType (self, aScanTypes)

	SetForceVisible (self, aEnable)

	IsForceVisible (self)

	GetMsgPanelInfo (self, aFrame, aList)

	GetFriendlyName (self)

	GetPosition (self)

	SetPosition (self, aPos)

	GetFocusPosition (self)

	GetSortPosition (self)

	Clone (self)

	Visit (self, inspector, testData, aScanTypes)

	GetTypeDesc (self)

	GetItemDescription (self, aUnitsProvider, aFull)

	DisambiguateItemDescription (self, aUnitsProvider, aFull)

	GetMenuImage (self)

	Matches (self, aSearchData, aAuxData)

	Replace (self, *args)

	IsReplaceable (self)

	__lt__ (self, aItem)

	ViewBBox (self)

	ViewGetLayers (self)

	GetEmbeddedFonts (self)

	PyGetClass (self)

Static Public Member Functions
	ClassOf (aItem)

	IsLibNameValid (aName)

	StringLibNameInvalidChars (aUserReadable)

	GetCoverageArea (aItem, aCollector)

Static Public Member Functions inherited from pcbnew.EDA_ITEM
	Sort (aLeft, aRight)

Properties
	thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

Properties inherited from pcbnew.BOARD_ITEM_CONTAINER
	thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

Properties inherited from pcbnew.BOARD_ITEM
	thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

Properties inherited from pcbnew.EDA_ITEM
	thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

	m_Uuid = property(_pcbnew.EDA_ITEM_m_Uuid_get, doc=)

Additional Inherited Members
Static Public Attributes inherited from pcbnew.BOARD_ITEM
	DRC = _pcbnew.BOARD_ITEM_DRC

	INSTANCE_TO_INSTANCE = _pcbnew.BOARD_ITEM_INSTANCE_TO_INSTANCE

Detailed Description

Proxy of C++ FOOTPRINT class.

Definition at line 23084 of file pcbnew.py.

Constructor & Destructor Documentation

◆ init()

pcbnew.FOOTPRINT.__init__	(		self,
		*	args )

    __init__(FOOTPRINT self, BOARD parent) -> FOOTPRINT
    __init__(FOOTPRINT self, FOOTPRINT aFootprint) -> FOOTPRINT
    __init__(FOOTPRINT self, FOOTPRINT aFootprint) -> FOOTPRINT

Definition at line 23090 of file pcbnew.py.

Member Function Documentation

◆ eq()

pcbnew.FOOTPRINT.__eq__	(		self,
		*	args )

    __eq__(FOOTPRINT self, BOARD_ITEM aOther) -> bool
    __eq__(FOOTPRINT self, FOOTPRINT aOther) -> bool

Definition at line 23909 of file pcbnew.py.

◆ Add3DModel()

pcbnew.FOOTPRINT.Add3DModel	(		self,
			a3DModel )

Add3DModel(FOOTPRINT self, FP_3DMODEL a3DModel)

Definition at line 23791 of file pcbnew.py.

◆ AddNative()

pcbnew.FOOTPRINT.AddNative	(		self,
		*	args )

AddNative(FOOTPRINT self, BOARD_ITEM aItem, ADD_MODE aMode=INSERT, bool aSkipConnectivity=False)

Reimplemented from pcbnew.BOARD_ITEM_CONTAINER.

Definition at line 23124 of file pcbnew.py.

◆ AddNetTiePadGroup()

pcbnew.FOOTPRINT.AddNetTiePadGroup	(		self,
			aGroup )

AddNetTiePadGroup(FOOTPRINT self, wxString aGroup)

Definition at line 23428 of file pcbnew.py.

◆ AddVariant()

pcbnew.FOOTPRINT.AddVariant	(		self,
			aVariantName )

AddVariant(FOOTPRINT self, wxString aVariantName) -> FOOTPRINT_VARIANT

Definition at line 23672 of file pcbnew.py.

◆ AllowMissingCourtyard()

pcbnew.FOOTPRINT.AllowMissingCourtyard ( self )

AllowMissingCourtyard(FOOTPRINT self) -> bool

Definition at line 23373 of file pcbnew.py.

◆ AllowSolderMaskBridges()

pcbnew.FOOTPRINT.AllowSolderMaskBridges ( self )

AllowSolderMaskBridges(FOOTPRINT self) -> bool

Definition at line 23381 of file pcbnew.py.

◆ ApplyDefaultSettings()

pcbnew.FOOTPRINT.ApplyDefaultSettings	(	self,
		board,
		aStyleFields,
		aStyleText,
		aStyleShapes,
		aStyleDimensions,
		aStyleBarcodes )

ApplyDefaultSettings(FOOTPRINT self, BOARD board, bool aStyleFields, bool aStyleText, bool aStyleShapes, bool aStyleDimensions, bool aStyleBarcodes)

Definition at line 23617 of file pcbnew.py.

◆ AutoPositionFields()

pcbnew.FOOTPRINT.AutoPositionFields ( self )

AutoPositionFields(FOOTPRINT self)

Definition at line 23763 of file pcbnew.py.

◆ BuildCourtyardCaches()

pcbnew.FOOTPRINT.BuildCourtyardCaches	(		self,
			aErrorHandler = None )

BuildCourtyardCaches(FOOTPRINT self, OUTLINE_ERROR_HANDLER * aErrorHandler=None)

Definition at line 23842 of file pcbnew.py.

◆ BuildNetTieCache()

pcbnew.FOOTPRINT.BuildNetTieCache ( self )

BuildNetTieCache(FOOTPRINT self)

Definition at line 23504 of file pcbnew.py.

◆ CheckClippedSilk()

pcbnew.FOOTPRINT.CheckClippedSilk	(		self,
			aErrorHandler )

CheckClippedSilk(FOOTPRINT self, std::function< void (BOARD_ITEM *,BOARD_ITEM *,VECTOR2I const &) > const & aErrorHandler)

Definition at line 23500 of file pcbnew.py.

◆ CheckFootprintAttributes()

pcbnew.FOOTPRINT.CheckFootprintAttributes	(		self,
			aErrorHandler )

CheckFootprintAttributes(FOOTPRINT self, std::function< void (wxString const &) > const & aErrorHandler)

Definition at line 23480 of file pcbnew.py.

◆ CheckNetTiePadGroups()

pcbnew.FOOTPRINT.CheckNetTiePadGroups	(		self,
			aErrorHandler )

CheckNetTiePadGroups(FOOTPRINT self, std::function< void (wxString const &) > const & aErrorHandler)

Definition at line 23496 of file pcbnew.py.

◆ CheckNetTies()

pcbnew.FOOTPRINT.CheckNetTies	(		self,
			aErrorHandler )

CheckNetTies(FOOTPRINT self, std::function< void (BOARD_ITEM const *,BOARD_ITEM const *,BOARD_ITEM const *,VECTOR2I const &) > const & aErrorHandler)

Definition at line 23492 of file pcbnew.py.

◆ CheckPads()

pcbnew.FOOTPRINT.CheckPads	(	self,
		aUnitsProvider,
		aErrorHandler )

CheckPads(FOOTPRINT self, UNITS_PROVIDER aUnitsProvider, std::function< void (PAD const *,int,wxString const &) > const & aErrorHandler)

Definition at line 23484 of file pcbnew.py.

◆ CheckShortingPads()

pcbnew.FOOTPRINT.CheckShortingPads	(		self,
			aErrorHandler )

CheckShortingPads(FOOTPRINT self, std::function< void (PAD const *,PAD const *,int,VECTOR2I const &) > const & aErrorHandler)

Definition at line 23488 of file pcbnew.py.

◆ ClassOf()

pcbnew.FOOTPRINT.ClassOf ( aItem )

static

ClassOf(EDA_ITEM aItem) -> bool

Definition at line 23108 of file pcbnew.py.

◆ ClearAllNets()

pcbnew.FOOTPRINT.ClearAllNets ( self )

ClearAllNets(FOOTPRINT self)

Definition at line 23132 of file pcbnew.py.

◆ ClearNetTiePadGroups()

pcbnew.FOOTPRINT.ClearNetTiePadGroups ( self )

ClearNetTiePadGroups(FOOTPRINT self)

Definition at line 23424 of file pcbnew.py.

◆ ClearTransientComponentClassNames()

pcbnew.FOOTPRINT.ClearTransientComponentClassNames ( self )

ClearTransientComponentClassNames(FOOTPRINT self)

Definition at line 23897 of file pcbnew.py.

◆ CoverageRatio()

pcbnew.FOOTPRINT.CoverageRatio	(		self,
			aCollector )

CoverageRatio(FOOTPRINT self, GENERAL_COLLECTOR const & aCollector) -> double

Definition at line 23821 of file pcbnew.py.

◆ DeleteVariant()

pcbnew.FOOTPRINT.DeleteVariant	(		self,
			aVariantName )

DeleteVariant(FOOTPRINT self, wxString aVariantName)

Definition at line 23676 of file pcbnew.py.

◆ Deserialize()

pcbnew.FOOTPRINT.Deserialize	(		self,
			aContainer )

Deserialize(FOOTPRINT self, google::protobuf::Any const & aContainer) -> bool

Definition at line 23103 of file pcbnew.py.

◆ Duplicate()

pcbnew.FOOTPRINT.Duplicate	(	self,
		addToParentGroup,
		aCommit = None )

Duplicate(FOOTPRINT self, bool addToParentGroup, BOARD_COMMIT * aCommit=None) -> BOARD_ITEM

Reimplemented from pcbnew.BOARD_ITEM.

Definition at line 23783 of file pcbnew.py.

◆ DuplicateItem()

pcbnew.FOOTPRINT.DuplicateItem	(	self,
		addToParentGroup,
		aCommit,
		aItem,
		addToFootprint = False )

DuplicateItem(FOOTPRINT self, bool addToParentGroup, BOARD_COMMIT * aCommit, BOARD_ITEM aItem, bool addToFootprint=False) -> BOARD_ITEM

Definition at line 23787 of file pcbnew.py.

◆ EmbedFonts()

pcbnew.FOOTPRINT.EmbedFonts ( self )

EmbedFonts(FOOTPRINT self)

Definition at line 23861 of file pcbnew.py.

◆ FindPadByNumber()

pcbnew.FOOTPRINT.FindPadByNumber	(	self,
		aPadNumber,
		aSearchAfterMe = None )

FindPadByNumber(FOOTPRINT self, wxString aPadNumber, PAD aSearchAfterMe=None) -> PAD

Definition at line 23716 of file pcbnew.py.

◆ FixUpPadsForBoard()

pcbnew.FOOTPRINT.FixUpPadsForBoard	(		self,
			aBoard )

FixUpPadsForBoard(FOOTPRINT self, BOARD aBoard)

Definition at line 23905 of file pcbnew.py.

◆ FixUuids()

pcbnew.FOOTPRINT.FixUuids ( self )

FixUuids(FOOTPRINT self) -> bool

Definition at line 23136 of file pcbnew.py.

◆ FootprintNeedsUpdate()

pcbnew.FOOTPRINT.FootprintNeedsUpdate	(	self,
		aLibFP,
		aCompareFlags = 0,
		aReporter = None )

FootprintNeedsUpdate(FOOTPRINT self, FOOTPRINT aLibFP, int aCompareFlags=0, REPORTER * aReporter=None) -> bool

Definition at line 23813 of file pcbnew.py.

◆ GetArea()

pcbnew.FOOTPRINT.GetArea	(		self,
			aPadding = 0 )

GetArea(FOOTPRINT self, int aPadding=0) -> double

Definition at line 23771 of file pcbnew.py.

◆ GetAttributes()

pcbnew.FOOTPRINT.GetAttributes ( self )

GetAttributes(FOOTPRINT self) -> int

Definition at line 23365 of file pcbnew.py.

◆ GetBoundingBox()

pcbnew.FOOTPRINT.GetBoundingBox	(		self,
		*	args )

  GetBoundingBox(FOOTPRINT self) -> BOX2I
  GetBoundingBox(FOOTPRINT self, bool aIncludeText) -> BOX2I
  GetBoundingBox(FOOTPRINT self, bool aIncludeText, bool includeHiddenText) -> BOX2I

Reimplemented from pcbnew.EDA_ITEM.

Definition at line 23963 of file pcbnew.py.

◆ GetBoundingHull()

pcbnew.FOOTPRINT.GetBoundingHull	(		self,
		*	args )

    GetBoundingHull(FOOTPRINT self) -> SHAPE_POLY_SET
    GetBoundingHull(FOOTPRINT self, PCB_LAYER_ID aLayer) -> SHAPE_POLY_SET

Definition at line 23144 of file pcbnew.py.

◆ GetCachedCourtyard()

pcbnew.FOOTPRINT.GetCachedCourtyard	(		self,
			aLayer )

GetCachedCourtyard(FOOTPRINT self, PCB_LAYER_ID aLayer) -> SHAPE_POLY_SET

Definition at line 23838 of file pcbnew.py.

◆ GetClass()

pcbnew.FOOTPRINT.GetClass ( self )

GetClass(FOOTPRINT self) -> wxString

Reimplemented from pcbnew.EDA_ITEM.

Definition at line 23795 of file pcbnew.py.

◆ GetClearanceOverrides()

pcbnew.FOOTPRINT.GetClearanceOverrides	(		self,
			aSource )

GetClearanceOverrides(FOOTPRINT self, wxString aSource) -> std::optional< int >

Definition at line 23412 of file pcbnew.py.

◆ GetComponentClass()

pcbnew.FOOTPRINT.GetComponentClass ( self )

GetComponentClass(FOOTPRINT self) -> COMPONENT_CLASS const *

Definition at line 23873 of file pcbnew.py.

◆ GetComponentClassAsString()

pcbnew.FOOTPRINT.GetComponentClassAsString ( self )

GetComponentClassAsString(FOOTPRINT self) -> wxString

Definition at line 23877 of file pcbnew.py.

◆ GetContextualTextVars()

pcbnew.FOOTPRINT.GetContextualTextVars	(		self,
			aVars )

GetContextualTextVars(FOOTPRINT self, wxArrayString * aVars)

Definition at line 23524 of file pcbnew.py.

◆ GetCourtyard()

pcbnew.FOOTPRINT.GetCourtyard	(		self,
			aLayer )

GetCourtyard(FOOTPRINT self, PCB_LAYER_ID aLayer) -> SHAPE_POLY_SET

Definition at line 23834 of file pcbnew.py.

◆ GetCoverageArea()

pcbnew.FOOTPRINT.GetCoverageArea	(		aItem,
			aCollector )

static

GetCoverageArea(BOARD_ITEM aItem, GENERAL_COLLECTOR const & aCollector) -> double

Definition at line 23826 of file pcbnew.py.

◆ GetDesc()

pcbnew.FOOTPRINT.GetDesc ( self )

GetDesc(FOOTPRINT self) -> wxString

Definition at line 23253 of file pcbnew.py.

◆ GetDNPForVariant()

pcbnew.FOOTPRINT.GetDNPForVariant	(		self,
			aVariantName )

GetDNPForVariant(FOOTPRINT self, wxString aVariantName) -> bool

Definition at line 23692 of file pcbnew.py.

◆ GetDuplicatePadNumbersAreJumpers()

pcbnew.FOOTPRINT.GetDuplicatePadNumbersAreJumpers ( self )

GetDuplicatePadNumbersAreJumpers(FOOTPRINT self) -> bool

Definition at line 23744 of file pcbnew.py.

◆ GetEffectiveShape()

pcbnew.FOOTPRINT.GetEffectiveShape	(		self,
		*	args )

GetEffectiveShape(FOOTPRINT self, PCB_LAYER_ID aLayer=UNDEFINED_LAYER, FLASHING aFlash=DEFAULT) -> std::shared_ptr< SHAPE >

Reimplemented from pcbnew.BOARD_ITEM.

Definition at line 23846 of file pcbnew.py.

◆ GetEmbeddedFiles()

pcbnew.FOOTPRINT.GetEmbeddedFiles	(		self,
		*	args )

    GetEmbeddedFiles(FOOTPRINT self) -> EMBEDDED_FILES
    GetEmbeddedFiles(FOOTPRINT self) -> EMBEDDED_FILES const *

Reimplemented from pcbnew.EDA_ITEM.

Definition at line 23850 of file pcbnew.py.

◆ GetExcludedFromBOMForVariant()

pcbnew.FOOTPRINT.GetExcludedFromBOMForVariant	(		self,
			aVariantName )

GetExcludedFromBOMForVariant(FOOTPRINT self, wxString aVariantName) -> bool

Definition at line 23696 of file pcbnew.py.

◆ GetExcludedFromPosFilesForVariant()

pcbnew.FOOTPRINT.GetExcludedFromPosFilesForVariant	(		self,
			aVariantName )

GetExcludedFromPosFilesForVariant(FOOTPRINT self, wxString aVariantName) -> bool

Definition at line 23700 of file pcbnew.py.

◆ GetField()

pcbnew.FOOTPRINT.GetField	(		self,
		*	args )

    GetField(FOOTPRINT self, FIELD_T aFieldType) -> PCB_FIELD
    GetField(FOOTPRINT self, FIELD_T aFieldNdx) -> PCB_FIELD
    GetField(FOOTPRINT self, wxString aFieldName) -> PCB_FIELD

Definition at line 23593 of file pcbnew.py.

◆ GetFields()

pcbnew.FOOTPRINT.GetFields	(		self,
		*	args )

    GetFields(FOOTPRINT self, PCB_FIELD_VEC aVector, bool aVisibleOnly)
    GetFields(FOOTPRINT self) -> PCB_FIELDS
    GetFields(FOOTPRINT self) -> PCB_FIELDS

Definition at line 23605 of file pcbnew.py.

◆ GetFieldShownText()

pcbnew.FOOTPRINT.GetFieldShownText	(		self,
			key )

 Returns Field shown text with a given key if it exists, throws KeyError otherwise.

Definition at line 23942 of file pcbnew.py.

◆ GetFieldsShownText()

pcbnew.FOOTPRINT.GetFieldsShownText ( self )

 Returns footprint fields name to shown text map.

Definition at line 23930 of file pcbnew.py.

◆ GetFieldsText()

pcbnew.FOOTPRINT.GetFieldsText ( self )

 Returns footprint fields name to text map.

Definition at line 23925 of file pcbnew.py.

◆ GetFieldText()

pcbnew.FOOTPRINT.GetFieldText	(		self,
			key )

 Returns Field text with a given key if it exists, throws KeyError otherwise.

Definition at line 23935 of file pcbnew.py.

◆ GetFieldValueForVariant()

pcbnew.FOOTPRINT.GetFieldValueForVariant	(	self,
		aVariantName,
		aFieldName )

GetFieldValueForVariant(FOOTPRINT self, wxString aVariantName, wxString aFieldName) -> wxString

Definition at line 23704 of file pcbnew.py.

◆ GetFileFormatVersionAtLoad()

pcbnew.FOOTPRINT.GetFileFormatVersionAtLoad ( self )

GetFileFormatVersionAtLoad(FOOTPRINT self) -> int

Definition at line 23712 of file pcbnew.py.

◆ GetFilters()

pcbnew.FOOTPRINT.GetFilters ( self )

GetFilters(FOOTPRINT self) -> wxString

Definition at line 23305 of file pcbnew.py.

◆ GetFlag()

pcbnew.FOOTPRINT.GetFlag ( self )

GetFlag(FOOTPRINT self) -> int

Definition at line 23397 of file pcbnew.py.

◆ GetFonts()

pcbnew.FOOTPRINT.GetFonts ( self )

GetFonts(FOOTPRINT self) -> std::set< KIFONT::OUTLINE_FONT *,std::less< KIFONT::OUTLINE_FONT * >,std::allocator< KIFONT::OUTLINE_FONT * > >

Definition at line 23857 of file pcbnew.py.

◆ GetFPID()

pcbnew.FOOTPRINT.GetFPID ( self )

GetFPID(FOOTPRINT self) -> LIB_ID

Definition at line 23225 of file pcbnew.py.

◆ GetFPIDAsString()

pcbnew.FOOTPRINT.GetFPIDAsString ( self )

GetFPIDAsString(FOOTPRINT self) -> wxString

Definition at line 23233 of file pcbnew.py.

◆ GetFpPadsLocalBbox()

pcbnew.FOOTPRINT.GetFpPadsLocalBbox ( self )

GetFpPadsLocalBbox(FOOTPRINT self) -> BOX2I

Definition at line 23140 of file pcbnew.py.

◆ GetInitialComments()

pcbnew.FOOTPRINT.GetInitialComments ( self )

GetInitialComments(FOOTPRINT self) -> wxArrayString const *

Definition at line 23830 of file pcbnew.py.

◆ GetJumperPadGroup()

pcbnew.FOOTPRINT.GetJumperPadGroup	(		self,
			aPadNumber )

GetJumperPadGroup(FOOTPRINT self, wxString aPadNumber) -> std::optional< std::set< wxString,std::less< wxString >,std::allocator< wxString > > const >

Definition at line 23759 of file pcbnew.py.

◆ GetKeywords()

pcbnew.FOOTPRINT.GetKeywords ( self )

GetKeywords(FOOTPRINT self) -> wxString

Definition at line 23273 of file pcbnew.py.

◆ GetLayerBoundingBox()

pcbnew.FOOTPRINT.GetLayerBoundingBox	(		self,
			aLayers )

GetLayerBoundingBox(FOOTPRINT self, LSET aLayers) -> BOX2I

Definition at line 23155 of file pcbnew.py.

◆ GetLIB_ID()

pcbnew.FOOTPRINT.GetLIB_ID ( self )

GetLIB_ID(FOOTPRINT self) -> LIB_ID

Definition at line 23241 of file pcbnew.py.

◆ GetLibDescription()

pcbnew.FOOTPRINT.GetLibDescription ( self )

GetLibDescription(FOOTPRINT self) -> wxString

Definition at line 23265 of file pcbnew.py.

◆ GetLibNickname()

pcbnew.FOOTPRINT.GetLibNickname ( self )

GetLibNickname(FOOTPRINT self) -> wxString

Definition at line 23249 of file pcbnew.py.

◆ GetLikelyAttribute()

pcbnew.FOOTPRINT.GetLikelyAttribute ( self )

GetLikelyAttribute(FOOTPRINT self) -> int

Definition at line 23440 of file pcbnew.py.

◆ GetLink()

pcbnew.FOOTPRINT.GetLink ( self )

GetLink(FOOTPRINT self) -> KIID

Definition at line 23775 of file pcbnew.py.

◆ GetLocalClearance()

pcbnew.FOOTPRINT.GetLocalClearance	(		self,
		*	args )

    GetLocalClearance(FOOTPRINT self) -> std::optional< int >
    GetLocalClearance(FOOTPRINT self, wxString aSource) -> std::optional< int >

Definition at line 23405 of file pcbnew.py.

◆ GetLocalSolderMaskMargin()

pcbnew.FOOTPRINT.GetLocalSolderMaskMargin ( self )

GetLocalSolderMaskMargin(FOOTPRINT self) -> std::optional< int >

Definition at line 23317 of file pcbnew.py.

◆ GetLocalSolderPasteMargin()

pcbnew.FOOTPRINT.GetLocalSolderPasteMargin ( self )

GetLocalSolderPasteMargin(FOOTPRINT self) -> std::optional< int >

Definition at line 23325 of file pcbnew.py.

◆ GetLocalSolderPasteMarginRatio()

pcbnew.FOOTPRINT.GetLocalSolderPasteMarginRatio ( self )

GetLocalSolderPasteMarginRatio(FOOTPRINT self) -> std::optional< double >

Definition at line 23333 of file pcbnew.py.

◆ GetLocalZoneConnection()

pcbnew.FOOTPRINT.GetLocalZoneConnection ( self )

GetLocalZoneConnection(FOOTPRINT self) -> ZONE_CONNECTION

Definition at line 23345 of file pcbnew.py.

◆ GetName()

pcbnew.FOOTPRINT.GetName ( self )

GetName(FOOTPRINT self) -> wxString

Definition at line 23245 of file pcbnew.py.

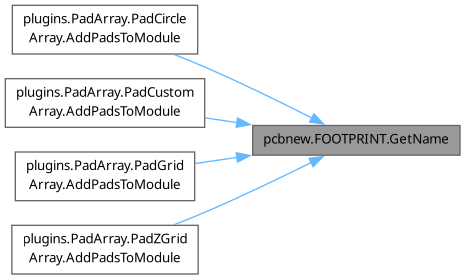

Here is the caller graph for this function:

◆ GetNetTieCache()

pcbnew.FOOTPRINT.GetNetTieCache	(		self,
			aItem )

GetNetTieCache(FOOTPRINT self, BOARD_ITEM aItem) -> std::set< int,std::less< int >,std::allocator< int > > const &

Definition at line 23508 of file pcbnew.py.

◆ GetNetTiePadGroups()

pcbnew.FOOTPRINT.GetNetTiePadGroups ( self )

GetNetTiePadGroups(FOOTPRINT self) -> std::vector< wxString,std::allocator< wxString > > const &

Definition at line 23420 of file pcbnew.py.

◆ GetNetTiePads()

pcbnew.FOOTPRINT.GetNetTiePads	(		self,
			aPad )

GetNetTiePads(FOOTPRINT self, PAD aPad) -> PADS_VEC

Definition at line 23436 of file pcbnew.py.

◆ GetNextFieldOrdinal()

pcbnew.FOOTPRINT.GetNextFieldOrdinal ( self )

GetNextFieldOrdinal(FOOTPRINT self) -> int

Definition at line 23613 of file pcbnew.py.

◆ GetNextPadNumber()

pcbnew.FOOTPRINT.GetNextPadNumber	(		self,
			aLastPadName )

GetNextPadNumber(FOOTPRINT self, wxString aLastPadName) -> wxString

Definition at line 23740 of file pcbnew.py.

◆ GetOrientation()

pcbnew.FOOTPRINT.GetOrientation ( self )

GetOrientation(FOOTPRINT self) -> EDA_ANGLE

Definition at line 23209 of file pcbnew.py.

◆ GetOrientationDegrees()

pcbnew.FOOTPRINT.GetOrientationDegrees ( self )

GetOrientationDegrees(FOOTPRINT self) -> double

Definition at line 23221 of file pcbnew.py.

◆ GetPad()

pcbnew.FOOTPRINT.GetPad	(		self,
		*	args )

GetPad(FOOTPRINT self, VECTOR2I aPosition, LSET aLayerMask=LSET::AllLayersMask()) -> PAD

Definition at line 23720 of file pcbnew.py.

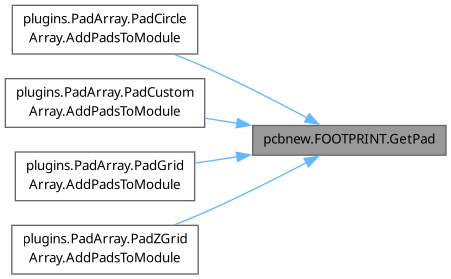

Here is the caller graph for this function:

◆ GetPadCount()

pcbnew.FOOTPRINT.GetPadCount	(		self,
		*	args )

GetPadCount(FOOTPRINT self, INCLUDE_NPTH_T aIncludeNPTH=INCLUDE_NPTH_T(INCLUDE_NPTH)) -> unsigned int

Definition at line 23728 of file pcbnew.py.

◆ GetPads()

pcbnew.FOOTPRINT.GetPads	(	self,
		aPadNumber,
		aIgnore = None )

GetPads(FOOTPRINT self, wxString aPadNumber, PAD aIgnore=None) -> std::vector< PAD const *,std::allocator< PAD const * > >

Definition at line 23724 of file pcbnew.py.

◆ GetPath()

pcbnew.FOOTPRINT.GetPath ( self )

GetPath(FOOTPRINT self) -> KIID_PATH

Definition at line 23281 of file pcbnew.py.

◆ GetPinCount()

pcbnew.FOOTPRINT.GetPinCount ( self )

GetPinCount(FOOTPRINT self) -> int

Definition at line 23257 of file pcbnew.py.

◆ GetPrivateLayers()

pcbnew.FOOTPRINT.GetPrivateLayers ( self )

GetPrivateLayers(FOOTPRINT self) -> LSET

Definition at line 23116 of file pcbnew.py.

◆ GetReference()

pcbnew.FOOTPRINT.GetReference ( self )

GetReference(FOOTPRINT self) -> wxString

Definition at line 23551 of file pcbnew.py.

◆ GetReferenceAsString()

pcbnew.FOOTPRINT.GetReferenceAsString ( self )

GetReferenceAsString(FOOTPRINT self) -> wxString

Definition at line 23559 of file pcbnew.py.

◆ GetSearchTerms()

pcbnew.FOOTPRINT.GetSearchTerms ( self )

GetSearchTerms(FOOTPRINT self) -> std::vector< SEARCH_TERM,std::allocator< SEARCH_TERM > > &

Definition at line 23261 of file pcbnew.py.

◆ GetSheetfile()

pcbnew.FOOTPRINT.GetSheetfile ( self )

GetSheetfile(FOOTPRINT self) -> wxString

Definition at line 23297 of file pcbnew.py.

◆ GetSheetname()

pcbnew.FOOTPRINT.GetSheetname ( self )

GetSheetname(FOOTPRINT self) -> wxString

Definition at line 23289 of file pcbnew.py.

◆ GetSide()

pcbnew.FOOTPRINT.GetSide ( self )

GetSide(FOOTPRINT self) -> PCB_LAYER_ID

Definition at line 23452 of file pcbnew.py.

◆ GetStackupLayers()

pcbnew.FOOTPRINT.GetStackupLayers ( self )

GetStackupLayers(FOOTPRINT self) -> LSET

Definition at line 23361 of file pcbnew.py.

◆ GetStackupMode()

pcbnew.FOOTPRINT.GetStackupMode ( self )

GetStackupMode(FOOTPRINT self) -> FOOTPRINT_STACKUP

Definition at line 23353 of file pcbnew.py.

◆ GetStaticComponentClass()

pcbnew.FOOTPRINT.GetStaticComponentClass ( self )

GetStaticComponentClass(FOOTPRINT self) -> COMPONENT_CLASS const *

Definition at line 23869 of file pcbnew.py.

◆ GetTransientComponentClassNames()

pcbnew.FOOTPRINT.GetTransientComponentClassNames ( self )

GetTransientComponentClassNames(FOOTPRINT self) -> std::unordered_set< wxString > const &

Definition at line 23893 of file pcbnew.py.

◆ GetTypeName()

pcbnew.FOOTPRINT.GetTypeName ( self )

GetTypeName(FOOTPRINT self) -> wxString

Definition at line 23767 of file pcbnew.py.

◆ GetUniquePadCount()

pcbnew.FOOTPRINT.GetUniquePadCount	(		self,
		*	args )

GetUniquePadCount(FOOTPRINT self, INCLUDE_NPTH_T aIncludeNPTH=INCLUDE_NPTH_T(INCLUDE_NPTH)) -> unsigned int

Definition at line 23732 of file pcbnew.py.

◆ GetUniquePadNumbers()

pcbnew.FOOTPRINT.GetUniquePadNumbers	(		self,
		*	args )

GetUniquePadNumbers(FOOTPRINT self, INCLUDE_NPTH_T aIncludeNPTH=INCLUDE_NPTH_T(INCLUDE_NPTH)) -> STRINGSET

Definition at line 23736 of file pcbnew.py.

◆ GetUnitInfo()

pcbnew.FOOTPRINT.GetUnitInfo ( self )

GetUnitInfo(FOOTPRINT self) -> std::vector< FOOTPRINT::FP_UNIT_INFO,std::allocator< FOOTPRINT::FP_UNIT_INFO > > const &

Definition at line 23625 of file pcbnew.py.

◆ GetValue()

pcbnew.FOOTPRINT.GetValue ( self )

GetValue(FOOTPRINT self) -> wxString

Definition at line 23567 of file pcbnew.py.

◆ GetValueAsString()

pcbnew.FOOTPRINT.GetValueAsString ( self )

GetValueAsString(FOOTPRINT self) -> wxString

Definition at line 23575 of file pcbnew.py.

◆ GetVariant()

pcbnew.FOOTPRINT.GetVariant	(		self,
		*	args )

    GetVariant(FOOTPRINT self, wxString aVariantName) -> FOOTPRINT_VARIANT
    GetVariant(FOOTPRINT self, wxString aVariantName) -> FOOTPRINT_VARIANT

Definition at line 23661 of file pcbnew.py.

◆ GetVariants()

pcbnew.FOOTPRINT.GetVariants ( self )

GetVariants(FOOTPRINT self) -> CASE_INSENSITIVE_MAP< FOOTPRINT_VARIANT > const &

Definition at line 23688 of file pcbnew.py.

◆ GetZoneConnectionOverrides()

pcbnew.FOOTPRINT.GetZoneConnectionOverrides	(		self,
			aSource )

GetZoneConnectionOverrides(FOOTPRINT self, wxString aSource) -> ZONE_CONNECTION

Definition at line 23416 of file pcbnew.py.

◆ GraphicalItems()

pcbnew.FOOTPRINT.GraphicalItems	(		self,
		*	args )

    GraphicalItems(FOOTPRINT self) -> DRAWINGS
    GraphicalItems(FOOTPRINT self) -> DRAWINGS

Definition at line 23166 of file pcbnew.py.

◆ Groups()

pcbnew.FOOTPRINT.Groups	(		self,
		*	args )

    Groups(FOOTPRINT self) -> GROUPS
    Groups(FOOTPRINT self) -> GROUPS

Definition at line 23180 of file pcbnew.py.

◆ HasField()

pcbnew.FOOTPRINT.HasField	(		self,
			aFieldName )

HasField(FOOTPRINT self, wxString aFieldName) -> bool

Definition at line 23601 of file pcbnew.py.

◆ HasThroughHolePads()

pcbnew.FOOTPRINT.HasThroughHolePads ( self )

HasThroughHolePads(FOOTPRINT self) -> bool

Definition at line 23194 of file pcbnew.py.

◆ HasVariant()

pcbnew.FOOTPRINT.HasVariant	(		self,
			aVariantName )

HasVariant(FOOTPRINT self, wxString aVariantName) -> bool

Definition at line 23684 of file pcbnew.py.

◆ HitTest()

pcbnew.FOOTPRINT.HitTest	(		self,
		*	args )

    HitTest(FOOTPRINT self, VECTOR2I aPosition, int aAccuracy=0) -> bool
    HitTest(FOOTPRINT self, BOX2I aRect, bool aContained, int aAccuracy=0) -> bool
    HitTest(FOOTPRINT self, SHAPE_LINE_CHAIN aPoly, bool aContained) -> bool

Reimplemented from pcbnew.EDA_ITEM.

Definition at line 23536 of file pcbnew.py.

◆ HitTestAccurate()

pcbnew.FOOTPRINT.HitTestAccurate	(	self,
		aPosition,
		aAccuracy = 0 )

HitTestAccurate(FOOTPRINT self, VECTOR2I aPosition, int aAccuracy=0) -> bool

Definition at line 23532 of file pcbnew.py.

◆ HitTestOnLayer()

pcbnew.FOOTPRINT.HitTestOnLayer	(		self,
		*	args )

    HitTestOnLayer(FOOTPRINT self, VECTOR2I aPosition, PCB_LAYER_ID aLayer, int aAccuracy=0) -> bool
    HitTestOnLayer(FOOTPRINT self, BOX2I aRect, bool aContained, PCB_LAYER_ID aLayer, int aAccuracy=0) -> bool

Definition at line 23544 of file pcbnew.py.

◆ IncrementFlag()

pcbnew.FOOTPRINT.IncrementFlag ( self )

IncrementFlag(FOOTPRINT self)

Definition at line 23393 of file pcbnew.py.

◆ IncrementReference()

pcbnew.FOOTPRINT.IncrementReference	(		self,
			aDelta )

IncrementReference(FOOTPRINT self, int aDelta)

Definition at line 23563 of file pcbnew.py.

◆ InvalidateComponentClassCache()

pcbnew.FOOTPRINT.InvalidateComponentClassCache ( self )

InvalidateComponentClassCache(FOOTPRINT self)

Definition at line 23885 of file pcbnew.py.

◆ InvalidateGeometryCaches()

pcbnew.FOOTPRINT.InvalidateGeometryCaches ( self )

InvalidateGeometryCaches(FOOTPRINT self)

Definition at line 23112 of file pcbnew.py.

◆ IsBoardOnly()

pcbnew.FOOTPRINT.IsBoardOnly ( self )

IsBoardOnly(FOOTPRINT self) -> bool

Definition at line 23629 of file pcbnew.py.

◆ IsConflicting()

pcbnew.FOOTPRINT.IsConflicting ( self )

IsConflicting(FOOTPRINT self) -> bool

Definition at line 23456 of file pcbnew.py.

◆ IsDNP()

pcbnew.FOOTPRINT.IsDNP ( self )

IsDNP(FOOTPRINT self) -> bool

Definition at line 23653 of file pcbnew.py.

◆ IsExcludedFromBOM()

pcbnew.FOOTPRINT.IsExcludedFromBOM ( self )

IsExcludedFromBOM(FOOTPRINT self) -> bool

Definition at line 23645 of file pcbnew.py.

◆ IsExcludedFromPosFiles()

pcbnew.FOOTPRINT.IsExcludedFromPosFiles ( self )

IsExcludedFromPosFiles(FOOTPRINT self) -> bool

Definition at line 23637 of file pcbnew.py.

◆ IsFlipped()

pcbnew.FOOTPRINT.IsFlipped ( self )

IsFlipped(FOOTPRINT self) -> bool

Definition at line 23448 of file pcbnew.py.

◆ IsLibNameValid()

pcbnew.FOOTPRINT.IsLibNameValid ( aName )

static

IsLibNameValid(wxString aName) -> bool

Definition at line 23804 of file pcbnew.py.

◆ IsNetTie()

pcbnew.FOOTPRINT.IsNetTie ( self )

IsNetTie(FOOTPRINT self) -> bool

Definition at line 23401 of file pcbnew.py.

◆ IsPlaced()

pcbnew.FOOTPRINT.IsPlaced ( self )

IsPlaced(FOOTPRINT self) -> bool

Definition at line 23460 of file pcbnew.py.

◆ JumperPadGroups()

pcbnew.FOOTPRINT.JumperPadGroups	(		self,
		*	args )

    JumperPadGroups(FOOTPRINT self) -> std::vector< std::set< wxString,std::less< wxString >,std::allocator< wxString > >,std::allocator< std::set< wxString,std::less< wxString >,std::allocator< wxString > > > >
    JumperPadGroups(FOOTPRINT self) -> std::vector< std::set< wxString,std::less< wxString >,std::allocator< wxString > >,std::allocator< std::set< wxString,std::less< wxString >,std::allocator< wxString > > > > const &

Definition at line 23752 of file pcbnew.py.

◆ LegacyPadsLocked()

pcbnew.FOOTPRINT.LegacyPadsLocked ( self )

LegacyPadsLocked(FOOTPRINT self) -> bool

Definition at line 23476 of file pcbnew.py.

◆ MapPadNumbersToNetTieGroups()

pcbnew.FOOTPRINT.MapPadNumbersToNetTieGroups ( self )

MapPadNumbersToNetTieGroups(FOOTPRINT self) -> std::map< wxString,int,std::less< wxString >,std::allocator< std::pair< wxString const,int > > >

Definition at line 23432 of file pcbnew.py.

◆ Models()

pcbnew.FOOTPRINT.Models	(		self,
		*	args )

    Models(FOOTPRINT self) -> VECTOR_FP_3DMODEL
    Models(FOOTPRINT self) -> VECTOR_FP_3DMODEL

Definition at line 23198 of file pcbnew.py.

◆ MoveAnchorPosition()

pcbnew.FOOTPRINT.MoveAnchorPosition	(		self,
			aMoveVector )

MoveAnchorPosition(FOOTPRINT self, VECTOR2I aMoveVector)

Definition at line 23444 of file pcbnew.py.

◆ NeedsPlaced()

pcbnew.FOOTPRINT.NeedsPlaced ( self )

NeedsPlaced(FOOTPRINT self) -> bool

Definition at line 23468 of file pcbnew.py.

◆ Pads()

pcbnew.FOOTPRINT.Pads	(		self,
		*	args )

    Pads(FOOTPRINT self) -> PADS
    Pads(FOOTPRINT self) -> PADS

Definition at line 23159 of file pcbnew.py.

◆ Points()

pcbnew.FOOTPRINT.Points	(		self,
		*	args )

    Points(FOOTPRINT self) -> PCB_POINTS
    Points(FOOTPRINT self) -> PCB_POINTS

Definition at line 23187 of file pcbnew.py.

◆ RecomputeComponentClass()

pcbnew.FOOTPRINT.RecomputeComponentClass ( self )

RecomputeComponentClass(FOOTPRINT self)

Definition at line 23881 of file pcbnew.py.

◆ Reference()

pcbnew.FOOTPRINT.Reference	(		self,
		*	args )

    Reference(FOOTPRINT self) -> PCB_FIELD
    Reference(FOOTPRINT self) -> PCB_FIELD

Definition at line 23586 of file pcbnew.py.

◆ RemoveNative()

pcbnew.FOOTPRINT.RemoveNative	(		self,
		*	args )

RemoveNative(FOOTPRINT self, BOARD_ITEM aItem, REMOVE_MODE aMode=NORMAL)

Reimplemented from pcbnew.BOARD_ITEM_CONTAINER.

Definition at line 23128 of file pcbnew.py.

◆ RenameVariant()

pcbnew.FOOTPRINT.RenameVariant	(	self,
		aOldName,
		aNewName )

RenameVariant(FOOTPRINT self, wxString aOldName, wxString aNewName)

Definition at line 23680 of file pcbnew.py.

◆ ResolveComponentClassNames()

pcbnew.FOOTPRINT.ResolveComponentClassNames	(	self,
		aBoard,
		aComponentClassNames )

ResolveComponentClassNames(FOOTPRINT self, BOARD aBoard, std::unordered_set< wxString > const & aComponentClassNames)

Definition at line 23901 of file pcbnew.py.

◆ ResolveTextVar()

pcbnew.FOOTPRINT.ResolveTextVar	(	self,
		token,
		aDepth = 0 )

ResolveTextVar(FOOTPRINT self, wxString token, int aDepth=0) -> bool

Definition at line 23528 of file pcbnew.py.

◆ Serialize()

pcbnew.FOOTPRINT.Serialize	(		self,
			aContainer )

Serialize(FOOTPRINT self, google::protobuf::Any & aContainer)

Definition at line 23099 of file pcbnew.py.

◆ SetAllowMissingCourtyard()

pcbnew.FOOTPRINT.SetAllowMissingCourtyard	(		self,
			aAllow )

SetAllowMissingCourtyard(FOOTPRINT self, bool aAllow)

Definition at line 23377 of file pcbnew.py.

◆ SetAllowSolderMaskBridges()

pcbnew.FOOTPRINT.SetAllowSolderMaskBridges	(		self,
			aAllow )

SetAllowSolderMaskBridges(FOOTPRINT self, bool aAllow)

Definition at line 23385 of file pcbnew.py.

◆ SetAttributes()

pcbnew.FOOTPRINT.SetAttributes	(		self,
			aAttributes )

SetAttributes(FOOTPRINT self, int aAttributes)

Definition at line 23369 of file pcbnew.py.

◆ SetBoardOnly()

pcbnew.FOOTPRINT.SetBoardOnly	(		self,
			aIsBoardOnly = True )

SetBoardOnly(FOOTPRINT self, bool aIsBoardOnly=True)

Definition at line 23633 of file pcbnew.py.

◆ SetDNP()

pcbnew.FOOTPRINT.SetDNP	(		self,
			aDNP = True )

SetDNP(FOOTPRINT self, bool aDNP=True)

Definition at line 23657 of file pcbnew.py.

◆ SetDuplicatePadNumbersAreJumpers()

pcbnew.FOOTPRINT.SetDuplicatePadNumbersAreJumpers	(		self,
			aEnabled )

SetDuplicatePadNumbersAreJumpers(FOOTPRINT self, bool aEnabled)

Definition at line 23748 of file pcbnew.py.

◆ SetExcludedFromBOM()

pcbnew.FOOTPRINT.SetExcludedFromBOM	(		self,
			aExclude = True )

SetExcludedFromBOM(FOOTPRINT self, bool aExclude=True)

Definition at line 23649 of file pcbnew.py.

◆ SetExcludedFromPosFiles()

pcbnew.FOOTPRINT.SetExcludedFromPosFiles	(		self,
			aExclude = True )

SetExcludedFromPosFiles(FOOTPRINT self, bool aExclude=True)

Definition at line 23641 of file pcbnew.py.

◆ SetField()

pcbnew.FOOTPRINT.SetField	(	self,
		key,
		value )

Definition at line 23949 of file pcbnew.py.

◆ SetFields()

pcbnew.FOOTPRINT.SetFields	(		self,
			fields )

 Sets footprint fields map.

Definition at line 23957 of file pcbnew.py.

◆ SetFileFormatVersionAtLoad()

pcbnew.FOOTPRINT.SetFileFormatVersionAtLoad	(		self,
			aVersion )

SetFileFormatVersionAtLoad(FOOTPRINT self, int aVersion)

Definition at line 23708 of file pcbnew.py.

◆ SetFilters()

pcbnew.FOOTPRINT.SetFilters	(		self,
			aFilters )

SetFilters(FOOTPRINT self, wxString aFilters)

Definition at line 23309 of file pcbnew.py.

◆ SetFlag()

pcbnew.FOOTPRINT.SetFlag	(		self,
			aFlag )

SetFlag(FOOTPRINT self, int aFlag)

Definition at line 23389 of file pcbnew.py.

◆ SetFPID()

pcbnew.FOOTPRINT.SetFPID	(		self,
			aFPID )

SetFPID(FOOTPRINT self, LIB_ID aFPID)

Definition at line 23229 of file pcbnew.py.

◆ SetFPIDAsString()

pcbnew.FOOTPRINT.SetFPIDAsString	(		self,
			aFPID )

SetFPIDAsString(FOOTPRINT self, wxString aFPID)

Definition at line 23237 of file pcbnew.py.

◆ SetInitialComments()

pcbnew.FOOTPRINT.SetInitialComments	(		self,
			aInitialComments )

SetInitialComments(FOOTPRINT self, wxArrayString * aInitialComments)

Definition at line 23817 of file pcbnew.py.

◆ SetIsPlaced()

pcbnew.FOOTPRINT.SetIsPlaced	(		self,
			isPlaced )

SetIsPlaced(FOOTPRINT self, bool isPlaced)

Definition at line 23464 of file pcbnew.py.

◆ SetKeywords()

pcbnew.FOOTPRINT.SetKeywords	(		self,
			aKeywords )

SetKeywords(FOOTPRINT self, wxString aKeywords)

Definition at line 23277 of file pcbnew.py.

◆ SetLayerAndFlip()

pcbnew.FOOTPRINT.SetLayerAndFlip	(		self,
			aLayer )

SetLayerAndFlip(FOOTPRINT self, PCB_LAYER_ID aLayer)

Definition at line 23213 of file pcbnew.py.

◆ SetLibDescription()

pcbnew.FOOTPRINT.SetLibDescription	(		self,
			aDesc )

SetLibDescription(FOOTPRINT self, wxString aDesc)

Definition at line 23269 of file pcbnew.py.

◆ SetLink()

pcbnew.FOOTPRINT.SetLink	(		self,
			aLink )

SetLink(FOOTPRINT self, KIID aLink)

Definition at line 23779 of file pcbnew.py.

◆ SetLocalClearance()

pcbnew.FOOTPRINT.SetLocalClearance	(		self,
			aClearance )

SetLocalClearance(FOOTPRINT self, std::optional< int > aClearance)

Definition at line 23313 of file pcbnew.py.

◆ SetLocalSolderMaskMargin()

pcbnew.FOOTPRINT.SetLocalSolderMaskMargin	(		self,
			aMargin )

SetLocalSolderMaskMargin(FOOTPRINT self, std::optional< int > aMargin)

Definition at line 23321 of file pcbnew.py.

◆ SetLocalSolderPasteMargin()

pcbnew.FOOTPRINT.SetLocalSolderPasteMargin	(		self,
			aMargin )

SetLocalSolderPasteMargin(FOOTPRINT self, std::optional< int > aMargin)

Definition at line 23329 of file pcbnew.py.

◆ SetLocalSolderPasteMarginRatio()

pcbnew.FOOTPRINT.SetLocalSolderPasteMarginRatio	(		self,
			aRatio )

SetLocalSolderPasteMarginRatio(FOOTPRINT self, std::optional< double > aRatio)

Definition at line 23337 of file pcbnew.py.

◆ SetLocalZoneConnection()

pcbnew.FOOTPRINT.SetLocalZoneConnection	(		self,
			aType )

SetLocalZoneConnection(FOOTPRINT self, ZONE_CONNECTION aType)

Definition at line 23341 of file pcbnew.py.

◆ SetNeedsPlaced()

pcbnew.FOOTPRINT.SetNeedsPlaced	(		self,
			needsPlaced )

SetNeedsPlaced(FOOTPRINT self, bool needsPlaced)

Definition at line 23472 of file pcbnew.py.

◆ SetOrientation()

pcbnew.FOOTPRINT.SetOrientation	(		self,
			aNewAngle )

SetOrientation(FOOTPRINT self, EDA_ANGLE aNewAngle)

Definition at line 23205 of file pcbnew.py.

◆ SetOrientationDegrees()

pcbnew.FOOTPRINT.SetOrientationDegrees	(		self,
			aOrientation )

SetOrientationDegrees(FOOTPRINT self, double aOrientation)

Definition at line 23217 of file pcbnew.py.

◆ SetPath()

pcbnew.FOOTPRINT.SetPath	(		self,
			aPath )

SetPath(FOOTPRINT self, KIID_PATH aPath)

Definition at line 23285 of file pcbnew.py.

◆ SetPrivateLayers()

pcbnew.FOOTPRINT.SetPrivateLayers	(		self,
			aLayers )

SetPrivateLayers(FOOTPRINT self, LSET aLayers)

Definition at line 23120 of file pcbnew.py.

◆ SetReference()

pcbnew.FOOTPRINT.SetReference	(		self,
			aReference )

SetReference(FOOTPRINT self, wxString aReference)

Definition at line 23555 of file pcbnew.py.

◆ SetSheetfile()

pcbnew.FOOTPRINT.SetSheetfile	(		self,
			aSheetfile )

SetSheetfile(FOOTPRINT self, wxString aSheetfile)

Definition at line 23301 of file pcbnew.py.

◆ SetSheetname()

pcbnew.FOOTPRINT.SetSheetname	(		self,
			aSheetname )

SetSheetname(FOOTPRINT self, wxString aSheetname)

Definition at line 23293 of file pcbnew.py.

◆ SetStackupLayers()

pcbnew.FOOTPRINT.SetStackupLayers	(		self,
			aLayers )

SetStackupLayers(FOOTPRINT self, LSET aLayers)

Definition at line 23357 of file pcbnew.py.

◆ SetStackupMode()

pcbnew.FOOTPRINT.SetStackupMode	(		self,
			aMode )

SetStackupMode(FOOTPRINT self, FOOTPRINT_STACKUP aMode)

Definition at line 23349 of file pcbnew.py.

◆ SetStaticComponentClass()

pcbnew.FOOTPRINT.SetStaticComponentClass	(		self,
			aClass )

SetStaticComponentClass(FOOTPRINT self, COMPONENT_CLASS const * aClass)

Definition at line 23865 of file pcbnew.py.

◆ SetTransientComponentClassNames()

pcbnew.FOOTPRINT.SetTransientComponentClassNames	(		self,
			classNames )

SetTransientComponentClassNames(FOOTPRINT self, std::unordered_set< wxString > const & classNames)

Definition at line 23889 of file pcbnew.py.

◆ SetUnitInfo()

pcbnew.FOOTPRINT.SetUnitInfo	(		self,
			aUnits )

SetUnitInfo(FOOTPRINT self, std::vector< FOOTPRINT::FP_UNIT_INFO,std::allocator< FOOTPRINT::FP_UNIT_INFO > > const & aUnits)

Definition at line 23621 of file pcbnew.py.

◆ SetValue()

pcbnew.FOOTPRINT.SetValue	(		self,
			aValue )

SetValue(FOOTPRINT self, wxString aValue)

Definition at line 23571 of file pcbnew.py.

◆ SetVariant()

pcbnew.FOOTPRINT.SetVariant	(		self,
			aVariant )

SetVariant(FOOTPRINT self, FOOTPRINT_VARIANT aVariant)

Definition at line 23668 of file pcbnew.py.

◆ StringLibNameInvalidChars()

pcbnew.FOOTPRINT.StringLibNameInvalidChars ( aUserReadable )

static

StringLibNameInvalidChars(bool aUserReadable) -> wxChar const *

Definition at line 23809 of file pcbnew.py.

◆ TextOnly()

pcbnew.FOOTPRINT.TextOnly ( self )

TextOnly(FOOTPRINT self) -> bool

Definition at line 23151 of file pcbnew.py.

◆ TransformFPShapesToPolySet()

pcbnew.FOOTPRINT.TransformFPShapesToPolySet	(	self,
		aBuffer,
		aLayer,
		aClearance,
		aError,
		aErrorLoc,
		aIncludeText = True,
		aIncludeShapes = True,
		aIncludePrivateItems = False )

TransformFPShapesToPolySet(FOOTPRINT self, SHAPE_POLY_SET aBuffer, PCB_LAYER_ID aLayer, int aClearance, int aError, ERROR_LOC aErrorLoc, bool aIncludeText=True, bool aIncludeShapes=True, bool aIncludePrivateItems=False)

Definition at line 23516 of file pcbnew.py.

◆ TransformFPTextToPolySet()

pcbnew.FOOTPRINT.TransformFPTextToPolySet	(	self,
		aBuffer,
		aLayer,
		aClearance,
		aError,
		aErrorLoc )

TransformFPTextToPolySet(FOOTPRINT self, SHAPE_POLY_SET aBuffer, PCB_LAYER_ID aLayer, int aClearance, int aError, ERROR_LOC aErrorLoc)

Definition at line 23520 of file pcbnew.py.

◆ TransformPadsToPolySet()

pcbnew.FOOTPRINT.TransformPadsToPolySet	(	self,
		aBuffer,
		aLayer,
		aClearance,
		aMaxError,
		aErrorLoc )

TransformPadsToPolySet(FOOTPRINT self, SHAPE_POLY_SET aBuffer, PCB_LAYER_ID aLayer, int aClearance, int aMaxError, ERROR_LOC aErrorLoc)

Definition at line 23512 of file pcbnew.py.

◆ Value()

pcbnew.FOOTPRINT.Value	(		self,
		*	args )

    Value(FOOTPRINT self) -> PCB_FIELD
    Value(FOOTPRINT self) -> PCB_FIELD

Definition at line 23579 of file pcbnew.py.

◆ ViewGetLOD()

pcbnew.FOOTPRINT.ViewGetLOD	(	self,
		aLayer,
		aView )

ViewGetLOD(FOOTPRINT self, int aLayer, KIGFX::VIEW const * aView) -> double

Definition at line 23799 of file pcbnew.py.

◆ Zones()

pcbnew.FOOTPRINT.Zones	(		self,
		*	args )

    Zones(FOOTPRINT self) -> ZONES
    Zones(FOOTPRINT self) -> ZONES

Definition at line 23173 of file pcbnew.py.

Property Documentation

◆ thisown

pcbnew.FOOTPRINT.thisown = property(lambda x: x.this.own(), lambda x, v: x.this.own(v), doc="The membership flag")

static

Definition at line 23087 of file pcbnew.py.

The documentation for this class was generated from the following file:

pcbnew.py

Public Member Functions

Static Public Member Functions

Properties

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ __init__()

Member Function Documentation

◆ __eq__()

◆ Add3DModel()

◆ AddNative()

◆ AddNetTiePadGroup()

◆ AddVariant()

◆ AllowMissingCourtyard()

◆ AllowSolderMaskBridges()

◆ ApplyDefaultSettings()

◆ AutoPositionFields()

◆ BuildCourtyardCaches()

◆ BuildNetTieCache()

◆ CheckClippedSilk()

◆ CheckFootprintAttributes()

◆ CheckNetTiePadGroups()

◆ CheckNetTies()

◆ CheckPads()

◆ CheckShortingPads()

◆ ClassOf()

◆ ClearAllNets()

◆ ClearNetTiePadGroups()

◆ ClearTransientComponentClassNames()

◆ CoverageRatio()

◆ DeleteVariant()

◆ Deserialize()

◆ Duplicate()

◆ DuplicateItem()

◆ EmbedFonts()

◆ FindPadByNumber()

◆ FixUpPadsForBoard()

◆ FixUuids()

◆ FootprintNeedsUpdate()

◆ GetArea()

◆ GetAttributes()

◆ GetBoundingBox()

◆ GetBoundingHull()

◆ GetCachedCourtyard()

◆ GetClass()

◆ GetClearanceOverrides()

◆ GetComponentClass()

◆ GetComponentClassAsString()

◆ GetContextualTextVars()

◆ GetCourtyard()

◆ GetCoverageArea()

◆ GetDesc()

◆ GetDNPForVariant()

◆ GetDuplicatePadNumbersAreJumpers()

◆ GetEffectiveShape()

◆ GetEmbeddedFiles()

◆ GetExcludedFromBOMForVariant()

◆ GetExcludedFromPosFilesForVariant()

◆ GetField()

◆ GetFields()

◆ GetFieldShownText()

◆ GetFieldsShownText()

◆ GetFieldsText()

◆ GetFieldText()

◆ GetFieldValueForVariant()

◆ GetFileFormatVersionAtLoad()

◆ GetFilters()

◆ GetFlag()

◆ GetFonts()

◆ GetFPID()

◆ GetFPIDAsString()

◆ GetFpPadsLocalBbox()

◆ GetInitialComments()

◆ GetJumperPadGroup()

◆ GetKeywords()

◆ GetLayerBoundingBox()

◆ GetLIB_ID()

◆ GetLibDescription()

◆ GetLibNickname()

◆ GetLikelyAttribute()

◆ init()

◆ eq()
